Your machine: CLOD SEPARATOR CS 150 CS 150 modify ▸

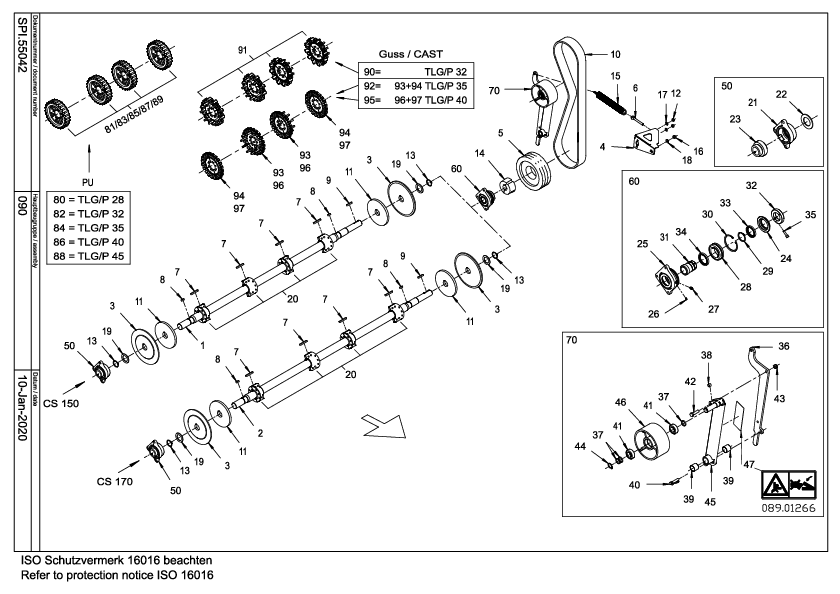

Subassembly drawing
▸ Selected assembly group:
Selected subassembly
Subassembly parts
INTAKE WEB SHAFT MULTIWEB-150
Quantity in assembly group:
1 Piece / Pos. 1
INTAKE WEB SHAFT DM55 MWEB170
Quantity in assembly group:
1 Piece / Pos. 2
GUIDE FLANGE
Quantity in assembly group:
2 Piece / Pos. 3
BRACKET
Quantity in assembly group:
1 Piece / Pos. 4
PULLEY 3V SPCX250
Quantity in assembly group:
1 Piece / Pos. 5
EYE BOLT M12X100
Quantity in assembly group:
1 Piece / Pos. 6
FEATHER KEY A 12X8X70 DIN6885
Quantity in assembly group:
4 Piece / Pos. 7
FEATHER KEY A 12X8X25 DIN6885
Quantity in assembly group:
2 Piece / Pos. 8
FEATHER KEY A 12X8X50 DIN6885
Quantity in assembly group:
1 Piece / Pos. 9
V-BELT 22X2430 LI-KEV SET-3
Quantity in assembly group:
1 Piece / Pos. 10
GUIDE FLANGE
Quantity in assembly group:
2 Piece / Pos. 11
HEXAGON NUT M10 DIN934-8-GAL
Quantity in assembly group:
2 Piece / Pos. 12
RETAINING RING AS 45X2,5 DIN47
Quantity in assembly group:
2 Piece / Pos. 13
TAPER-BUSH 3020-040
Quantity in assembly group:
1 Piece / Pos. 14
TENSION SPRING
Quantity in assembly group:
1 Piece / Pos. 15
HEXAGON NUT M12 DIN934-8-GAL
Quantity in assembly group:
1 Piece / Pos. 16
CONTACT WASHER FORM M 10-GAL
Quantity in assembly group:
2 Piece / Pos. 17
CONTACT DISC FORM M 12-GAL
Quantity in assembly group:
1 Piece / Pos. 18
END DISC
Quantity in assembly group:
2 Piece / Pos. 19
SPLIT ROLLER D55 SPLITTED
Quantity in assembly group:
4 Piece / Pos. 20
BEARING HOUSING
Quantity in assembly group:
1 Piece / Pos. 21
SEALING RING 84-50-4
Quantity in assembly group:
1 Piece / Pos. 22
BEARING YEL 209-2FF
Quantity in assembly group:
1 Piece / Pos. 23
BEARING COVER
Quantity in assembly group:
1 Piece / Pos. 24
FLANGE BEARING HOUSING
Quantity in assembly group:
1 Piece / Pos. 25
GRUB BOLT M6X8-DIN916 flZn
Quantity in assembly group:
1 Piece / Pos. 26
GREASE NIPPLE H1/S-M8X1 DIN714
Quantity in assembly group:
1 Piece / Pos. 27
SELF ALIGNING BEARING 22210
Quantity in assembly group:
1 Piece / Pos. 28
RETAINING RING A 50X2 DIN471
Quantity in assembly group:
1 Piece / Pos. 29
RETAINING RING J 90X3 DIN472
Quantity in assembly group:
1 Piece / Pos. 30
LOCKING SLEEVE
Quantity in assembly group:
1 Piece / Pos. 31
LOCKING RING
Quantity in assembly group:
1 Piece / Pos. 32
SHAFT SEALING RING 50X65X8
Quantity in assembly group:
1 Piece / Pos. 33
OIL SEAL 55X70X8
Quantity in assembly group:
1 Piece / Pos. 34
SHC-SCREW DIN912 M8X30-8 GAL
Quantity in assembly group:
1 Piece / Pos. 35
BRACKET
Quantity in assembly group:
1 Piece / Pos. 36
SPACER RING
Quantity in assembly group:
3 Piece / Pos. 37
SPACER TUBE
Quantity in assembly group:
1 Piece / Pos. 38
PLAIN BEARING BUSH 303430
Quantity in assembly group:
2 Piece / Pos. 39
LINCH PIN 11
Quantity in assembly group:
1 Piece / Pos. 40
BALL BEARING 6205-2RS
Quantity in assembly group:
2 Piece / Pos. 41
HEX BOLT M12X45-DIN931-8.8-G
Quantity in assembly group:
1 Piece / Pos. 42
NYLOC NUT DIN985-M12-8-GAL
Quantity in assembly group:
1 Piece / Pos. 43
RETAINING RING A 25X2 DIN471
Quantity in assembly group:
1 Piece / Pos. 44
CLAMPING LEVER
Quantity in assembly group:
1 Piece / Pos. 45
ROLLER DM175 WD.88
Quantity in assembly group:
1 Piece / Pos. 46
089.01266 WARNING SYM
Quantity in assembly group:
1 Piece / Pos. 47
BEARING CPTE B45
Quantity in assembly group:
1 Piece / Pos. 50
BEARING CPTE D40
Quantity in assembly group:
1 Piece / Pos. 60
CLAMPING LEVER
Quantity in assembly group:
1 Piece / Pos. 70
DRIVE PULLEY PUMP PITCH 28
Quantity in assembly group:
1 Piece / Pos. 80
DRIVE ROLLER 28MM
Quantity in assembly group:
4 Piece / Pos. 81
DRIVE PULLEY PUMP PITCH 32
Quantity in assembly group:
1 Piece / Pos. 82
DRIVE ROLLER 32MM/T22
Quantity in assembly group:
4 Piece / Pos. 83
DRIVE PULLEYS PUMP PITCH35
Quantity in assembly group:
1 Piece / Pos. 84
DRIVE ROLLER 35MM/T20
Quantity in assembly group:
4 Piece / Pos. 85
DRIVE PULLEYS PUMP PITCH40
Quantity in assembly group:
1 Piece / Pos. 86
DRIVE ROLLER 40MM/T18
Quantity in assembly group:
4 Piece / Pos. 87
DRIVE PULLEYS PUMP PITCH45
Quantity in assembly group:
1 Piece / Pos. 88
DRIVE ROLLER 45MM/T16
Quantity in assembly group:
4 Piece / Pos. 89
DRIVE PULLEYS CASTING PITCH32
Quantity in assembly group:
1 Piece / Pos. 90
UNDERDRIVE DISC PITCH 32
Quantity in assembly group:
4 Piece / Pos. 91
DRIVE PULLEYS CASTING PITCH35
Quantity in assembly group:
1 Piece / Pos. 92
UNDERDRIVE DISC PITCH 35
Quantity in assembly group:
2 Piece / Pos. 93
UNDERDRIVE DISC PITCH 35
Quantity in assembly group:
2 Piece / Pos. 94
DRIVE PULLEYS CASTING PITCH40
Quantity in assembly group:
1 Piece / Pos. 95
UNDERDRIVE DISC PITCH 40
Quantity in assembly group:
2 Piece / Pos. 96
UNDERDRIVE DISC PITCH 40
Quantity in assembly group:
2 Piece / Pos. 97
