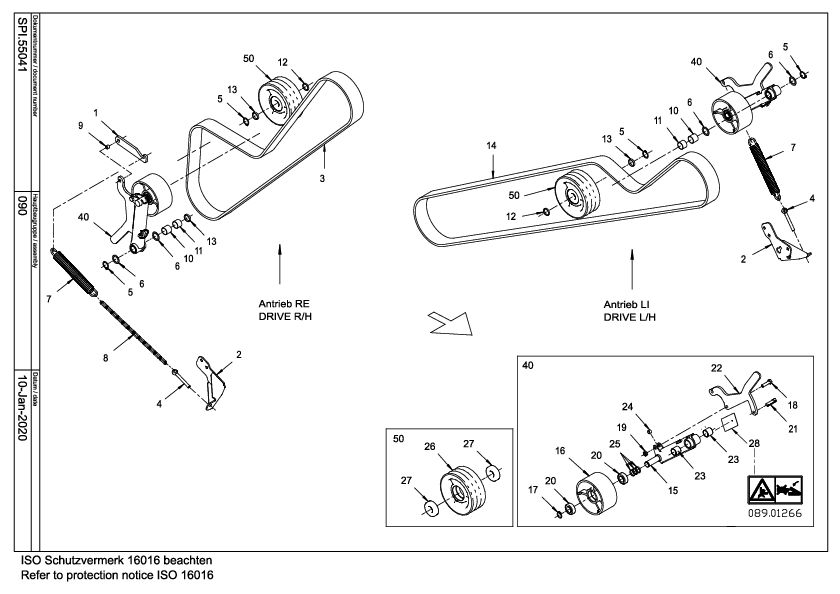

Parts by subassemblies

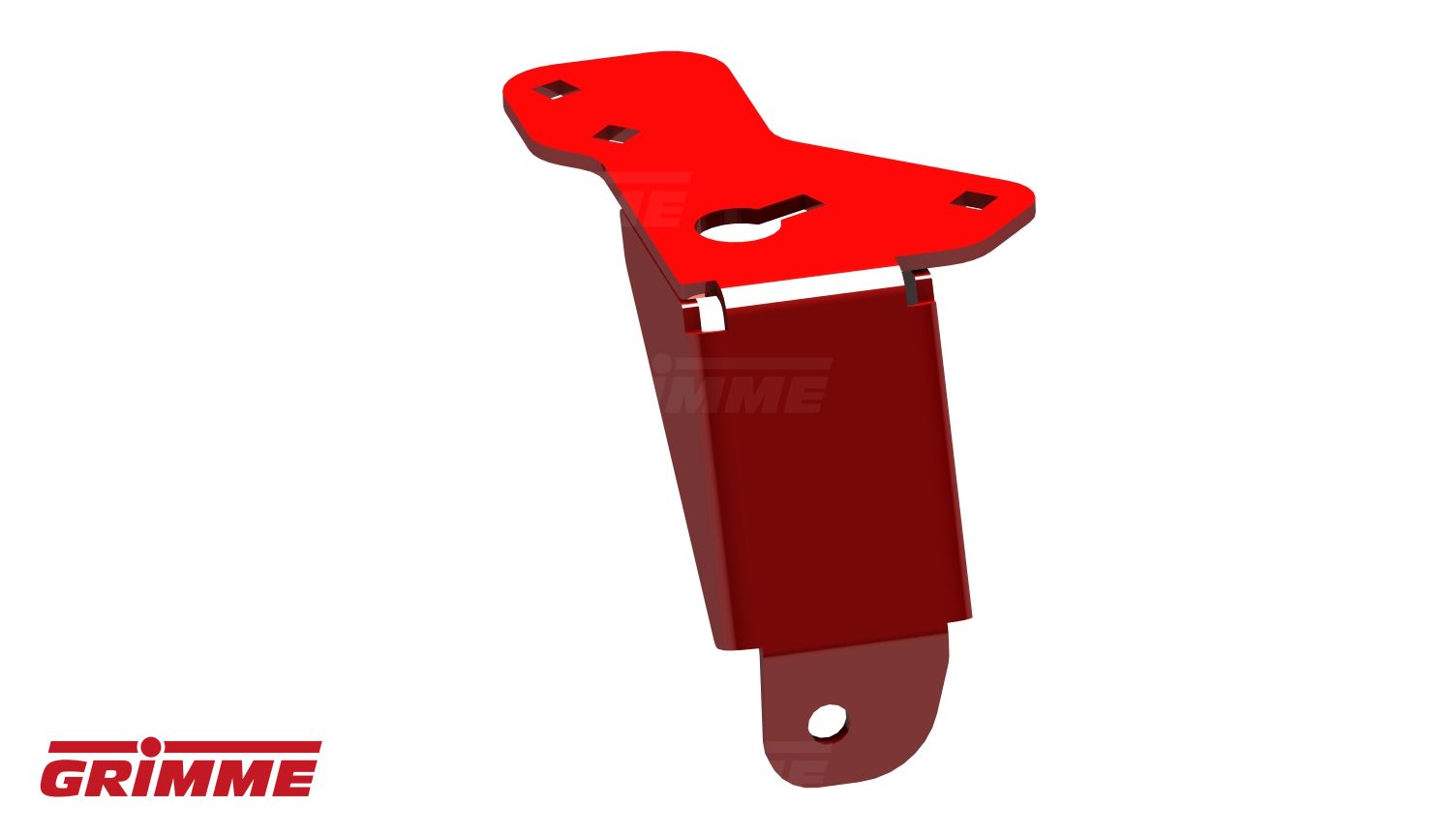

BRACKET

Quantity in assembly group: 1 Piece / Pos. 1

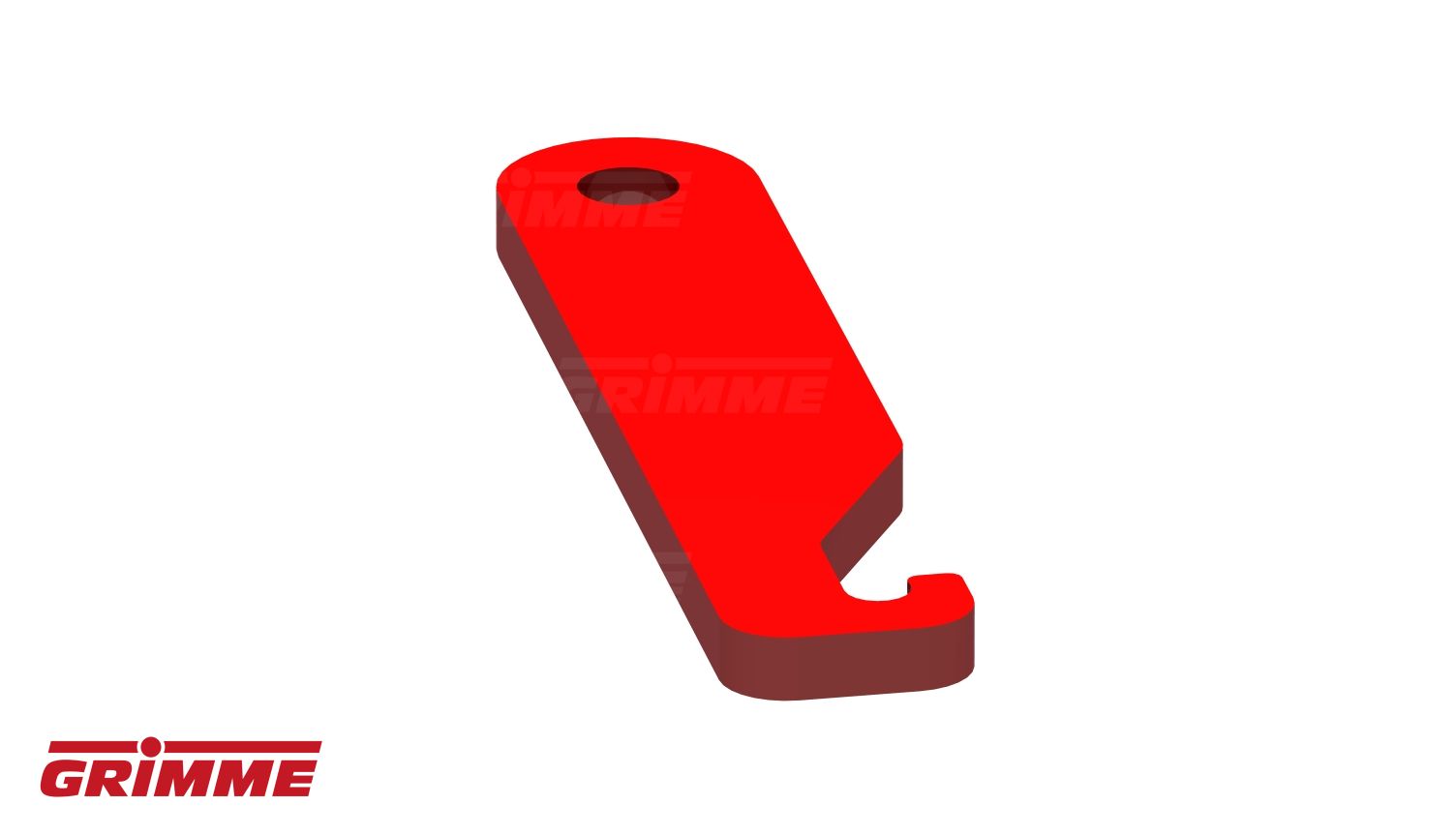

BRACKET

Quantity in assembly group: 2 Piece / Pos. 2

V-BELT 22X3410 LI-KEV SET-3

Quantity in assembly group: 1 Piece / Pos. 3

EYE BOLT M12X100

Quantity in assembly group: 2 Piece / Pos. 4

RETAINING RING AS 30X2 DIN471

Quantity in assembly group: 4 Piece / Pos. 5

SUPPORT DISC SS 30X42X2,5 DIN9

Quantity in assembly group: 4 Piece / Pos. 6

TENSION SPRING

Quantity in assembly group: 2 Piece / Pos. 7

LC 12LINKS C5X36 DIN763-BRIGHT

Quantity in assembly group: 1 Piece / Pos. 8

SPACING PIECE

Quantity in assembly group: 1 Piece / Pos. 9

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 10

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 11

SPACER RING

Quantity in assembly group: 2 Piece / Pos. 12

SPACER TUBE

Quantity in assembly group: 3 Piece / Pos. 13

V-BELT 22X4730 LI-KEV SET-3

Quantity in assembly group: 1 Piece / Pos. 14

BELT TENSIONER ARM

Quantity in assembly group: 2 Piece / Pos. 15

ROLLER DM175 WD.88

Quantity in assembly group: 2 Piece / Pos. 16

RETAINING RING A 25X2 DIN471

Quantity in assembly group: 2 Piece / Pos. 17

HEX BOLT M12X45-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 18

NYLOC NUT DIN985-M12-8-GAL

Quantity in assembly group: 2 Piece / Pos. 19

BALL BEARING 6205-2RS

Quantity in assembly group: 4 Piece / Pos. 20

LINCH PIN 11

Quantity in assembly group: 2 Piece / Pos. 21

LEVER

Quantity in assembly group: 2 Piece / Pos. 22

PLAIN BEARING BUSH 303430

Quantity in assembly group: 4 Piece / Pos. 23

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 24

SPACER RING

Quantity in assembly group: 6 Piece / Pos. 25

PULLEY

Quantity in assembly group: 2 Piece / Pos. 26

BEARING 6306-2RS C3

Quantity in assembly group: 4 Piece / Pos. 27

089.01266 WARNING SYM

Quantity in assembly group: 1 Piece / Pos. 28

BELT TENSIONER CPTE

Quantity in assembly group: 2 Piece / Pos. 40

IDLER PULLEY C/W BEARINGS

Quantity in assembly group: 2 Piece / Pos. 50
