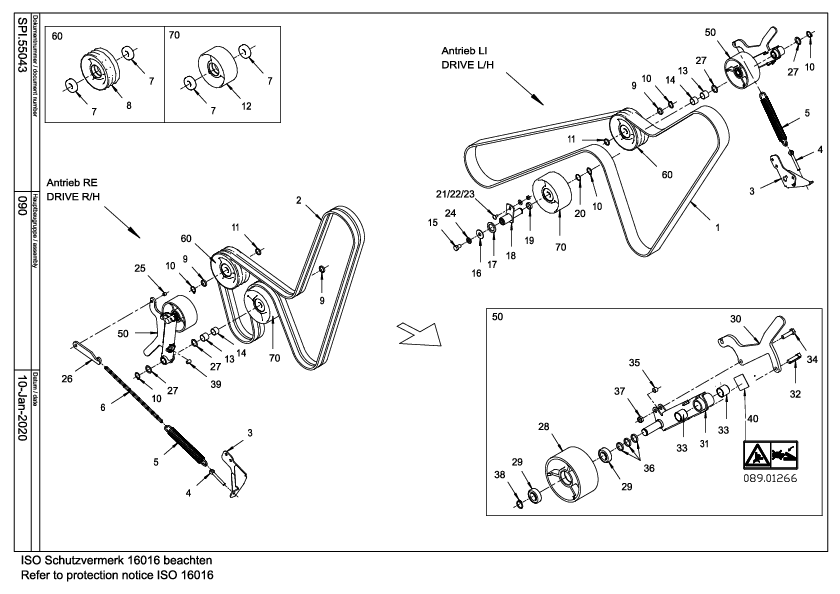

Parts by subassemblies

V-BELT 22X5480L/H- SET=3

Quantity in assembly group: 1 Piece / Pos. 1

KRM 22X4250 LI AUSF23-SET=2

Quantity in assembly group: 1 Piece / Pos. 2

BRACKET

Quantity in assembly group: 2 Piece / Pos. 3

EYE BOLT M12X100

Quantity in assembly group: 2 Piece / Pos. 4

TENSION SPRING

Quantity in assembly group: 2 Piece / Pos. 5

LC 12LINKS C5X36 DIN763-BRIGHT

Quantity in assembly group: 1 Piece / Pos. 6

BEARING 6306-2RS C3

Quantity in assembly group: 8 Piece / Pos. 7

PULLEY

Quantity in assembly group: 2 Piece / Pos. 8

SPACER TUBE

Quantity in assembly group: 3 Piece / Pos. 9

RETAINING RING AS 30X2 DIN471

Quantity in assembly group: 5 Piece / Pos. 10

SPACER RING

Quantity in assembly group: 2 Piece / Pos. 11

ROLLER DM200 WD93

Quantity in assembly group: 2 Piece / Pos. 12

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 13

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 14

SET SCREW M16X25-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 15

DISC A 17 DIN9021-GAL

Quantity in assembly group: 1 Piece / Pos. 16

DISC

Quantity in assembly group: 1 Piece / Pos. 17

SPINDLE

Quantity in assembly group: 1 Piece / Pos. 18

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 19

COMPENSATING RING

Quantity in assembly group: 1 Piece / Pos. 20

MH-SCREW wSS M10X20 603-8.8

Quantity in assembly group: 1 Piece / Pos. 21

HEXAGON NUT M10 DIN934-8-GAL

Quantity in assembly group: 1 Piece / Pos. 22

CONTACT WASHER FORM B 10-GAL

Quantity in assembly group: 1 Piece / Pos. 23

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 1 Piece / Pos. 24

SPACING PIECE

Quantity in assembly group: 1 Piece / Pos. 25

BRACKET

Quantity in assembly group: 1 Piece / Pos. 26

SUPPORT DISC SS 30X42X2,5 DIN9

Quantity in assembly group: 4 Piece / Pos. 27

ROLLER DM175 WD.88

Quantity in assembly group: 2 Piece / Pos. 28

BALL BEARING 6205-2RS

Quantity in assembly group: 4 Piece / Pos. 29

LEVER

Quantity in assembly group: 2 Piece / Pos. 30

BELT TENSIONER ARM

Quantity in assembly group: 2 Piece / Pos. 31

LINCH PIN 11

Quantity in assembly group: 2 Piece / Pos. 32

PLAIN BEARING BUSH 303430

Quantity in assembly group: 4 Piece / Pos. 33

HEX BOLT M12X45-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 34

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 35

SPACER RING

Quantity in assembly group: 6 Piece / Pos. 36

NYLOC NUT DIN985-M12-8-GAL

Quantity in assembly group: 2 Piece / Pos. 37

RETAINING RING A 25X2 DIN471

Quantity in assembly group: 2 Piece / Pos. 38

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 39

089.01266 WARNING SYM

Quantity in assembly group: 1 Piece / Pos. 40

BELT TENSIONER CPTE

Quantity in assembly group: 2 Piece / Pos. 50

IDLER PULLEY C/W BEARINGS

Quantity in assembly group: 2 Piece / Pos. 60

IDLER PULLEY C/W BEARINGS

Quantity in assembly group: 2 Piece / Pos. 70
