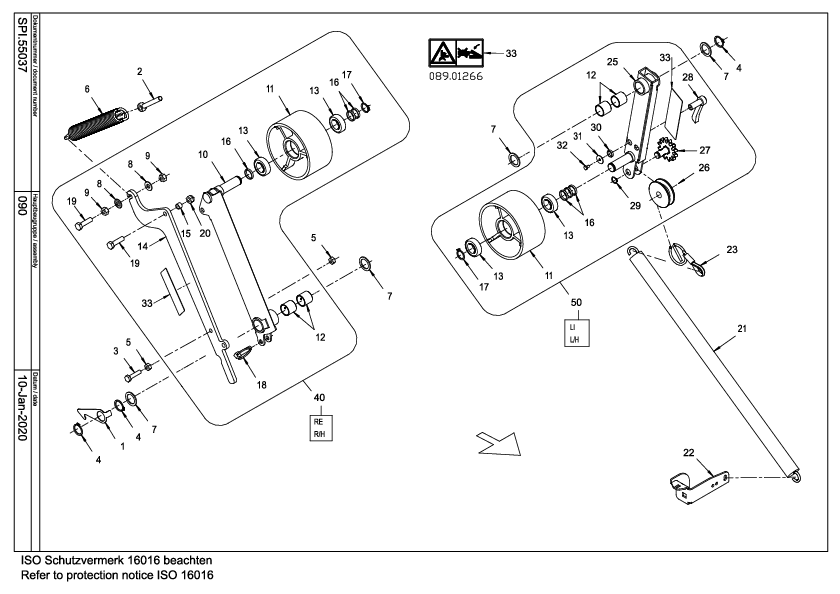

Parts by subassemblies

BRACKET

Quantity in assembly group: 1 Piece / Pos. 1

EYE BOLT M12X100

Quantity in assembly group: 1 Piece / Pos. 2

SET SCREW M10X45-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 3

RETAINING RING AS 30X2 DIN471

Quantity in assembly group: 3 Piece / Pos. 4

HEXAGON NUT M10 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 5

TENSION SPRING

Quantity in assembly group: 1 Piece / Pos. 6

SUPPORT DISC SS 30X42X2,5 DIN9

Quantity in assembly group: 4 Piece / Pos. 7

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 2 Piece / Pos. 8

HEXAGON NUT M12 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 9

TENSIONER ARM

Quantity in assembly group: 1 Piece / Pos. 10

ROLLER DM175 WD.88

Quantity in assembly group: 2 Piece / Pos. 11

PLAIN BEARING BUSH 303430

Quantity in assembly group: 4 Piece / Pos. 12

BALL BEARING 6205-2RS

Quantity in assembly group: 4 Piece / Pos. 13

BRACKET

Quantity in assembly group: 1 Piece / Pos. 14

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 15

SPACER RING

Quantity in assembly group: 6 Piece / Pos. 16

RETAINING RING A 25X2 DIN471

Quantity in assembly group: 2 Piece / Pos. 17

LINCH PIN 11

Quantity in assembly group: 1 Piece / Pos. 18

HEX BOLT M12X45-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 19

NYLOC NUT DIN985-M12-8-GAL

Quantity in assembly group: 1 Piece / Pos. 20

SPRING

Quantity in assembly group: 1 Piece / Pos. 21

BRACKET

Quantity in assembly group: 1 Piece / Pos. 22

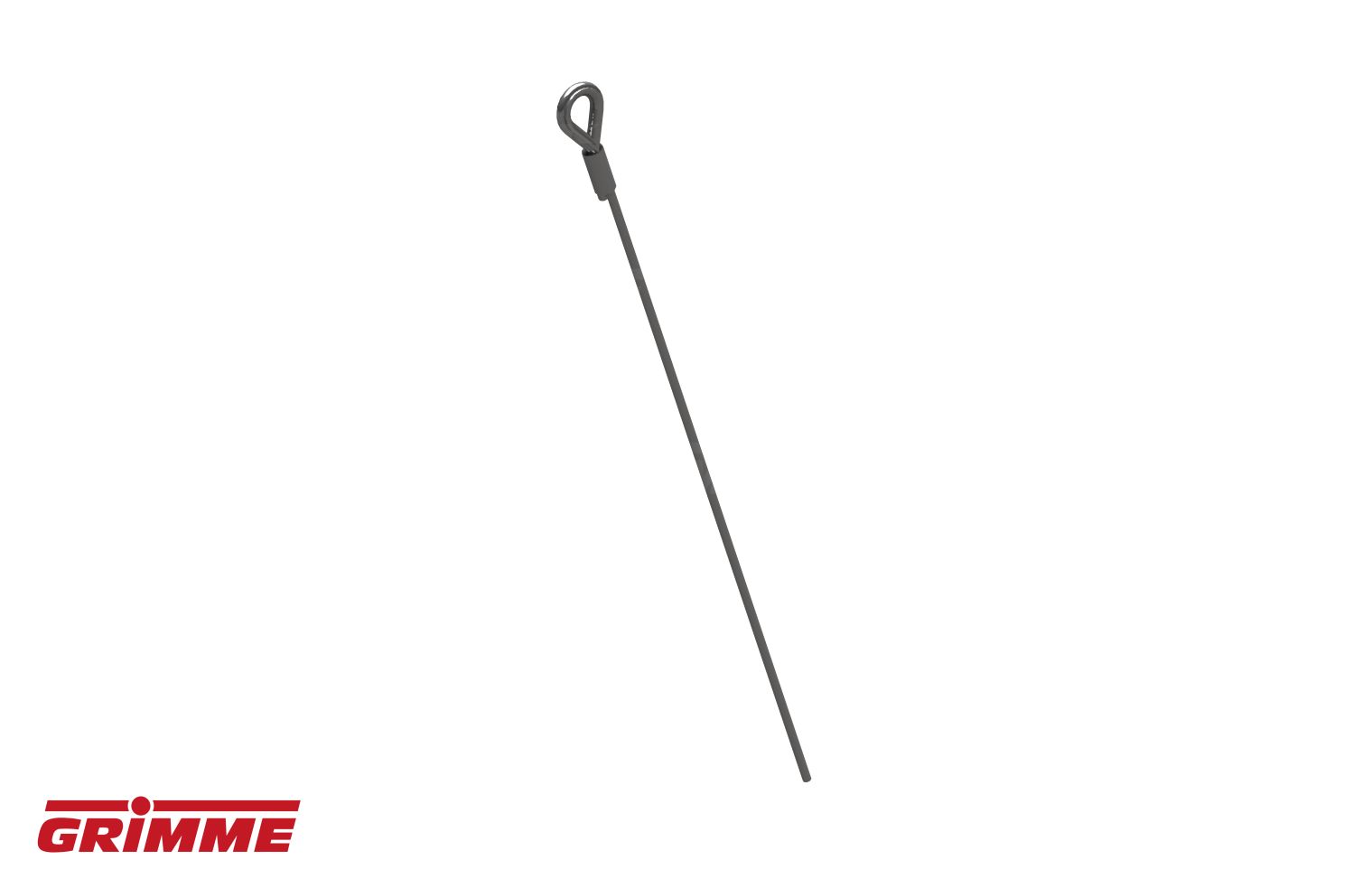

STEEL CABLE

Quantity in assembly group: 1 Piece / Pos. 23

CLAMPING LEVER

Quantity in assembly group: 1 Piece / Pos. 25

WIRE ROPE PULLEY

Quantity in assembly group: 1 Piece / Pos. 26

LOCKING GEAR

Quantity in assembly group: 1 Piece / Pos. 27

ANTI-ROLL BLOCK REAR

Quantity in assembly group: 1 Piece / Pos. 28

LOCKING RING A 18X1,2 471 OE

Quantity in assembly group: 1 Piece / Pos. 29

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 30

FLAT WASHER 6,4X25X1,5

Quantity in assembly group: 1 Piece / Pos. 31

SET SCREW M6X10-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 32

089.01266 WARNING SYM

Quantity in assembly group: 1 Piece / Pos. 33

CLAMPING LEVER

Quantity in assembly group: 1 Piece / Pos. 40

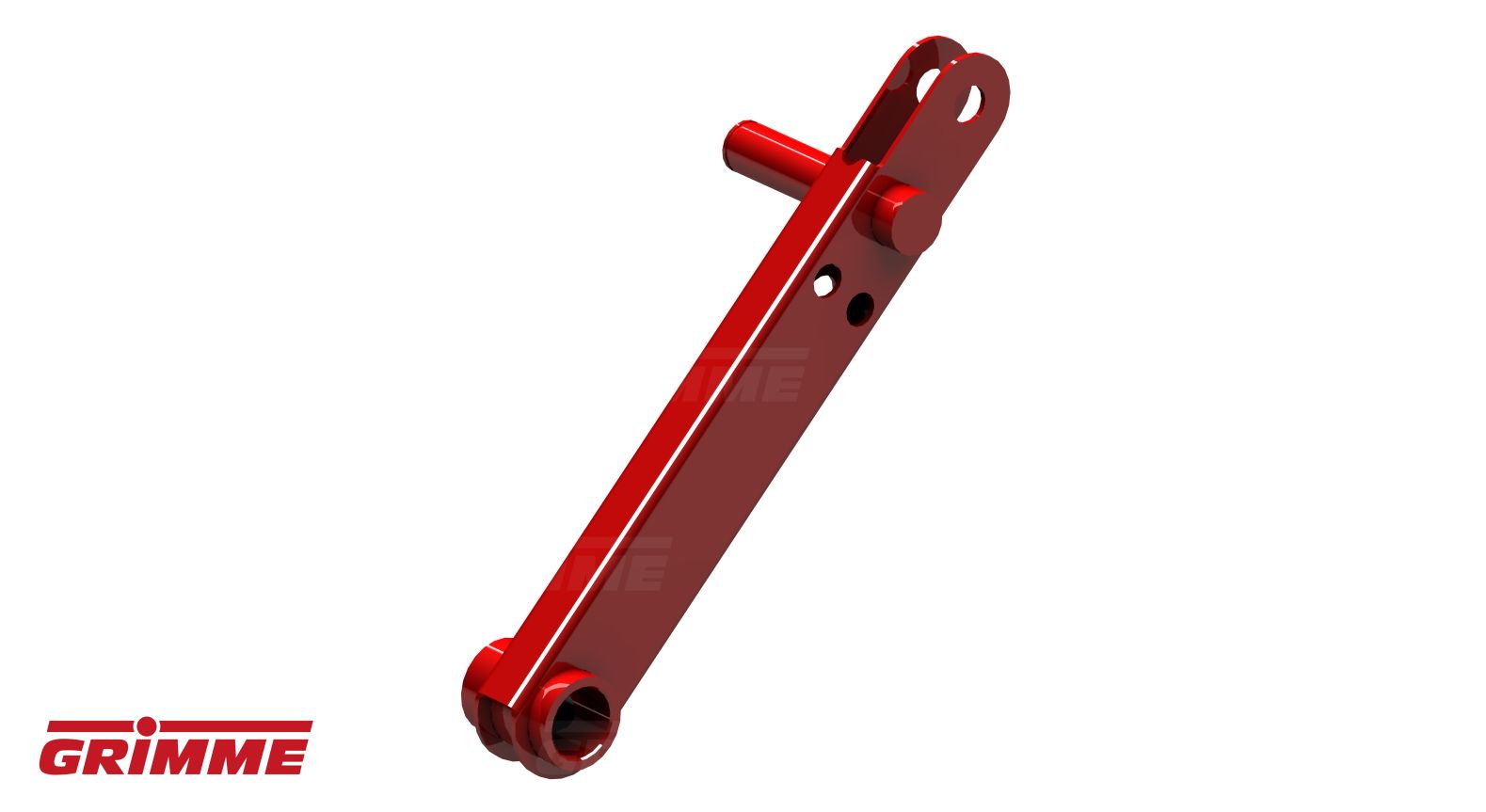

TENSION ARM

Quantity in assembly group: 1 Piece / Pos. 50
