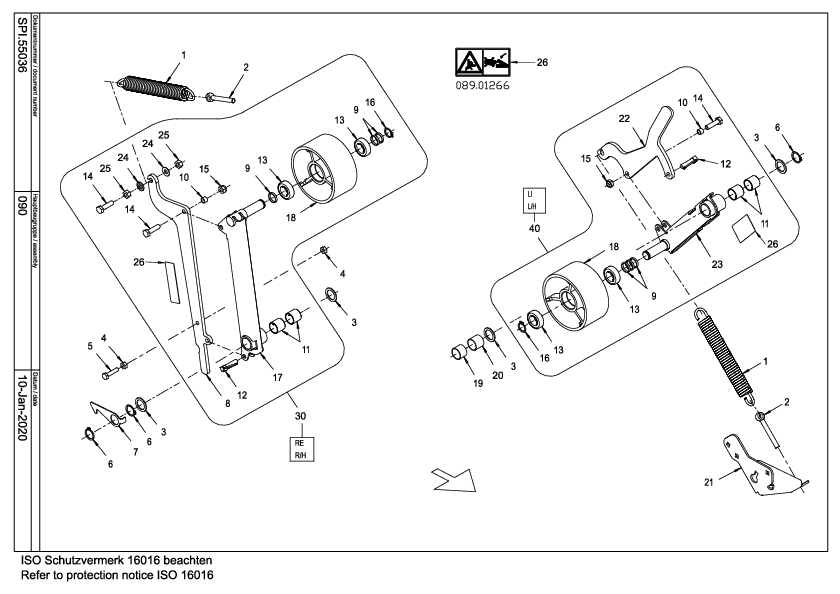

Parts by subassemblies

TENSION SPRING

Quantity in assembly group: 2 Piece / Pos. 1

EYE BOLT M12X100

Quantity in assembly group: 2 Piece / Pos. 2

SUPPORT DISC SS 30X42X2,5 DIN9

Quantity in assembly group: 4 Piece / Pos. 3

HEXAGON NUT M10 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 4

SET SCREW M10X45-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 5

RETAINING RING AS 30X2 DIN471

Quantity in assembly group: 3 Piece / Pos. 6

BRACKET

Quantity in assembly group: 1 Piece / Pos. 7

BRACKET

Quantity in assembly group: 1 Piece / Pos. 8

SPACER RING

Quantity in assembly group: 6 Piece / Pos. 9

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 10

PLAIN BEARING BUSH 303430

Quantity in assembly group: 4 Piece / Pos. 11

LINCH PIN 8

Quantity in assembly group: 2 Piece / Pos. 12

BALL BEARING 6205-2RS

Quantity in assembly group: 4 Piece / Pos. 13

HEX BOLT M12X45-DIN931-8.8-G

Quantity in assembly group: 3 Piece / Pos. 14

NYLOC NUT DIN985-M12-8-GAL

Quantity in assembly group: 2 Piece / Pos. 15

RETAINING RING A 25X2 DIN471

Quantity in assembly group: 2 Piece / Pos. 16

TENSIONER ARM

Quantity in assembly group: 1 Piece / Pos. 17

ROLLER DM175 WD.88

Quantity in assembly group: 2 Piece / Pos. 18

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 19

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 20

BRACKET

Quantity in assembly group: 1 Piece / Pos. 21

LEVER

Quantity in assembly group: 1 Piece / Pos. 22

BELT TENSIONER ARM

Quantity in assembly group: 1 Piece / Pos. 23

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 2 Piece / Pos. 24

HEXAGON NUT M12 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 25

089.01266 WARNING SYM

Quantity in assembly group: 1 Piece / Pos. 26

CLAMPING LEVER

Quantity in assembly group: 1 Piece / Pos. 30

BELT TENSIONER CPTE

Quantity in assembly group: 1 Piece / Pos. 40
