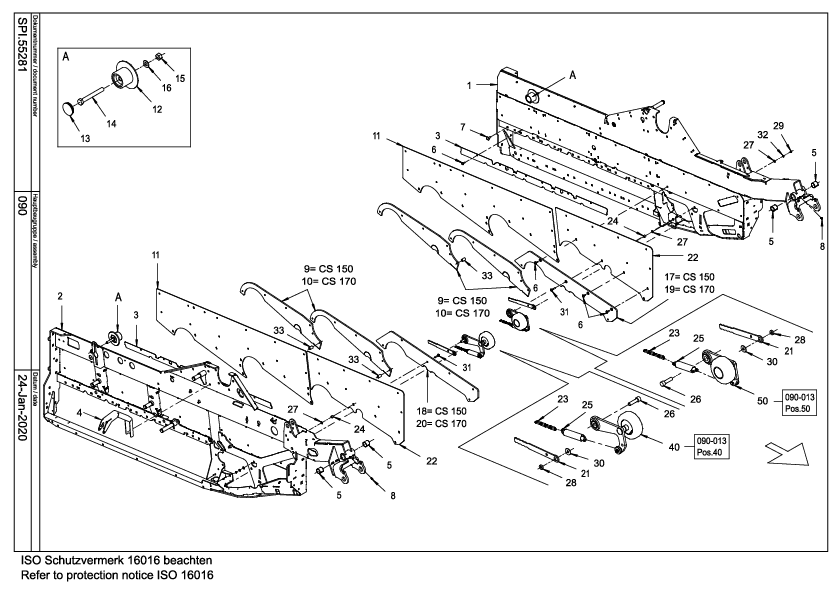

Parts by subassemblies

SIDE PART L/H

Quantity in assembly group: 1 Piece / Pos. 1

SIDE PART R/H

Quantity in assembly group: 1 Piece / Pos. 2

FIXING PLATE

Quantity in assembly group: 2 Piece / Pos. 3

BRACKET

Quantity in assembly group: 1 Piece / Pos. 4

PLAIN BEARING BUSH 404440

Quantity in assembly group: 4 Piece / Pos. 5

COACH BOLT M8X25-603-8.8-GAL

Quantity in assembly group: 4 Piece / Pos. 6

COACH BOLT M12X30-DIN603-8.8-G

Quantity in assembly group: 1 Piece / Pos. 7

GREASE NIPPLE H1/S-M8X1 DIN714

Quantity in assembly group: 2 Piece / Pos. 8

WEAR PLATE

Quantity in assembly group: 4 Piece / Pos. 9

WEAR PLATE

Quantity in assembly group: 4 Piece / Pos. 10

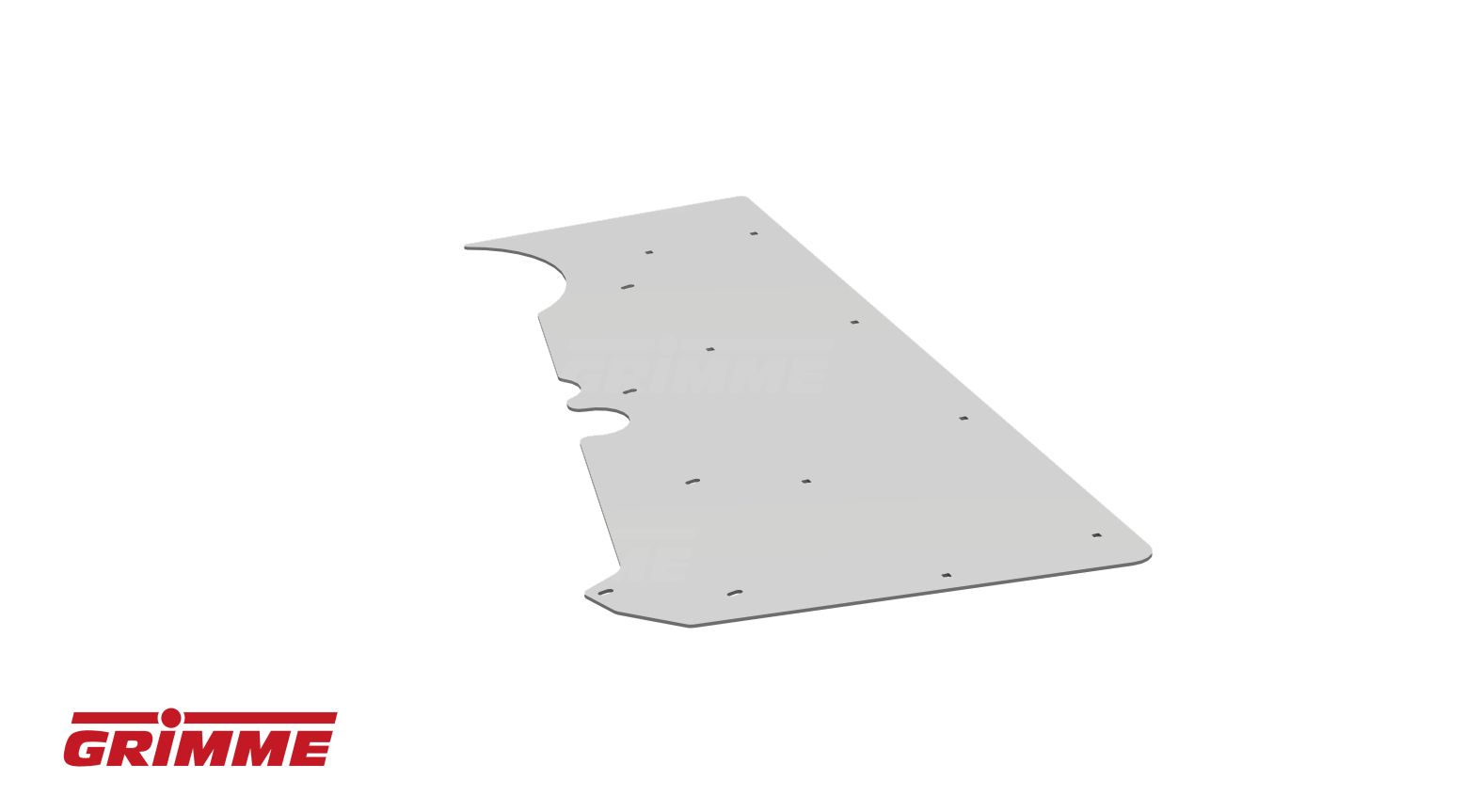

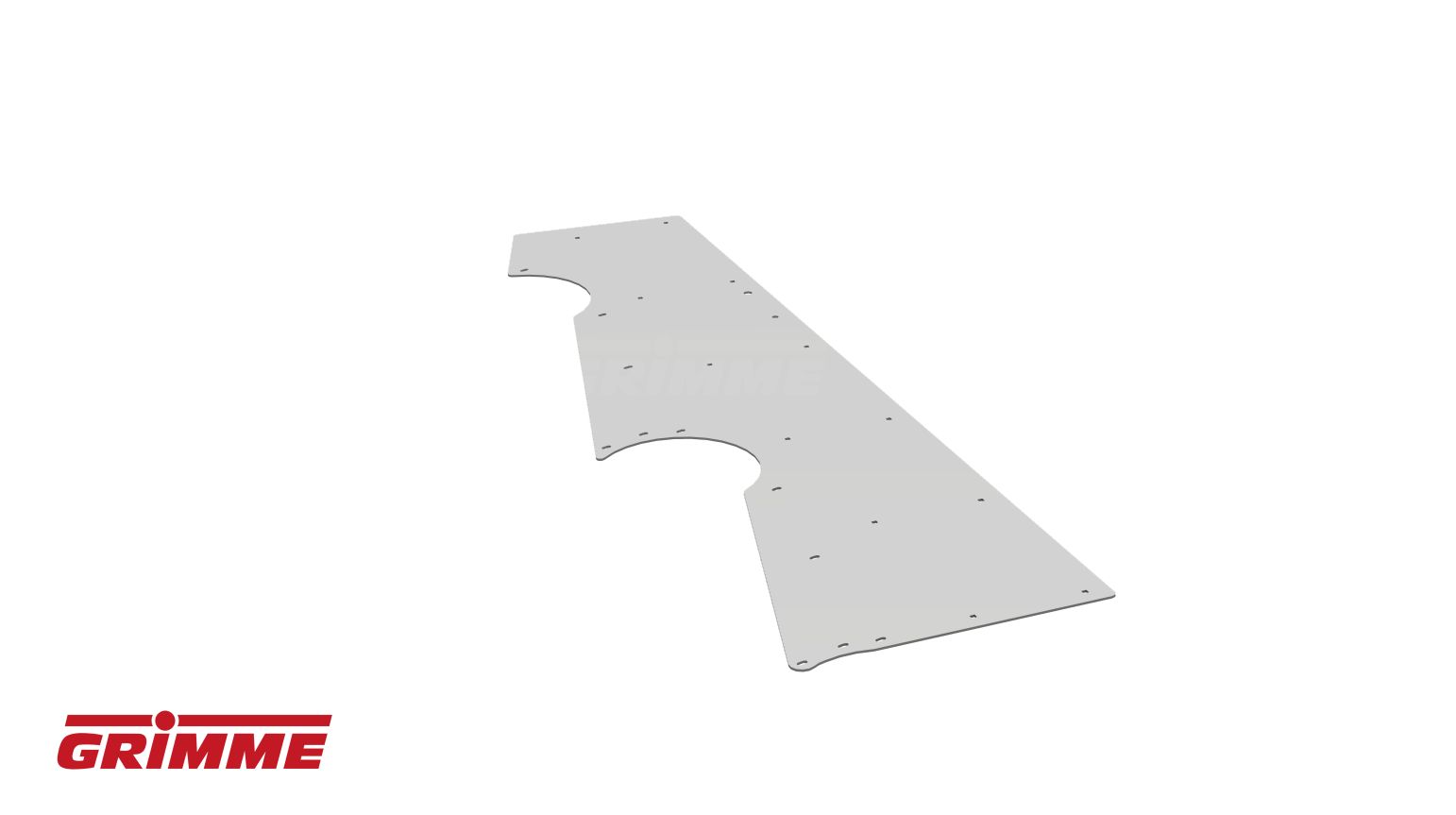

STAINLESS STEEL SIDE PLATE

Quantity in assembly group: 2 Piece / Pos. 11

FLANGED SUPPORT ROLLER D75

Quantity in assembly group: 2 Piece / Pos. 12

ROLLER CAP

Quantity in assembly group: 2 Piece / Pos. 13

HEX BOLT M16X130-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 14

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 15

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 2 Piece / Pos. 16

WEAR PLATE

Quantity in assembly group: 1 Piece / Pos. 17

PANEL R/H

Quantity in assembly group: 1 Piece / Pos. 18

WEAR PLATE

Quantity in assembly group: 1 Piece / Pos. 19

PANEL R/H

Quantity in assembly group: 1 Piece / Pos. 20

HANDLE

Quantity in assembly group: 2 Piece / Pos. 21

STAINLESS STEEL SIDE PLATE

Quantity in assembly group: 2 Piece / Pos. 22

LINK CHAIN-4 LINKS C5X36

Quantity in assembly group: 2 Piece / Pos. 23

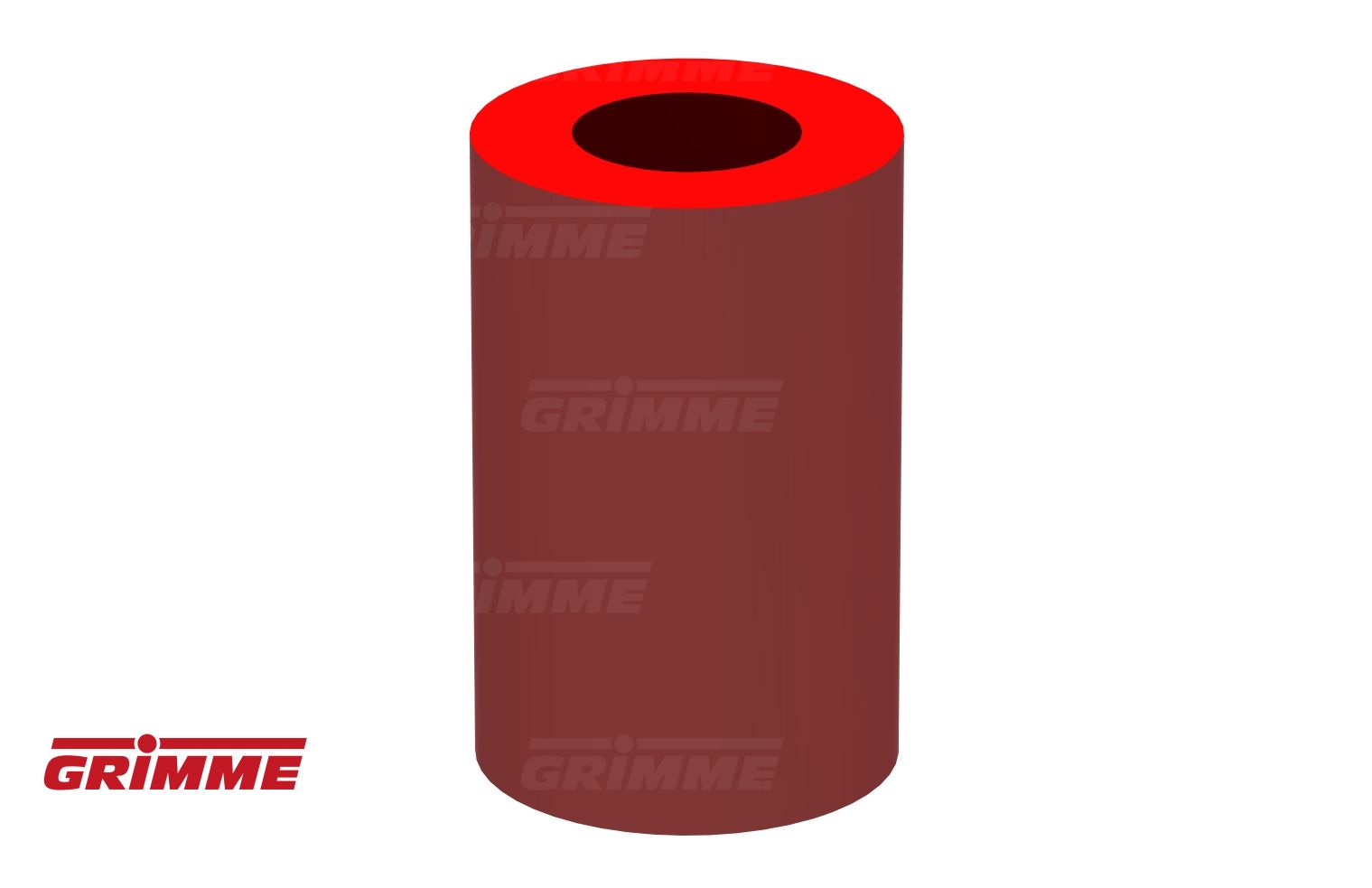

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 24

TENSION SPRING

Quantity in assembly group: 2 Piece / Pos. 25

SHC-SCREW DIN912M16X60-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 26

PLAIN WASHER 8.4X20X2 GAL

Quantity in assembly group: 10 Piece / Pos. 27

DISC

Quantity in assembly group: 2 Piece / Pos. 28

HEXAGON NUT M8 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 29

DISC A 13 DIN9021-GAL

Quantity in assembly group: 2 Piece / Pos. 30

COACH BOLT M8X45-DIN603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 31

CONTACT WASHER FORM M 8-GAL

Quantity in assembly group: 2 Piece / Pos. 32

DISTANCE PLATE

Quantity in assembly group: 3 Piece / Pos. 33

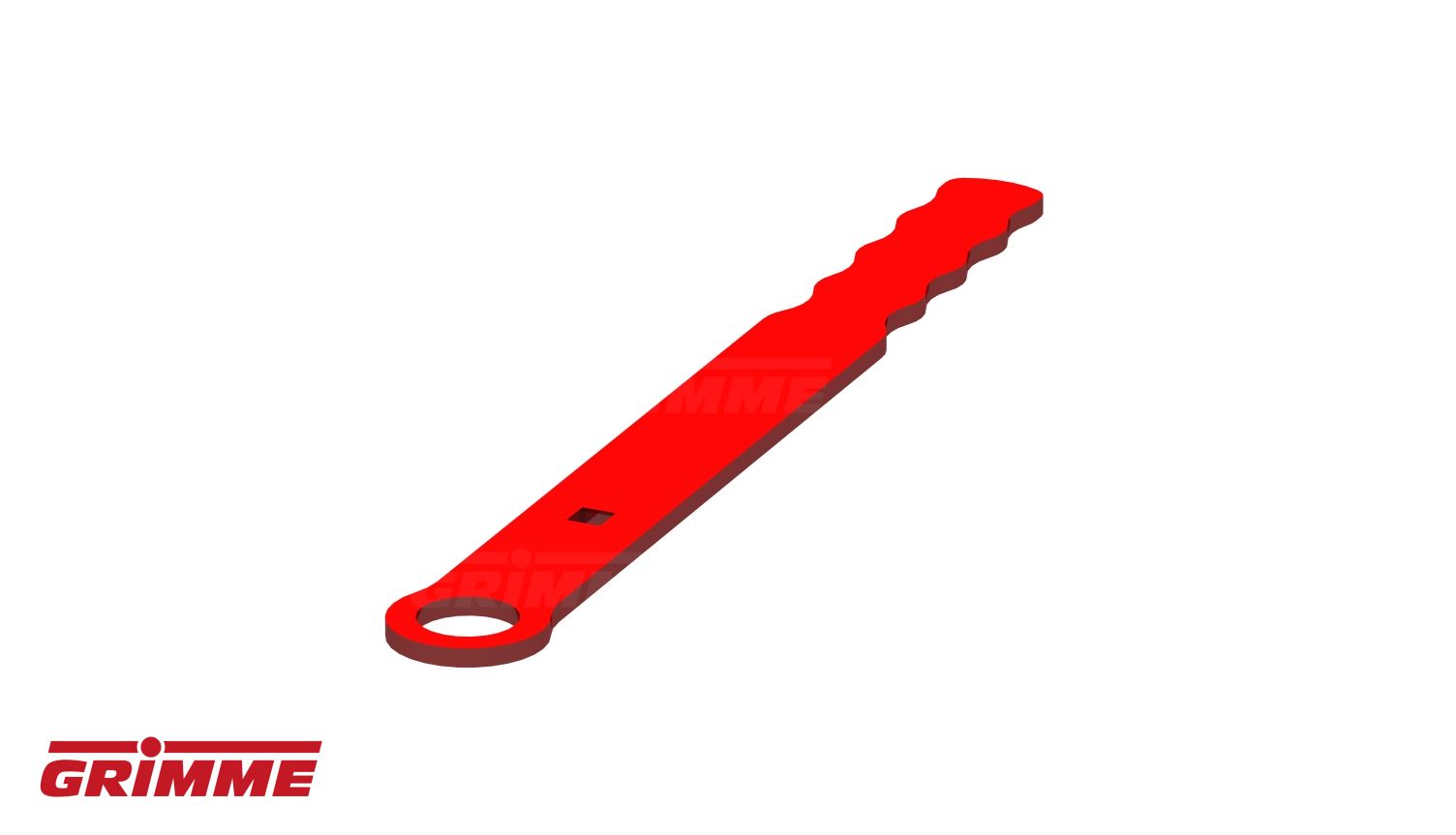

TENSION ARM R/H

Quantity in assembly group: 1 Piece / Pos. 40

TENSION ARM L/H

Quantity in assembly group: 1 Piece / Pos. 50
