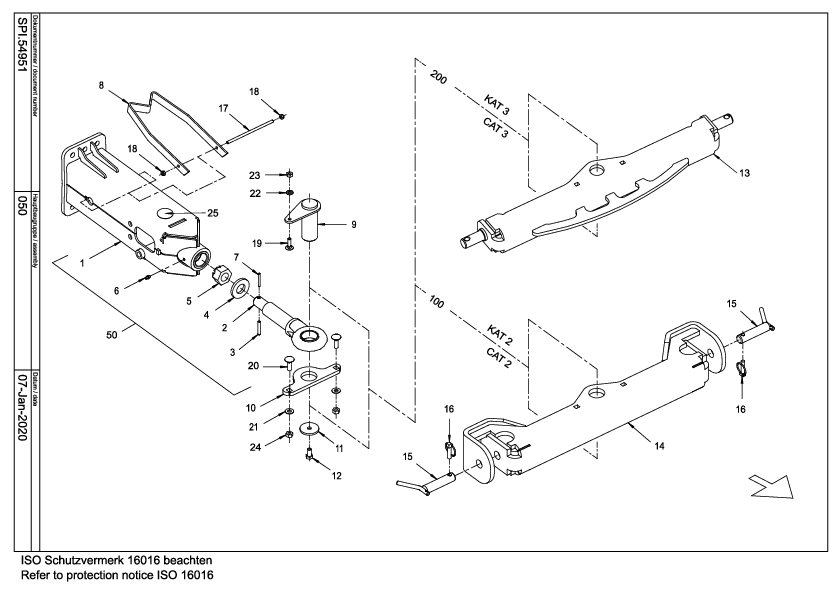

Parts by subassemblies

DRAWBAR

Quantity in assembly group: 1 Piece / Pos. 1

DRAWBAR EYE

Quantity in assembly group: 1 Piece / Pos. 2

ROLL PIN 8X50-DIN1481

Quantity in assembly group: 1 Piece / Pos. 3

WASHER

Quantity in assembly group: 1 Piece / Pos. 4

CASTELLATED NUT DIN935 M33X3,5

Quantity in assembly group: 1 Piece / Pos. 5

GREASE NIPPLE H1/S-M8X1 DIN714

Quantity in assembly group: 1 Piece / Pos. 6

ROLL PIN 5X50-DIN1481

Quantity in assembly group: 1 Piece / Pos. 7

PTO SUPPORT

Quantity in assembly group: 1 Piece / Pos. 8

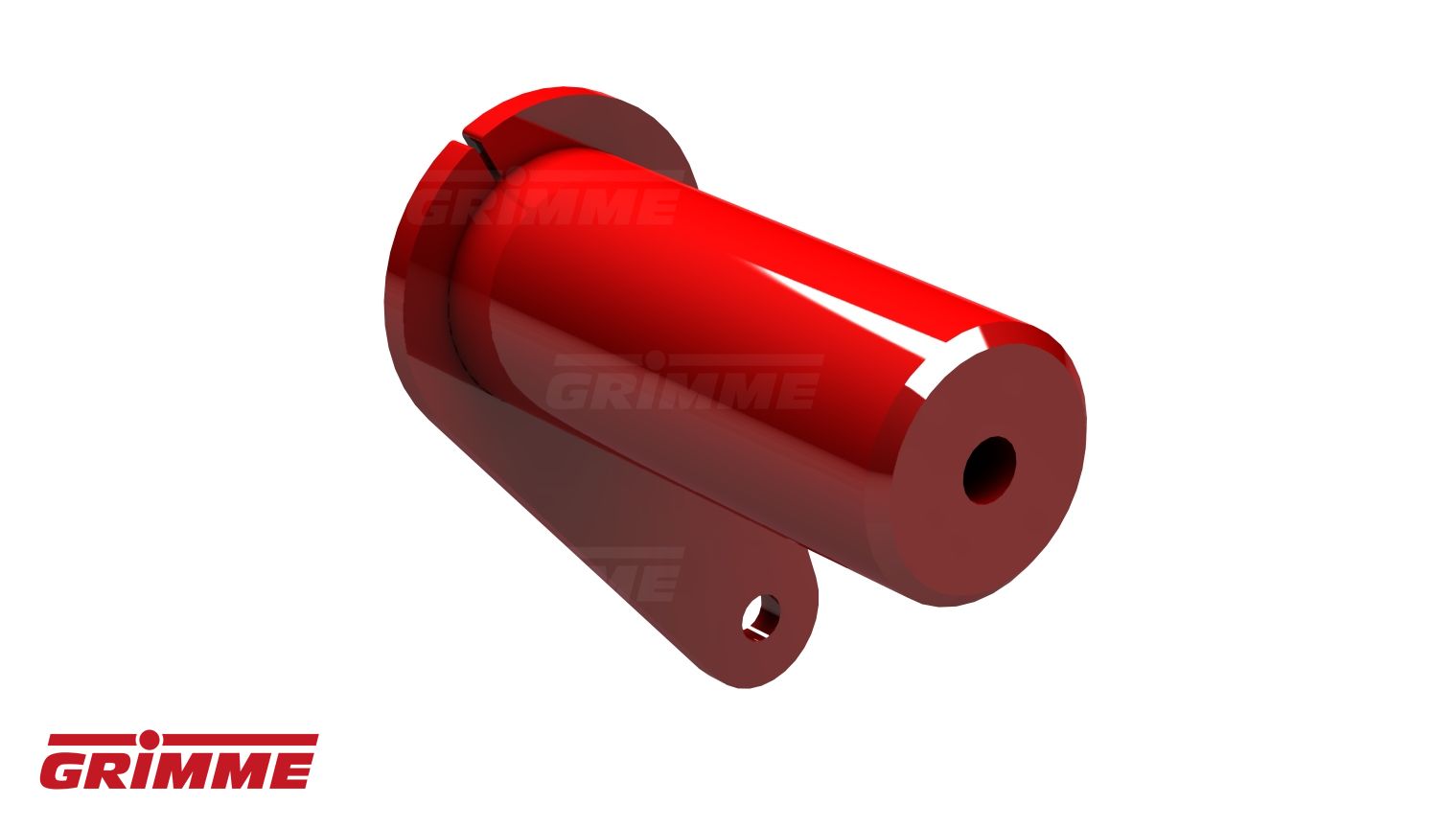

BOLT

Quantity in assembly group: 1 Piece / Pos. 9

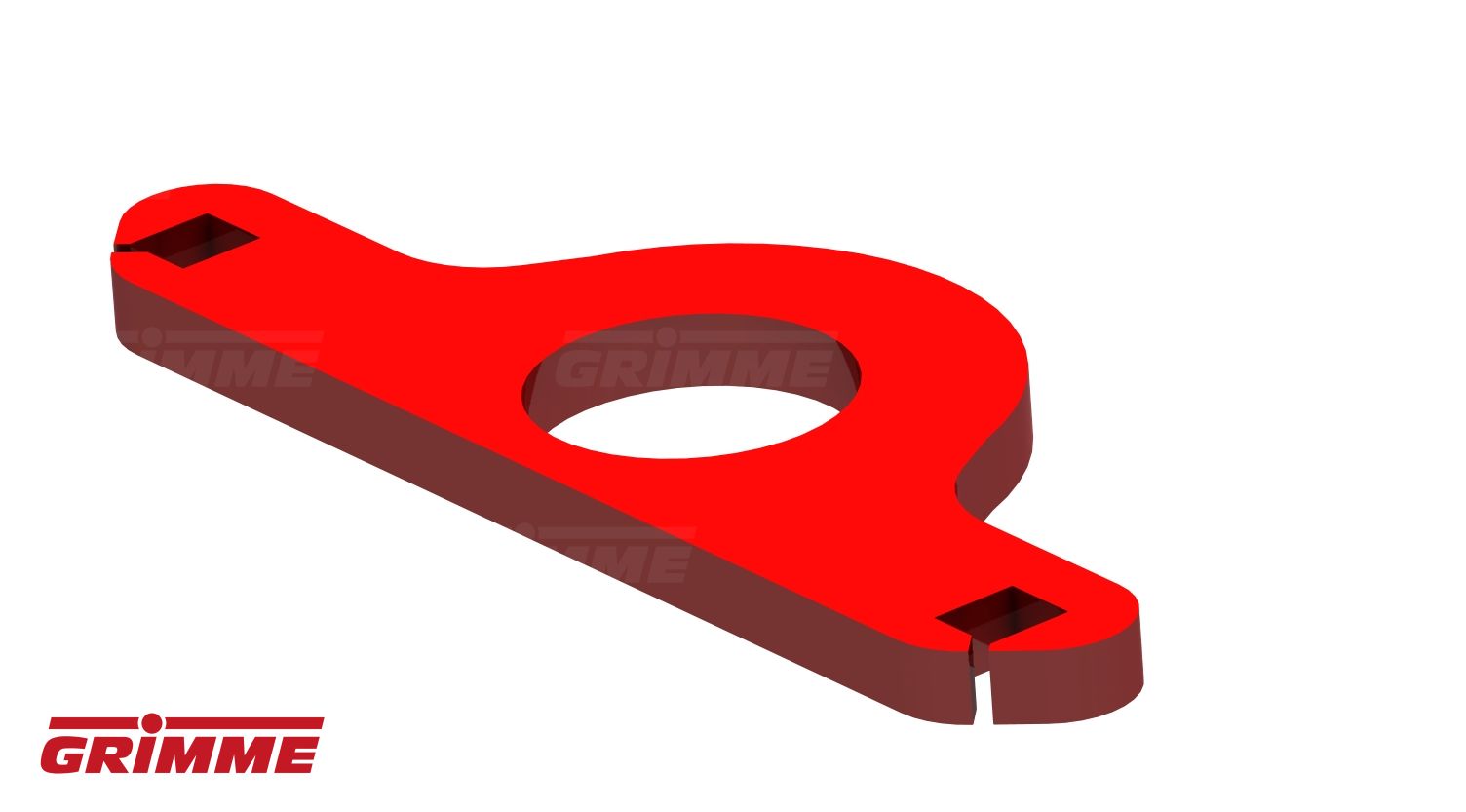

PLATE

Quantity in assembly group: 1 Piece / Pos. 10

WASHER 13X60X6

Quantity in assembly group: 1 Piece / Pos. 11

SET SCREW M12X25-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 12

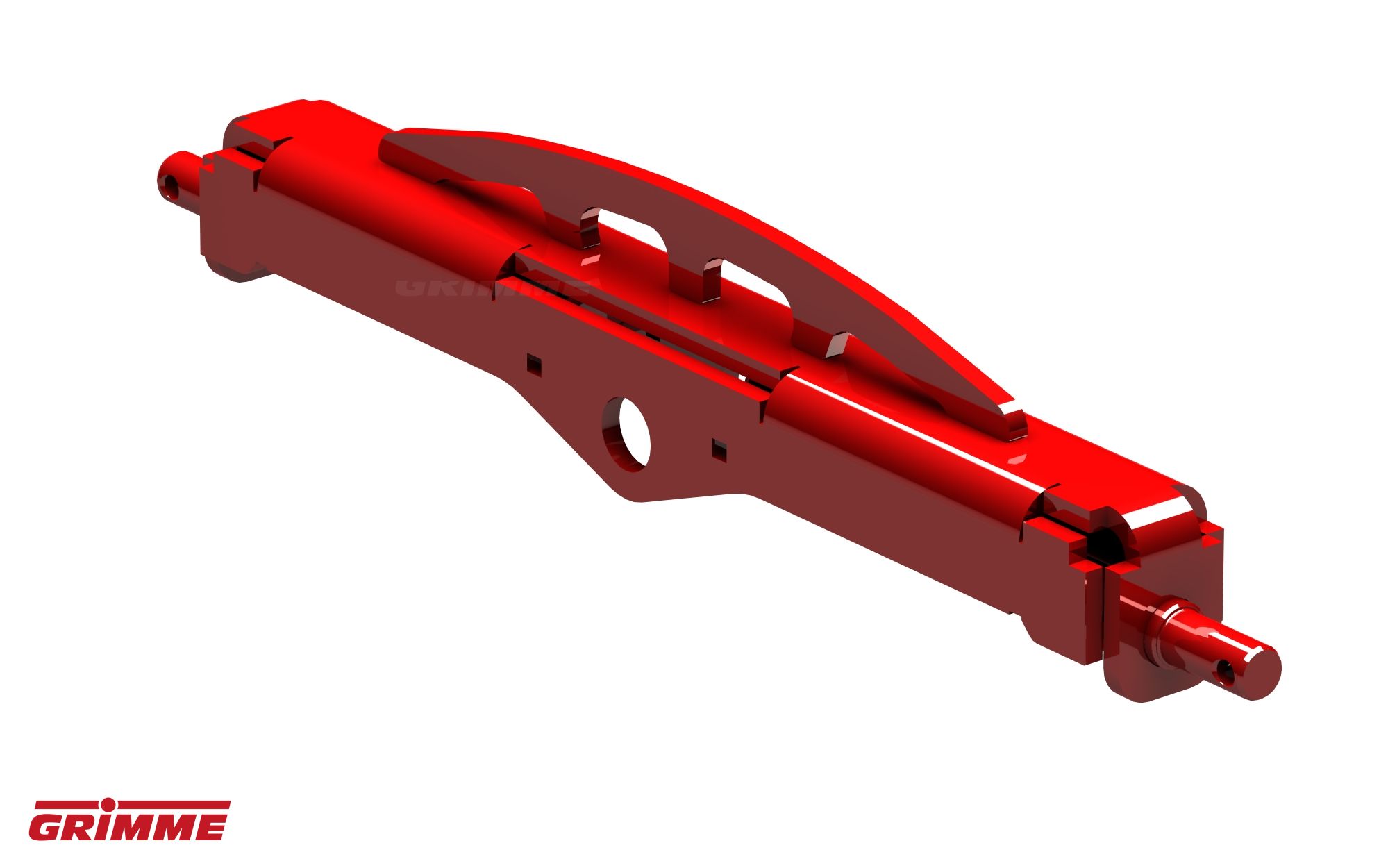

DRAWBAR

Quantity in assembly group: 1 Piece / Pos. 13

DRAWBAR

Quantity in assembly group: 1 Piece / Pos. 14

LOWER LINK PIN CAT II

Quantity in assembly group: 2 Piece / Pos. 15

LINCH PIN 11

Quantity in assembly group: 2 Piece / Pos. 16

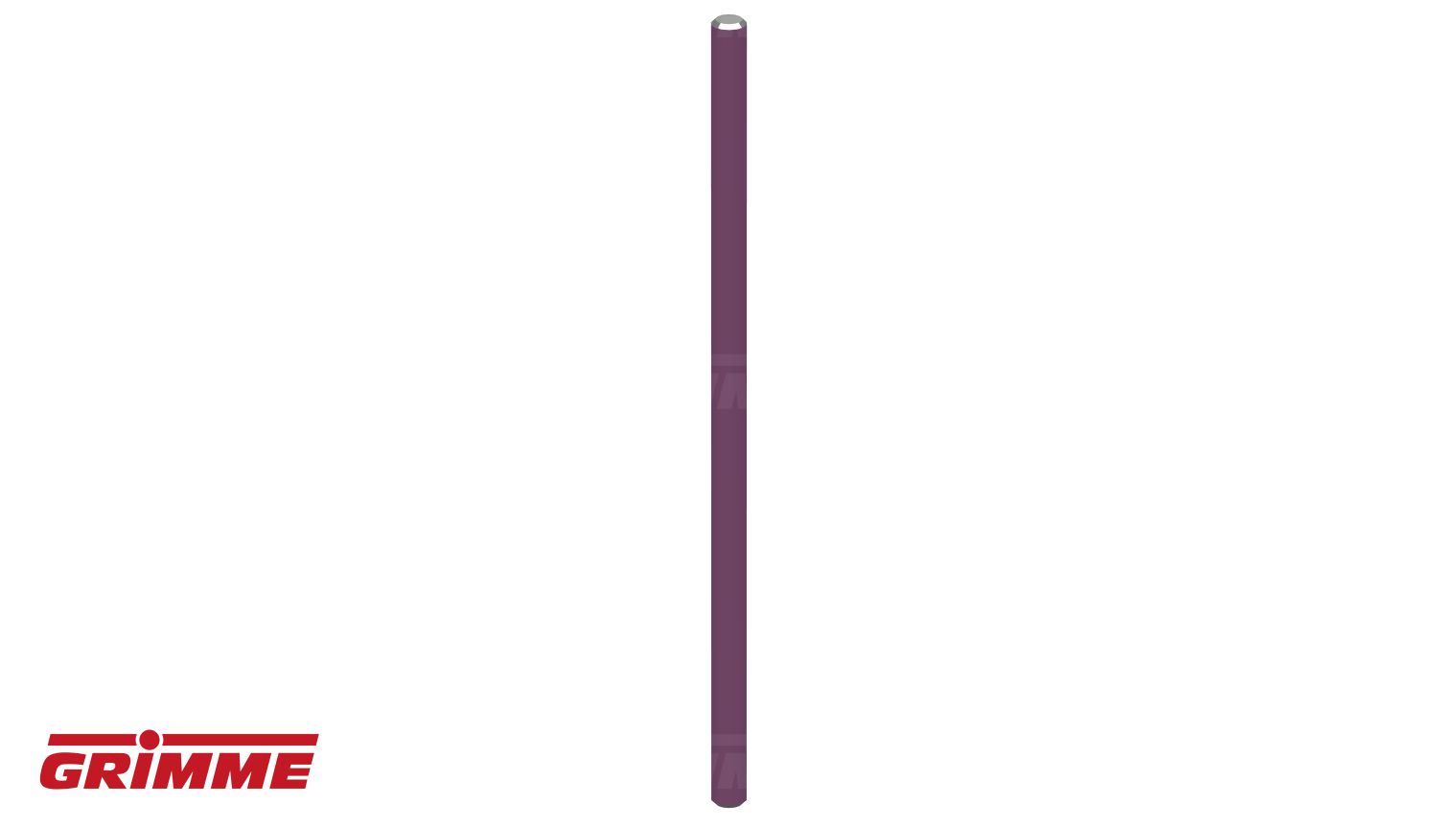

THREADED ROD

Quantity in assembly group: 1 Piece / Pos. 17

NYLOC NUT DIN985-M8-8-GAL

Quantity in assembly group: 2 Piece / Pos. 18

MH-SCREW M10X35-603-8.8-GAL

Quantity in assembly group: 1 Piece / Pos. 19

COACH BOLT M12X40-DIN603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 20

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 2 Piece / Pos. 21

CONTACT WASHER FORM M 10-GAL

Quantity in assembly group: 1 Piece / Pos. 22

HEXAGON NUT M10 DIN934-8-GAL

Quantity in assembly group: 1 Piece / Pos. 23

HEXAGON NUT M12 934-10.9-flZn

Quantity in assembly group: 2 Piece / Pos. 24

STICKER-LIFTING POINT HOOK

Quantity in assembly group: 2 Piece / Pos. 25

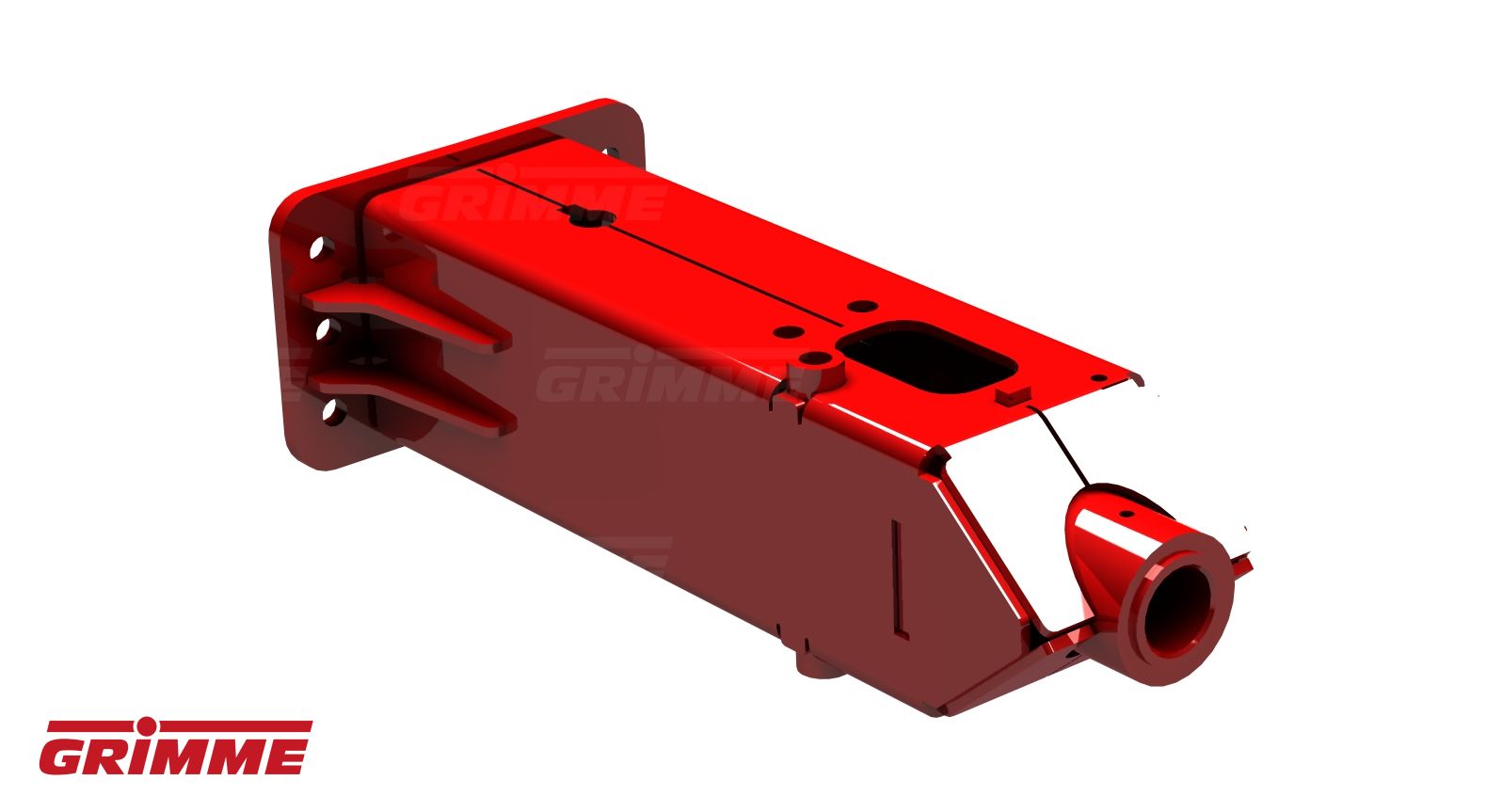

DRAWBAR

Quantity in assembly group: 1 Piece / Pos. 50

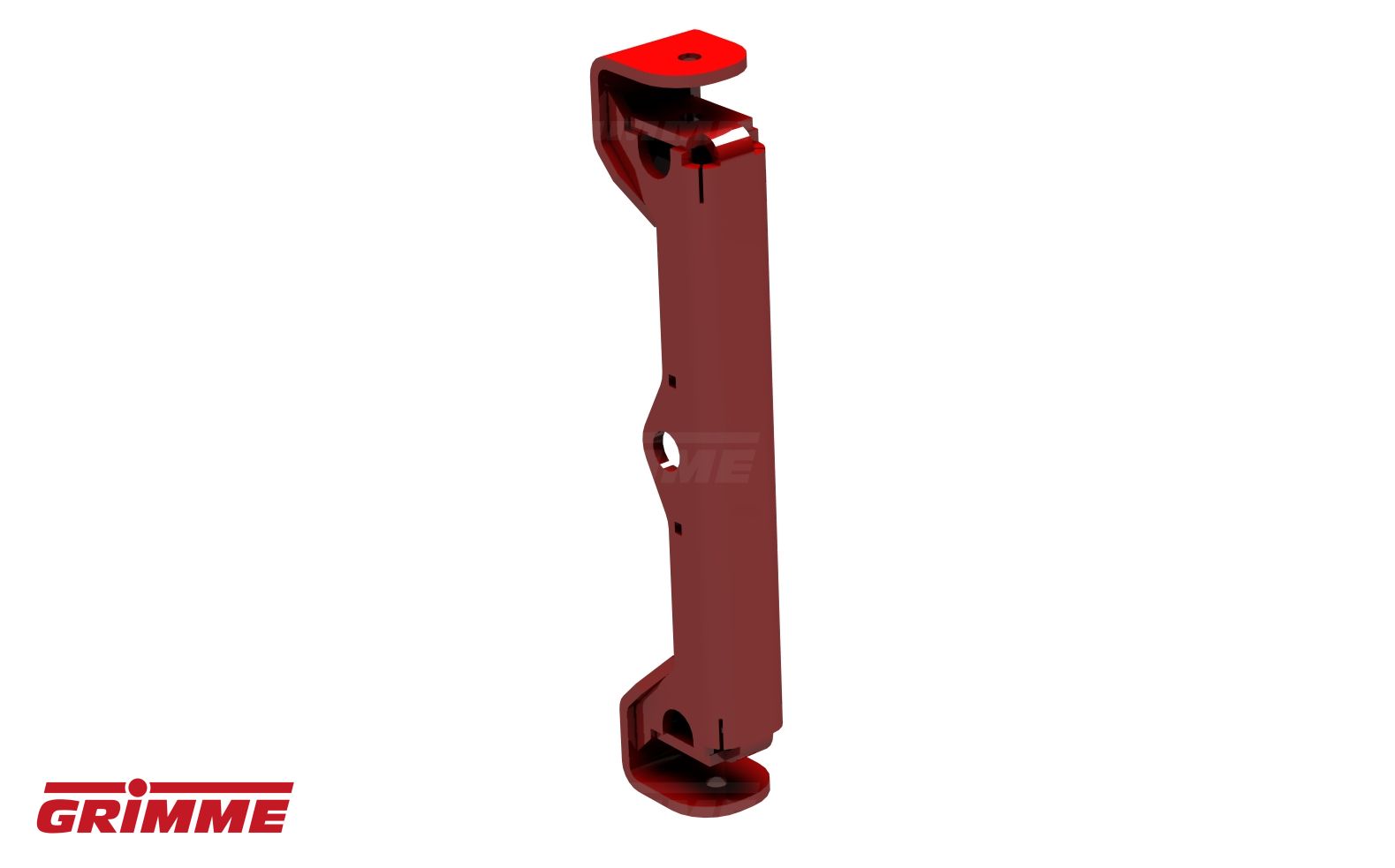

LOWER GUIDE COUPLING CAT2

Quantity in assembly group: 1 Piece / Pos. 100

LOWER LINK CAT3

Quantity in assembly group: 1 Piece / Pos. 200
