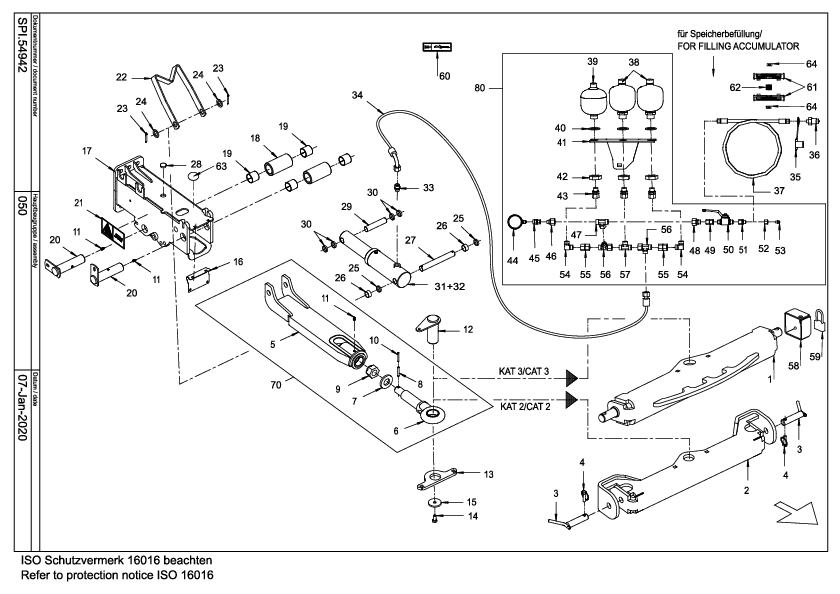

Parts by subassemblies

DRAWBAR

Quantity in assembly group: 1 Piece / Pos. 1

DRAWBAR

Quantity in assembly group: 1 Piece / Pos. 2

LOWER LINK PIN CAT II

Quantity in assembly group: 2 Piece / Pos. 3

LINCH PIN 11

Quantity in assembly group: 2 Piece / Pos. 4

BUGLE STONE PROTECTION

Quantity in assembly group: 1 Piece / Pos. 5

DRAWBAR EYE

Quantity in assembly group: 1 Piece / Pos. 6

WASHER

Quantity in assembly group: 1 Piece / Pos. 7

ROLL PIN 8X50-DIN1481

Quantity in assembly group: 1 Piece / Pos. 8

CASTELLATED NUT DIN935 M33X3,5

Quantity in assembly group: 1 Piece / Pos. 9

ROLL PIN 5X50-DIN1481

Quantity in assembly group: 1 Piece / Pos. 10

GREASE NIPPLE H1/S-M8X1 DIN714

Quantity in assembly group: 3 Piece / Pos. 11

BOLT

Quantity in assembly group: 1 Piece / Pos. 12

PLATE

Quantity in assembly group: 1 Piece / Pos. 13

SET SCREW M12X25-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 14

WASHER 13X60X6

Quantity in assembly group: 1 Piece / Pos. 15

COVER

Quantity in assembly group: 1 Piece / Pos. 16

DRAWBAR STSI

Quantity in assembly group: 1 Piece / Pos. 17

ROLLER

Quantity in assembly group: 1 Piece / Pos. 18

PLAIN BEARING BUSH 404440

Quantity in assembly group: 4 Piece / Pos. 19

BOLT

Quantity in assembly group: 2 Piece / Pos. 20

089.00824-WARNING SYM

Quantity in assembly group: 1 Piece / Pos. 21

DRIVE SHAFT TABLE

Quantity in assembly group: 1 Piece / Pos. 22

COTTER PIN 5X40 DIN94-GAL

Quantity in assembly group: 2 Piece / Pos. 23

DISC 25 DIN1441-GAL

Quantity in assembly group: 2 Piece / Pos. 24

SPACER RING

Quantity in assembly group: 2 Piece / Pos. 25

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 26

BOLT

Quantity in assembly group: 1 Piece / Pos. 27

BLANKING PLUG F232

Quantity in assembly group: 1 Piece / Pos. 28

BOLT

Quantity in assembly group: 1 Piece / Pos. 29

SPACER TUBE

Quantity in assembly group: 4 Piece / Pos. 30

PRESSURE CYLINDER

Quantity in assembly group: 1 Piece / Pos. 31

CYL SEAL SET

Quantity in assembly group: 1 Piece / Pos. 32

WHK15LMCSOMDCF

Quantity in assembly group: 1 Piece / Pos. 33

HYD HOSE-1700-NW12-250BAR

Quantity in assembly group: 1 Piece / Pos. 34

DUST CAP F HYD PLUG

Quantity in assembly group: 1 Piece / Pos. 35

HYD PLUG-IN COU PLUG M14X1,5

Quantity in assembly group: 1 Piece / Pos. 36

HOSE-2100-NW6-2SC-450BAR

Quantity in assembly group: 1 Piece / Pos. 37

ACCUMULATOR 0.75L-210 GAV=100

Quantity in assembly group: 2 Piece / Pos. 38

ACCUMULATOR 0,75l-210 GAV=80

Quantity in assembly group: 1 Piece / Pos. 39

DISC 35X51X3

Quantity in assembly group: 3 Piece / Pos. 40

BRACKET

Quantity in assembly group: 1 Piece / Pos. 41

HEX NUT M33X1,5 DIN936

Quantity in assembly group: 3 Piece / Pos. 42

EGE15LREDCF

Quantity in assembly group: 3 Piece / Pos. 43

GLYCERIN-MANOMETER O-250BAR

Quantity in assembly group: 1 Piece / Pos. 44

MAVE08LRCF

Quantity in assembly group: 1 Piece / Pos. 45

P-REDS 15/8L-SV

Quantity in assembly group: 1 Piece / Pos. 46

P-ETS 15L-SV

Quantity in assembly group: 1 Piece / Pos. 47

P-REDS 15/12L-SV

Quantity in assembly group: 1 Piece / Pos. 48

STRAIGHT CONNECTION SNV 12L

Quantity in assembly group: 1 Piece / Pos. 49

BLOCK UP BALL VAL BKH-12L DN8

Quantity in assembly group: 1 Piece / Pos. 50

P-REDS 12/8L-SV

Quantity in assembly group: 1 Piece / Pos. 51

HYD. NUT M08LCFX

Quantity in assembly group: 1 Piece / Pos. 52

VS 8 L/S

Quantity in assembly group: 1 Piece / Pos. 53

P-WS 15L

Quantity in assembly group: 2 Piece / Pos. 54

SNV 15L

Quantity in assembly group: 2 Piece / Pos. 55

P-ELS 15L-SV

Quantity in assembly group: 2 Piece / Pos. 56

P-TS 15L

Quantity in assembly group: 1 Piece / Pos. 57

TRAT LOCK BOL KAT3

Quantity in assembly group: 1 Piece / Pos. 58

CYLINDER LOCK 60/50H50

Quantity in assembly group: 1 Piece / Pos. 59

34+ STICKER STONE PROTECTION

Quantity in assembly group: 1 Piece / Pos. 60

HANDLI ESCUTCHEON DN10

Quantity in assembly group: 2 Piece / Pos. 61

INSERTION 13,5mm DN6

Quantity in assembly group: 1 Piece / Pos. 62

STICKER-LIFTING POINT HOOK

Quantity in assembly group: 1 Piece / Pos. 63

MARKING PLATE 34+

Quantity in assembly group: 2 Piece / Pos. 64

TENSION LOOP TURNABLE DM52

Quantity in assembly group: 1 Piece / Pos. 70

STORAGE STONE PROTECTION

Quantity in assembly group: 1 Piece / Pos. 80
