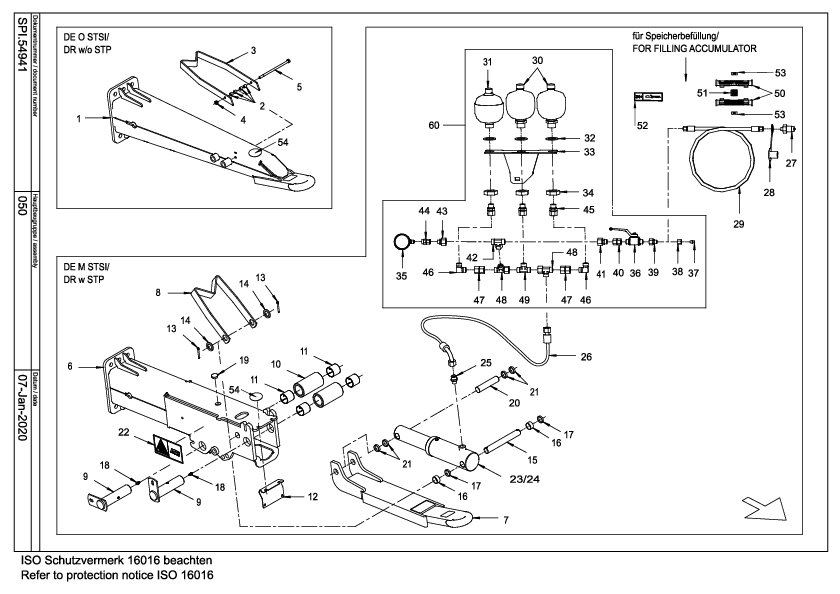

Parts by subassemblies

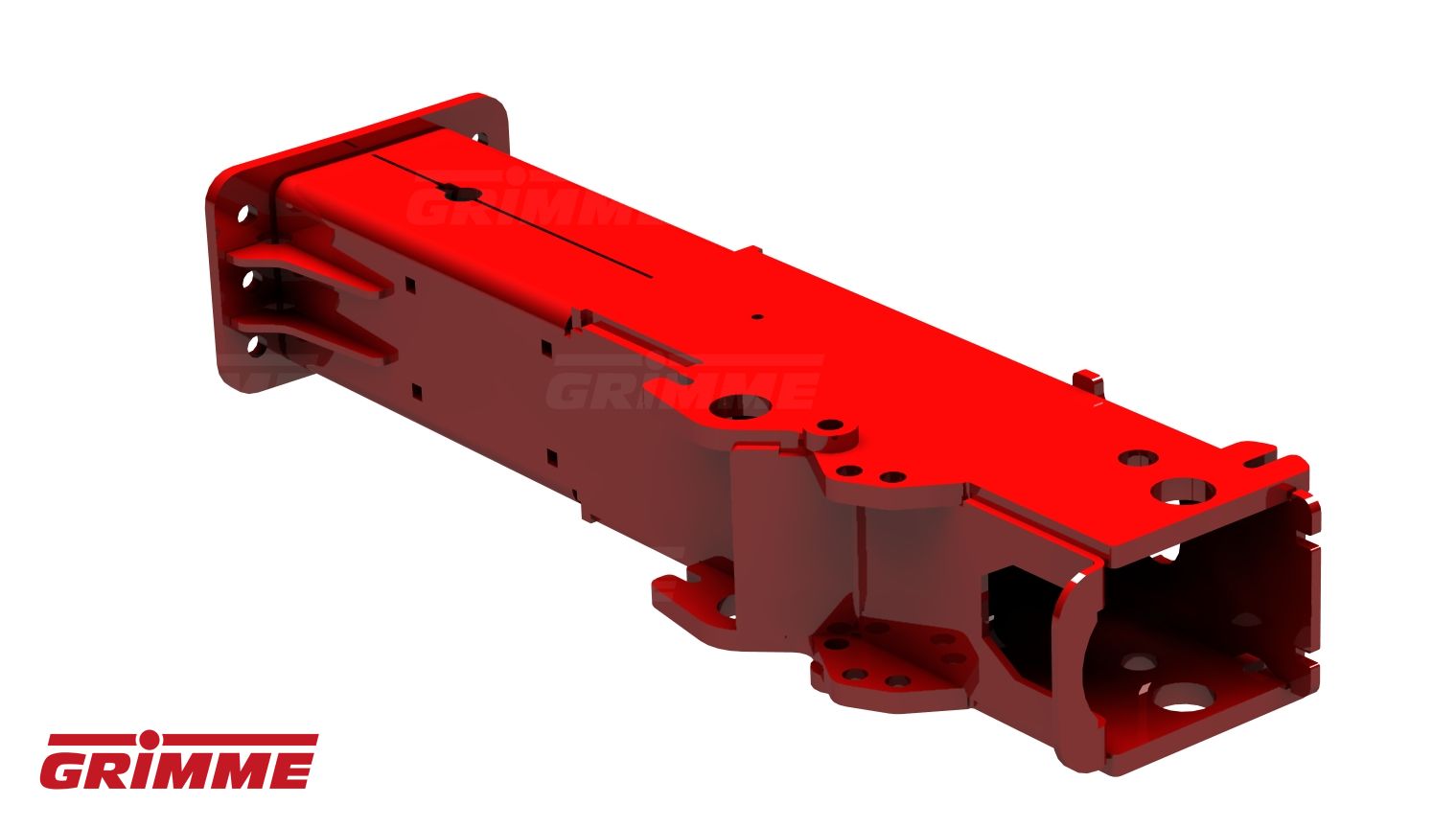

DRAWBAR HITCH

Quantity in assembly group: 1 Piece / Pos. 1

SPACER

Quantity in assembly group: 4 Piece / Pos. 2

PTO SUPPORT

Quantity in assembly group: 1 Piece / Pos. 3

NYLOC NUT DIN985-M8-8-GAL

Quantity in assembly group: 1 Piece / Pos. 4

HEX-SCREW M8X170 931-8.8-GAL

Quantity in assembly group: 1 Piece / Pos. 5

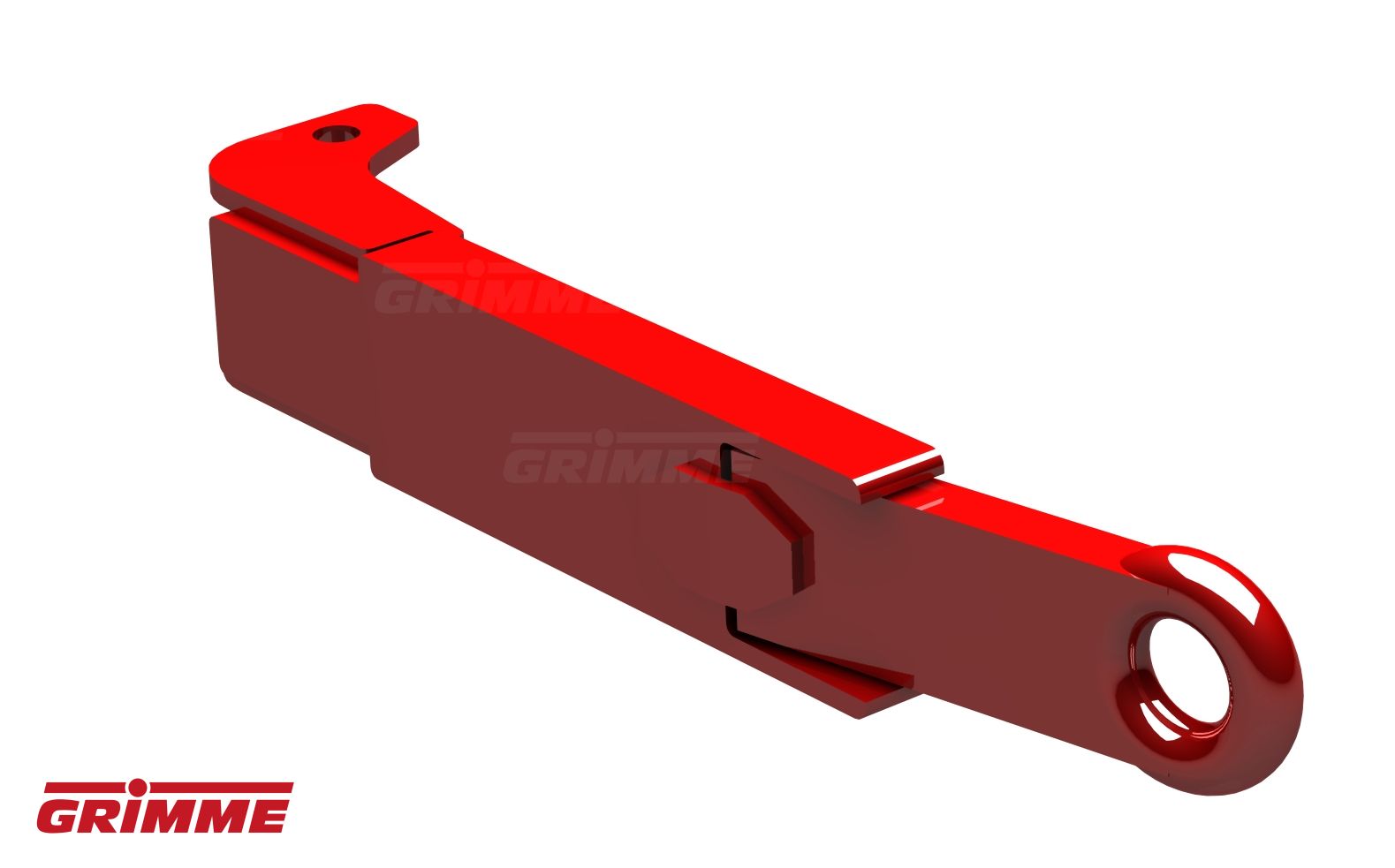

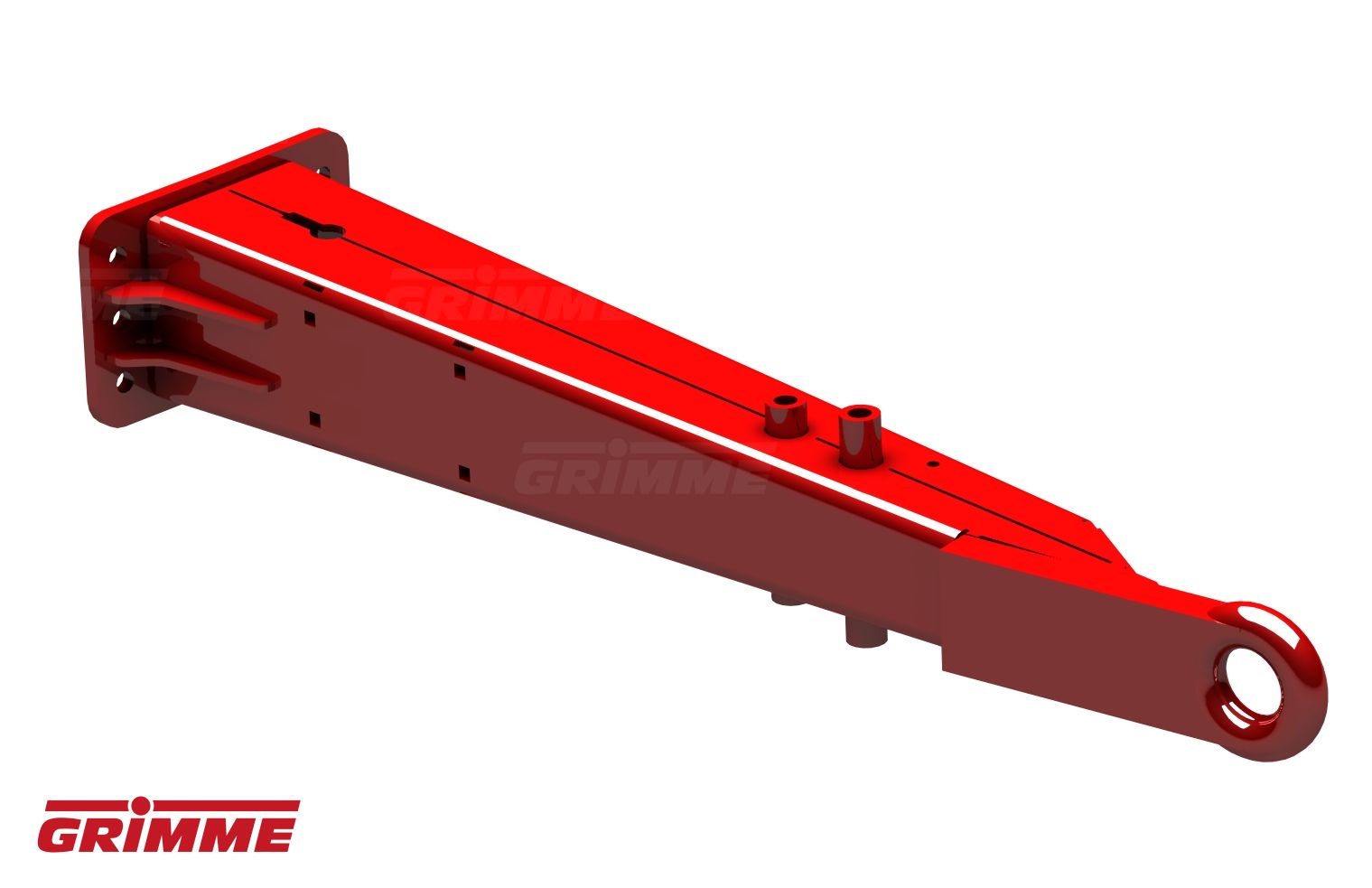

DRAWBAR STP

Quantity in assembly group: 1 Piece / Pos. 6

BUGLE STONE PROTECTION

Quantity in assembly group: 1 Piece / Pos. 7

DRIVE SHAFT TABLE

Quantity in assembly group: 1 Piece / Pos. 8

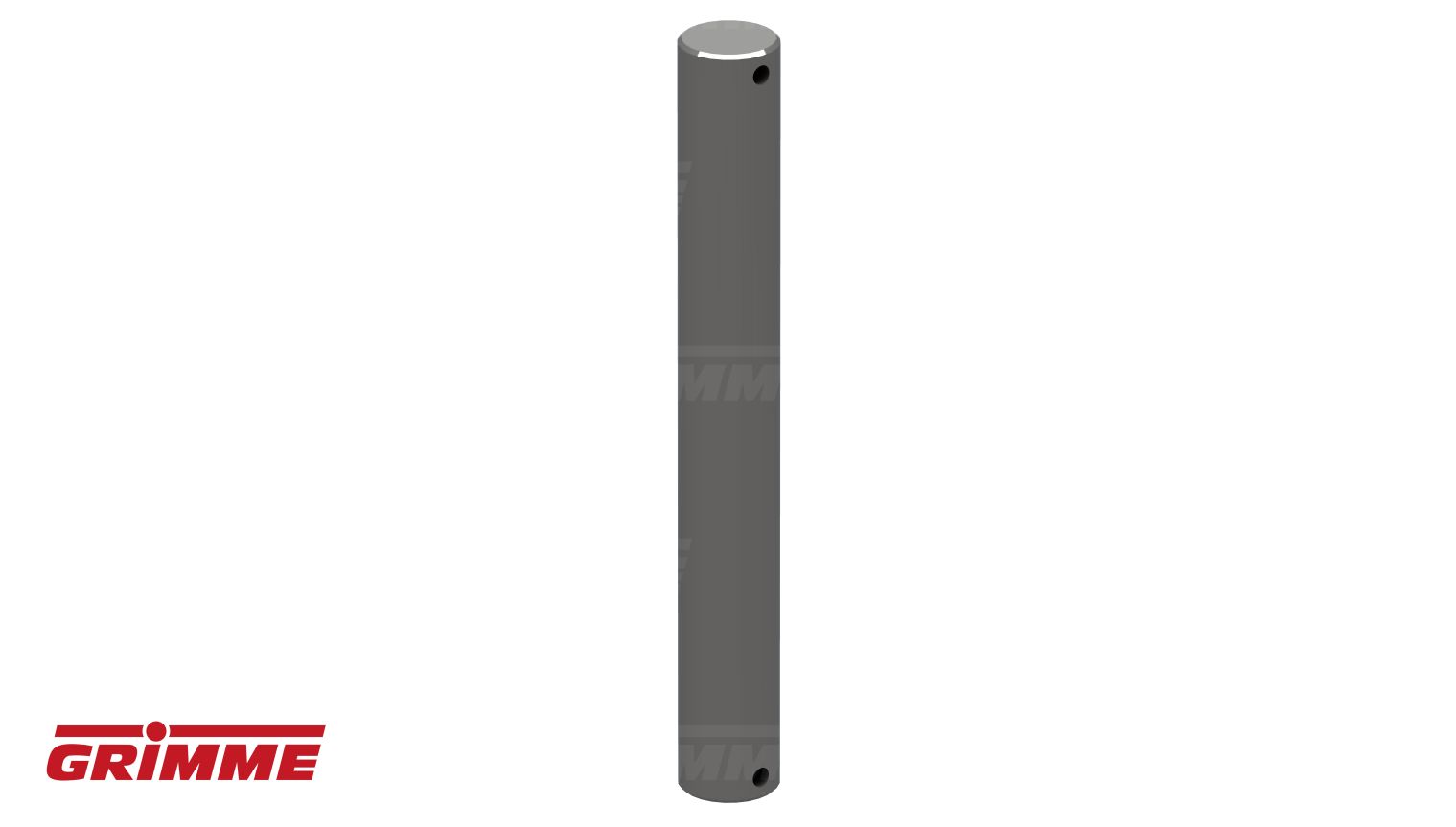

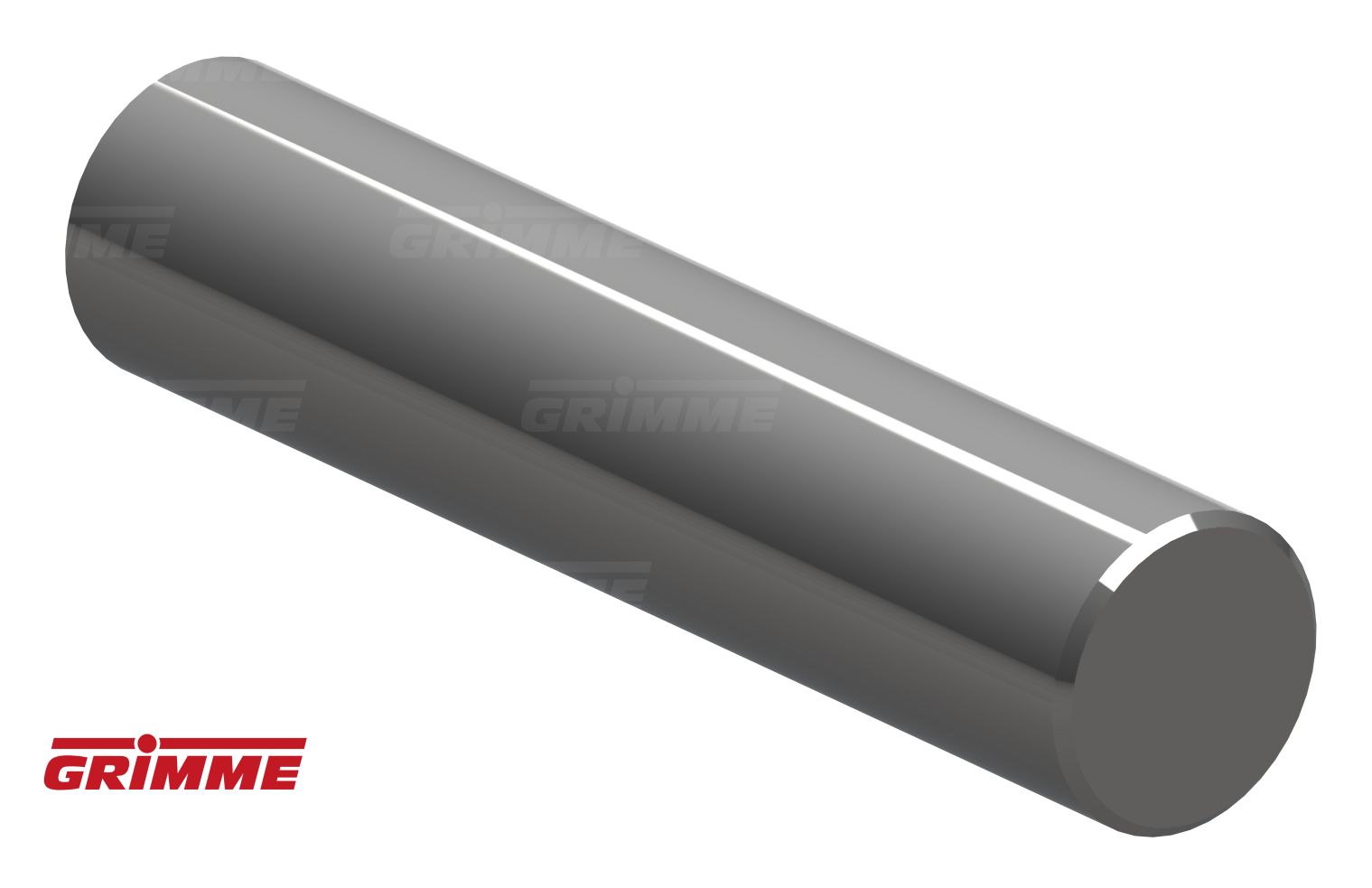

BOLT

Quantity in assembly group: 2 Piece / Pos. 9

ROLLER

Quantity in assembly group: 2 Piece / Pos. 10

PLAIN BEARING BUSH 404440

Quantity in assembly group: 4 Piece / Pos. 11

COVER

Quantity in assembly group: 1 Piece / Pos. 12

COTTER PIN 5X40 DIN94-GAL

Quantity in assembly group: 2 Piece / Pos. 13

DISC 25 DIN1441-GAL

Quantity in assembly group: 2 Piece / Pos. 14

BOLT

Quantity in assembly group: 1 Piece / Pos. 15

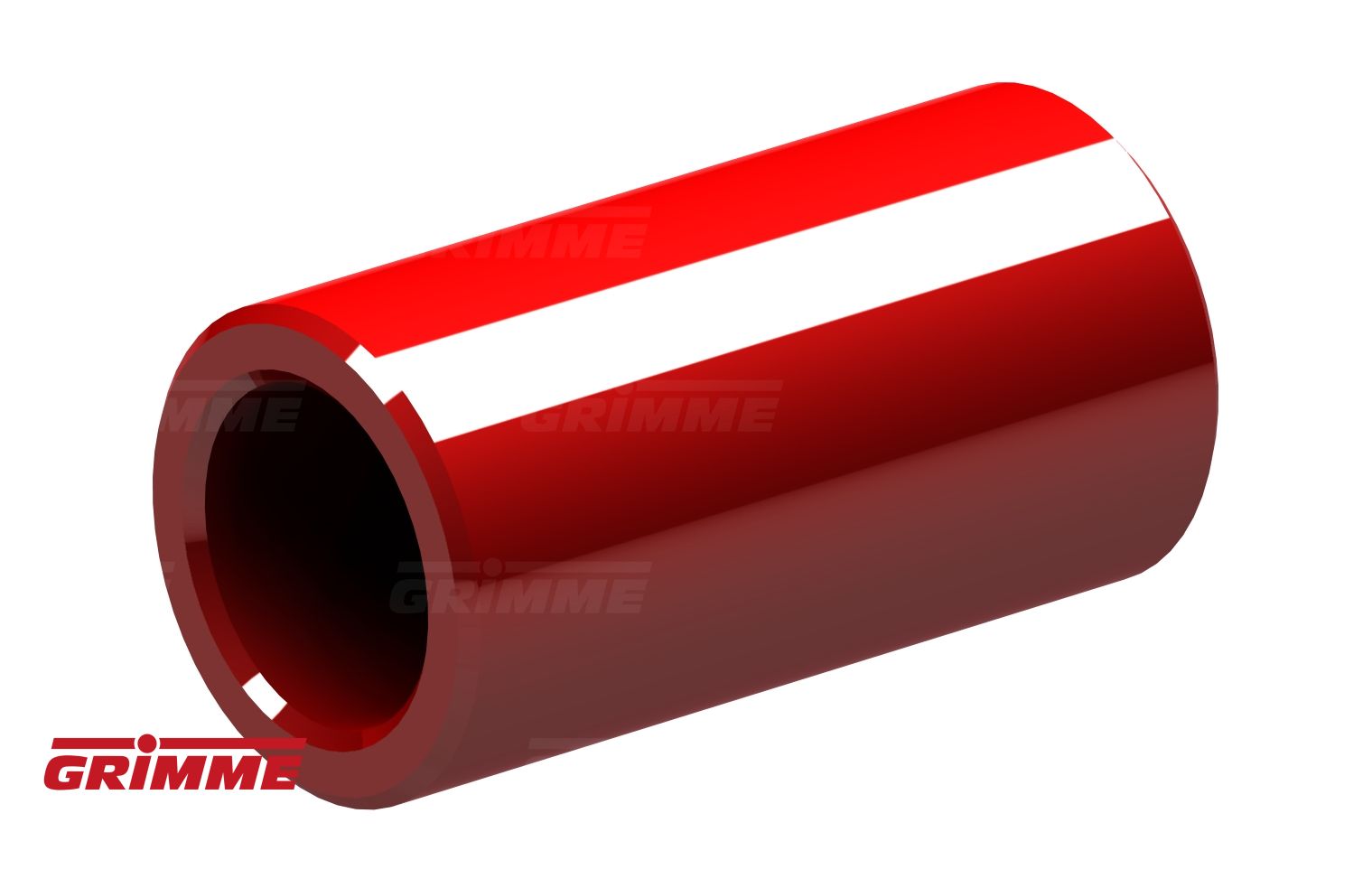

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 16

SPACER RING

Quantity in assembly group: 2 Piece / Pos. 17

GREASE NIPPLE H1/S-M8X1 DIN714

Quantity in assembly group: 2 Piece / Pos. 18

BLANKING PLUG F232

Quantity in assembly group: 1 Piece / Pos. 19

BOLT

Quantity in assembly group: 1 Piece / Pos. 20

SPACER TUBE

Quantity in assembly group: 4 Piece / Pos. 21

089.00824-WARNING SYM

Quantity in assembly group: 1 Piece / Pos. 22

PRESSURE CYLINDER

Quantity in assembly group: 1 Piece / Pos. 23

CYL SEAL SET

Quantity in assembly group: 1 Piece / Pos. 24

GE15LMEDOMDCF

Quantity in assembly group: 1 Piece / Pos. 25

COVER-2000-NW12-1X90-310BAR

Quantity in assembly group: 1 Piece / Pos. 26

HYD PLUG-IN COU PLUG M14X1,5

Quantity in assembly group: 1 Piece / Pos. 27

DUST CAP F HYD PLUG

Quantity in assembly group: 1 Piece / Pos. 28

HOSE-2100-NW6-2SC-450BAR

Quantity in assembly group: 1 Piece / Pos. 29

ACCUMULATOR 0.75L-210 GAV=100

Quantity in assembly group: 2 Piece / Pos. 30

ACCUMULATOR 0,75l-210 GAV=80

Quantity in assembly group: 1 Piece / Pos. 31

DISC 35X51X3

Quantity in assembly group: 3 Piece / Pos. 32

BRACKET

Quantity in assembly group: 1 Piece / Pos. 33

HEX NUT M33X1,5 DIN936

Quantity in assembly group: 3 Piece / Pos. 34

GLYCERIN-MANOMETER O-250BAR

Quantity in assembly group: 1 Piece / Pos. 35

BLOCK UP BALL VAL BKH-12L DN8

Quantity in assembly group: 1 Piece / Pos. 36

VS 8 L/S

Quantity in assembly group: 1 Piece / Pos. 37

HYD. NUT M08LCFX

Quantity in assembly group: 1 Piece / Pos. 38

P-REDS 12/8L-SV

Quantity in assembly group: 1 Piece / Pos. 39

STRAIGHT CONNECTION SNV 12L

Quantity in assembly group: 1 Piece / Pos. 40

P-REDS 15/12L-SV

Quantity in assembly group: 1 Piece / Pos. 41

P-ETS 15L-SV

Quantity in assembly group: 1 Piece / Pos. 42

P-REDS 15/8L-SV

Quantity in assembly group: 1 Piece / Pos. 43

MAVE08LRCF

Quantity in assembly group: 1 Piece / Pos. 44

EGE15LREDCF

Quantity in assembly group: 3 Piece / Pos. 45

P-WS 15L

Quantity in assembly group: 2 Piece / Pos. 46

SNV 15L

Quantity in assembly group: 2 Piece / Pos. 47

P-ELS 15L-SV

Quantity in assembly group: 2 Piece / Pos. 48

P-TS 15L

Quantity in assembly group: 1 Piece / Pos. 49

HANDLI ESCUTCHEON DN10

Quantity in assembly group: 2 Piece / Pos. 50

INSERTION 13,5mm DN6

Quantity in assembly group: 1 Piece / Pos. 51

34+ STICKER STONE PROTECTION

Quantity in assembly group: 1 Piece / Pos. 52

MARKING PLATE 34+

Quantity in assembly group: 2 Piece / Pos. 53

STICKER-LIFTING POINT HOOK

Quantity in assembly group: 1 Piece / Pos. 54

STORAGE STONE PROTECTION

Quantity in assembly group: 1 Piece / Pos. 60
