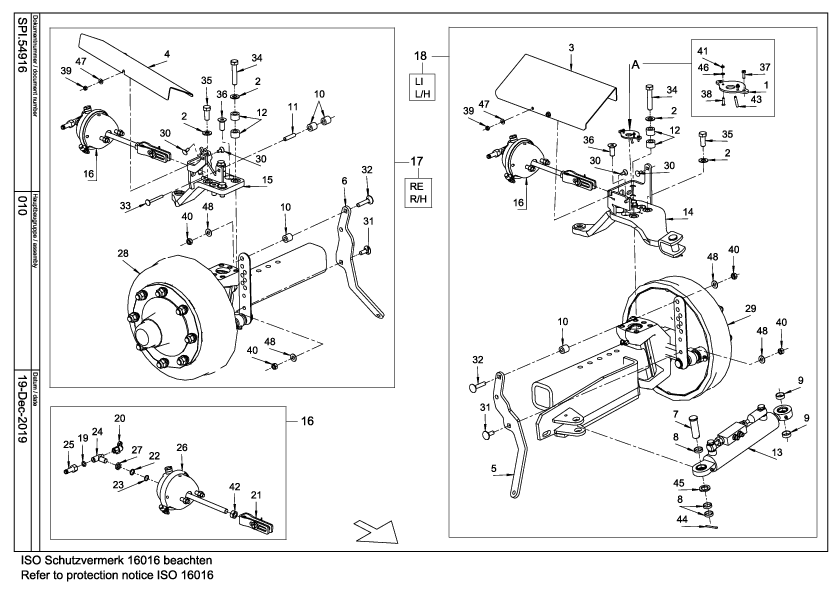

Parts by subassemblies

PLATE

Quantity in assembly group: 1 Piece / Pos. 1

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 8 Piece / Pos. 2

PROTECTION L/H

Quantity in assembly group: 1 Piece / Pos. 3

PROTECTION, R/H

Quantity in assembly group: 1 Piece / Pos. 4

BRACKET L/H

Quantity in assembly group: 1 Piece / Pos. 5

BRACKET R/H

Quantity in assembly group: 1 Piece / Pos. 6

PIN

Quantity in assembly group: 2 Piece / Pos. 7

SPACER TUBE

Quantity in assembly group: 3 Piece / Pos. 8

SPACER RING

Quantity in assembly group: 2 Piece / Pos. 9

BUSHING

Quantity in assembly group: 4 Piece / Pos. 10

BUSHING

Quantity in assembly group: 1 Piece / Pos. 11

SPACER 20MM

Quantity in assembly group: 8 Piece / Pos. 12

DOUBLE ACTING HYD RAM w RVB

Quantity in assembly group: 1 Piece / Pos. 13

STEERING ARM LH

Quantity in assembly group: 1 Piece / Pos. 14

STEERING ARM RH

Quantity in assembly group: 1 Piece / Pos. 15

BRAKE CYLINDER TYP12 PRA

Quantity in assembly group: 2 Piece / Pos. 16

BRAKE AXLE STUB R/H

Quantity in assembly group: 1 Piece / Pos. 17

BRAKE AXLE STUB L/H

Quantity in assembly group: 1 Piece / Pos. 18

SEALING RING

Quantity in assembly group: 1 Piece / Pos. 19

TEST ADAPTOR

Quantity in assembly group: 1 Piece / Pos. 20

FORK HEAD 003033609

Quantity in assembly group: 1 Piece / Pos. 21

SEALING RING M16X1,5

Quantity in assembly group: 1 Piece / Pos. 22

ROUND CORD RING M16X1,5

Quantity in assembly group: 1 Piece / Pos. 23

T-PIECE

Quantity in assembly group: 1 Piece / Pos. 24

HOSE SLEEVE

Quantity in assembly group: 1 Piece / Pos. 25

BRAKE CHAMBER TYPE 12

Quantity in assembly group: 1 Piece / Pos. 26

HEXAGON NUT M16X1,5

Quantity in assembly group: 1 Piece / Pos. 27

BRAKE STEERING AXLE STUB

Quantity in assembly group: 1 Piece / Pos. 28

BRAKE STEERING AXLE STUB

Quantity in assembly group: 1 Piece / Pos. 29

COACH BOLT M8X20-603-8.8-GAL

Quantity in assembly group: 5 Piece / Pos. 30

COACH BOLT M12X35-DIN603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 31

COACH BOLT M12X60-DIN603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 32

MH-SCREW M8X75-603-8.8-GAL

Quantity in assembly group: 1 Piece / Pos. 33

HHC-SCREW M16X80 931-10.9-flZn

Quantity in assembly group: 4 Piece / Pos. 34

SET SCREW M16X40-DIN933-8.8-G

Quantity in assembly group: 4 Piece / Pos. 35

CS-SCREW M16X40 DIN7991

Quantity in assembly group: 4 Piece / Pos. 36

SHC-SCREW M5X16 DIN84-GAL

Quantity in assembly group: 2 Piece / Pos. 37

CS-SCREW M4X16 DIN963-BS

Quantity in assembly group: 2 Piece / Pos. 38

HEXAGON NUT M8 DIN934-8-GAL

Quantity in assembly group: 6 Piece / Pos. 39

HEXAGON NUT M12 DIN934-8-GAL

Quantity in assembly group: 4 Piece / Pos. 40

HEX NUT M4 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 41

HEX-NUT M16X1,5 DIN934-8-GAL

Quantity in assembly group: 1 Piece / Pos. 42

ROLL PIN 5X30-DIN1481

Quantity in assembly group: 1 Piece / Pos. 43

COTTER PIN 5X36 DIN94-GAL

Quantity in assembly group: 2 Piece / Pos. 44

DISC 25 DIN1441-GAL

Quantity in assembly group: 2 Piece / Pos. 45

WASHER B4,3 DIN125-GAL

Quantity in assembly group: 2 Piece / Pos. 46

CONTACT WASHER FORM M 8-GAL

Quantity in assembly group: 6 Piece / Pos. 47

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 4 Piece / Pos. 48
