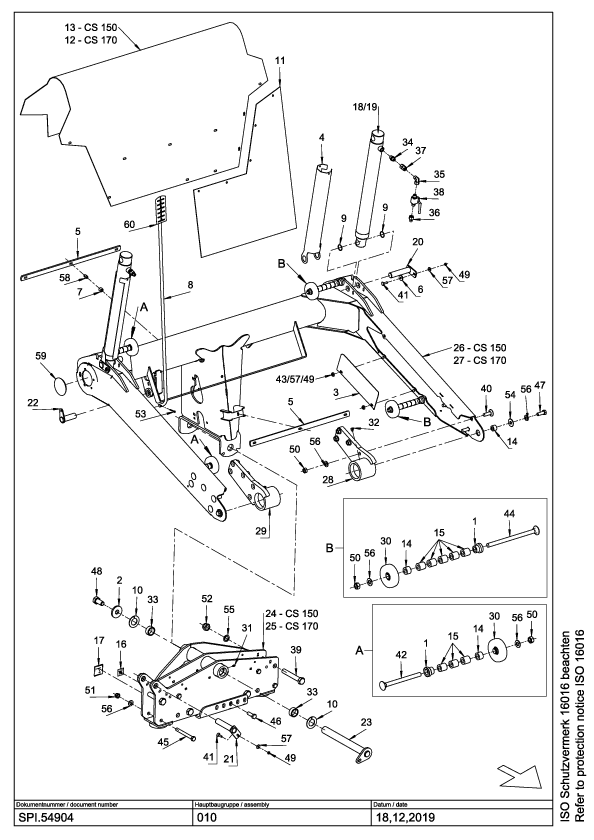

Parts by subassemblies

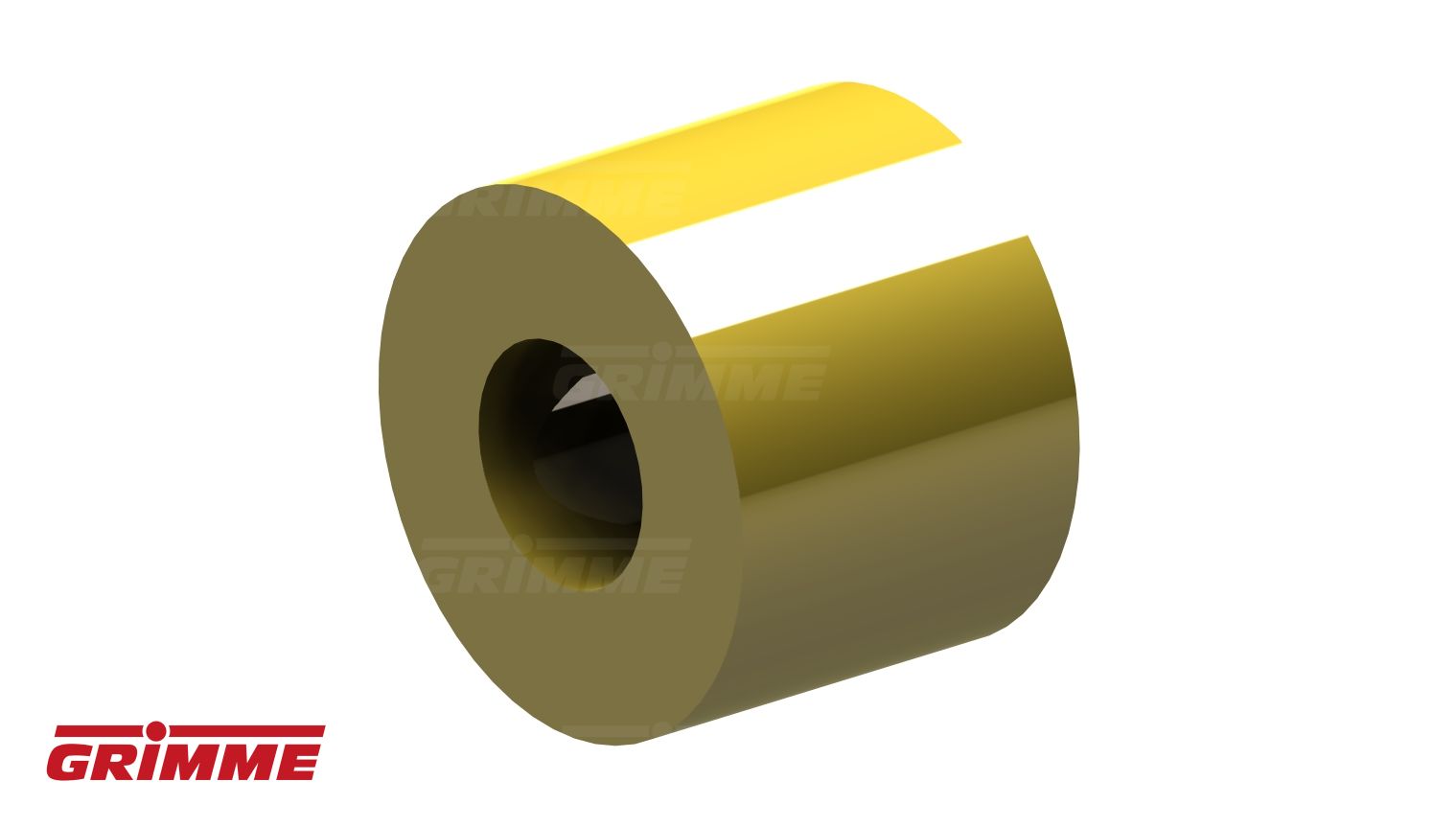

ROLLER BUSH

Quantity in assembly group: 4 Piece / Pos. 1

DISC

Quantity in assembly group: 1 Piece / Pos. 2

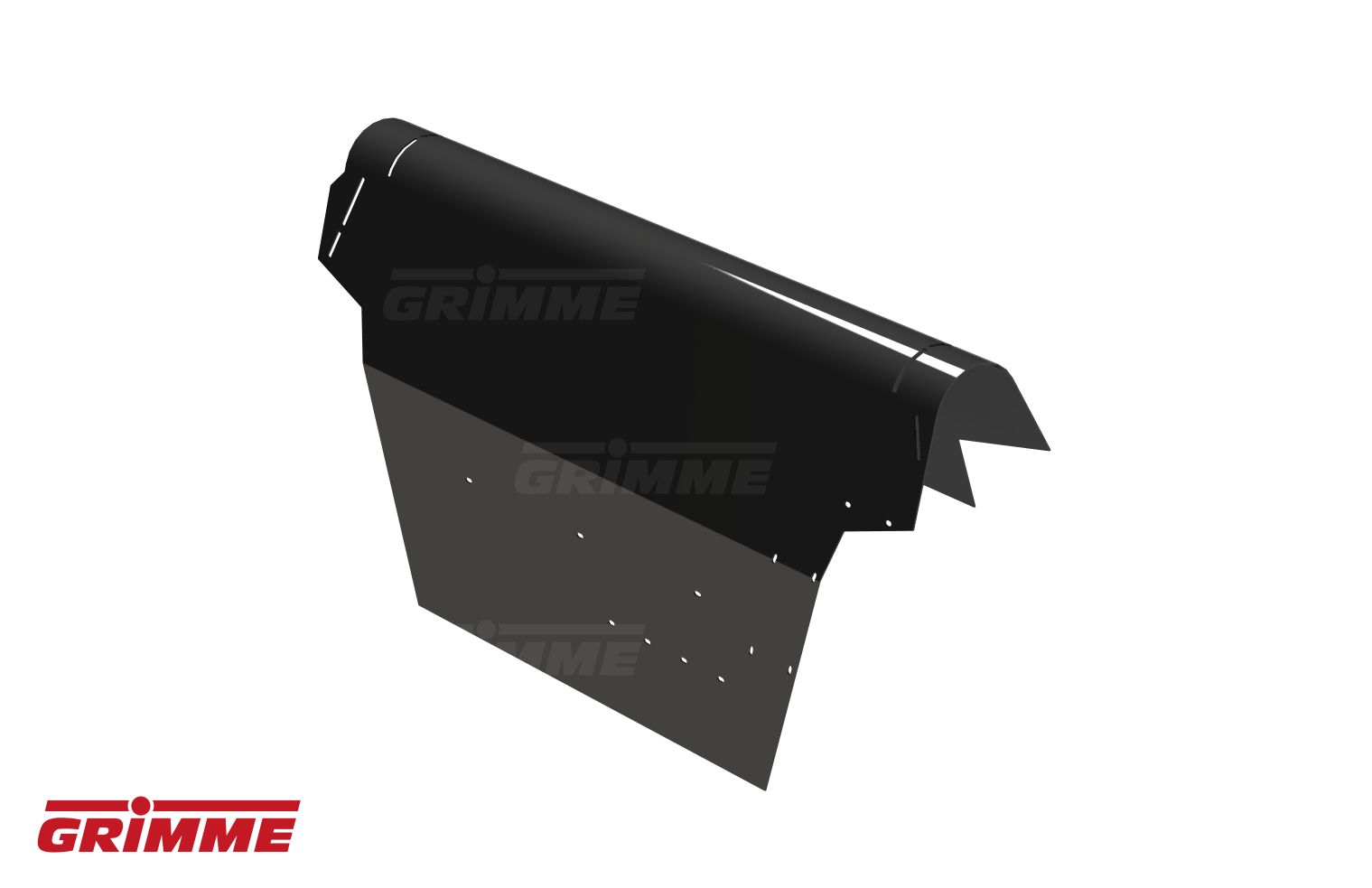

COVER PLATE

Quantity in assembly group: 2 Piece / Pos. 3

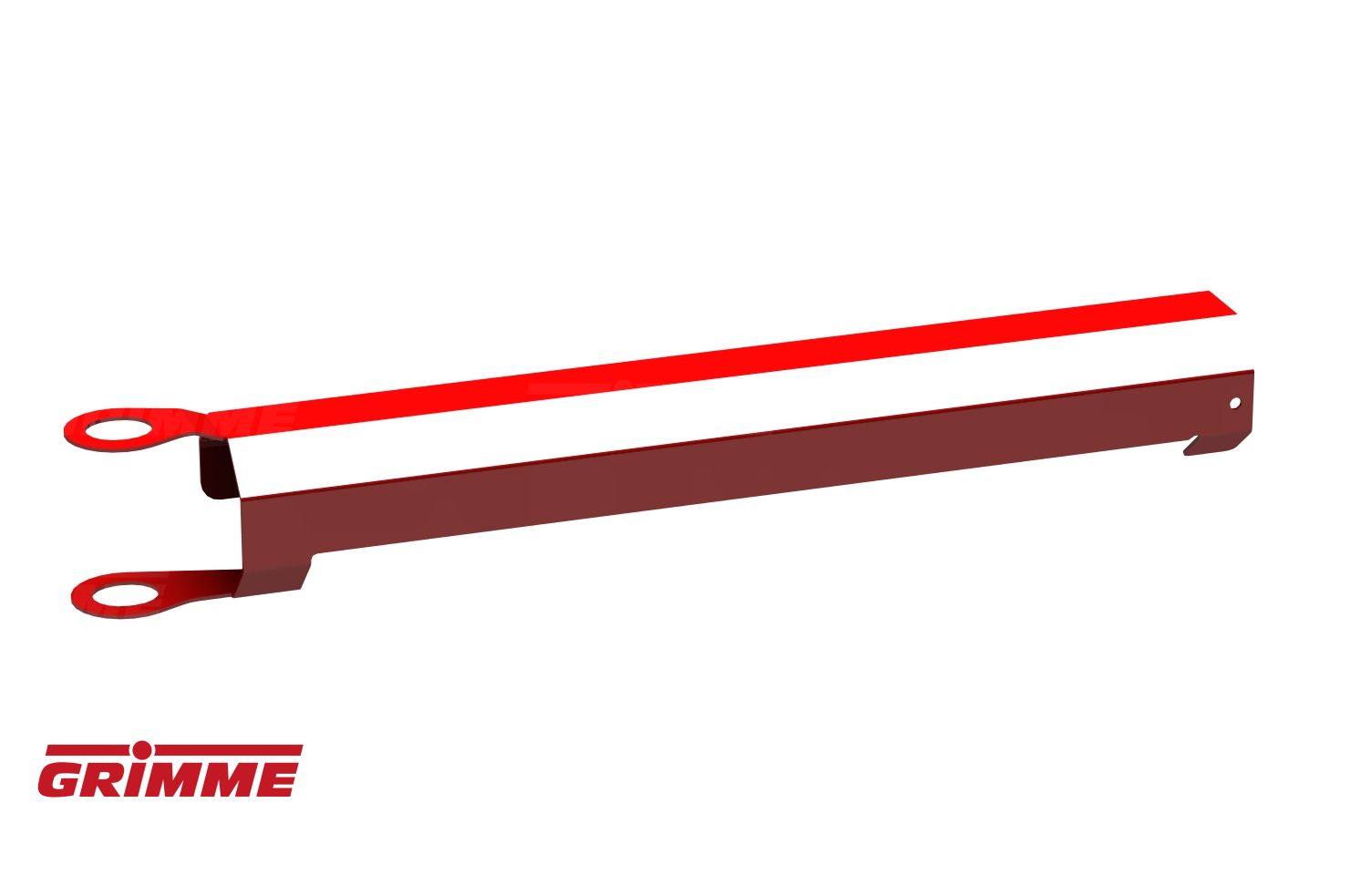

CYLINDER GUARD

Quantity in assembly group: 2 Piece / Pos. 4

LEDGE

Quantity in assembly group: 2 Piece / Pos. 5

END DISC

Quantity in assembly group: 2 Piece / Pos. 6

BUSH 9X20X15

Quantity in assembly group: 1 Piece / Pos. 7

BAR

Quantity in assembly group: 1 Piece / Pos. 8

COMPENSATING RING

Quantity in assembly group: 4 Piece / Pos. 9

PRESSURE RING

Quantity in assembly group: 2 Piece / Pos. 10

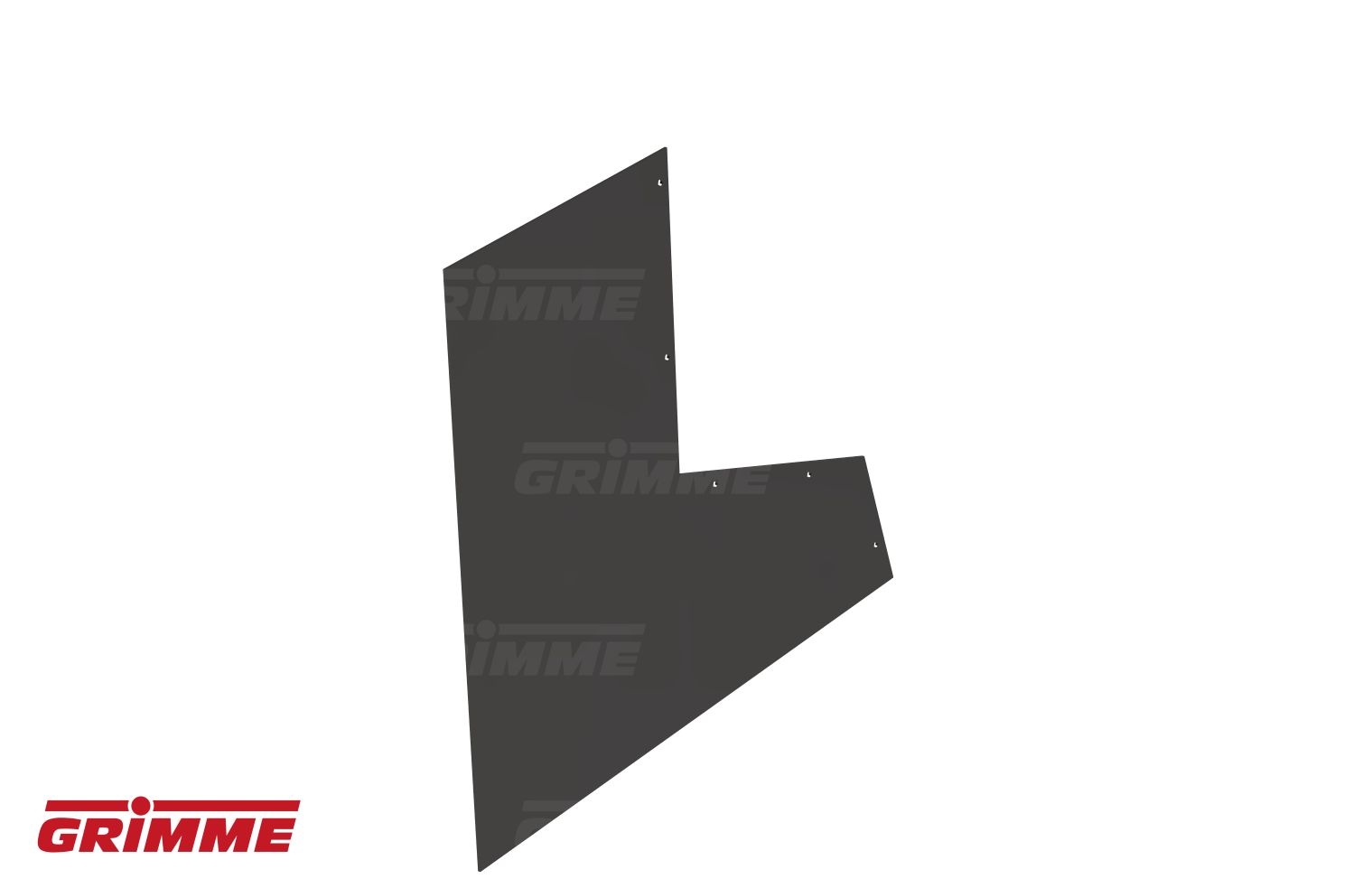

PLATE

Quantity in assembly group: 1 Piece / Pos. 11

COVER

Quantity in assembly group: 1 Piece / Pos. 12

COVER

Quantity in assembly group: 1 Piece / Pos. 13

SPACER 20MM

Quantity in assembly group: 6 Piece / Pos. 14

SPACER 16,5X30X30

Quantity in assembly group: 16 Piece / Pos. 15

INFORMATION SYMBOLS

Quantity in assembly group: 2 Piece / Pos. 16

089.04383 INFORMATION SYM

Quantity in assembly group: 2 Piece / Pos. 17

PRESSURE CYLINDER

Quantity in assembly group: 2 Piece / Pos. 18

CYLINDER SEAL SET

Quantity in assembly group: 1 Piece / Pos. 19

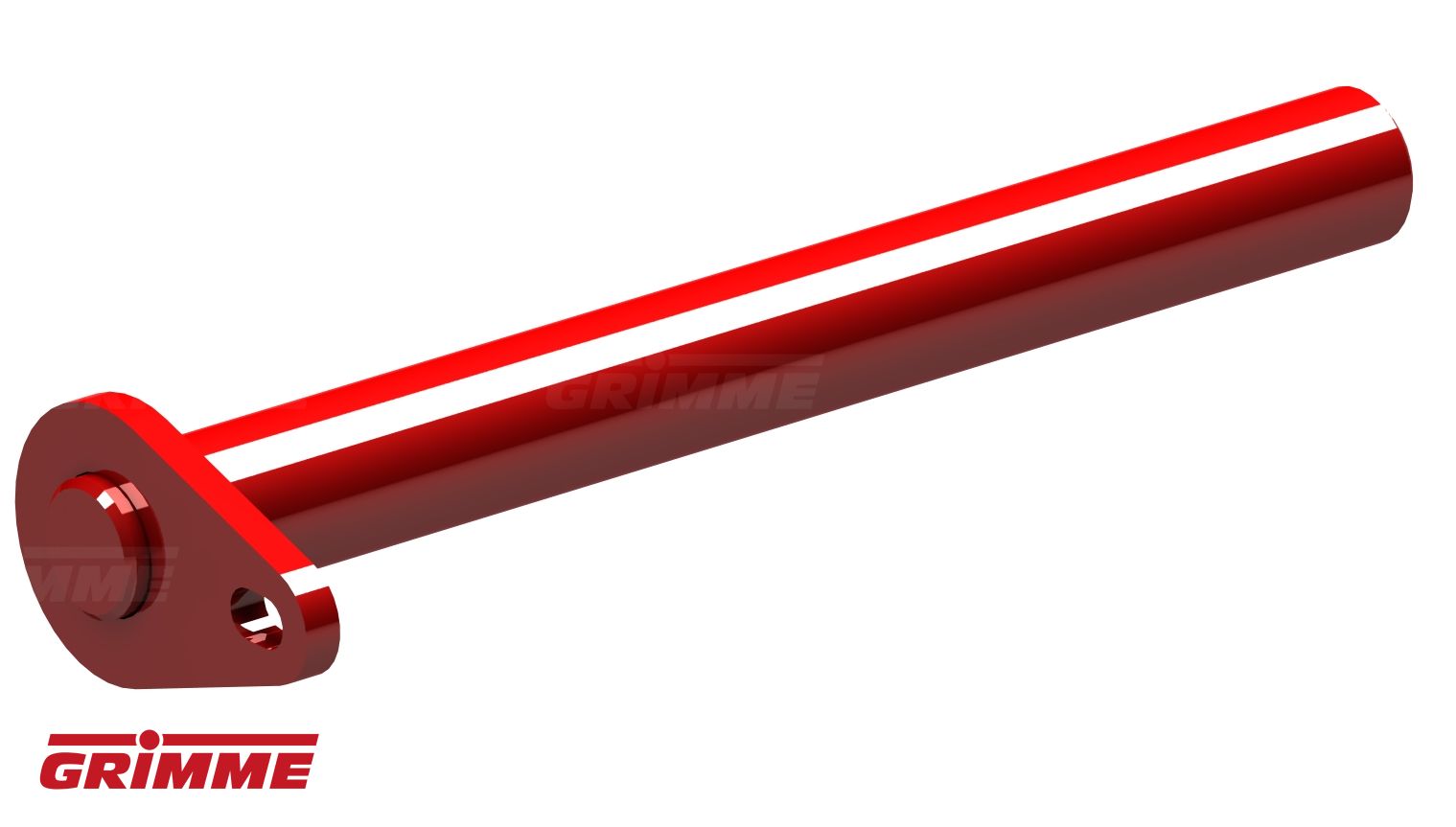

BOLT

Quantity in assembly group: 2 Piece / Pos. 20

BOLT

Quantity in assembly group: 1 Piece / Pos. 21

BOLT

Quantity in assembly group: 1 Piece / Pos. 22

BOLT

Quantity in assembly group: 1 Piece / Pos. 23

SWING AXLE

Quantity in assembly group: 1 Piece / Pos. 24

SWING AXLE

Quantity in assembly group: 1 Piece / Pos. 25

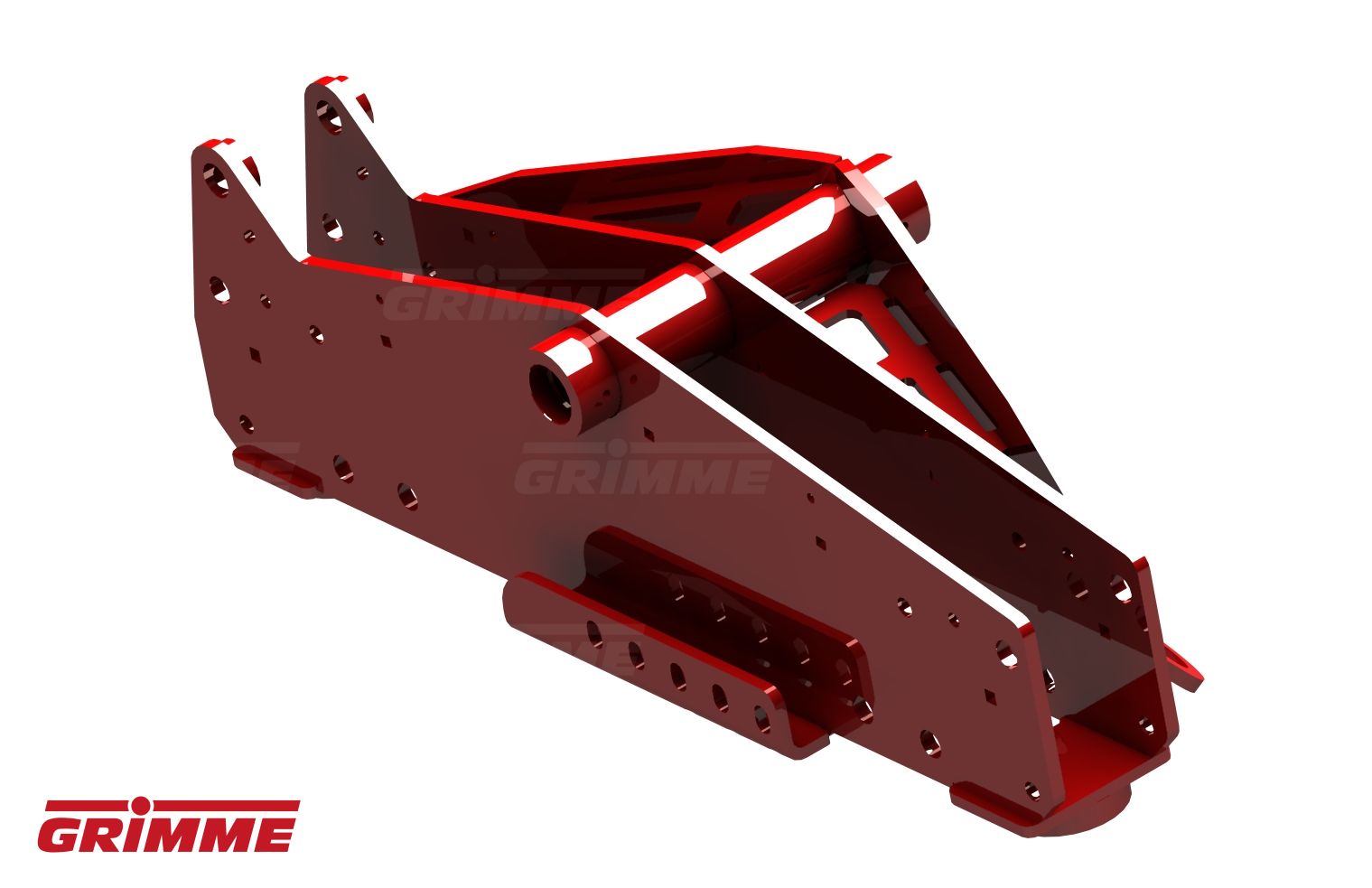

LIFTING FRAME

Quantity in assembly group: 1 Piece / Pos. 26

LIFTING FRAME LONG 170

Quantity in assembly group: 1 Piece / Pos. 27

BEARING BRACKET R/H

Quantity in assembly group: 1 Piece / Pos. 28

BEARING BRACKET L/H

Quantity in assembly group: 1 Piece / Pos. 29

ROLLER D100

Quantity in assembly group: 4 Piece / Pos. 30

GREASE NIPPLE H1/S-M8X1 DIN714

Quantity in assembly group: 2 Piece / Pos. 31

GREASE NIPPLE H3/S-M8X1 DIN714

Quantity in assembly group: 2 Piece / Pos. 32

TENSION BUSH 50X40X20 F1

Quantity in assembly group: 2 Piece / Pos. 33

GE12LM18X1.5EDOMDCF

Quantity in assembly group: 2 Piece / Pos. 34

P-EWS 12L-SV

Quantity in assembly group: 1 Piece / Pos. 35

P-REDS 12/8L-SV

Quantity in assembly group: 2 Piece / Pos. 36

STRAIGHT CONNECTION SNV 12L

Quantity in assembly group: 1 Piece / Pos. 37

BLOCK UP BALL VAL BKH-12L DN8

Quantity in assembly group: 1 Piece / Pos. 38

HEX BOLT M24X160-DIN931-8.8-G

Quantity in assembly group: 4 Piece / Pos. 39

COACH BOLT/SS M16X50-603-8.8-G

Quantity in assembly group: 10 Piece / Pos. 40

COACH BOLT M8X30-DIN603-8.8-G

Quantity in assembly group: 4 Piece / Pos. 41

FRD-SCHR M16X200 603-4.6-VERZ

Quantity in assembly group: 2 Piece / Pos. 42

COACH BOLT/SS M8X20-603-8.8-G

Quantity in assembly group: 4 Piece / Pos. 43

FRD-SCHR M16X260 603-4.6-VERZ

Quantity in assembly group: 2 Piece / Pos. 44

HHC-SCREW M16X150 931-8.8-GAL

Quantity in assembly group: 4 Piece / Pos. 45

SET SCREW M16X50-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 46

SET SCREW M16X45-DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 47

HEX-SCREW M24X50 DIN933-8.8-GA

Quantity in assembly group: 1 Piece / Pos. 48

HEXAGON NUT M8 DIN934-8-GAL

Quantity in assembly group: 7 Piece / Pos. 49

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 15 Piece / Pos. 50

NYLOC NUT DIN985-M16-8-GAL

Quantity in assembly group: 4 Piece / Pos. 51

NYLOC NUT DIN985-M24-8-GAL

Quantity in assembly group: 4 Piece / Pos. 52

COTTER PIN 5X36 DIN94-GAL

Quantity in assembly group: 1 Piece / Pos. 53

PLAIN WASHER 17X44X3 GAL

Quantity in assembly group: 2 Piece / Pos. 54

DISC 25 DIN1441-GAL

Quantity in assembly group: 4 Piece / Pos. 55

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 21 Piece / Pos. 56

CONTACT DISC SHAPE B8 GAL

Quantity in assembly group: 7 Piece / Pos. 57

EXTENSION NUT M8 DIN6334 GAL

Quantity in assembly group: 1 Piece / Pos. 58

GPN910-LOCKING CAP 3277-BLACK

Quantity in assembly group: 2 Piece / Pos. 59

INDICATOR PLATE

Quantity in assembly group: 1 Piece / Pos. 60
