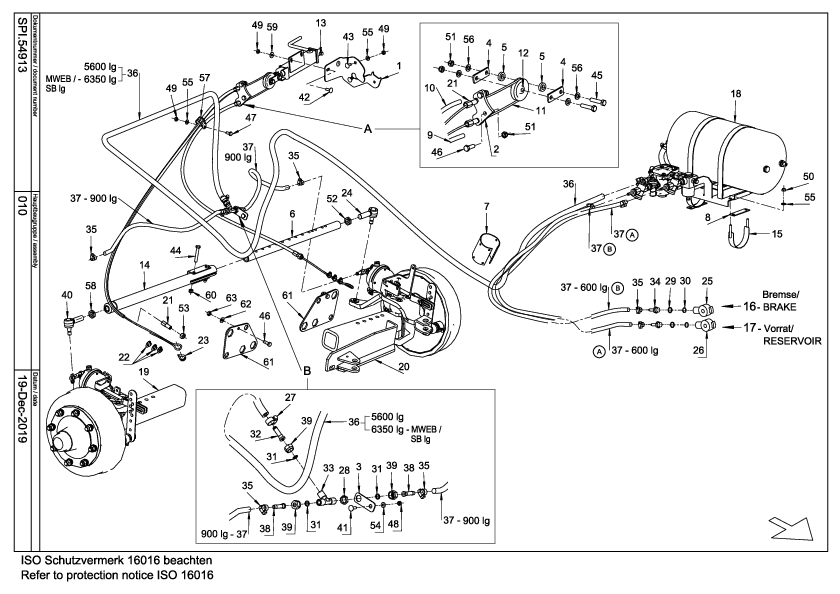

Parts by subassemblies

BRACKET PARKING BRAKE

Quantity in assembly group: 1 Piece / Pos. 1

BRACKET

Quantity in assembly group: 1 Piece / Pos. 2

BRACKET

Quantity in assembly group: 1 Piece / Pos. 3

PULL BRACKET

Quantity in assembly group: 2 Piece / Pos. 4

DISC

Quantity in assembly group: 2 Piece / Pos. 5

TRACK ROD

Quantity in assembly group: 1 Piece / Pos. 6

RUBBER

Quantity in assembly group: 1 Piece / Pos. 7

RUBBER

Quantity in assembly group: 2 Piece / Pos. 8

FLAT WIRE SPIRAL W PLS 1700LG

Quantity in assembly group: 1 Piece / Pos. 9

FLAT WIRE SPIRAL w PLS 1600LG

Quantity in assembly group: 1 Piece / Pos. 10

WIRE STRAND 5200LG

Quantity in assembly group: 1 Piece / Pos. 11

CABLE ROLLER

Quantity in assembly group: 1 Piece / Pos. 12

PARKING BRAKE w REVERSING HAND

Quantity in assembly group: 1 Piece / Pos. 13

STEERING ROD LHT

Quantity in assembly group: 1 Piece / Pos. 14

TIGHTENING STRAP 250MM

Quantity in assembly group: 2 Piece / Pos. 15

FLEXIBLE TUBE FOR BRAKE

Quantity in assembly group: 1 Piece / Pos. 16

FLEXIBLE TUBE FOR RESERVOIR

Quantity in assembly group: 1 Piece / Pos. 17

PRA COA BRAKING DOWN

Quantity in assembly group: 1 Piece / Pos. 18

BRAKE AXLE STUB R/H

Quantity in assembly group: 1 Piece / Pos. 19

BRAKE AXLE STUB L/H

Quantity in assembly group: 1 Piece / Pos. 20

SCREW HOSE HOLDER M16X1,5

Quantity in assembly group: 4 Piece / Pos. 21

CABLE CLAMP 6mm

Quantity in assembly group: 6 Piece / Pos. 22

THIMBLE B6 DIN6899 BRIGHT GAL

Quantity in assembly group: 2 Piece / Pos. 23

BALL JOINT

Quantity in assembly group: 1 Piece / Pos. 24

COUPLING CONE

Quantity in assembly group: 1 Piece / Pos. 25

COUPLING CONE

Quantity in assembly group: 1 Piece / Pos. 26

HOSE CLIP F S13

Quantity in assembly group: 1 Piece / Pos. 27

HEXAGON NUT

Quantity in assembly group: 1 Piece / Pos. 28

SEALING RING M22X1,5

Quantity in assembly group: 2 Piece / Pos. 29

ROUND CORD RING M22X1,5

Quantity in assembly group: 2 Piece / Pos. 30

SEALING RING

Quantity in assembly group: 3 Piece / Pos. 31

HOSE PLUG w NECK

Quantity in assembly group: 1 Piece / Pos. 32

T-PIECE

Quantity in assembly group: 1 Piece / Pos. 33

HOSE PLUG M22X1,5

Quantity in assembly group: 2 Piece / Pos. 34

HOSE CLIP F S11

Quantity in assembly group: 8 Piece / Pos. 35

HOSE 25X13

Quantity in assembly group: 5 Piece / Pos. 36

HOSE 18X11

Quantity in assembly group: 13 Piece / Pos. 37

HOSE FITTING w COLLAR

Quantity in assembly group: 2 Piece / Pos. 38

SWIVEL NUT F HOSE FITTING

Quantity in assembly group: 3 Piece / Pos. 39

UNIVERSAL BALL M24x1.5 L/H

Quantity in assembly group: 1 Piece / Pos. 40

COACH BOLT M8X25-603-8.8-GAL

Quantity in assembly group: 1 Piece / Pos. 41

MH-SCREW M10X30-603-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 42

MH-SCREW wSS M10X25 603-8,8GAL

Quantity in assembly group: 2 Piece / Pos. 43

HEX BOLT M12X80-931-10.9 flZn

Quantity in assembly group: 2 Piece / Pos. 44

HEX BOLT M12X55-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 45

SET SCREW M12X35-DIN933-8.8-G

Quantity in assembly group: 4 Piece / Pos. 46

HHC-SCREW M10X25 933-8.8-GAL

Quantity in assembly group: 1 Piece / Pos. 47

HEXAGON NUT M8 DIN934-8-GAL

Quantity in assembly group: 1 Piece / Pos. 48

HEXAGON NUT M10 DIN934-8-GAL

Quantity in assembly group: 5 Piece / Pos. 49

NYLOC NUT DIN985-M10-8-GAL

Quantity in assembly group: 4 Piece / Pos. 50

NYLOC NUT DIN985-M12-8-GAL

Quantity in assembly group: 4 Piece / Pos. 51

HEXAGON NUT M24X1,5DIN936-17H-

Quantity in assembly group: 1 Piece / Pos. 52

HEX-NUT M16X1,5 DIN934-8-GAL

Quantity in assembly group: 4 Piece / Pos. 53

CONTACT WASHER FORM M 8-GAL

Quantity in assembly group: 1 Piece / Pos. 54

CONTACT WASHER FORM M 10-GAL

Quantity in assembly group: 7 Piece / Pos. 55

DISC A13 DIN125-GAL

Quantity in assembly group: 4 Piece / Pos. 56

PIPE CLAMP RSGU1100 30/25

Quantity in assembly group: 1 Piece / Pos. 57

HEXAGON NUT M24X1,5 LHT 17-GAL

Quantity in assembly group: 1 Piece / Pos. 58

CONTACT WASHER FORM B 10-GAL

Quantity in assembly group: 2 Piece / Pos. 59

HEX NUT DIN985 M12 10.9 GAL

Quantity in assembly group: 2 Piece / Pos. 60

PLATE

Quantity in assembly group: 2 Piece / Pos. 61

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 2 Piece / Pos. 62

HEXAGON NUT M12 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 63
