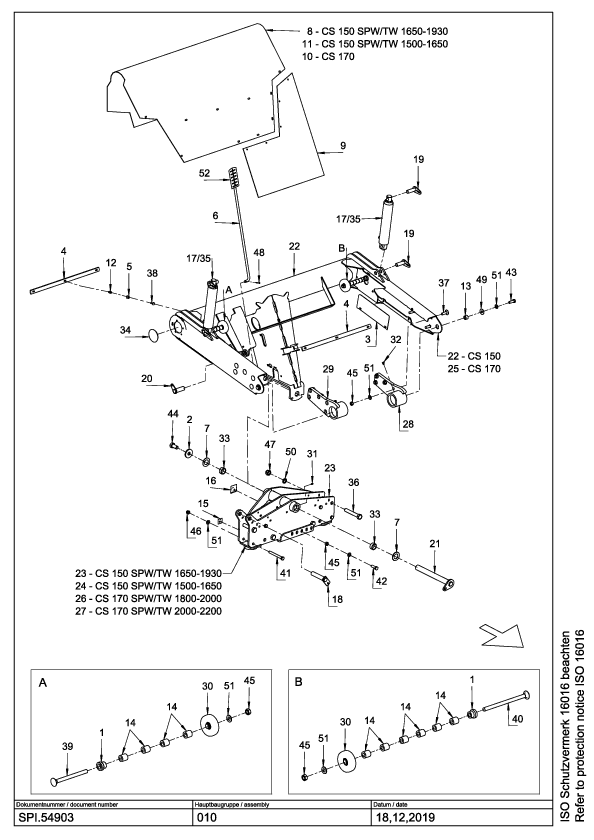

Parts by subassemblies

ROLLER BUSH

Quantity in assembly group: 2 Piece / Pos. 1

DISC

Quantity in assembly group: 1 Piece / Pos. 2

COVER PLATE

Quantity in assembly group: 2 Piece / Pos. 3

LEDGE

Quantity in assembly group: 2 Piece / Pos. 4

BUSH 9X20X15

Quantity in assembly group: 1 Piece / Pos. 5

BAR

Quantity in assembly group: 1 Piece / Pos. 6

PRESSURE RING

Quantity in assembly group: 2 Piece / Pos. 7

COVER FOR AXLE

Quantity in assembly group: 1 Piece / Pos. 8

PLATE

Quantity in assembly group: 1 Piece / Pos. 9

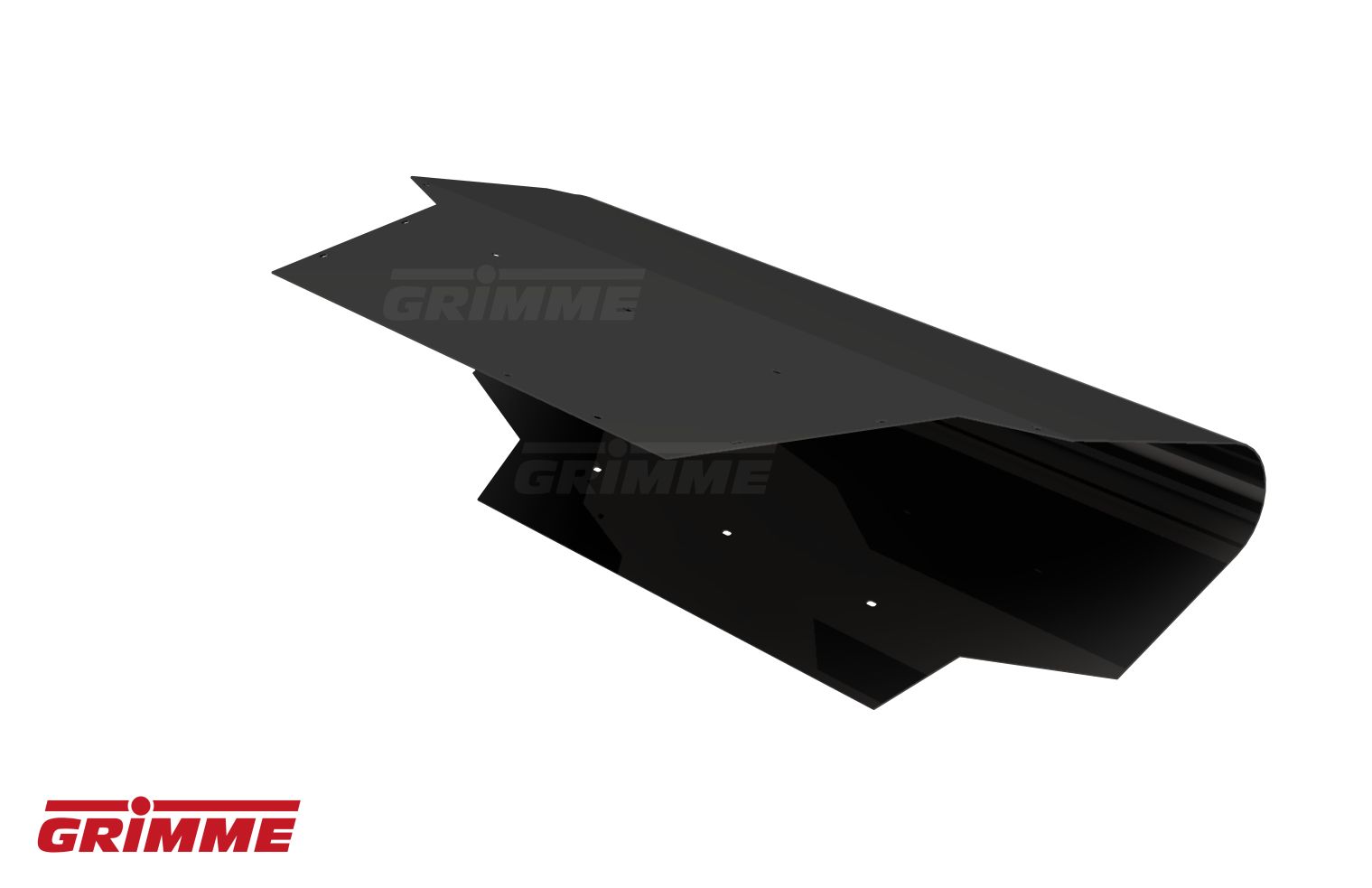

COVER

Quantity in assembly group: 1 Piece / Pos. 10

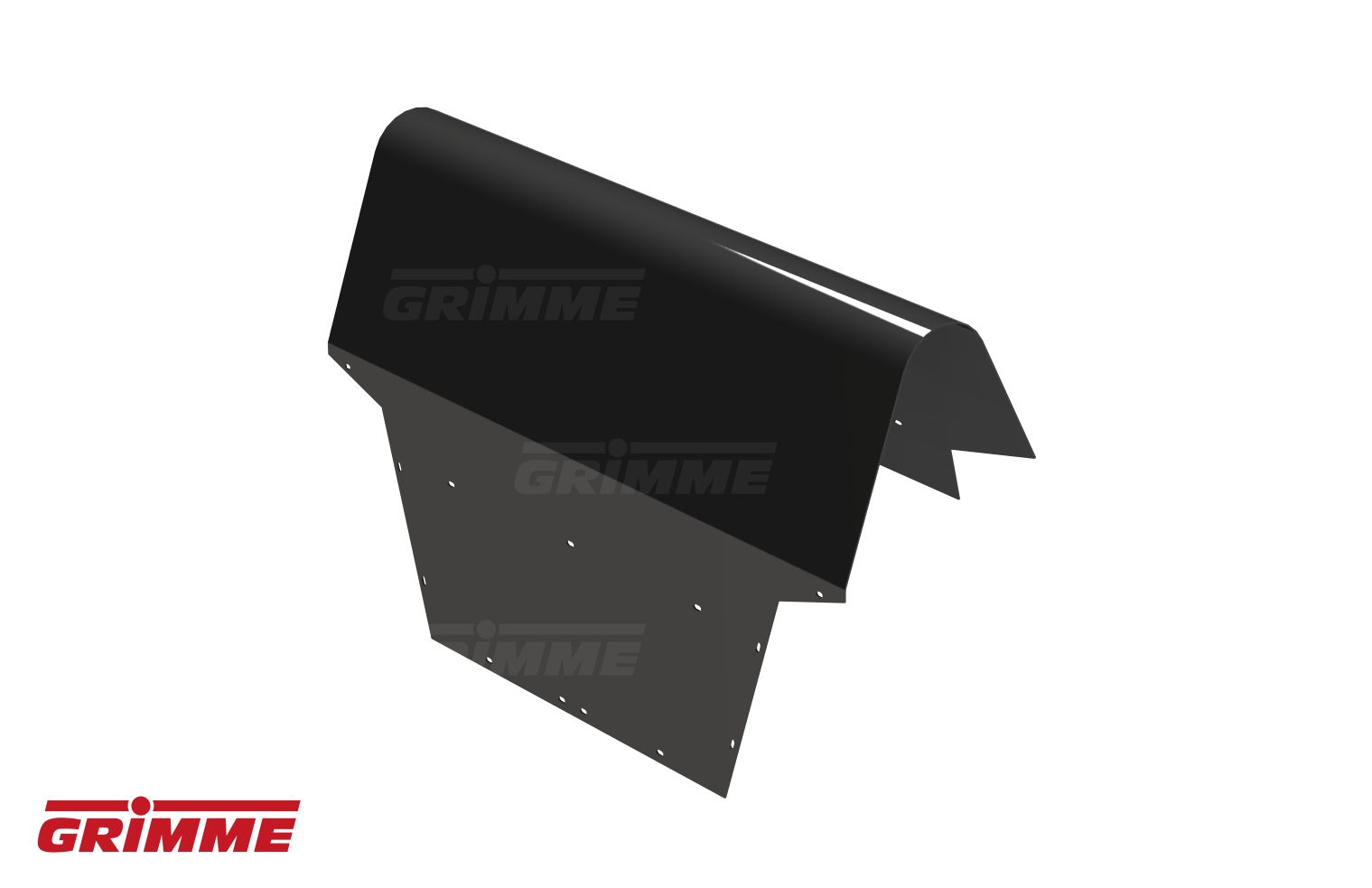

COVER TRACK WIDTH 1500

Quantity in assembly group: 1 Piece / Pos. 11

EXTENSION NUT M8 DIN6334 GAL

Quantity in assembly group: 1 Piece / Pos. 12

SPACER 20MM

Quantity in assembly group: 2 Piece / Pos. 13

SPACER 16,5X30X30

Quantity in assembly group: 10 Piece / Pos. 14

INFORMATION SYMBOLS

Quantity in assembly group: 2 Piece / Pos. 15

089.04383 INFORMATION SYM

Quantity in assembly group: 2 Piece / Pos. 16

PRESSURE HYD RAM

Quantity in assembly group: 2 Piece / Pos. 17

BOLT

Quantity in assembly group: 1 Piece / Pos. 18

BOLT

Quantity in assembly group: 4 Piece / Pos. 19

BOLT

Quantity in assembly group: 1 Piece / Pos. 20

BOLT

Quantity in assembly group: 1 Piece / Pos. 21

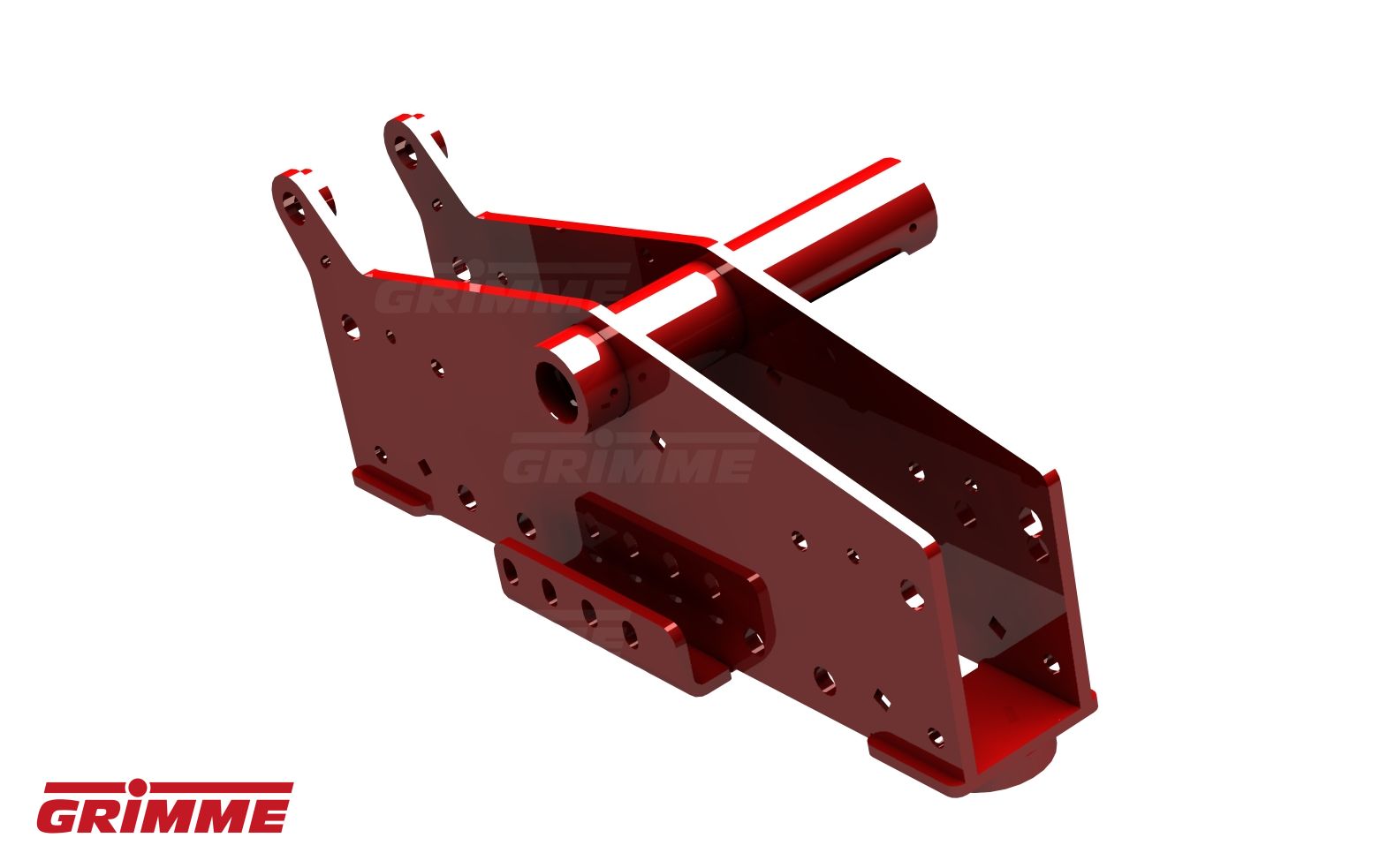

LIFTING FRAME

Quantity in assembly group: 1 Piece / Pos. 22

SWING AXLE

Quantity in assembly group: 1 Piece / Pos. 23

SWING AXLE 1500

Quantity in assembly group: 1 Piece / Pos. 24

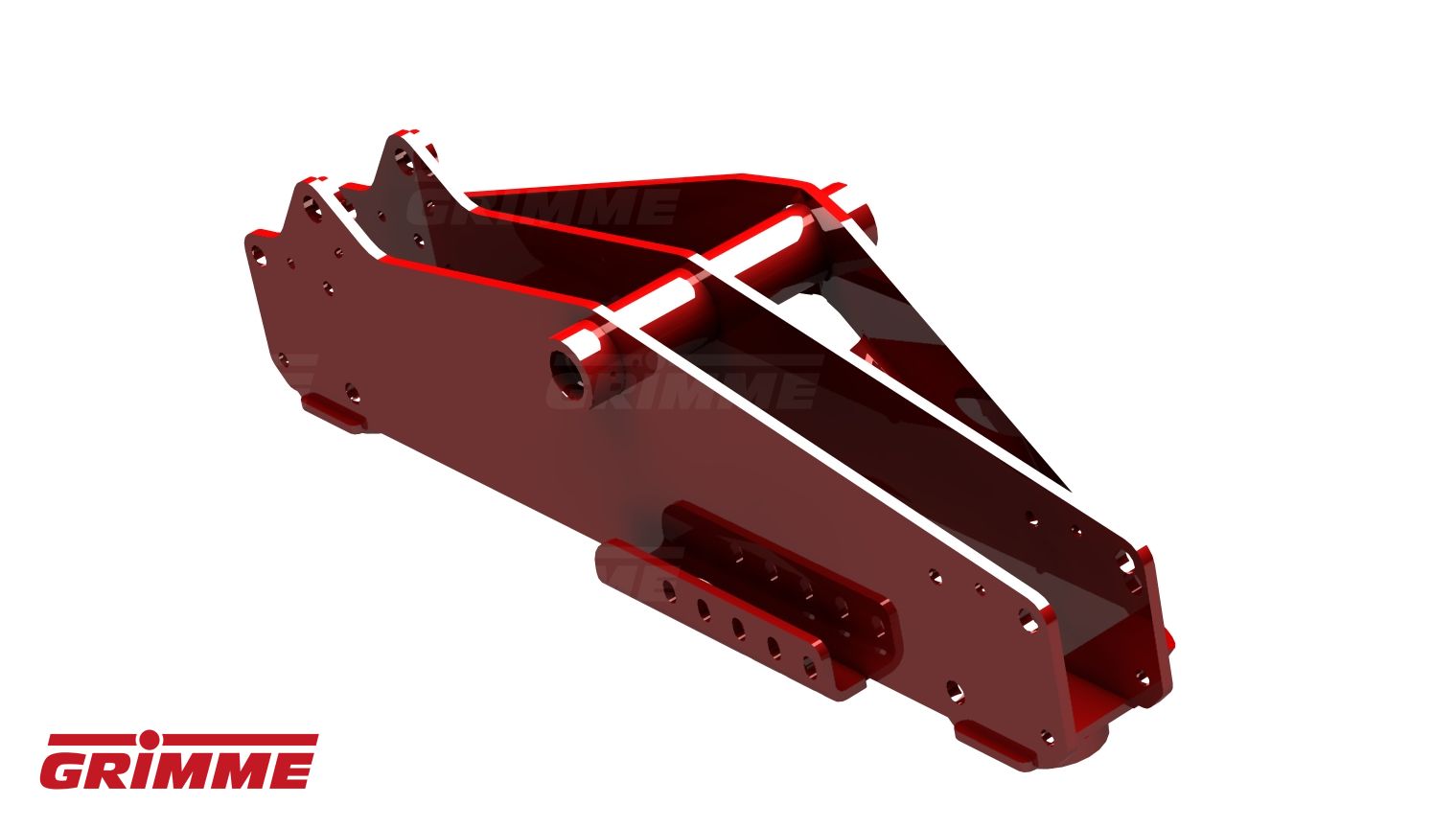

LIFTING FRAME 1700

Quantity in assembly group: 1 Piece / Pos. 25

SWING AXLE

Quantity in assembly group: 1 Piece / Pos. 26

SWING AXLE

Quantity in assembly group: 1 Piece / Pos. 27

BEARING BRACKET R/H

Quantity in assembly group: 1 Piece / Pos. 28

BEARING BRACKET L/H

Quantity in assembly group: 1 Piece / Pos. 29

ROLLER D100

Quantity in assembly group: 2 Piece / Pos. 30

GREASE NIPPLE H1/S-M8X1 DIN714

Quantity in assembly group: 2 Piece / Pos. 31

GREASE NIPPLE H3/S-M8X1 DIN714

Quantity in assembly group: 2 Piece / Pos. 32

TENSION BUSH 50X40X20 F1

Quantity in assembly group: 2 Piece / Pos. 33

GPN910-LOCKING CAP 3277-BLACK

Quantity in assembly group: 2 Piece / Pos. 34

CYL-SEAL SET

Quantity in assembly group: 2 Piece / Pos. 35

HEX BOLT M24X160-DIN931-8.8-G

Quantity in assembly group: 4 Piece / Pos. 36

COACH BOLT/SS M16X50-603-8.8-G

Quantity in assembly group: 10 Piece / Pos. 37

COACH BOLT M8X30-DIN603-8.8-G

Quantity in assembly group: 1 Piece / Pos. 38

FRD-SCHR M16X200 603-4.6-VERZ

Quantity in assembly group: 1 Piece / Pos. 39

FRD-SCHR M16X260 603-4.6-VERZ

Quantity in assembly group: 1 Piece / Pos. 40

HHC-SCREW M16X150 931-8.8-GAL

Quantity in assembly group: 4 Piece / Pos. 41

SET SCREW M16X50-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 42

SET SCREW M16X45-DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 43

HEX-SCREW M24X50 DIN933-8.8-GA

Quantity in assembly group: 1 Piece / Pos. 44

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 13 Piece / Pos. 45

NYLOC NUT DIN985-M16-8-GAL

Quantity in assembly group: 4 Piece / Pos. 46

NYLOC NUT DIN985-M24-8-GAL

Quantity in assembly group: 4 Piece / Pos. 47

COTTER PIN 5X36 DIN94-GAL

Quantity in assembly group: 1 Piece / Pos. 48

PLAIN WASHER 17X44X3 GAL

Quantity in assembly group: 2 Piece / Pos. 49

DISC 25 DIN1441-GAL

Quantity in assembly group: 4 Piece / Pos. 50

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 19 Piece / Pos. 51

INDICATOR PLATE

Quantity in assembly group: 1 Piece / Pos. 52
