Your machine: POTATO HARVESTER GT 170 M+S GT170(S/N: 45002062) modify ▸

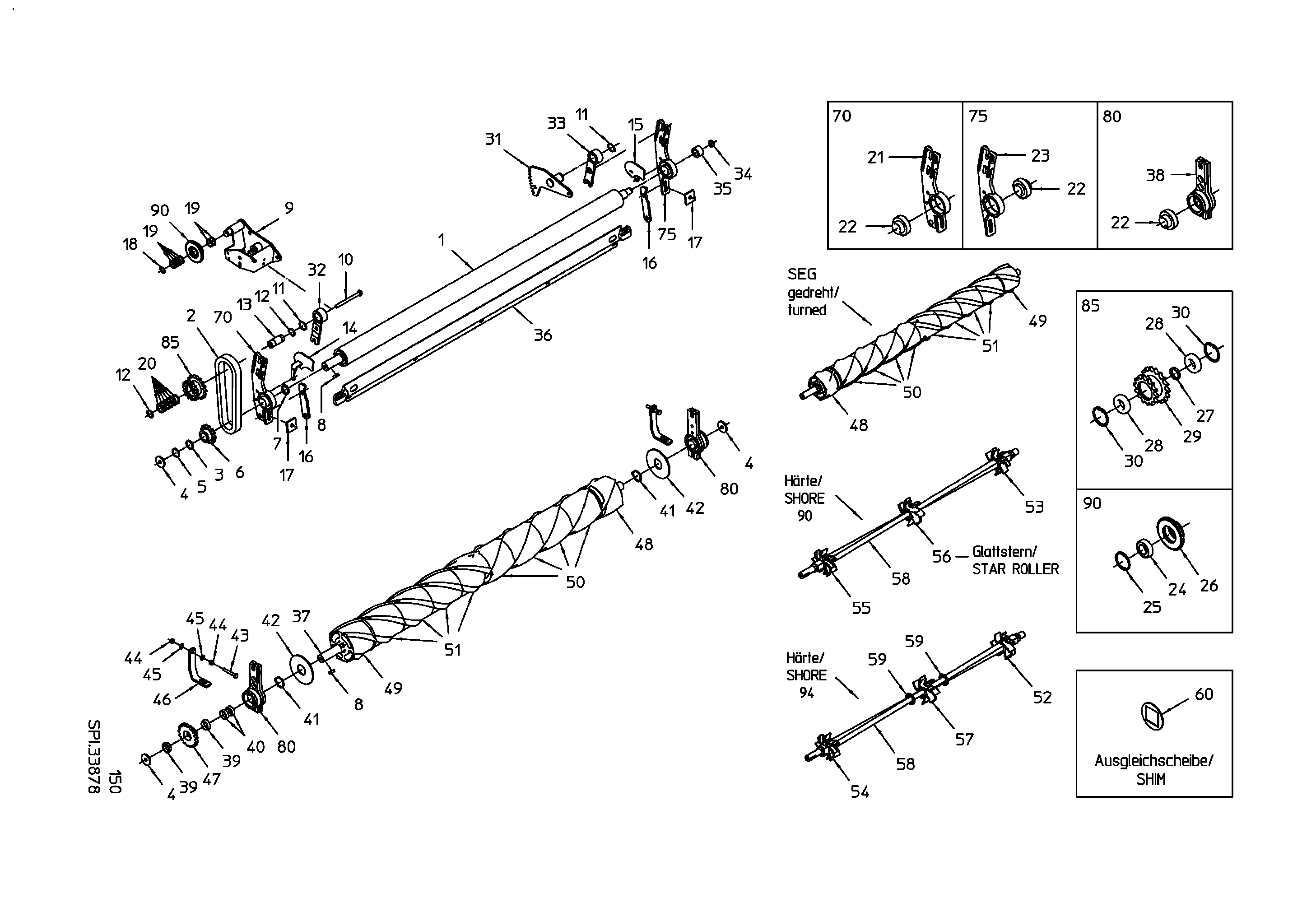

Subassembly drawing

▸ Selected assembly group:

Selected subassembly

▸
EXTRACTING UNIT MSEP SHAFTS (65 Parts)
▸

Subassembly parts

All items Equipment ex work ()
PLAIN HAULM EXTRACTION ROLLER
Quantity in assembly group: 2 Piece / Pos. 1
CHAIN 3/4"X1/2"-ASA60-44R
Quantity in assembly group: 2 Piece / Pos. 2

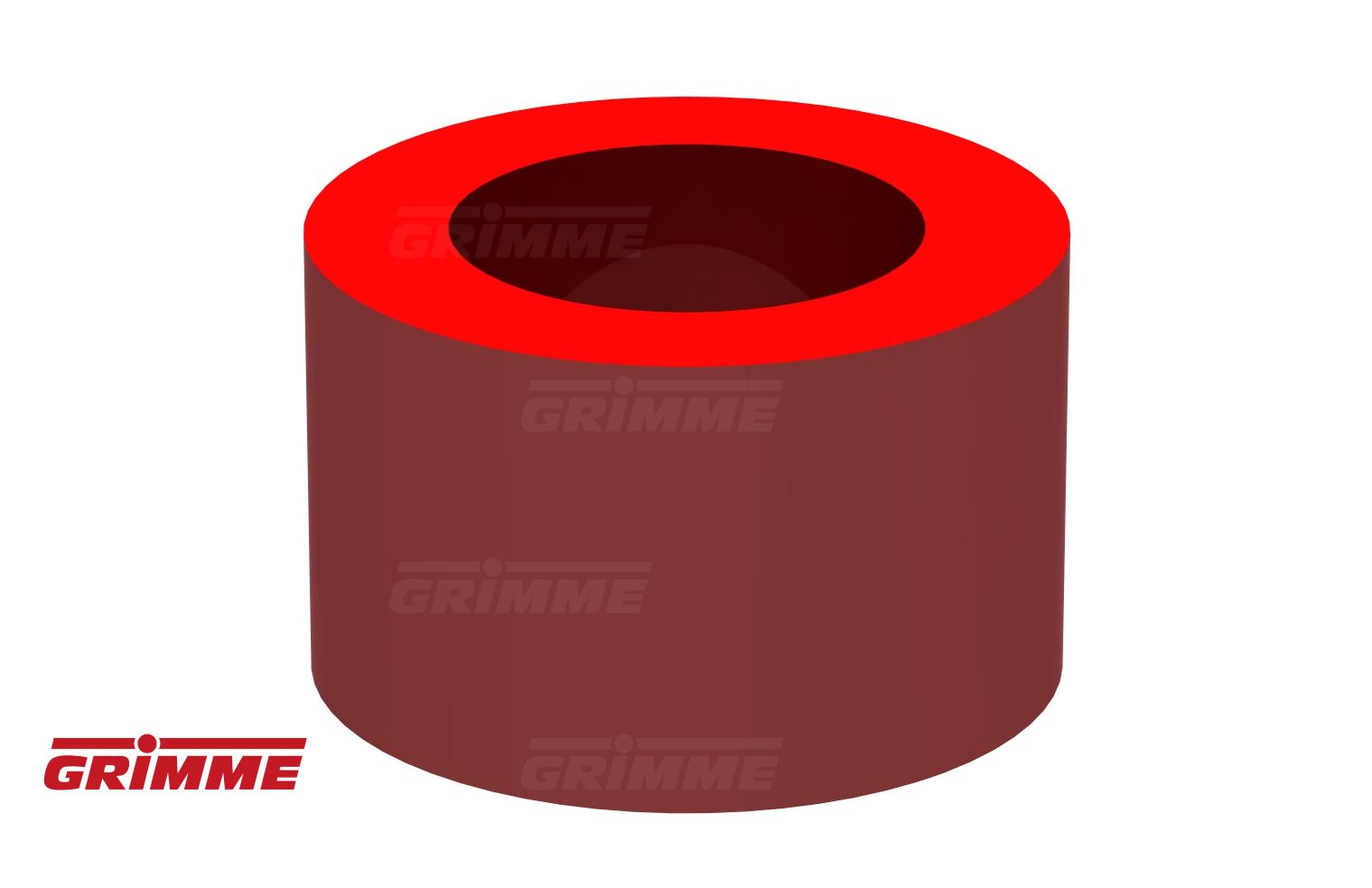

SPACER TUBE
Quantity in assembly group: 2 Piece / Pos. 3
RETAINING WASHER
Quantity in assembly group: 6 Piece / Pos. 4
SPACER RING
Quantity in assembly group: 2 Piece / Pos. 5

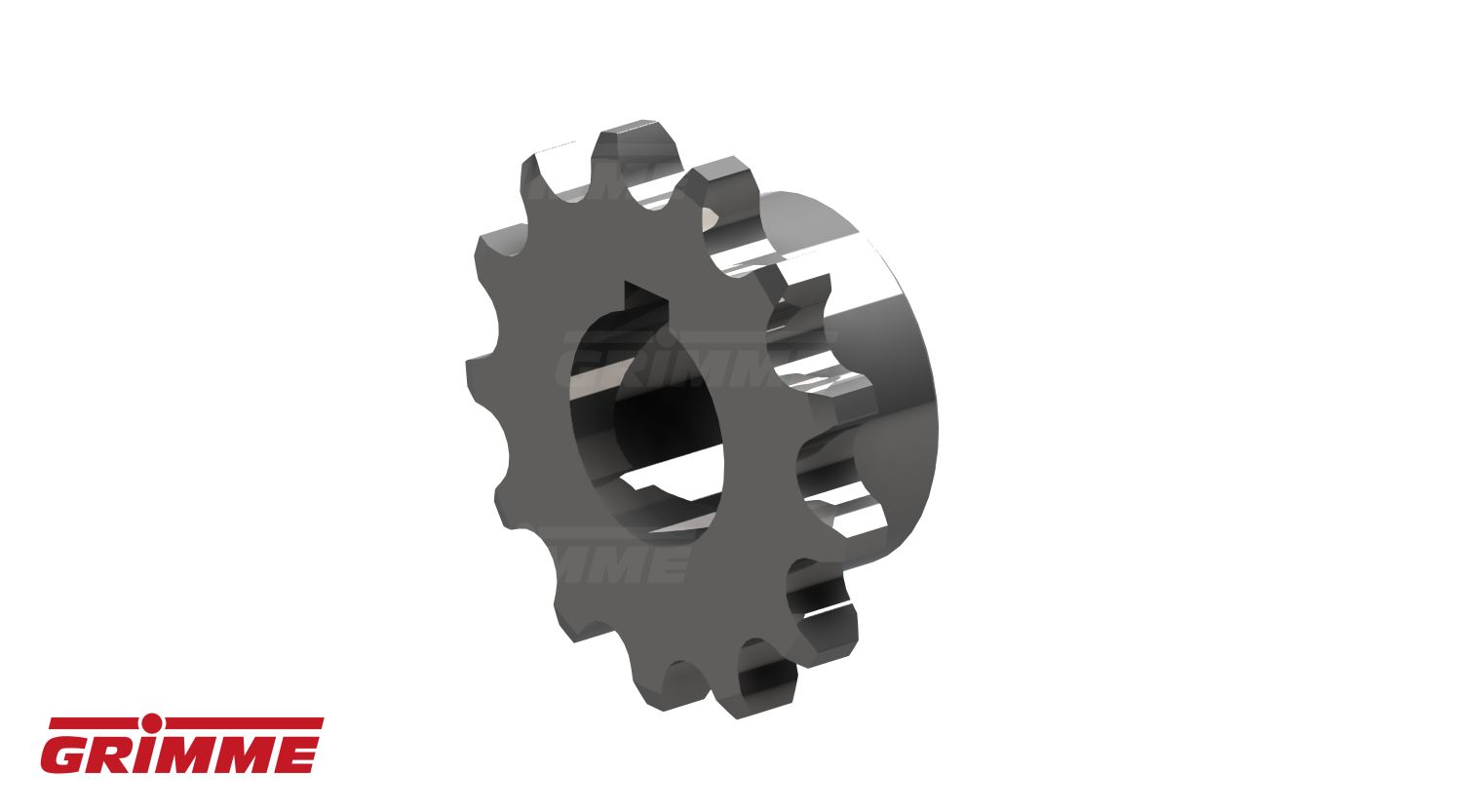

SPROCKET 3/4"-T13
Quantity in assembly group: 2 Piece / Pos. 6
SPACER TUBE
Quantity in assembly group: 2 Piece / Pos. 7
FEATHER KEY A 10X8X30 DIN6885
Quantity in assembly group: 4 Piece / Pos. 8
BEARING BRACKET
Quantity in assembly group: 2 Piece / Pos. 9
HEX BOLT M12X140-DIN931-8.8-G
Quantity in assembly group: 2 Piece / Pos. 10
RETAINING RING A 35X1,5 DIN471
Quantity in assembly group: 4 Piece / Pos. 11
RETAINING RING A 30X1,5 DIN471
Quantity in assembly group: 4 Piece / Pos. 12
BUSH
Quantity in assembly group: 2 Piece / Pos. 13

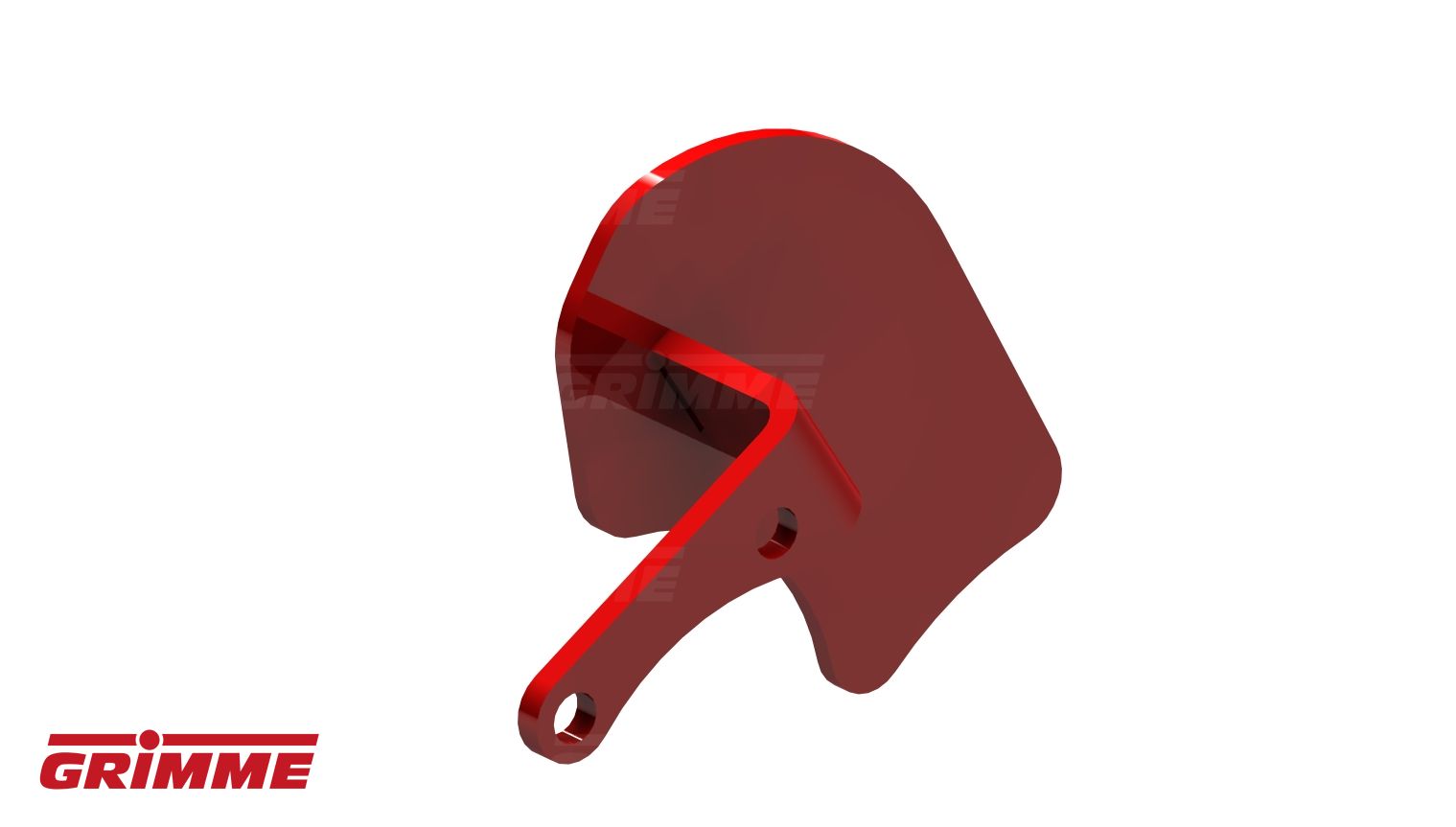

SIDE PLATE R/H
Quantity in assembly group: 2 Piece / Pos. 14

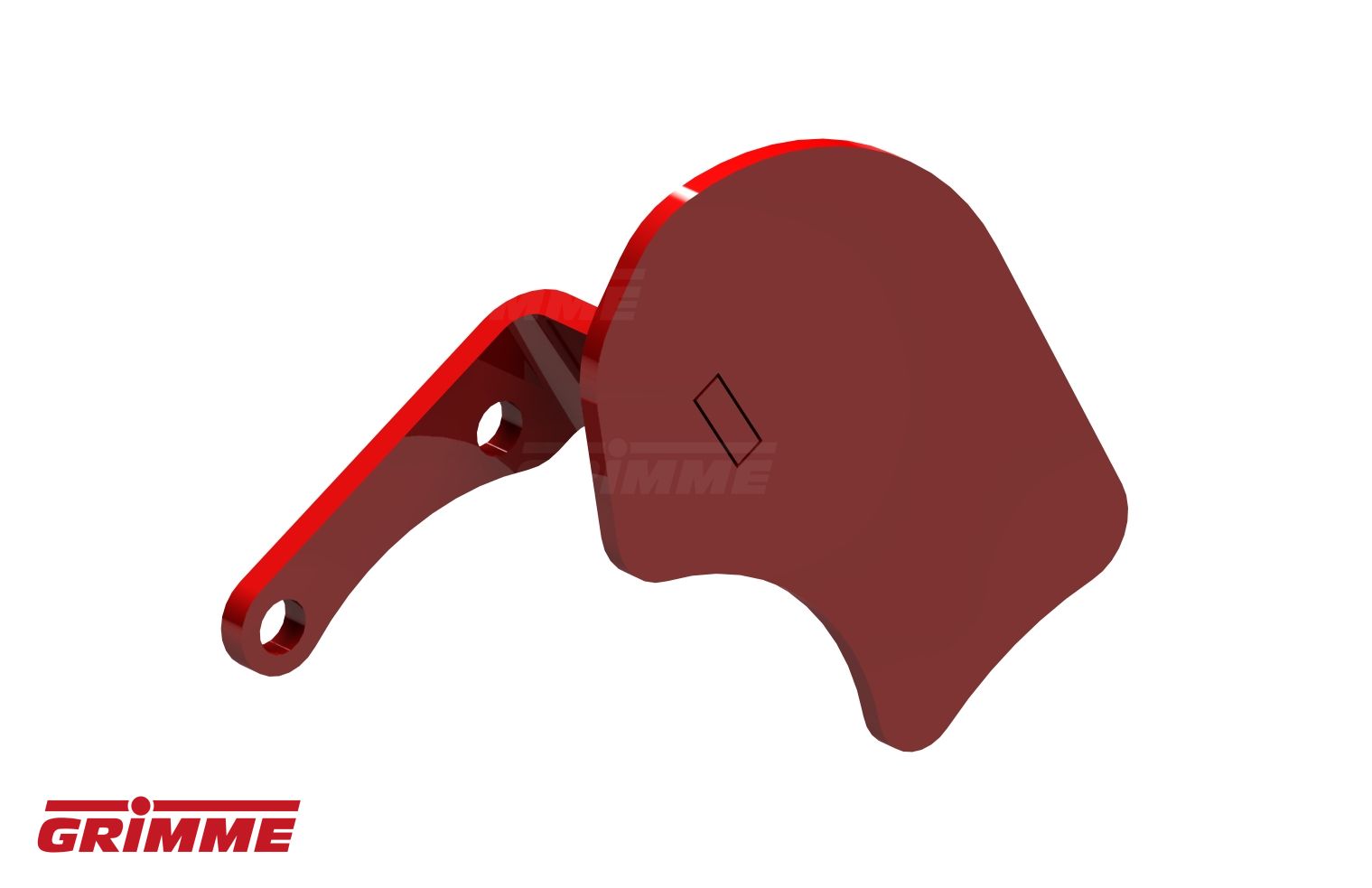

SIDE PLATE L/H
Quantity in assembly group: 2 Piece / Pos. 15
LENGTHENING
Quantity in assembly group: 4 Piece / Pos. 16
RUBBER PLATE
Quantity in assembly group: 4 Piece / Pos. 17
RETAINING RING A 25X1,2 DIN471
Quantity in assembly group: 2 Piece / Pos. 18
SHIM WASHER PS 25X36X1 DIN988
Quantity in assembly group: 12 Piece / Pos. 19
SHIM WASHER PS 30X42X1 DIN988
Quantity in assembly group: 12 Piece / Pos. 20

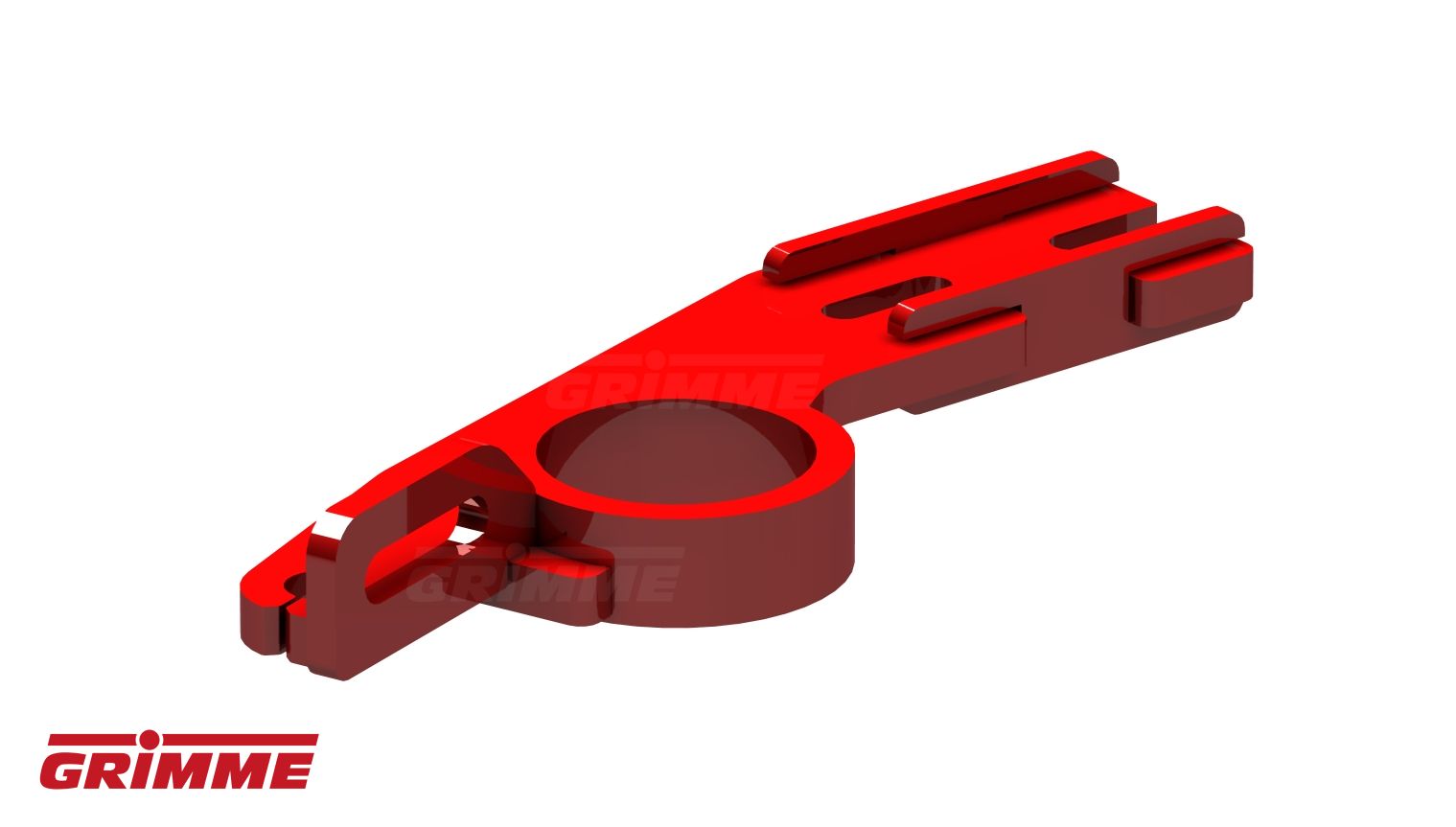

BEARING ARM L/H
Quantity in assembly group: 2 Piece / Pos. 21
BEARING YAR 207-2RF/UC207
Quantity in assembly group: 8 Piece / Pos. 22

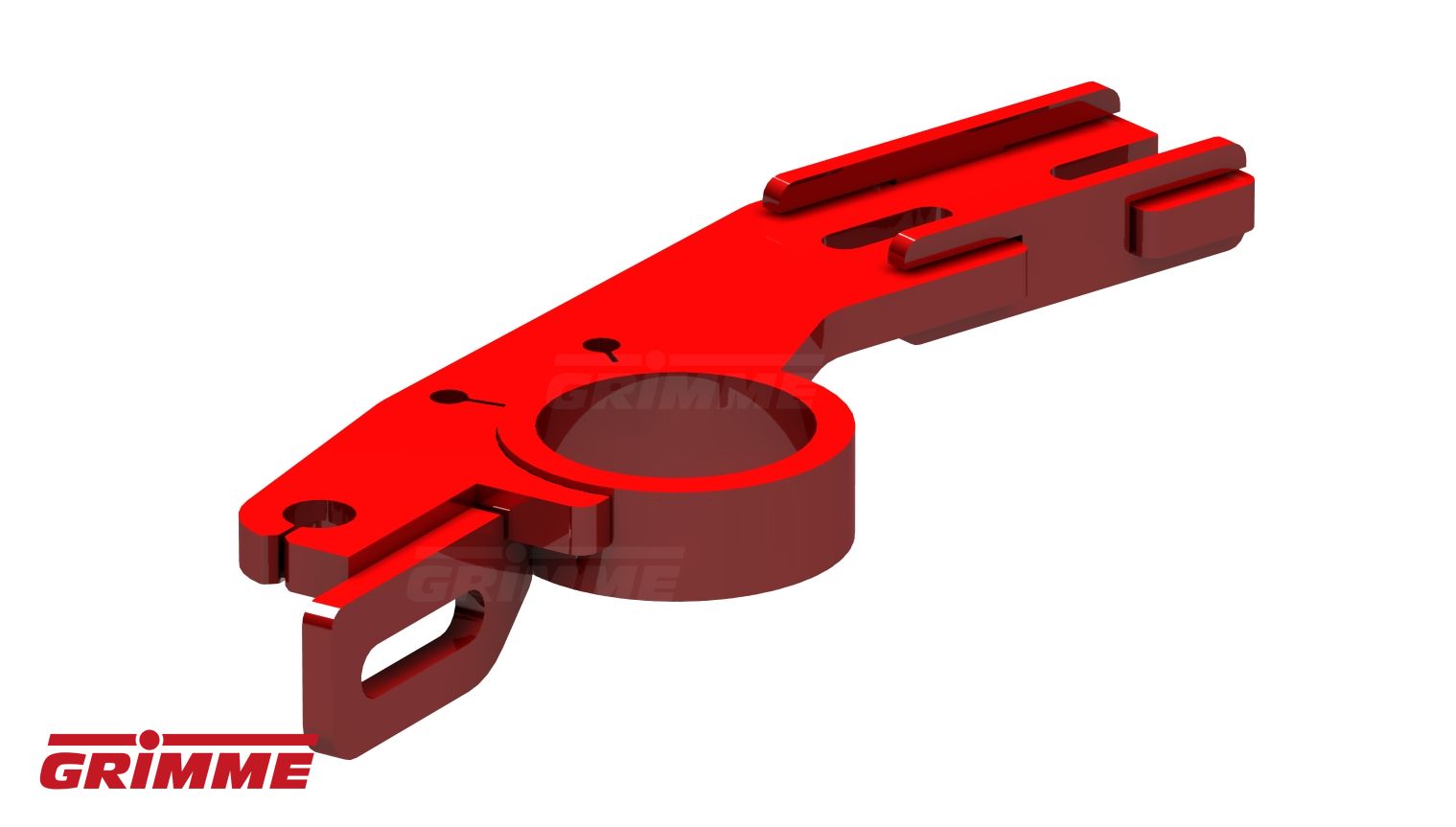

BEARING ARM R/H
Quantity in assembly group: 2 Piece / Pos. 23
BALL BEARING 6205-2RS
Quantity in assembly group: 2 Piece / Pos. 24
RETAINING RING J 52X2 DIN472
Quantity in assembly group: 2 Piece / Pos. 25
SPROCKET 3/4"-T15
Quantity in assembly group: 2 Piece / Pos. 26
SPACER TUBE
Quantity in assembly group: 2 Piece / Pos. 27
BALL BEARING 6006-2RS
Quantity in assembly group: 4 Piece / Pos. 28
SPROCKET 3/4"-T14/17
Quantity in assembly group: 2 Piece / Pos. 29
RETAINING RING J 55X2 DIN472
Quantity in assembly group: 4 Piece / Pos. 30
ADJUSTING LEVER L/H
Quantity in assembly group: 2 Piece / Pos. 31
HINGE BEARING L/H
Quantity in assembly group: 2 Piece / Pos. 32
HINGE BEARING R/H
Quantity in assembly group: 2 Piece / Pos. 33
RETAINING RING A 25X2 DIN471
Quantity in assembly group: 2 Piece / Pos. 34
SPACER TUBE
Quantity in assembly group: 2 Piece / Pos. 35
HAULM ROLLER SCRAPER
Quantity in assembly group: 2 Piece / Pos. 36
SQUARE SHAFT - SPIRAL SEGMENT
Quantity in assembly group: 2 Piece / Pos. 37
BEARING HOUSING
Quantity in assembly group: 4 Piece / Pos. 38
CLAMPING RING
Quantity in assembly group: 4 Piece / Pos. 39
SPACER TUBE
Quantity in assembly group: 4 Piece / Pos. 40
RETAINING RING AS 45X2,5 DIN47
Quantity in assembly group: 4 Piece / Pos. 41
RETAINING WASHER
Quantity in assembly group: 4 Piece / Pos. 42
HEX-SCREW M10X70 DIN933-8.8-GA
Quantity in assembly group: 4 Piece / Pos. 43
HEXAGON NUT M10 DIN934-8-GAL
Quantity in assembly group: 8 Piece / Pos. 44
CONTACT WASHER FORM M 10-GAL
Quantity in assembly group: 8 Piece / Pos. 45

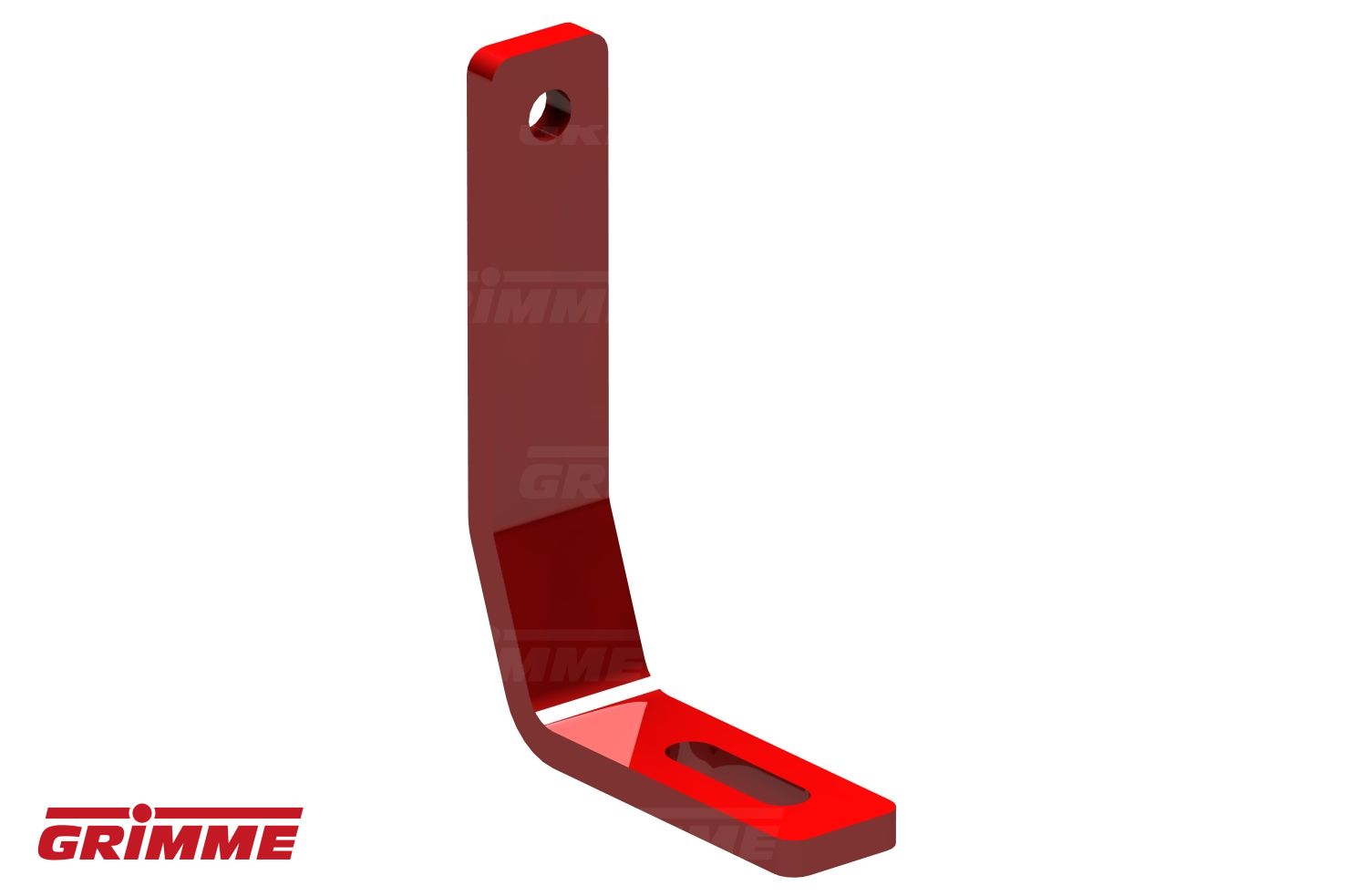

STOPPER
Quantity in assembly group: 4 Piece / Pos. 46
SPROCKET ASA60-1 Z17
Quantity in assembly group: 2 Piece / Pos. 47
SPIRAL SEGMENT L/H END D162-40
Quantity in assembly group: 2 Piece / Pos. 48
SPIRAL SEGMENT R/H END D162-40
Quantity in assembly group: 2 Piece / Pos. 49
SPIRAL SEGMENT L/H D162 B40
Quantity in assembly group: 8 Piece / Pos. 50
SPIRAL SEGMENT R/H D162 B40
Quantity in assembly group: 8 Piece / Pos. 51

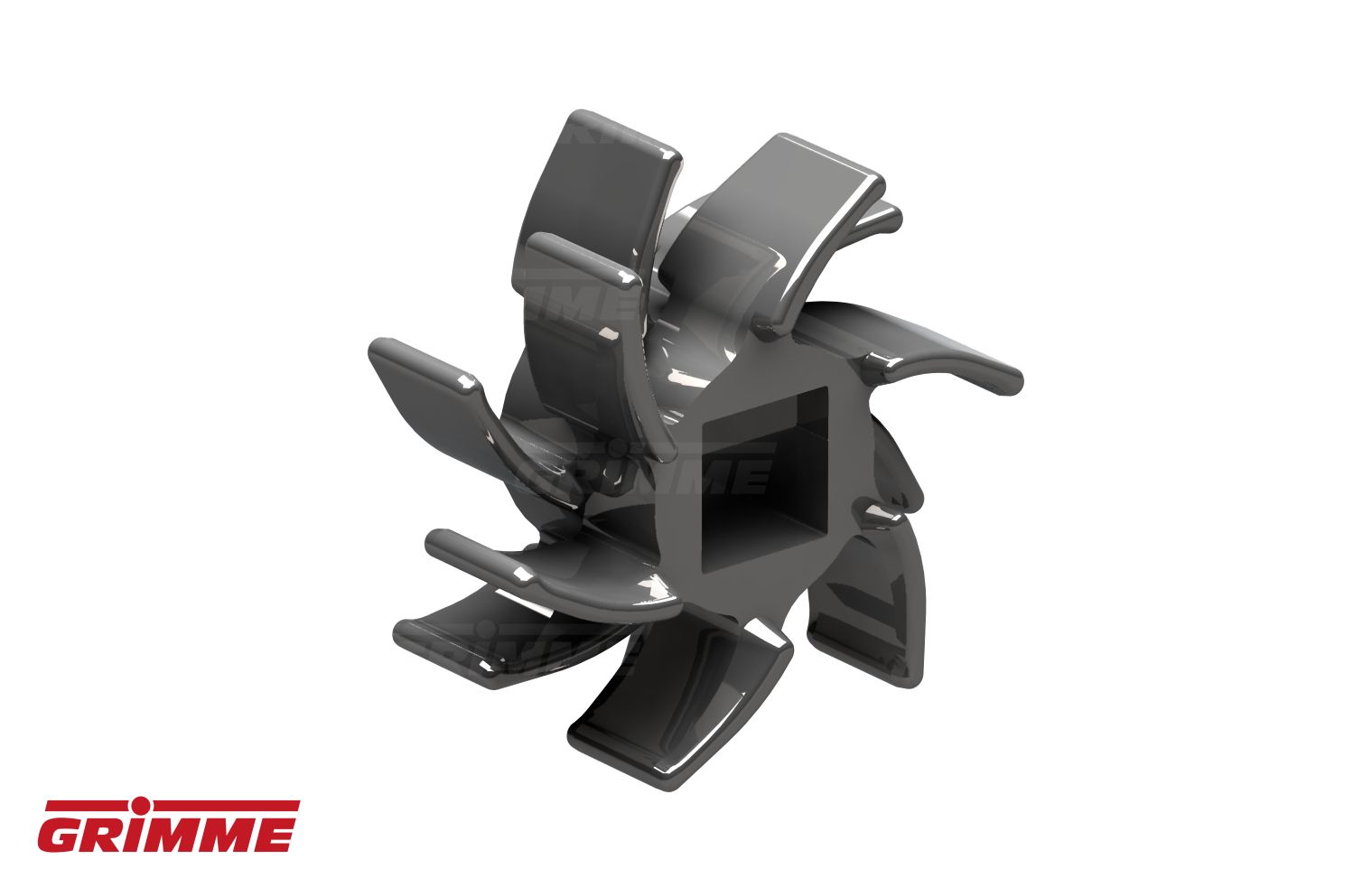

STAR L/H - 6 FINGER (GREY)
Quantity in assembly group: 1 Piece / Pos. 52
STAR L/H - 6 FINGER (YELLOW)
Quantity in assembly group: 1 Piece / Pos. 53
STAR R/H - 6 FINGER (GREY)
Quantity in assembly group: 1 Piece / Pos. 54
STAR R/H - 6 FINGER (YELLOW)
Quantity in assembly group: 1 Piece / Pos. 55
MULTI-SEP STAR YELLOW 90 79W
Quantity in assembly group: 1 Piece / Pos. 56
STAR - 6 FINGER (GREY)
Quantity in assembly group: 1 Piece / Pos. 57
SPIRAL SHAFT
Quantity in assembly group: 1 Piece / Pos. 58
DISC
Quantity in assembly group: 2 Piece / Pos. 59
SPACER DISC
Quantity in assembly group: 1 Piece / Pos. 60
BEARING ARM L/H
Quantity in assembly group: 2 Piece / Pos. 70
BEARING ARM R/H
Quantity in assembly group: 2 Piece / Pos. 75
BEARING ARM L/H
Quantity in assembly group: 4 Piece / Pos. 80
IDLER SPROCKET 3/4"-T14/17
Quantity in assembly group: 2 Piece / Pos. 85
SPROCKET DEW
Quantity in assembly group: 2 Piece / Pos. 90
