Parts by subassemblies
Your machine: POTATO HARVESTER GT 170 M+S GT170(S/N: 45002062) modify ▸

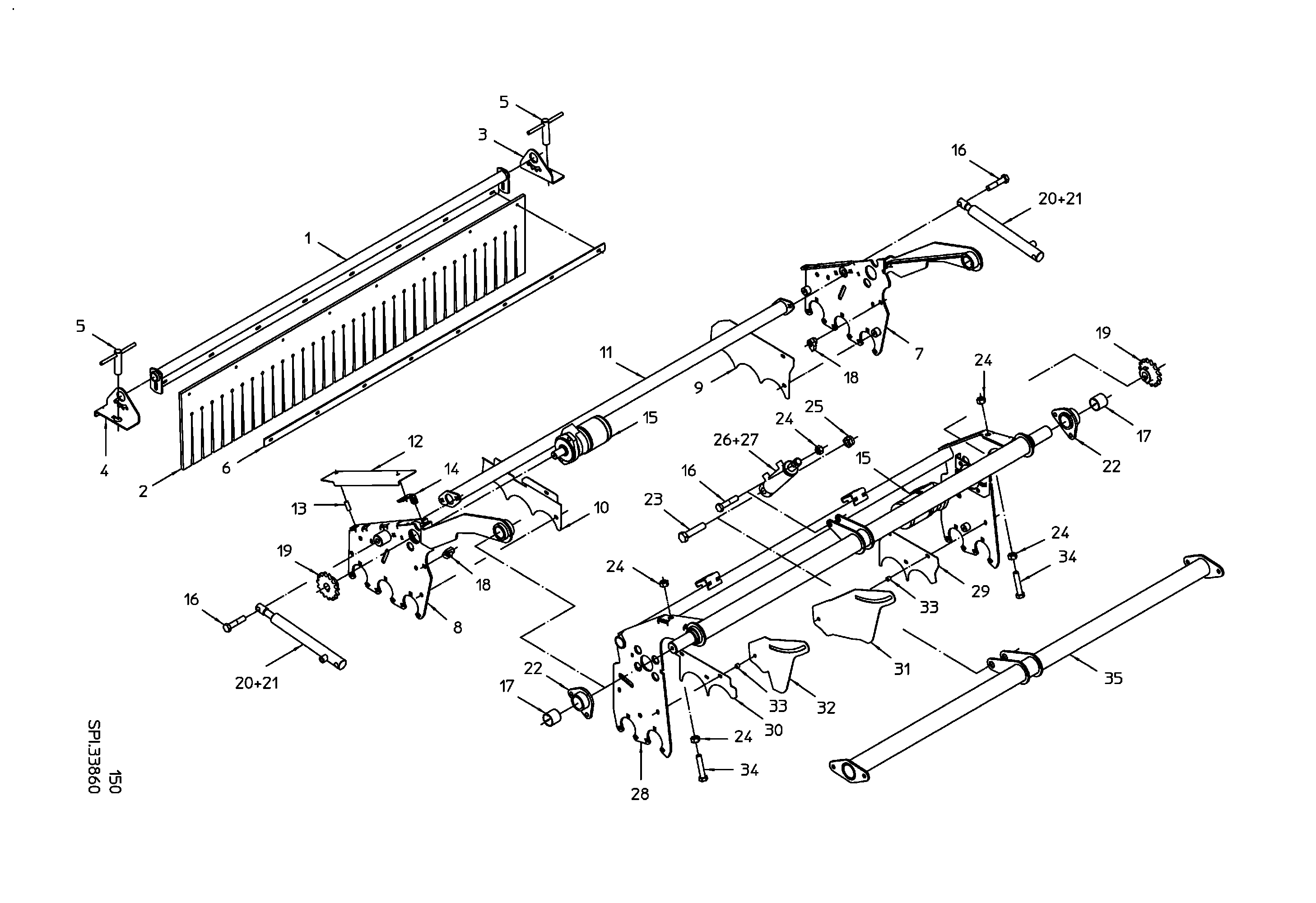

Subassembly drawing
▸ Selected assembly group:
PLAIN BEARING BUSH 404440
SPACER
Selected subassembly
Subassembly parts
TURNING TUBE
Quantity in assembly group:
1 Piece / Pos. 1
RUBBER PLATE
Quantity in assembly group:
1 Piece / Pos. 2
PLATE L/H
Quantity in assembly group:
1 Piece / Pos. 3
PLATE R/H
Quantity in assembly group:
1 Piece / Pos. 4
LOCKING LEVER
Quantity in assembly group:
2 Piece / Pos. 5
FLAT STAY
Quantity in assembly group:
1 Piece / Pos. 6
SIDE PLATE L/H
Quantity in assembly group:
1 Piece / Pos. 7
SIDE PLATE R/H
Quantity in assembly group:
1 Piece / Pos. 8
SIDE PLATE L/H
Quantity in assembly group:
1 Piece / Pos. 9
SIDE PLATE R/H
Quantity in assembly group:
1 Piece / Pos. 10
CROSS TUBE
Quantity in assembly group:
1 Piece / Pos. 11
COVER PLATE
Quantity in assembly group:
1 Piece / Pos. 12
SPACER TUBE
Quantity in assembly group:
1 Piece / Pos. 13
ANGLE BRACKET
Quantity in assembly group:
1 Piece / Pos. 14
HYD MOTOR MF260 CLY-SHAFT
Quantity in assembly group:
2 Piece / Pos. 15
HEX BOLT M16X75-DIN931-8.8-G
Quantity in assembly group:
3 Piece / Pos. 16
PLAIN BEARING BUSH 404440
Quantity in assembly group:
4 Piece / Pos. 17
ECCENTRIC CAM
Quantity in assembly group:
2 Piece / Pos. 18
SPROCKET ASA60-1 T15
Quantity in assembly group:
2 Piece / Pos. 19
DOUBLE ACTING RAM
Quantity in assembly group:
2 Piece / Pos. 20
CYL-SEAL SET
Quantity in assembly group:
1 Piece / Pos. 21
LAGERARM
Quantity in assembly group:
2 Piece / Pos. 22
HEX BOLT M20X90-DIN931-8.8-G
Quantity in assembly group:
1 Piece / Pos. 23
HEXAGON NUT M16 DIN555
Quantity in assembly group:
5 Piece / Pos. 24
HEX-NUT M20 DIN 980-10 flZn
Quantity in assembly group:
1 Piece / Pos. 25
DOUBLE ACTING RAM
Quantity in assembly group:
1 Piece / Pos. 26
CYL-SEAL SET
Quantity in assembly group:
1 Piece / Pos. 27
FRAME FRONT
Quantity in assembly group:
1 Piece / Pos. 28
SIDE PLATE L/H
Quantity in assembly group:
1 Piece / Pos. 29
SIDE PLATE R/H
Quantity in assembly group:
1 Piece / Pos. 30
STAINLESS PANEL L/H
Quantity in assembly group:
1 Piece / Pos. 31
STAINLESS PANEL R/H
Quantity in assembly group:
1 Piece / Pos. 32
SPACER
Quantity in assembly group:
4 Piece / Pos. 33
SET SCREW M16X80-DIN933-8.8-G
Quantity in assembly group:
2 Piece / Pos. 34
CROSS TUBE
Quantity in assembly group:
1 Piece / Pos. 35
