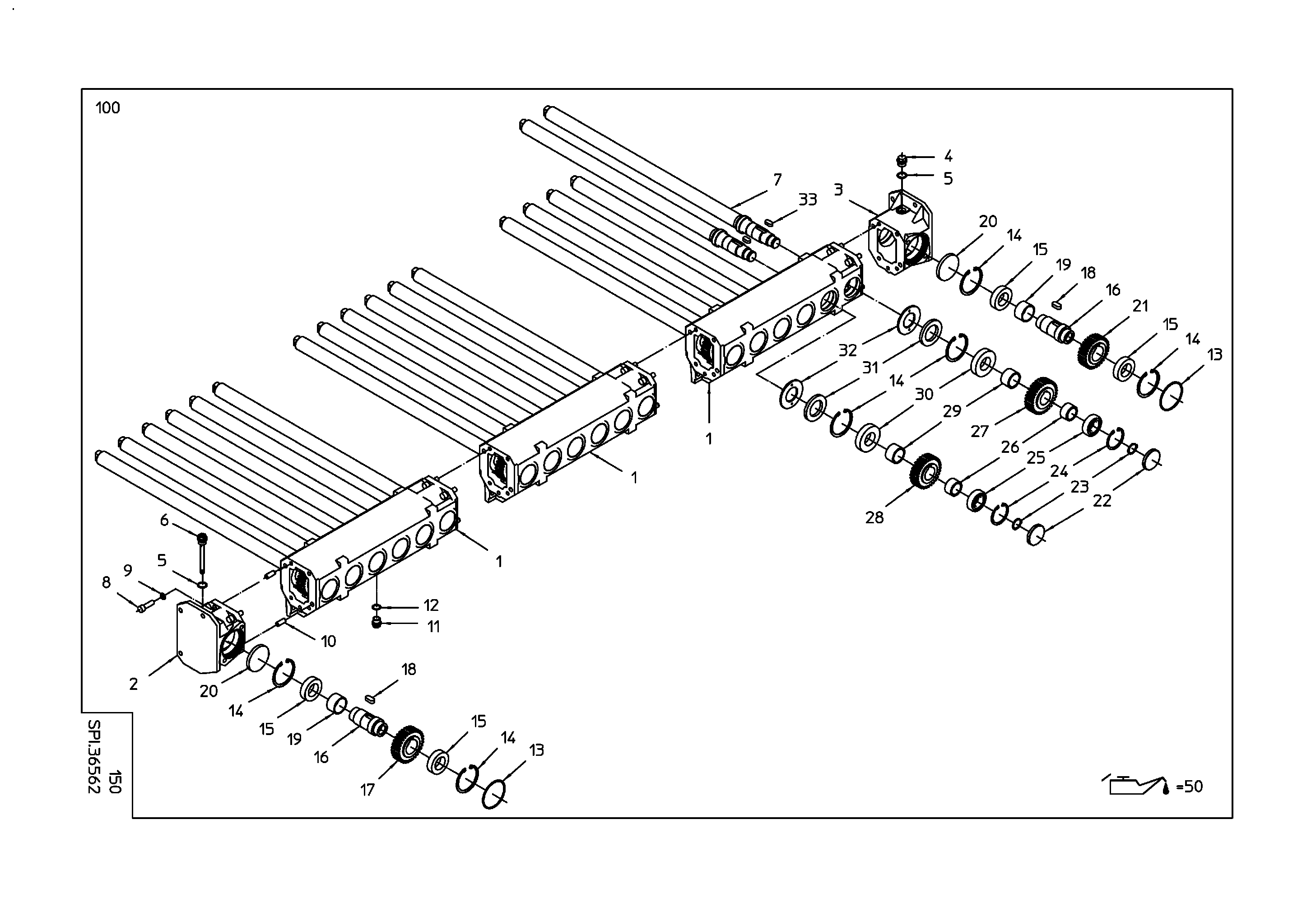

Parts by subassemblies

CASE

Quantity in assembly group: 3 Piece / Pos. 1

CASE R/H

Quantity in assembly group: 1 Piece / Pos. 2

HOUSING L/H

Quantity in assembly group: 1 Piece / Pos. 3

LOCKING SCREW M22X1,5 DIN910

Quantity in assembly group: 1 Piece / Pos. 4

SEALING RING DIN7603 A22X27-Cu

Quantity in assembly group: 2 Piece / Pos. 5

DIPSTICK FOR RS GEARBOX

Quantity in assembly group: 1 Piece / Pos. 6

OUTPUT DRIVE SHAFT HARDENED

Quantity in assembly group: 18 Piece / Pos. 7

SHC-SCREW 912 M12X40-12.9 flZn

Quantity in assembly group: 20 Piece / Pos. 8

BLOCKING DISC SKZ 12-GAL

Quantity in assembly group: 20 Piece / Pos. 9

ROLL PIN 12X30-DIN1481

Quantity in assembly group: 8 Piece / Pos. 10

LOCKING SCREW 910-M20X1,5-GAL

Quantity in assembly group: 3 Piece / Pos. 11

SEALING RING DIN7603 A20X24-Cu

Quantity in assembly group: 3 Piece / Pos. 12

'O'-RING SEAL 82,14X3,53 72NBR

Quantity in assembly group: 2 Piece / Pos. 13

RETAINING RING J 80X2,5 DIN472

Quantity in assembly group: 22 Piece / Pos. 14

BALL BEARING 6208-1RS

Quantity in assembly group: 4 Piece / Pos. 15

PROFILE BUSH

Quantity in assembly group: 2 Piece / Pos. 16

SPUR WHEEL

Quantity in assembly group: 1 Piece / Pos. 17

FEATHER KEY A 14X9X30 DIN6885

Quantity in assembly group: 2 Piece / Pos. 18

SPACER BUSH

Quantity in assembly group: 2 Piece / Pos. 19

CORE PLUG 80-DIN442

Quantity in assembly group: 2 Piece / Pos. 20

PINION

Quantity in assembly group: 1 Piece / Pos. 21

LOCKING CAP 62X8

Quantity in assembly group: 18 Piece / Pos. 22

RETAINING RING A 30X1,5 DIN471

Quantity in assembly group: 18 Piece / Pos. 23

RETAINING RING J 62X2 DIN472

Quantity in assembly group: 18 Piece / Pos. 24

BALL BEARING 6206

Quantity in assembly group: 18 Piece / Pos. 25

SPACER BUSH 25LG

Quantity in assembly group: 18 Piece / Pos. 26

SPUR WHEEL

Quantity in assembly group: 9 Piece / Pos. 27

PINION

Quantity in assembly group: 9 Piece / Pos. 28

SPACER BUSH

Quantity in assembly group: 18 Piece / Pos. 29

BALL BEARING 6208

Quantity in assembly group: 18 Piece / Pos. 30

S-SEALING RING A SL50X80X8 376

Quantity in assembly group: 18 Piece / Pos. 31

SPACER DISC

Quantity in assembly group: 18 Piece / Pos. 32

FEATHER KEY A 12X8X25 DIN6885

Quantity in assembly group: 18 Piece / Pos. 33

GEB OIL HYP SAE 85 W90 API GL5

Quantity in assembly group: 6 Piece / Pos. 50

RS-GEARBOX

Quantity in assembly group: 1 Piece / Pos. 100
