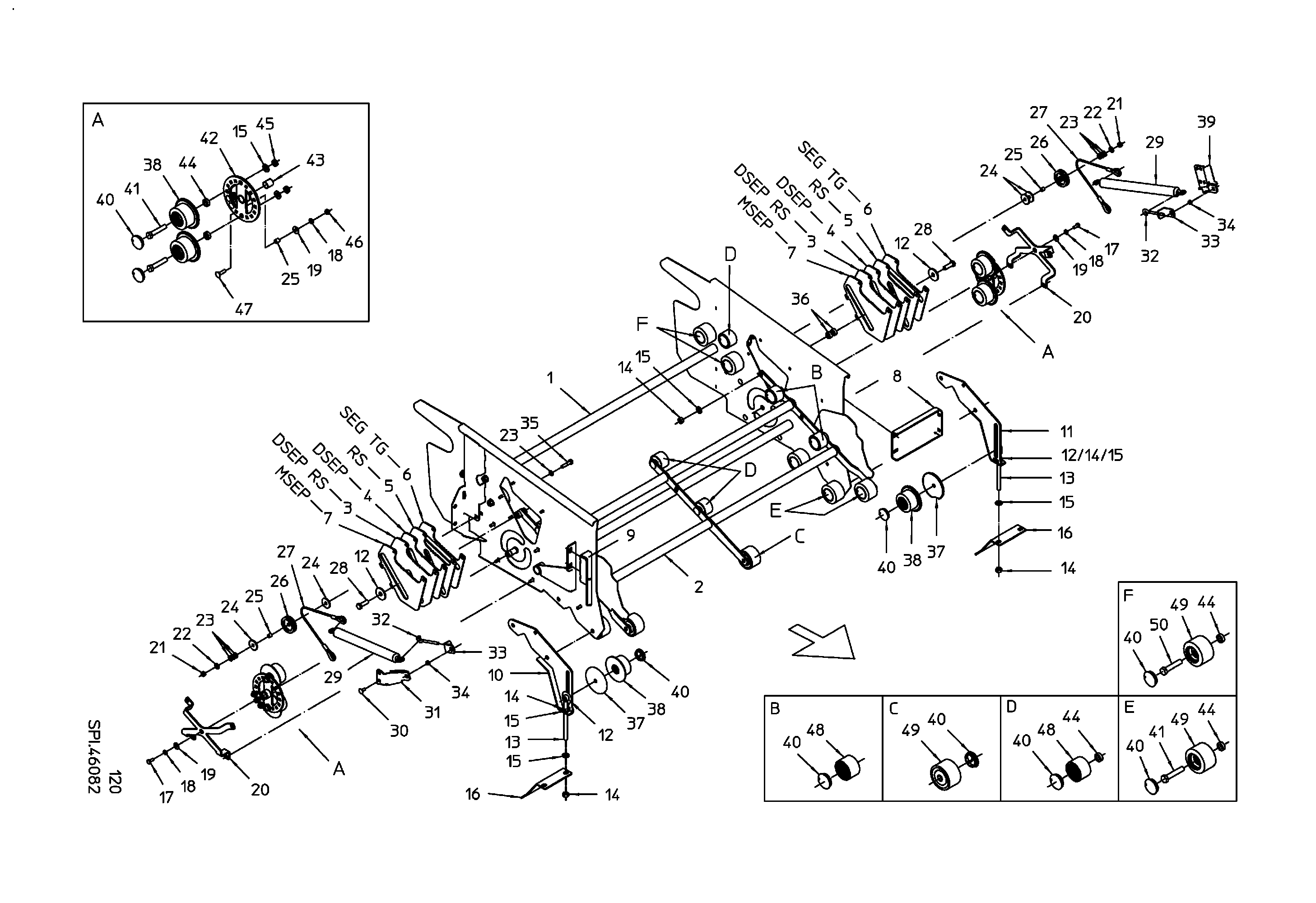

Parts by subassemblies

FRAME

Quantity in assembly group: 1 Piece / Pos. 1

FRAME

Quantity in assembly group: 1 Piece / Pos. 2

GUIDE DSEP ROLLER SEPARATOR

Quantity in assembly group: 2 Piece / Pos. 3

GUIDE DSEP

Quantity in assembly group: 2 Piece / Pos. 4

GUIDE ROLLER SEPARATOR

Quantity in assembly group: 2 Piece / Pos. 5

GUIDE SEGMENT SEPARATOR ASSY

Quantity in assembly group: 2 Piece / Pos. 6

GUIDE MSEP

Quantity in assembly group: 2 Piece / Pos. 7

BRACKET L/H

Quantity in assembly group: 1 Piece / Pos. 8

BRACKET R/H

Quantity in assembly group: 1 Piece / Pos. 9

TENSION JACK R/H

Quantity in assembly group: 1 Piece / Pos. 10

TENSION JACK L/H

Quantity in assembly group: 1 Piece / Pos. 11

WASHER

Quantity in assembly group: 4 Piece / Pos. 12

EYE BOLT M16X240

Quantity in assembly group: 2 Piece / Pos. 13

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 4 Piece / Pos. 14

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 4 Piece / Pos. 15

BRACKET

Quantity in assembly group: 2 Piece / Pos. 16

HHC-SCREW M10X25 933-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 17

CONTACT WASHER FORM M 10-GAL

Quantity in assembly group: 2 Piece / Pos. 18

DISC A10,5 DIN9021 V2A

Quantity in assembly group: 2 Piece / Pos. 19

BRACKET

Quantity in assembly group: 2 Piece / Pos. 20

HEXAGON NUT M12 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 21

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 2 Piece / Pos. 22

DISC 13X25 DIN125-BRASS

Quantity in assembly group: 6 Piece / Pos. 23

RETAINING WASHER

Quantity in assembly group: 4 Piece / Pos. 24

SPACER TUBE

Quantity in assembly group: 4 Piece / Pos. 25

CABLE ROLLER

Quantity in assembly group: 2 Piece / Pos. 26

STEEL CABLE 590LONG

Quantity in assembly group: 2 Piece / Pos. 27

SET SCREW M16X50-DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 28

SPRING

Quantity in assembly group: 2 Piece / Pos. 29

MH-SCREW wSS M10X25 603-8,8GAL

Quantity in assembly group: 1 Piece / Pos. 30

SQUARE TUBE

Quantity in assembly group: 1 Piece / Pos. 31

EYELET SCREW

Quantity in assembly group: 2 Piece / Pos. 32

ANGLE

Quantity in assembly group: 2 Piece / Pos. 33

BUSHING

Quantity in assembly group: 2 Piece / Pos. 34

HEX BOLT M12X55-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 35

SPACER

Quantity in assembly group: 4 Piece / Pos. 36

WINDING PROTECTION

Quantity in assembly group: 2 Piece / Pos. 37

FLANGE ROLLER D95

Quantity in assembly group: 6 Piece / Pos. 38

BRACKET L/H

Quantity in assembly group: 1 Piece / Pos. 39

ROLLER CAP

Quantity in assembly group: 25 Piece / Pos. 40

HEX BOLT M16X85-DIN931-8.8-G

Quantity in assembly group: 10 Piece / Pos. 41

TENSION JACK

Quantity in assembly group: 2 Piece / Pos. 42

PLAIN BEARING BUSH 252830

Quantity in assembly group: 2 Piece / Pos. 43

SPACER PIECE 16,5X30X10

Quantity in assembly group: 18 Piece / Pos. 44

HALF NUT M16 DIN936-17H-GAL

Quantity in assembly group: 4 Piece / Pos. 45

HEXAGON NUT M10 DIN934-8-GAL

Quantity in assembly group: 1 Piece / Pos. 46

MH-SCREW M10X40-603-8.8-GAL

Quantity in assembly group: 1 Piece / Pos. 47

SUPPORT ROLLER DM75

Quantity in assembly group: 8 Piece / Pos. 48

SUPPORT ROLLER D95

Quantity in assembly group: 11 Piece / Pos. 49

HEX BOLT M16X80-DIN931-8.8-G

Quantity in assembly group: 4 Piece / Pos. 50
