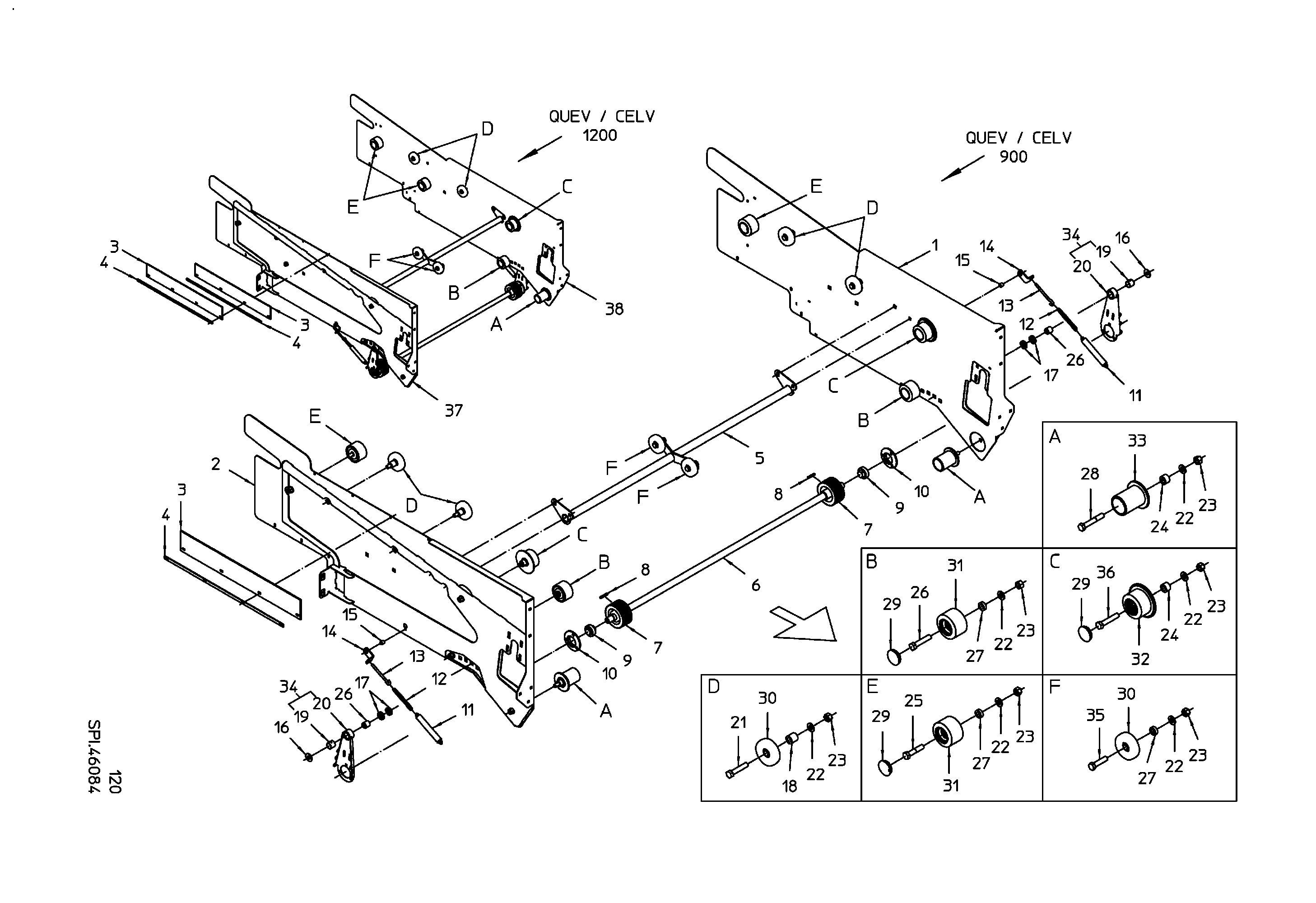

Parts by subassemblies

SIDE PART L/H

Quantity in assembly group: 1 Piece / Pos. 1

SIDE PART R/H

Quantity in assembly group: 1 Piece / Pos. 2

RUBBER

Quantity in assembly group: 1 Piece / Pos. 3

CLAMPING STRIP

Quantity in assembly group: 1 Piece / Pos. 4

ROLLER FRAME

Quantity in assembly group: 1 Piece / Pos. 5

TENSION SHAFT

Quantity in assembly group: 1 Piece / Pos. 6

DRIVE ROLLER -VULC-

Quantity in assembly group: 2 Piece / Pos. 7

FEATHER KEY

Quantity in assembly group: 2 Piece / Pos. 8

BEARING YAR 206-2RF/UC206

Quantity in assembly group: 2 Piece / Pos. 9

FLANGE PLATE (PR) PF62/PF206

Quantity in assembly group: 2 Piece / Pos. 10

TENSION SPRING

Quantity in assembly group: 2 Piece / Pos. 11

LINK CHAIN-4 LINKS C5X36

Quantity in assembly group: 2 Piece / Pos. 12

EYELET SCREW

Quantity in assembly group: 2 Piece / Pos. 13

ANGLE

Quantity in assembly group: 2 Piece / Pos. 14

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 15

PLAIN WASHER 17X44X3 GAL

Quantity in assembly group: 2 Piece / Pos. 16

SPLIT WASHER

Quantity in assembly group: 4 Piece / Pos. 17

SPACER 16,5X30X30

Quantity in assembly group: 1 Piece / Pos. 18

PLAIN BEARING BUSH 303430

Quantity in assembly group: 1 Piece / Pos. 19

TENSION ARM

Quantity in assembly group: 1 Piece / Pos. 20

HEX BOLT M16X80-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 21

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 1 Piece / Pos. 22

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 1 Piece / Pos. 23

SPACER 20MM

Quantity in assembly group: 1 Piece / Pos. 24

HEX BOLT M16X75-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 25

SPACER

Quantity in assembly group: 2 Piece / Pos. 26

SPACER PIECE 16,5X30X10

Quantity in assembly group: 1 Piece / Pos. 27

HEX BOLT M16X100 DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 28

ROLLER CAP

Quantity in assembly group: 1 Piece / Pos. 29

ROLLER D100

Quantity in assembly group: 1 Piece / Pos. 30

SUPPORT ROLLER D95

Quantity in assembly group: 1 Piece / Pos. 31

FLANGE ROLLER D95

Quantity in assembly group: 1 Piece / Pos. 32

ROLLER 75

Quantity in assembly group: 1 Piece / Pos. 33

TENSION ARM 1

Quantity in assembly group: 2 Piece / Pos. 34

HEX BOLT M16X65 DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 35

HEX BOLT M16X85-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 36

SIDE PART R/H

Quantity in assembly group: 1 Piece / Pos. 37

SIDE PART L/H

Quantity in assembly group: 1 Piece / Pos. 38
