Your machine: POTATO HARVESTER GT 170 M+S GT170(S/N: 45002062) modify ▸

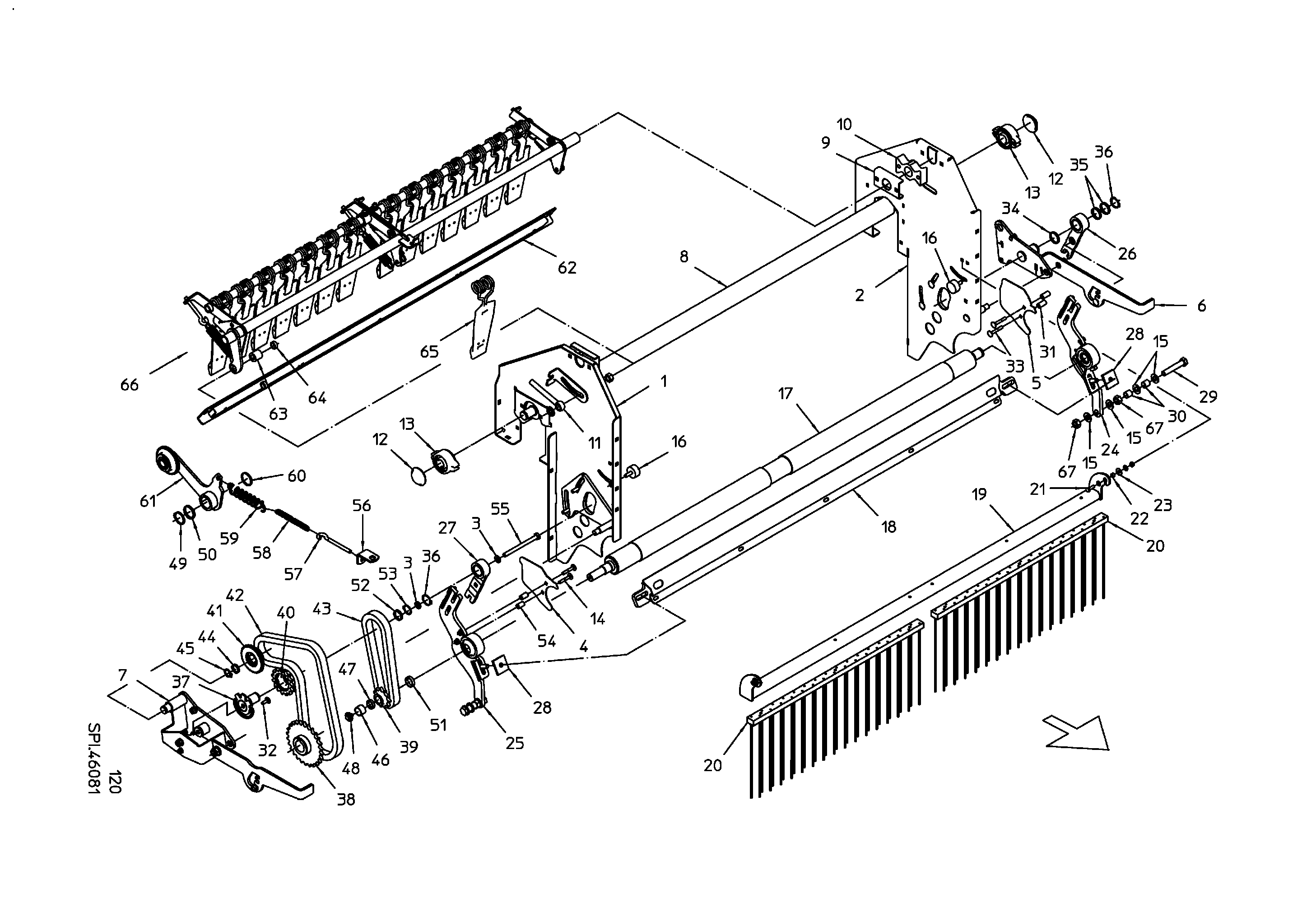

Subassembly drawing

▸ Selected assembly group:

Selected subassembly

▸
3.MW ASSY FHELV DEW ER FRONT (86 Parts)
▸

Subassembly parts

All items Equipment ex work ()
SEALING RING 64-34,5-3
Quantity in assembly group: 2 Piece / Pos. 0

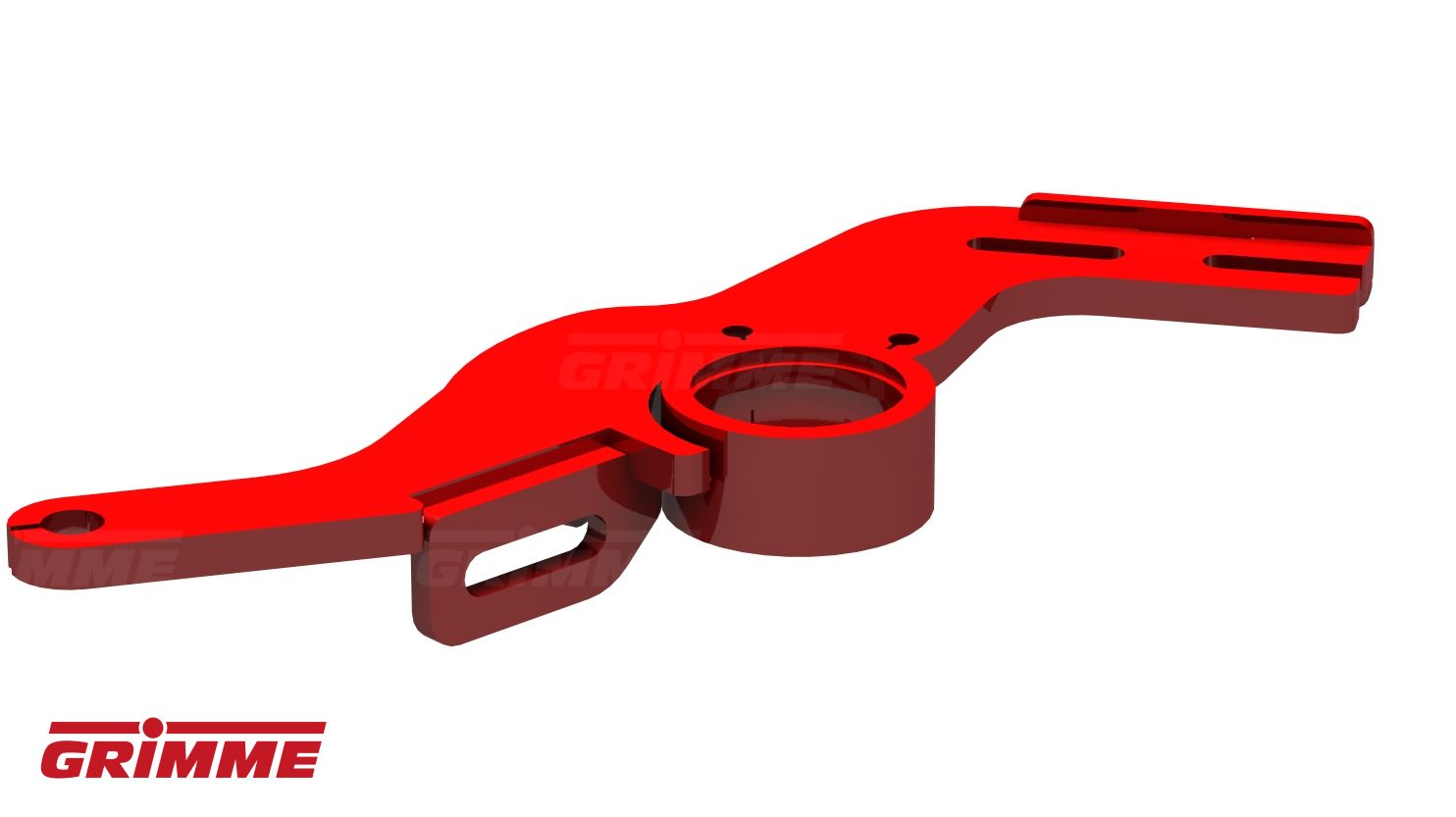

HINGE BEARING R/H
Quantity in assembly group: 1 Piece / Pos. 0

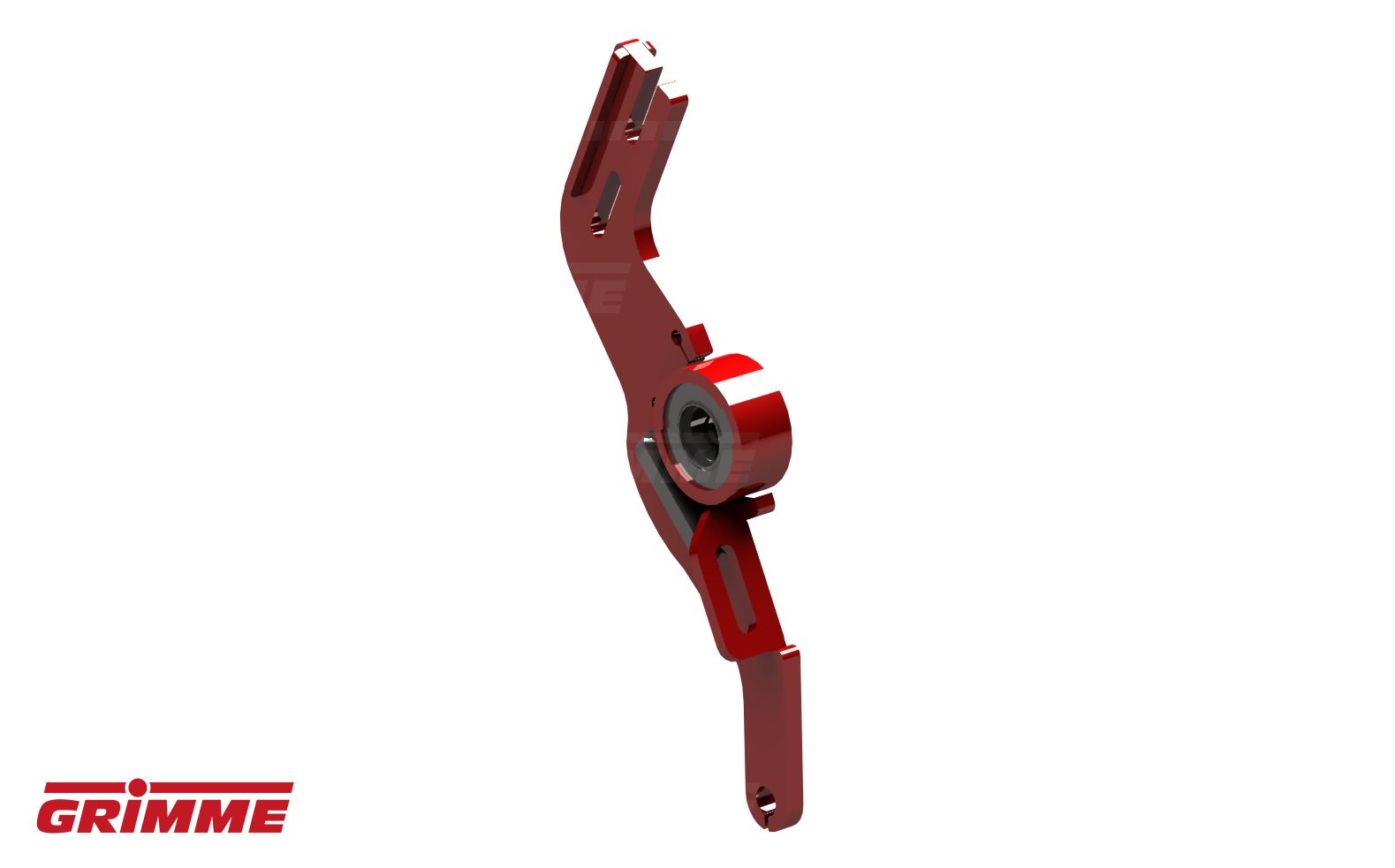

HINGE BEARING L/H
Quantity in assembly group: 1 Piece / Pos. 0
SPROCKET 3/4"-T15
Quantity in assembly group: 1 Piece / Pos. 0
SPROCKET 3/4"-T15/15
Quantity in assembly group: 1 Piece / Pos. 0
BEARING HOUSING R/H
Quantity in assembly group: 1 Piece / Pos. 0
BEARING HOUSING L/H
Quantity in assembly group: 1 Piece / Pos. 0

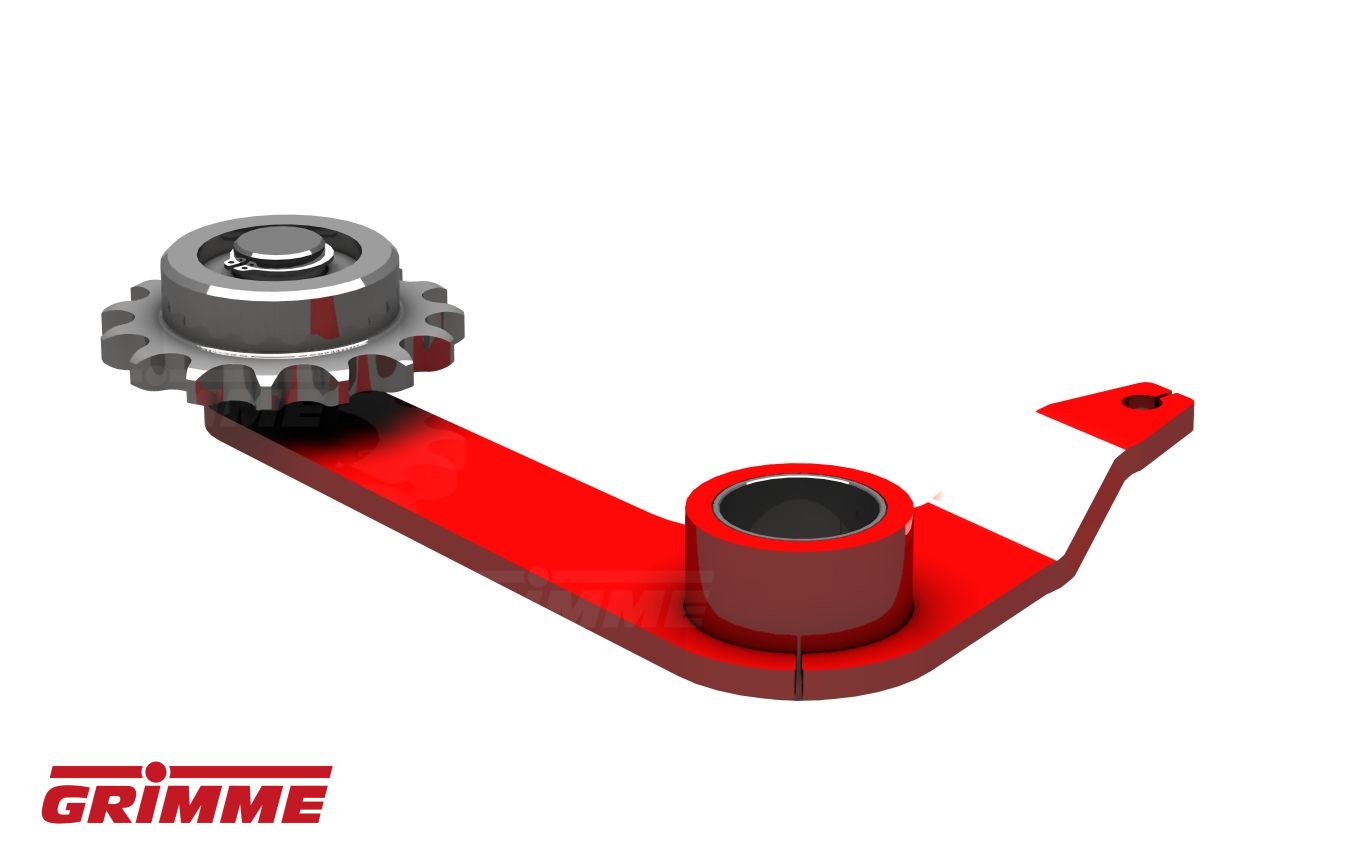

TENSION ARM
Quantity in assembly group: 1 Piece / Pos. 0
SEALING RING 65-34,5-3
Quantity in assembly group: 2 Piece / Pos. 0
RETAINING RING J 62X2 DIN472
Quantity in assembly group: 2 Piece / Pos. 0
RETAINING RING J 52X2 DIN472
Quantity in assembly group: 1 Piece / Pos. 0
RETAINING RING A 25X1,2 DIN471
Quantity in assembly group: 1 Piece / Pos. 0
BEARING HOUSING
Quantity in assembly group: 1 Piece / Pos. 0
PLAIN BEARING BUSH 353930
Quantity in assembly group: 1 Piece / Pos. 0
PLAIN BEARING BUSH 404440
Quantity in assembly group: 1 Piece / Pos. 0
BEARING YAR 206-2RF/UC206
Quantity in assembly group: 1 Piece / Pos. 0
BALL BEARING AS 206
Quantity in assembly group: 2 Piece / Pos. 0
BALL BEARING 6206-2RS
Quantity in assembly group: 2 Piece / Pos. 0
BALL BEARING 6205-2RS
Quantity in assembly group: 1 Piece / Pos. 0
SIDE PART R/H
Quantity in assembly group: 1 Piece / Pos. 1
SIDE PART L/H
Quantity in assembly group: 1 Piece / Pos. 2
DISC A13 DIN125-GAL
Quantity in assembly group: 2 Piece / Pos. 3
SIDE PLATE R/H
Quantity in assembly group: 1 Piece / Pos. 4
SIDE PLATE L/H
Quantity in assembly group: 1 Piece / Pos. 5

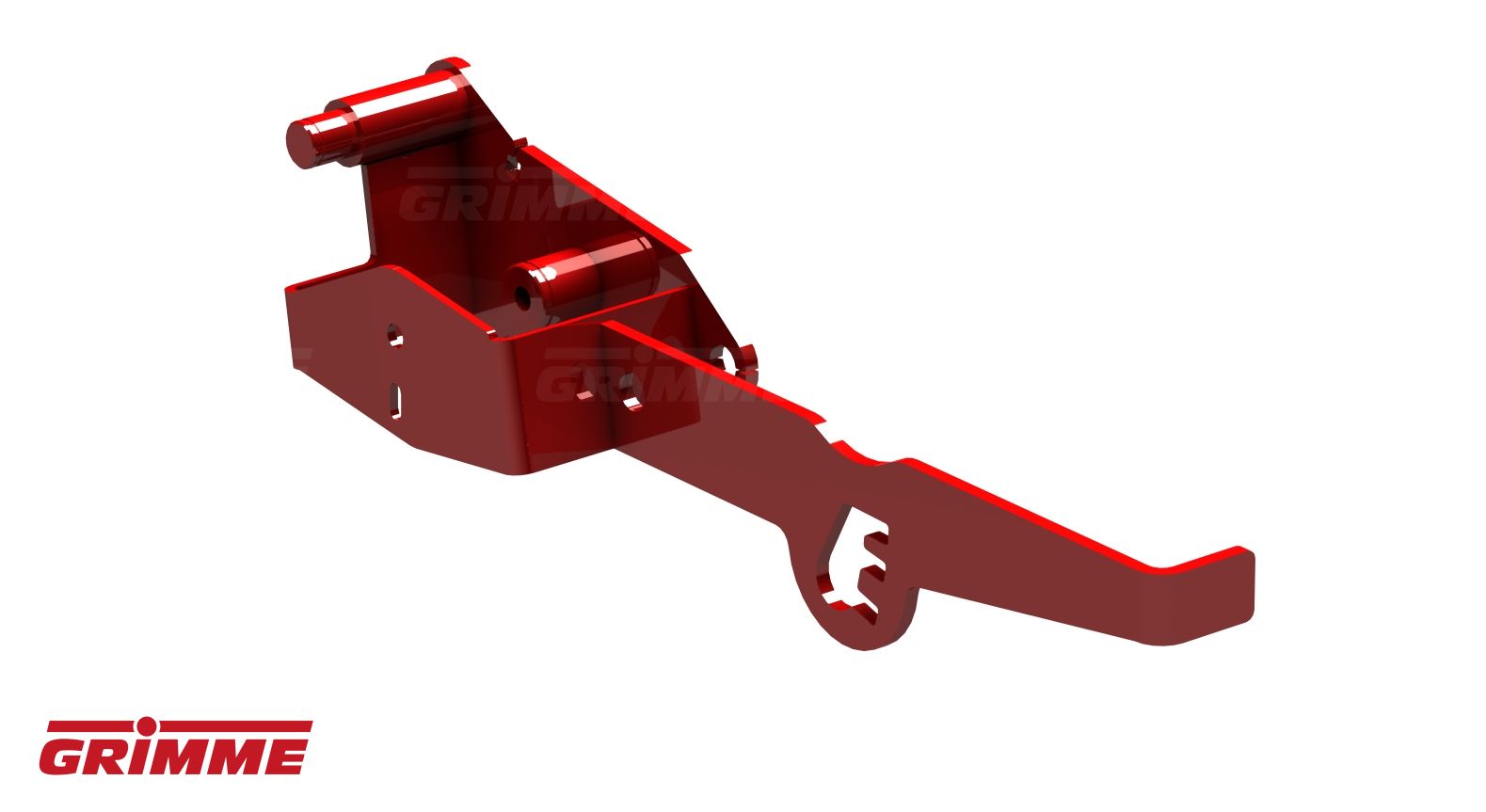

BEARING BRACKET L/H
Quantity in assembly group: 1 Piece / Pos. 6

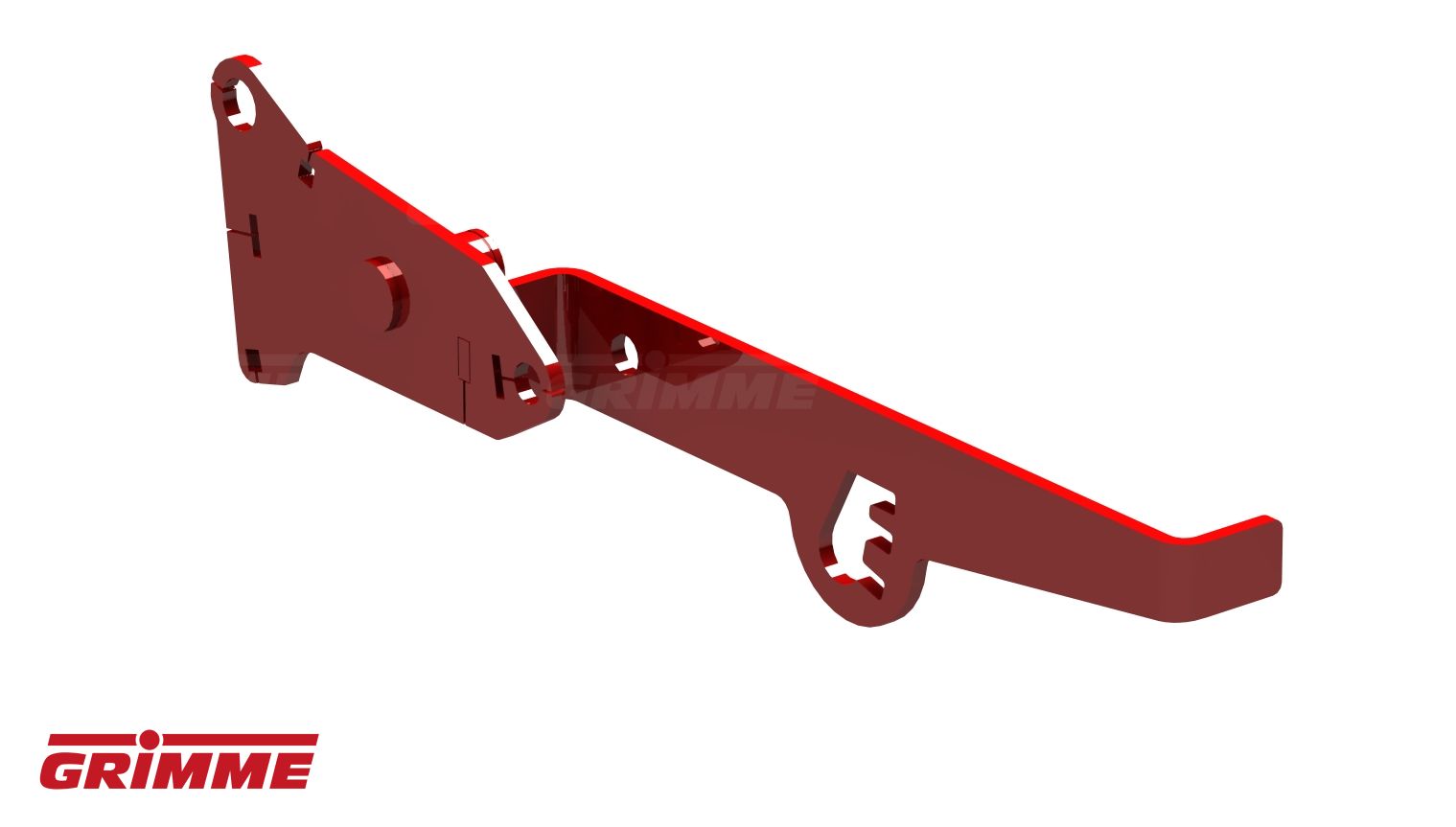

BEARING BRACKET R/H
Quantity in assembly group: 1 Piece / Pos. 7
HAULM ROLLER
Quantity in assembly group: 1 Piece / Pos. 8
U-PROFILE
Quantity in assembly group: 2 Piece / Pos. 9
BEARING BLOCK
Quantity in assembly group: 2 Piece / Pos. 10
EB B M16X140 444-8.8 GAL
Quantity in assembly group: 1 Piece / Pos. 11
SEALING CAP 64,5-3
Quantity in assembly group: 2 Piece / Pos. 12
FLANGE BEARING
Quantity in assembly group: 2 Piece / Pos. 13
COACH BOLT M8X50-DIN603-8.8-G
Quantity in assembly group: 2 Piece / Pos. 14
FLAT WASHER M16
Quantity in assembly group: 8 Piece / Pos. 15
RUBBER BUFFER
Quantity in assembly group: 2 Piece / Pos. 16
2ND. HAULM ROLLER - GZ1700RS
Quantity in assembly group: 1 Piece / Pos. 17
HAULM ROLLER SCRAPER
Quantity in assembly group: 1 Piece / Pos. 18
BRACKET
Quantity in assembly group: 1 Piece / Pos. 19
BRUSH 800X330
Quantity in assembly group: 2 Piece / Pos. 20
HHC-SCREW M8X25 DIN933 V2A
Quantity in assembly group: 2 Piece / Pos. 21
SPACER TUBE
Quantity in assembly group: 2 Piece / Pos. 22
DISC A 8,4 DIN9021-GAL
Quantity in assembly group: 2 Piece / Pos. 23
SUPPORTING BRACKET L/H
Quantity in assembly group: 1 Piece / Pos. 24
SUPPORTING BRACKET R/H
Quantity in assembly group: 1 Piece / Pos. 25

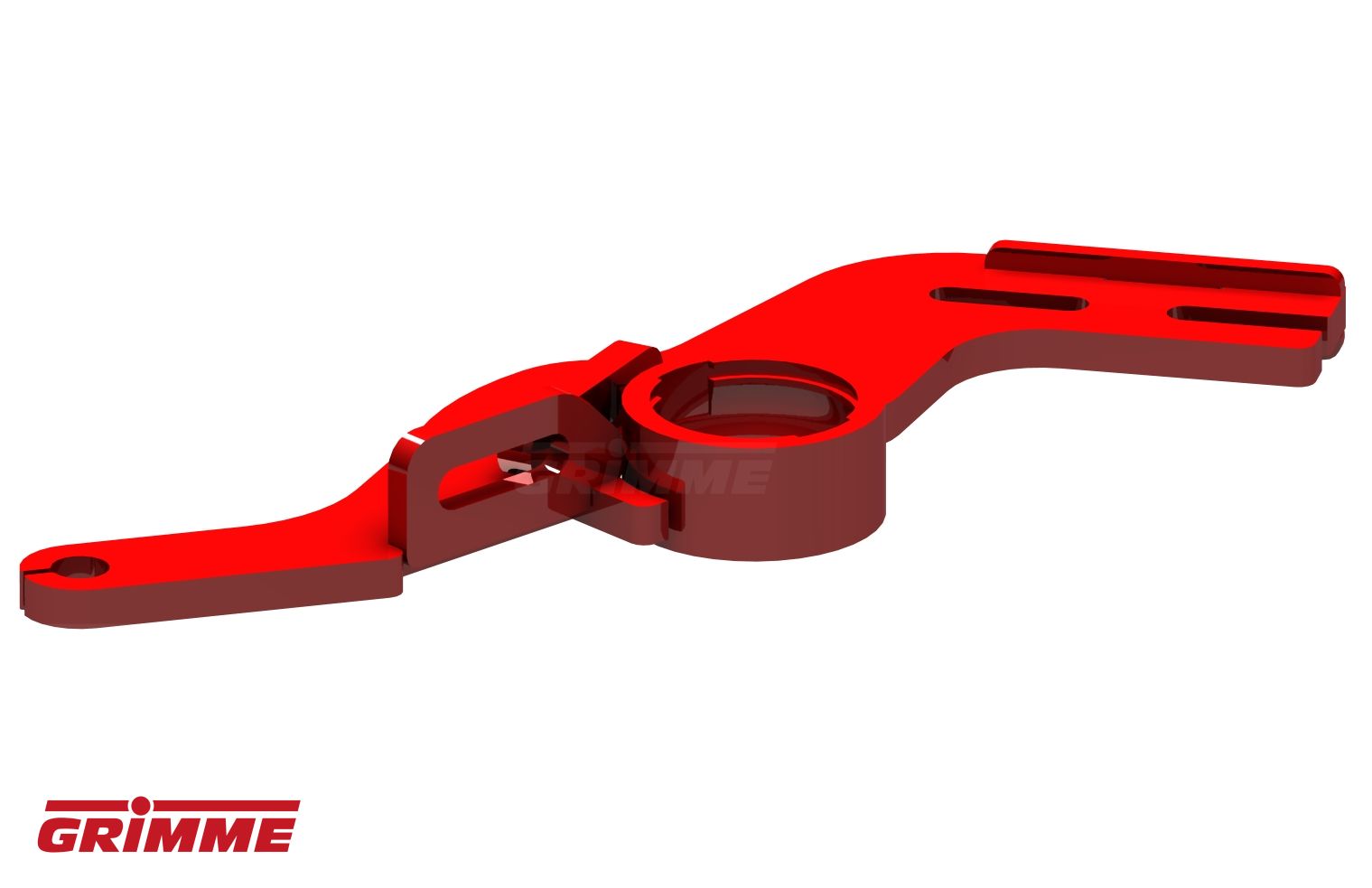

HINGE BEARING L/H
Quantity in assembly group: 1 Piece / Pos. 26
HINGE BEARING R/H
Quantity in assembly group: 1 Piece / Pos. 27
RUBBER PLATE
Quantity in assembly group: 2 Piece / Pos. 28
HHC-SCREW M16X90 DIN933-8.8-GA
Quantity in assembly group: 2 Piece / Pos. 29
SPACER TUBE
Quantity in assembly group: 4 Piece / Pos. 30
SPACER TUBE
Quantity in assembly group: 2 Piece / Pos. 31
COACH BOLT M8X25-603-8.8-GAL
Quantity in assembly group: 2 Piece / Pos. 32
COACH BOLT M8X55-DIN603-8.8-G
Quantity in assembly group: 2 Piece / Pos. 33
SPACER TUBE
Quantity in assembly group: 1 Piece / Pos. 34
SPACER RING
Quantity in assembly group: 2 Piece / Pos. 35
RETAINING RING A 35X1,5 DIN471
Quantity in assembly group: 2 Piece / Pos. 36
ECCENTRIC LOCK
Quantity in assembly group: 1 Piece / Pos. 37
SPROCKET 3/4"-T26
Quantity in assembly group: 1 Piece / Pos. 38
SPROCKET 3/4"-T11
Quantity in assembly group: 1 Piece / Pos. 39
IDLER SPROCKET
Quantity in assembly group: 1 Piece / Pos. 40
SPROCKET DEW
Quantity in assembly group: 1 Piece / Pos. 41
CHAIN 3/4"X1/2"-ASA60-68R
Quantity in assembly group: 1 Piece / Pos. 42
CHAIN 3/4"X1/2"-ASA60-38R
Quantity in assembly group: 1 Piece / Pos. 43
SPACER RING
Quantity in assembly group: 1 Piece / Pos. 44
RETAINING RING A 25X2 DIN471
Quantity in assembly group: 1 Piece / Pos. 45
SPACER TUBE
Quantity in assembly group: 1 Piece / Pos. 46
SPACER TUBE
Quantity in assembly group: 1 Piece / Pos. 47
END DISC
Quantity in assembly group: 1 Piece / Pos. 48
RETAINING RING AS 40X2,5 DIN47
Quantity in assembly group: 1 Piece / Pos. 49
SPACER TUBE
Quantity in assembly group: 1 Piece / Pos. 50
SPACER RING
Quantity in assembly group: 1 Piece / Pos. 51
SPACER RING
Quantity in assembly group: 1 Piece / Pos. 52
RETAINING RING A 30X1,5 DIN471
Quantity in assembly group: 1 Piece / Pos. 53
SPACER TUBE
Quantity in assembly group: 2 Piece / Pos. 54
HEX BOLT M12X150-DIN931-8.8-G
Quantity in assembly group: 1 Piece / Pos. 55
ANGLE
Quantity in assembly group: 1 Piece / Pos. 56
EYELET SCREW
Quantity in assembly group: 1 Piece / Pos. 57
LINK CHAIN-4 LINKS C5X36
Quantity in assembly group: 1 Piece / Pos. 58
TENSION SPRING
Quantity in assembly group: 5 Piece / Pos. 59
SPACER TUBE
Quantity in assembly group: 1 Piece / Pos. 60

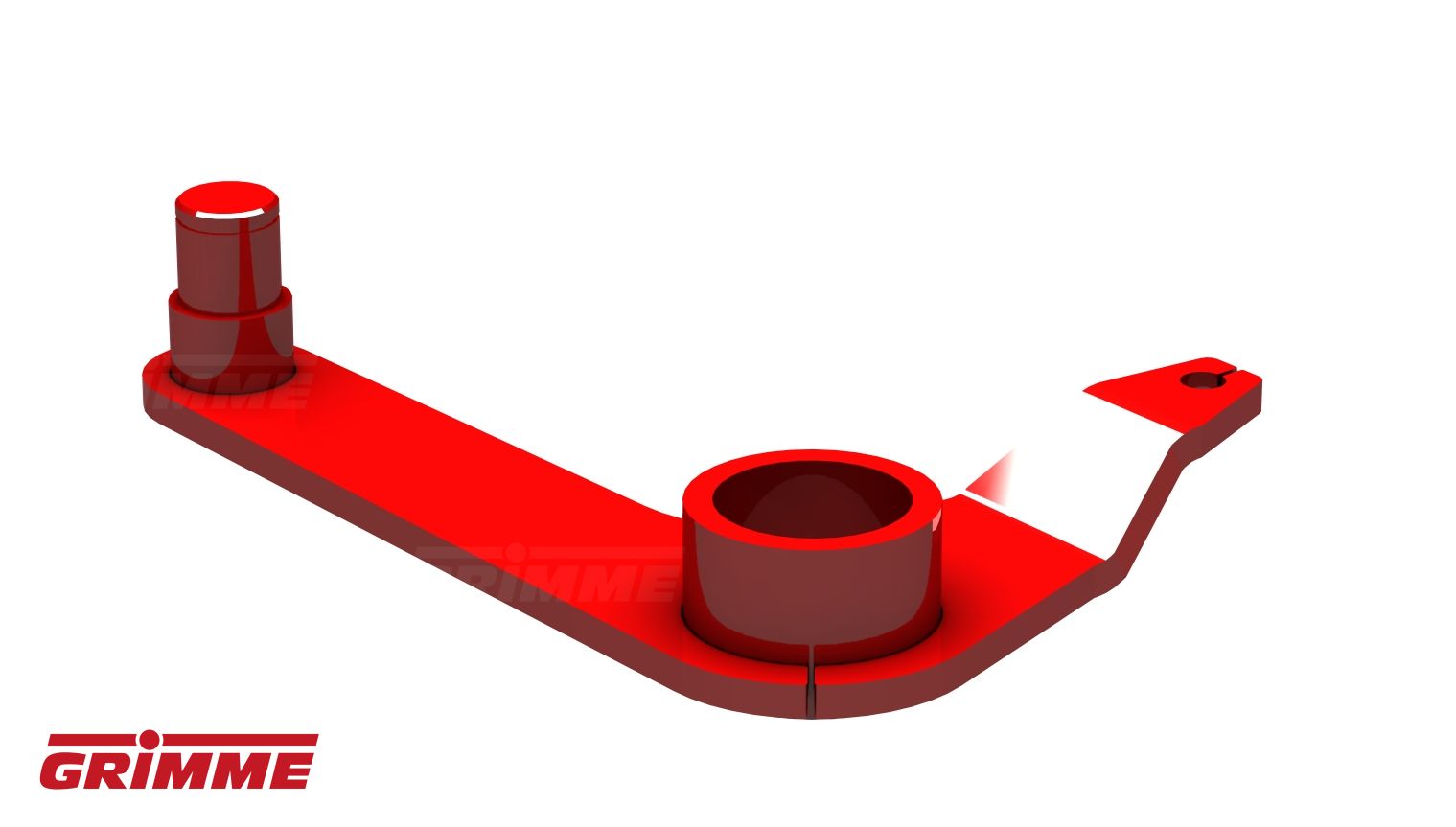

TENSION ARM
Quantity in assembly group: 1 Piece / Pos. 61
SCRAPER
Quantity in assembly group: 1 Piece / Pos. 62
SPACER 16,5X30X30
Quantity in assembly group: 1 Piece / Pos. 63
SPACER 24X3.5X9
Quantity in assembly group: 2 Piece / Pos. 64
BACK-HOLDING PADDLE -VULC-
Quantity in assembly group: 15 Piece / Pos. 65
SCRAPER DEVICE 7SPRINGS UPPER
Quantity in assembly group: 1 Piece / Pos. 66
HEXAGON NUT M16 DIN934-8-GAL
Quantity in assembly group: 4 Piece / Pos. 67
