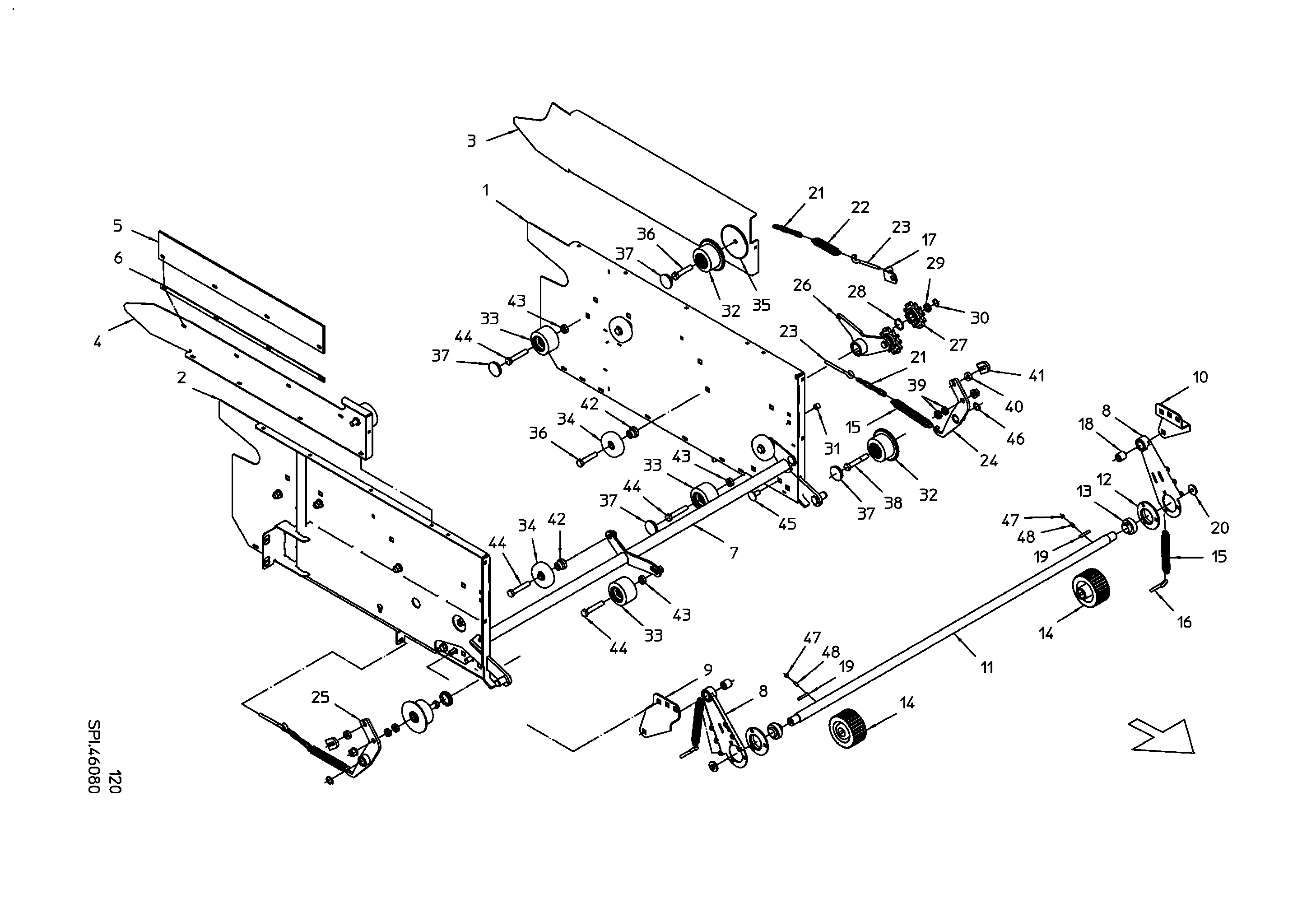

Parts by subassemblies

RETAINING RING A 25X1,2 DIN471

Quantity in assembly group: 3 Piece / Pos. 0

SPROCKET 1"-T12

Quantity in assembly group: 1 Piece / Pos. 0

RETAINING RING J 52X2 DIN472

Quantity in assembly group: 1 Piece / Pos. 0

BALL BEARING 6205-2RS

Quantity in assembly group: 1 Piece / Pos. 0

TENSION JACK

Quantity in assembly group: 1 Piece / Pos. 0

PLAIN BEARING BUSH 404440

Quantity in assembly group: 1 Piece / Pos. 0

SIDE PART L/H

Quantity in assembly group: 1 Piece / Pos. 1

SIDE PART R/H

Quantity in assembly group: 1 Piece / Pos. 2

PLATE L/H

Quantity in assembly group: 1 Piece / Pos. 3

PLATE R/H

Quantity in assembly group: 1 Piece / Pos. 4

RUBBER

Quantity in assembly group: 1 Piece / Pos. 5

CLAMPING STRIP

Quantity in assembly group: 1 Piece / Pos. 6

ROLLER FRAME

Quantity in assembly group: 1 Piece / Pos. 7

TENSION ARM 1

Quantity in assembly group: 2 Piece / Pos. 8

BRACKET R/H

Quantity in assembly group: 1 Piece / Pos. 9

BRAKCET L/H

Quantity in assembly group: 1 Piece / Pos. 10

TENSION SHAFT

Quantity in assembly group: 1 Piece / Pos. 11

FLANGE PLATE (PR) PF62/PF206

Quantity in assembly group: 2 Piece / Pos. 12

BEARING YAR 206-2RF/UC206

Quantity in assembly group: 2 Piece / Pos. 13

DRIVE ROLLER -VULC-

Quantity in assembly group: 2 Piece / Pos. 14

TENSION SPRING

Quantity in assembly group: 4 Piece / Pos. 15

EYELET SCREW

Quantity in assembly group: 2 Piece / Pos. 16

ANGLE

Quantity in assembly group: 2 Piece / Pos. 17

SPACER

Quantity in assembly group: 2 Piece / Pos. 18

FEATHER KEY

Quantity in assembly group: 2 Piece / Pos. 19

SPLIT WASHER 9X40X4

Quantity in assembly group: 2 Piece / Pos. 20

LINK CHAIN-4 LINKS C5X36

Quantity in assembly group: 3 Piece / Pos. 21

TENSION SPRING

Quantity in assembly group: 1 Piece / Pos. 22

EYELET SCREW

Quantity in assembly group: 3 Piece / Pos. 23

CLAMPING LEVER L/H

Quantity in assembly group: 1 Piece / Pos. 24

CLAMPING LEVER R/H

Quantity in assembly group: 1 Piece / Pos. 25

CHAIN TENSIONER CPT.

Quantity in assembly group: 1 Piece / Pos. 26

TENSIONER SPROCKET

Quantity in assembly group: 2 Piece / Pos. 27

RETAINING RING A 40X1,75 DIN47

Quantity in assembly group: 1 Piece / Pos. 28

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 29

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 31

FLANGE ROLLER D95

Quantity in assembly group: 4 Piece / Pos. 32

SUPPORT ROLLER D95

Quantity in assembly group: 5 Piece / Pos. 33

ROLLER D100

Quantity in assembly group: 7 Piece / Pos. 34

WINDING PROTECTION

Quantity in assembly group: 2 Piece / Pos. 35

HEX BOLT M16X80-DIN931-8.8-G

Quantity in assembly group: 8 Piece / Pos. 36

ROLLER CAP

Quantity in assembly group: 8 Piece / Pos. 37

HEX BOLT M16X100 DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 38

DISC

Quantity in assembly group: 4 Piece / Pos. 39

DISC 11X30X10

Quantity in assembly group: 2 Piece / Pos. 40

STOPPER

Quantity in assembly group: 2 Piece / Pos. 41

ROLLER BUSH

Quantity in assembly group: 7 Piece / Pos. 42

SPACER PIECE 16,5X30X10

Quantity in assembly group: 5 Piece / Pos. 43

HEX BOLT M16X90-DIN931-8.8-G

Quantity in assembly group: 6 Piece / Pos. 44

MH-SCREW wSS M16X35 DIN603-8.8

Quantity in assembly group: 4 Piece / Pos. 45

RETAINING RING A 25X2 DIN471

Quantity in assembly group: 2 Piece / Pos. 46

HEXAGON NUT M8 DIN934-6-GAL-DE

Quantity in assembly group: 2 Piece / Pos. 47

ALLEN CONE SCREW M8X20-914flZn

Quantity in assembly group: 2 Piece / Pos. 48
