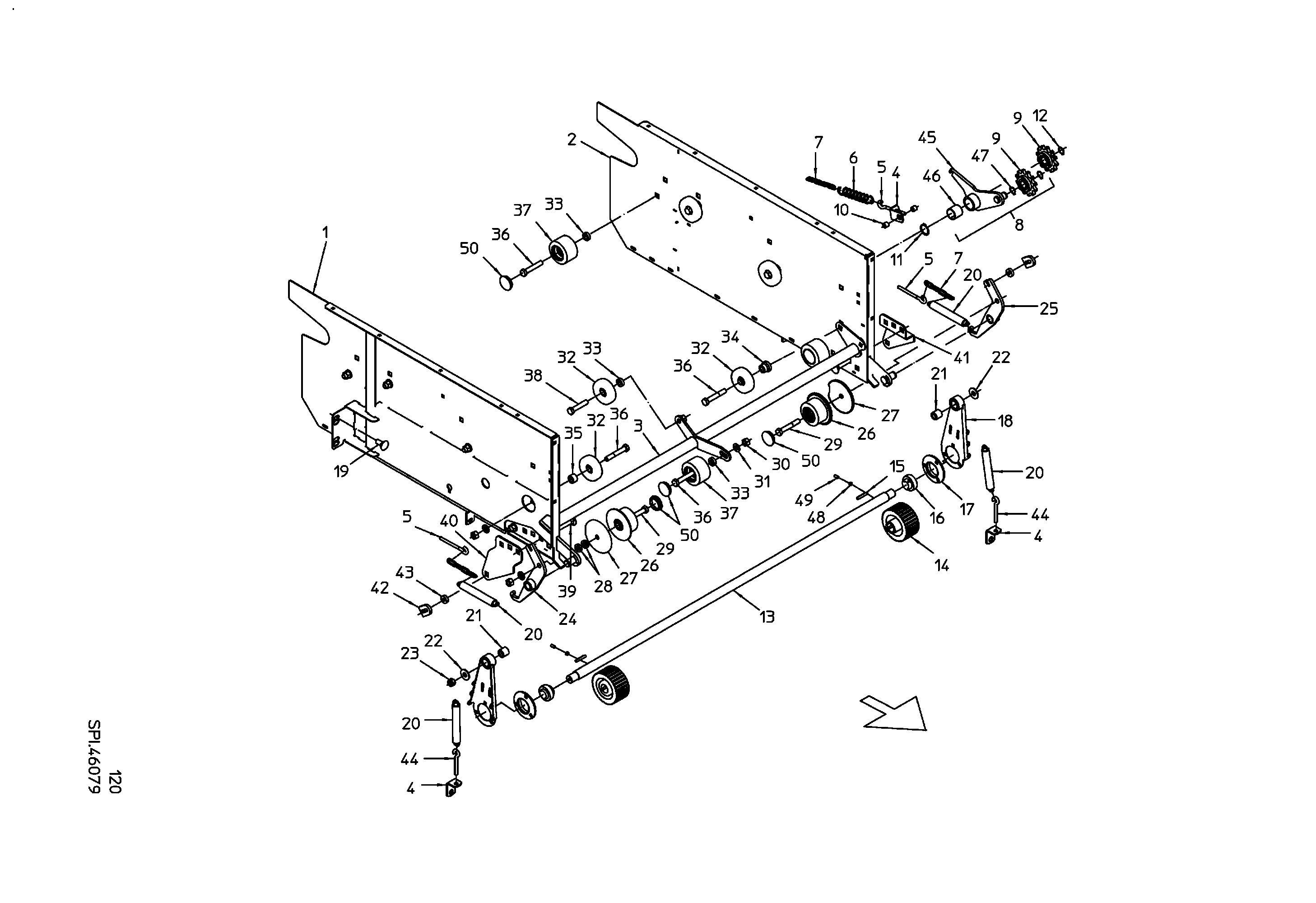

Parts by subassemblies

PLAIN BEARING BUSH 252830

Quantity in assembly group: 1 Piece / Pos. 0

SPROCKET 1"-T12

Quantity in assembly group: 1 Piece / Pos. 0

TENSION ARM

Quantity in assembly group: 1 Piece / Pos. 0

PLAIN BEARING BUSH 303430

Quantity in assembly group: 1 Piece / Pos. 0

CLAMPING LEVER R/H

Quantity in assembly group: 1 Piece / Pos. 0

BALL BEARING 6205-2RS

Quantity in assembly group: 1 Piece / Pos. 0

RETAINING RING J 52X2 DIN472

Quantity in assembly group: 1 Piece / Pos. 0

CLAMPING LEVER L/H

Quantity in assembly group: 1 Piece / Pos. 0

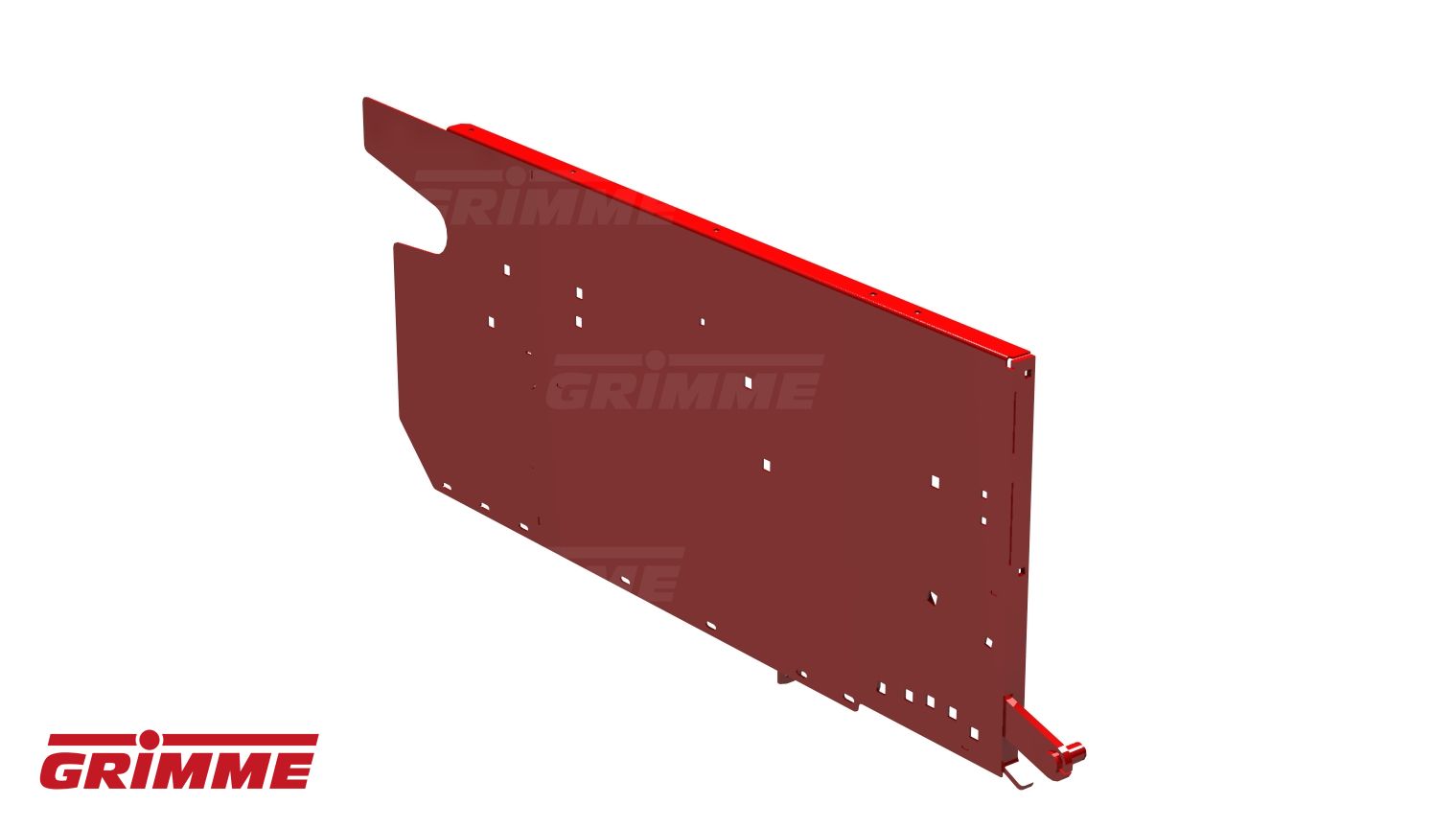

SIDE PART R/H

Quantity in assembly group: 1 Piece / Pos. 1

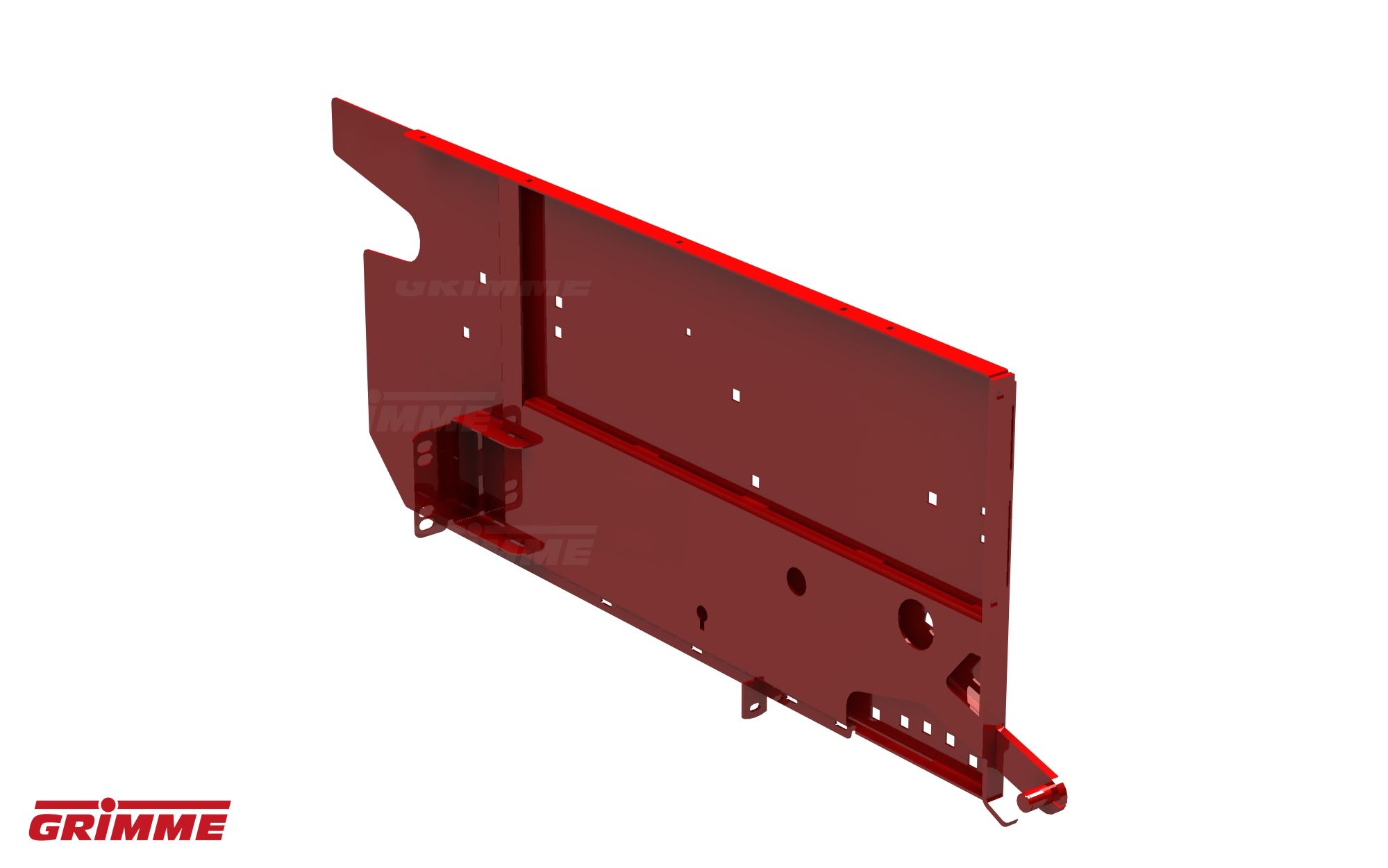

SIDE PART L/H

Quantity in assembly group: 1 Piece / Pos. 2

ROLLER FRAME

Quantity in assembly group: 1 Piece / Pos. 3

ANGLE

Quantity in assembly group: 3 Piece / Pos. 4

EYELET SCREW

Quantity in assembly group: 3 Piece / Pos. 5

TENSION SPRING

Quantity in assembly group: 1 Piece / Pos. 6

LINK CHAIN-4 LINKS C5X36

Quantity in assembly group: 3 Piece / Pos. 7

CHAIN TENSIONER CPT.

Quantity in assembly group: 1 Piece / Pos. 8

TENSIONER SPROCKET

Quantity in assembly group: 1 Piece / Pos. 9

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 10

RETAINING RING A 40X1,75 DIN47

Quantity in assembly group: 1 Piece / Pos. 11

TENSION SHAFT

Quantity in assembly group: 1 Piece / Pos. 13

DRIVE ROLLER -VULC-

Quantity in assembly group: 2 Piece / Pos. 14

FEATHER KEY

Quantity in assembly group: 2 Piece / Pos. 15

BEARING YAR 206-2RF/UC206

Quantity in assembly group: 2 Piece / Pos. 16

FLANGE PLATE (PR) PF62/PF206

Quantity in assembly group: 2 Piece / Pos. 17

TENSION ARM 1

Quantity in assembly group: 2 Piece / Pos. 18

COACH BOLT M16X40-DIN603-8.8-G

Quantity in assembly group: 1 Piece / Pos. 19

TENSION SPRING

Quantity in assembly group: 4 Piece / Pos. 20

SPACER

Quantity in assembly group: 2 Piece / Pos. 21

PLAIN WASHER 17X44X3 GAL

Quantity in assembly group: 2 Piece / Pos. 22

NYLOC NUT DIN985-M16-8-GAL

Quantity in assembly group: 1 Piece / Pos. 23

CLAMPING LEVER R/H

Quantity in assembly group: 1 Piece / Pos. 24

CLAMPING LEVER L/H

Quantity in assembly group: 1 Piece / Pos. 25

FLANGE ROLLER D95

Quantity in assembly group: 2 Piece / Pos. 26

WINDING PROTECTION

Quantity in assembly group: 2 Piece / Pos. 27

DISC

Quantity in assembly group: 2 Piece / Pos. 28

HEX BOLT M16X100 DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 29

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 16 Piece / Pos. 30

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 16 Piece / Pos. 31

ROLLER D100

Quantity in assembly group: 7 Piece / Pos. 32

SPACER PIECE 16,5X30X10

Quantity in assembly group: 6 Piece / Pos. 33

ROLLER BUSH

Quantity in assembly group: 6 Piece / Pos. 34

SPACER 20MM

Quantity in assembly group: 4 Piece / Pos. 35

HEX BOLT M16X80-DIN931-8.8-G

Quantity in assembly group: 11 Piece / Pos. 36

SUPPORT ROLLER D95

Quantity in assembly group: 5 Piece / Pos. 37

HEX BOLT M16X65 DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 38

MH-SCREW wSS M16X35 DIN603-8.8

Quantity in assembly group: 2 Piece / Pos. 39

BRACKET R/H

Quantity in assembly group: 1 Piece / Pos. 40

BRAKCET L/H

Quantity in assembly group: 1 Piece / Pos. 41

STOPPER

Quantity in assembly group: 2 Piece / Pos. 42

DISC 11X30X10

Quantity in assembly group: 2 Piece / Pos. 43

EYELET SCREW

Quantity in assembly group: 2 Piece / Pos. 44

TENSION JACK

Quantity in assembly group: 1 Piece / Pos. 45

PLAIN BEARING BUSH 404440

Quantity in assembly group: 1 Piece / Pos. 46

RETAINING RING A 25X1,2 DIN471

Quantity in assembly group: 2 Piece / Pos. 47

HEXAGON NUT M8 DIN934-6-GAL-DE

Quantity in assembly group: 2 Piece / Pos. 48

ALLEN CONE SCREW M8X20-914flZn

Quantity in assembly group: 2 Piece / Pos. 49

ROLLER CAP

Quantity in assembly group: 7 Piece / Pos. 50
