Your machine: POTATO HARVESTER GT 170 M+S GT170(S/N: 45002062) modify ▸

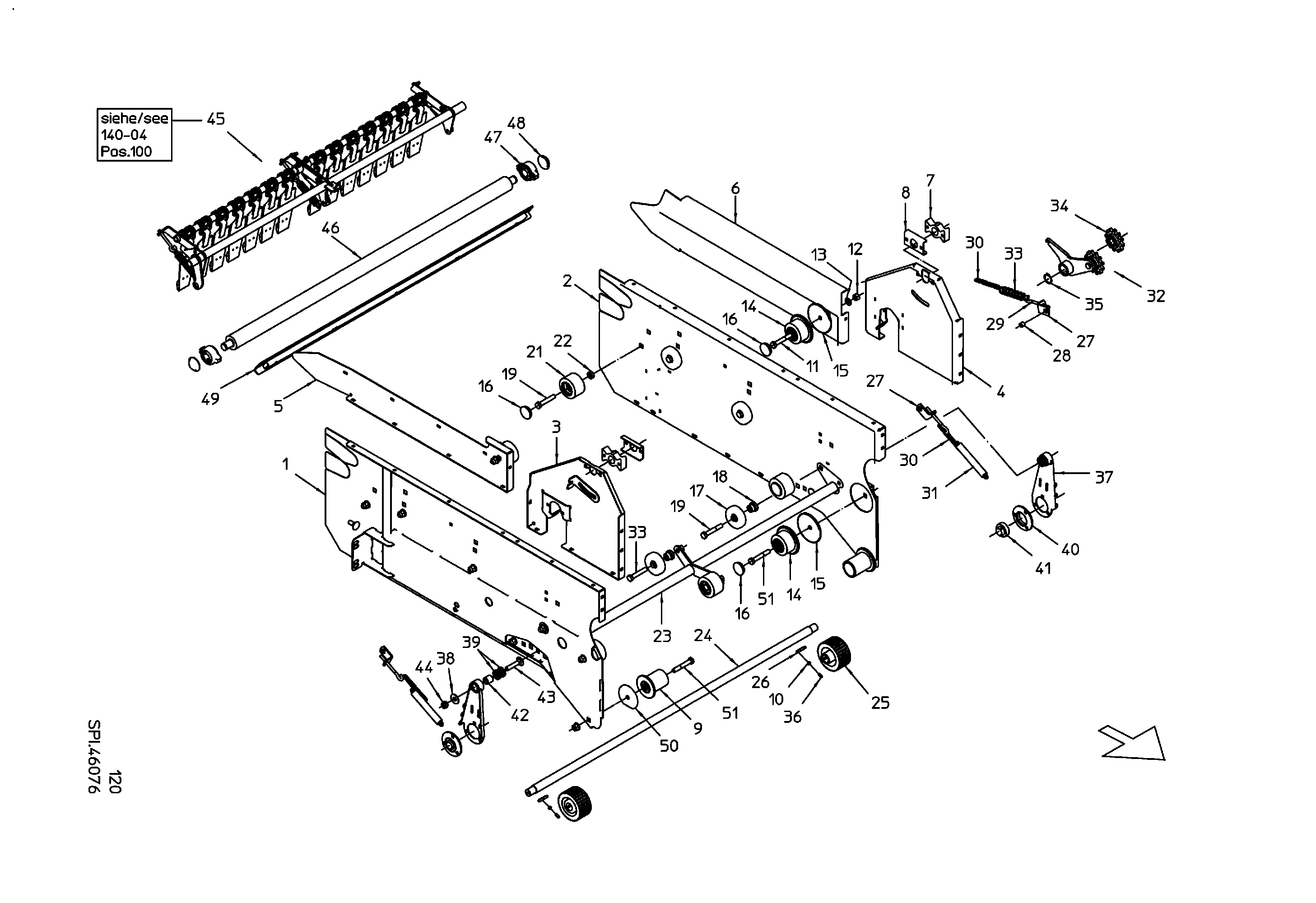

Subassembly drawing

▸ Selected assembly group:

Selected subassembly

▸
3.MAIN WEB ASSY FHELV+DEW (65 Parts)
▸

Subassembly parts

All items Equipment ex work ()
BUSH
Quantity in assembly group: 1 Piece / Pos. 0
PLAIN BEARING BUSH 404440
Quantity in assembly group: 1 Piece / Pos. 0
TENSIONER SPROCKET
Quantity in assembly group: 1 Piece / Pos. 0
PLAIN BEARING BUSH 303430
Quantity in assembly group: 1 Piece / Pos. 0
BALL BEARING 6205-2RS
Quantity in assembly group: 1 Piece / Pos. 0
FLANGE ROLLER DM=75
Quantity in assembly group: 1 Piece / Pos. 0
BALL BEARING 6205
Quantity in assembly group: 2 Piece / Pos. 0
SPROCKET 1"-T12
Quantity in assembly group: 1 Piece / Pos. 0
TENSION ARM
Quantity in assembly group: 1 Piece / Pos. 0
RETAINING RING J 52X2 DIN472
Quantity in assembly group: 1 Piece / Pos. 0
RETAINING RING A 25X1,2 DIN471
Quantity in assembly group: 1 Piece / Pos. 0
BEARING HOUSING
Quantity in assembly group: 1 Piece / Pos. 0
TENSION JACK
Quantity in assembly group: 1 Piece / Pos. 0
ROLLER CAP
Quantity in assembly group: 1 Piece / Pos. 0
DISTANCE TUBE
Quantity in assembly group: 1 Piece / Pos. 0
SEALING RING 40-28-4
Quantity in assembly group: 1 Piece / Pos. 0

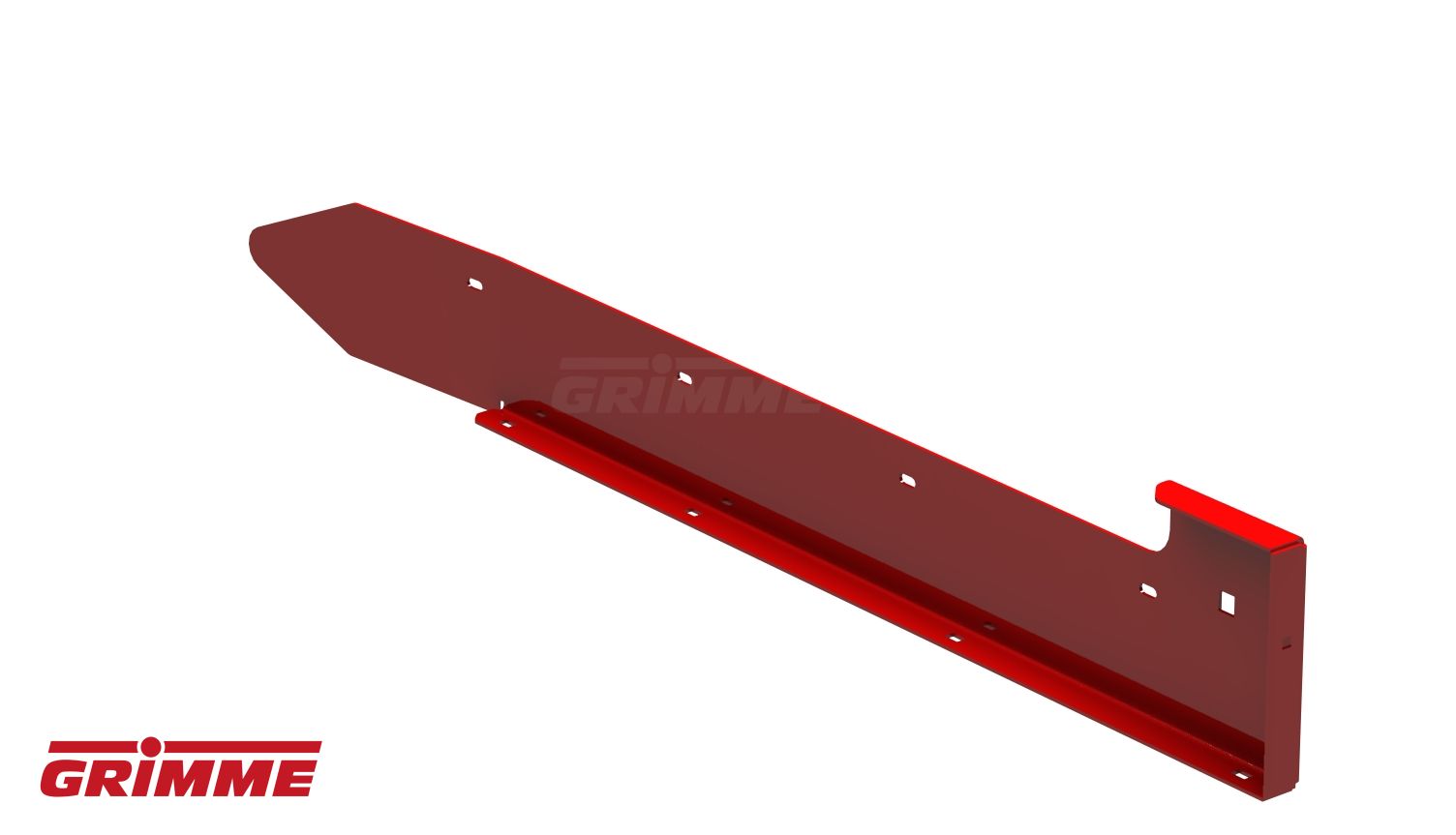

SIDE PLATE R/H
Quantity in assembly group: 1 Piece / Pos. 1
SIDE PLATE L/H
Quantity in assembly group: 1 Piece / Pos. 2
SIDE PLATE R/H
Quantity in assembly group: 1 Piece / Pos. 3
SIDE PLATE L/H
Quantity in assembly group: 1 Piece / Pos. 4
PLATE R/H
Quantity in assembly group: 1 Piece / Pos. 5
PLATE L/H
Quantity in assembly group: 1 Piece / Pos. 6
BEARING BLOCK
Quantity in assembly group: 2 Piece / Pos. 7
U-PROFILE
Quantity in assembly group: 2 Piece / Pos. 8
ROLLER 75
Quantity in assembly group: 2 Piece / Pos. 9
ALLEN CONE SCREW M8X20-914flZn
Quantity in assembly group: 2 Piece / Pos. 10
HEX BOLT M16X70-DIN931-8.8-G
Quantity in assembly group: 2 Piece / Pos. 11
HEXAGON NUT M16 DIN934-8-GAL
Quantity in assembly group: 20 Piece / Pos. 12
CONTACT WASHER FORM M 16-GAL
Quantity in assembly group: 20 Piece / Pos. 13
FLANGE ROLLER D95
Quantity in assembly group: 4 Piece / Pos. 14
WINDING PROTECTION
Quantity in assembly group: 4 Piece / Pos. 15
ROLLER CAP
Quantity in assembly group: 9 Piece / Pos. 16
ROLLER D100
Quantity in assembly group: 7 Piece / Pos. 17
ROLLER BUSH
Quantity in assembly group: 7 Piece / Pos. 18
HEX BOLT M16X80-DIN931-8.8-G
Quantity in assembly group: 11 Piece / Pos. 19
SUPPORT ROLLER D95
Quantity in assembly group: 5 Piece / Pos. 21
SPACER PIECE 16,5X30X10
Quantity in assembly group: 7 Piece / Pos. 22
ROLLER FRAME
Quantity in assembly group: 1 Piece / Pos. 23
TENSION SHAFT
Quantity in assembly group: 1 Piece / Pos. 24
DRIVE ROLLER -VULC-
Quantity in assembly group: 2 Piece / Pos. 25
FEATHER KEY
Quantity in assembly group: 2 Piece / Pos. 26
ANGLE
Quantity in assembly group: 3 Piece / Pos. 27
SPACER TUBE
Quantity in assembly group: 1 Piece / Pos. 28
EYELET SCREW
Quantity in assembly group: 3 Piece / Pos. 29
LINK CHAIN-4 LINKS C5X36
Quantity in assembly group: 3 Piece / Pos. 30
TENSION SPRING
Quantity in assembly group: 3 Piece / Pos. 31
CHAIN TENSIONER CPT.
Quantity in assembly group: 1 Piece / Pos. 32
HEX BOLT M16X90-DIN931-8.8-G
Quantity in assembly group: 1 Piece / Pos. 33
RETAINING RING A 40X1,75 DIN47
Quantity in assembly group: 1 Piece / Pos. 35
HEXAGON NUT M8 DIN934-6-GAL-DE
Quantity in assembly group: 2 Piece / Pos. 36
TENSION ARM 1
Quantity in assembly group: 2 Piece / Pos. 37
PLAIN WASHER 17X44X3 GAL
Quantity in assembly group: 2 Piece / Pos. 38
SPLIT WASHER
Quantity in assembly group: 4 Piece / Pos. 39
FLANGE PLATE (PR) PF62/PF206
Quantity in assembly group: 2 Piece / Pos. 40
BEARING YAR 206-2RF/UC206
Quantity in assembly group: 2 Piece / Pos. 41
SPACER
Quantity in assembly group: 2 Piece / Pos. 42
COACH BOLT M16X80-DIN603-8.8-G
Quantity in assembly group: 2 Piece / Pos. 43
NYLOC NUT DIN985-M16-8-GAL
Quantity in assembly group: 1 Piece / Pos. 44
SCRAPER DEVICE 7SPRINGS UPPER
Quantity in assembly group: 1 Piece / Pos. 45
HAULM ROLLER
Quantity in assembly group: 1 Piece / Pos. 46
FLANGE BEARING
Quantity in assembly group: 2 Piece / Pos. 47
SEALING CAP 64,5-3
Quantity in assembly group: 2 Piece / Pos. 48
SCRAPER
Quantity in assembly group: 1 Piece / Pos. 49
WINDING PROTECTION
Quantity in assembly group: 2 Piece / Pos. 50
HEX BOLT M16X100 DIN931-8.8-G
Quantity in assembly group: 4 Piece / Pos. 51
