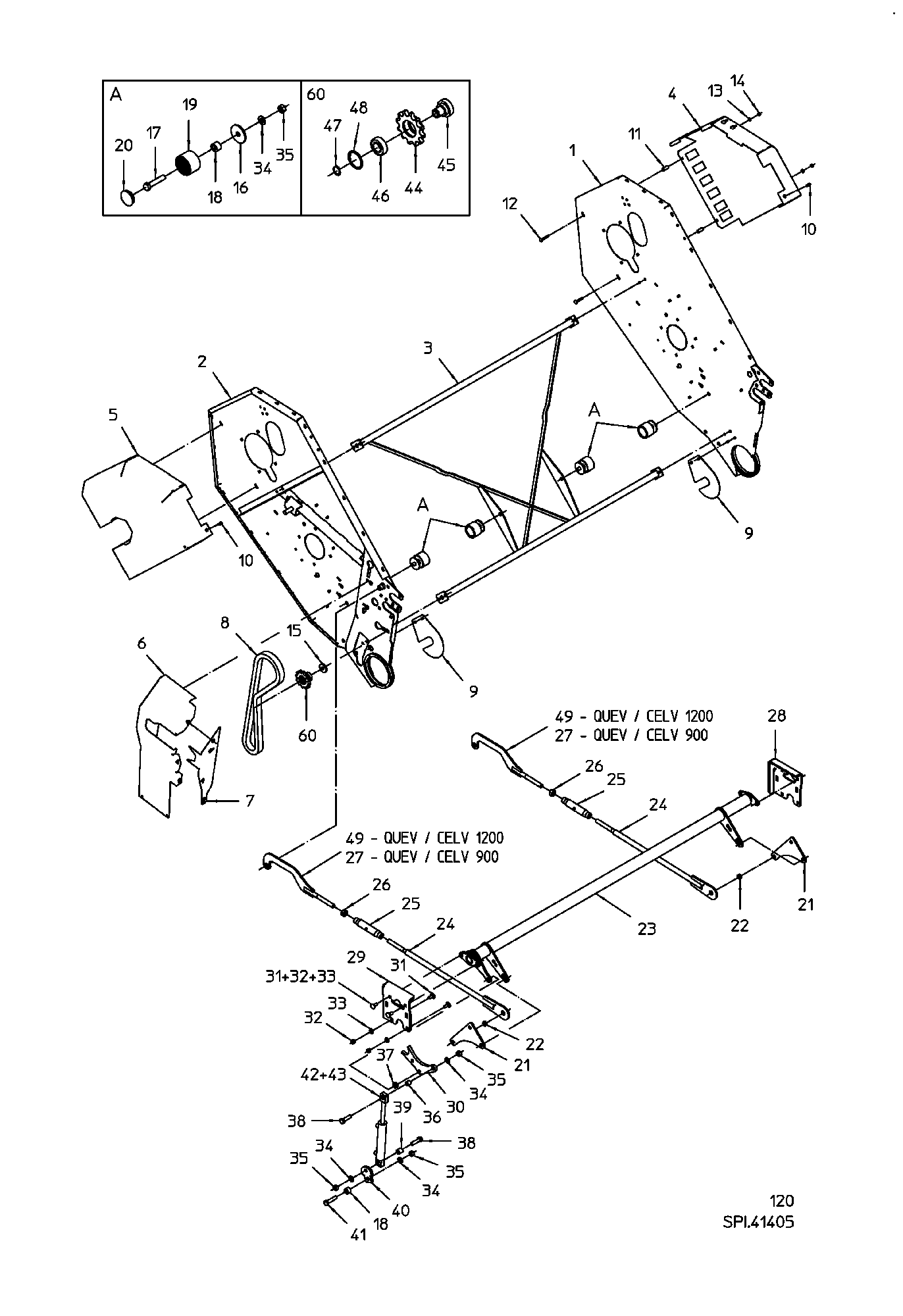

Parts by subassemblies

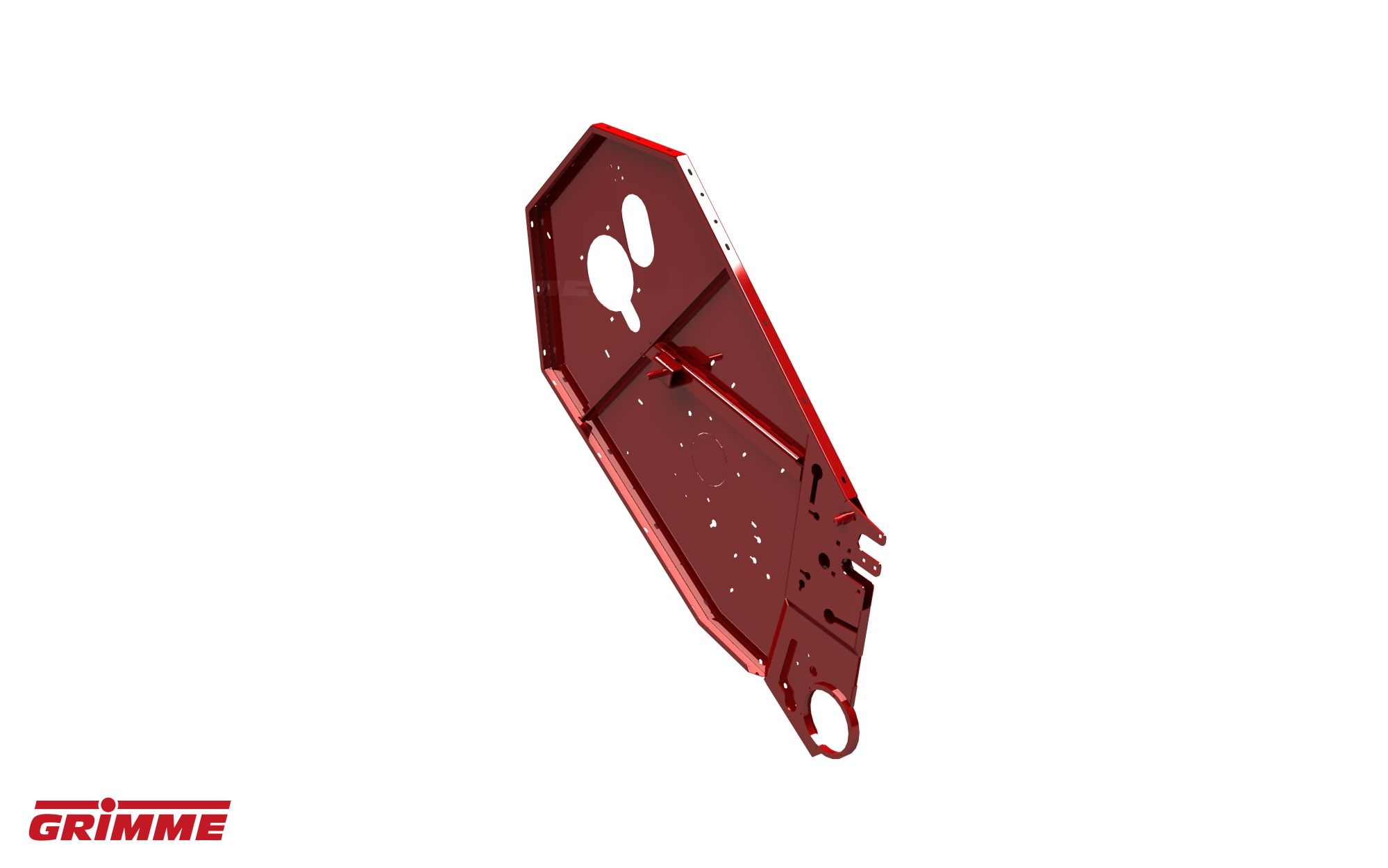

SIDE PART L/H

Quantity in assembly group: 1 Piece / Pos. 1

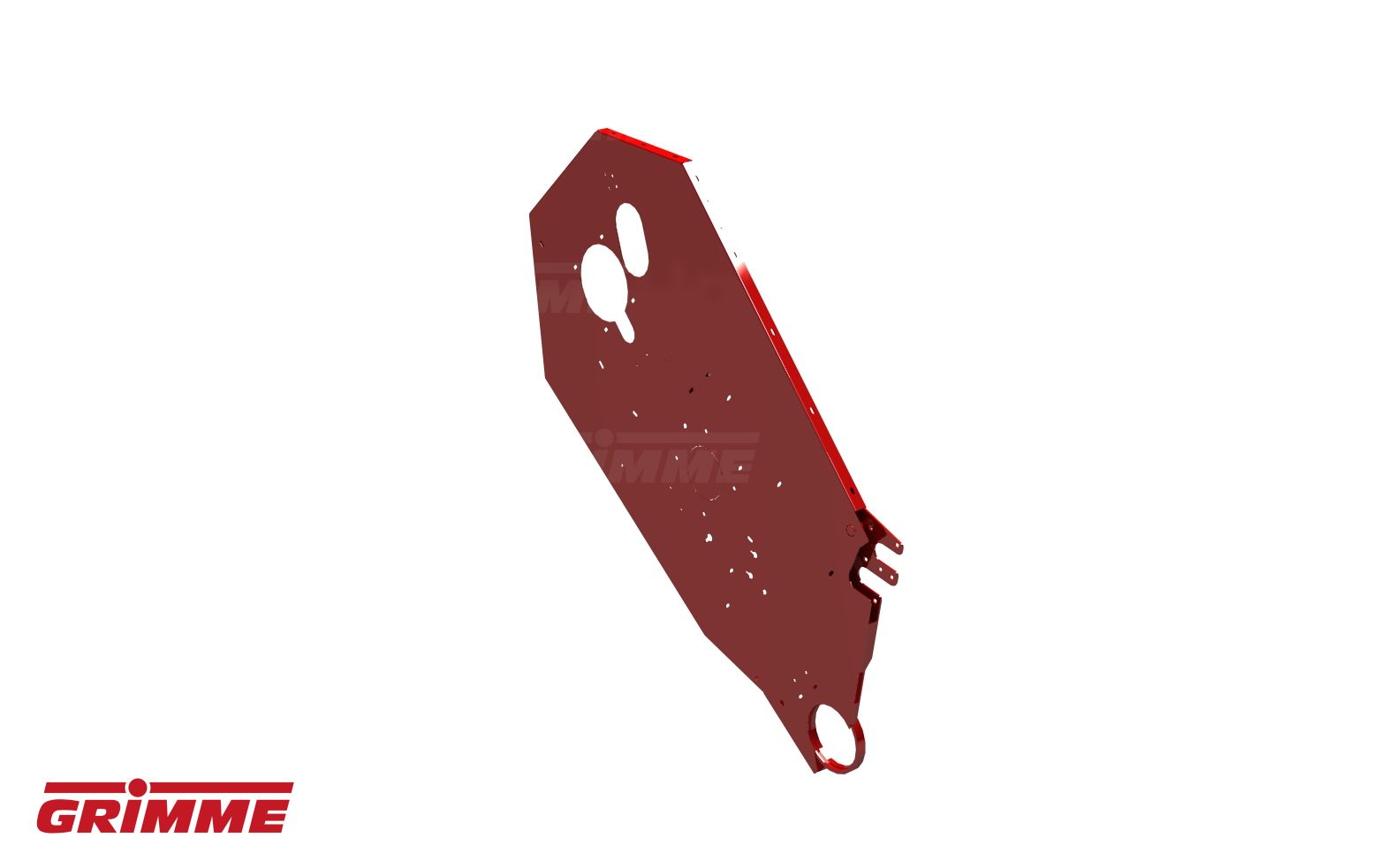

SIDE PART R/H

Quantity in assembly group: 1 Piece / Pos. 2

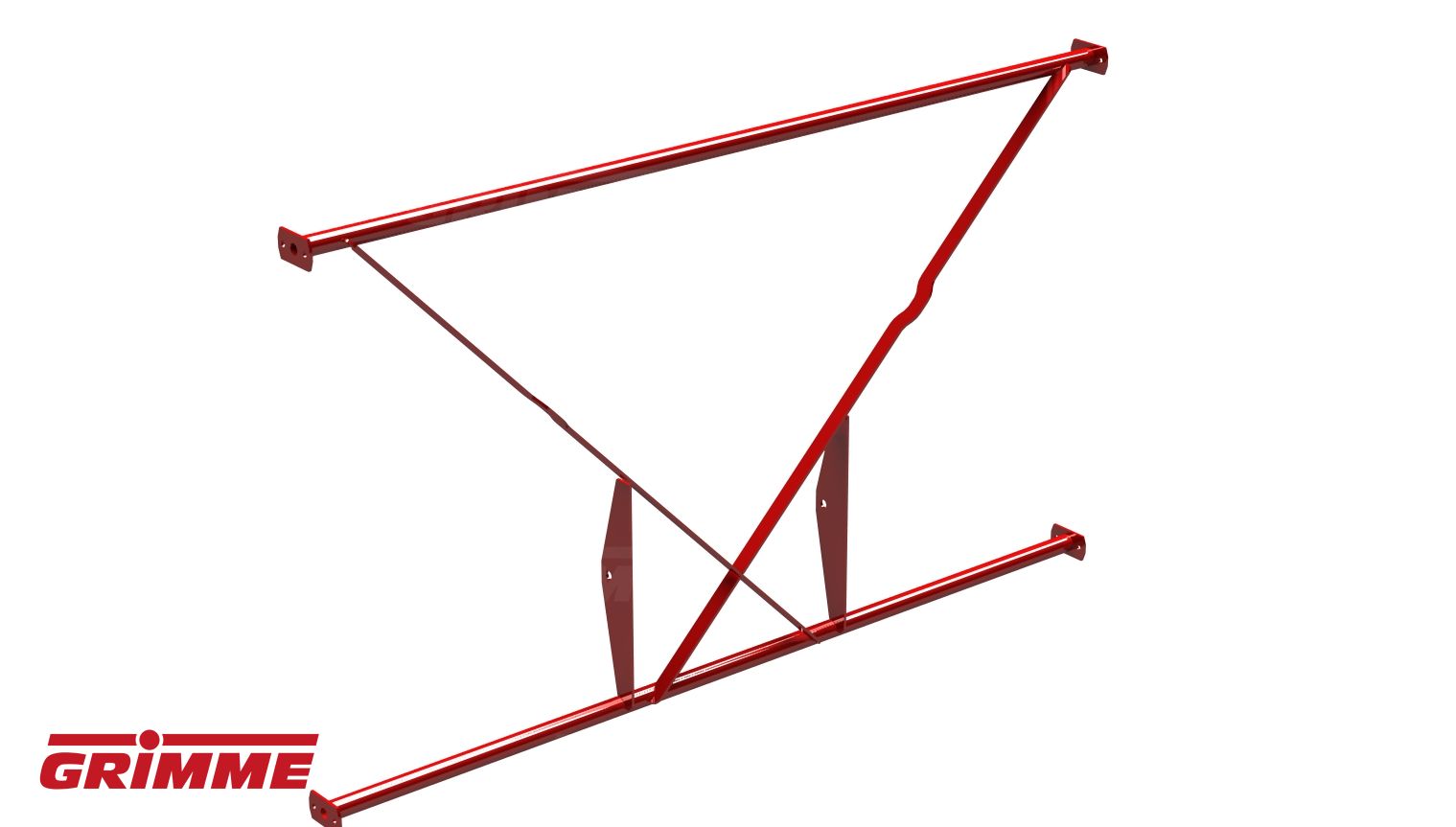

SUPPORT FRAME

Quantity in assembly group: 1 Piece / Pos. 3

PROTECTION L/H

Quantity in assembly group: 1 Piece / Pos. 4

PROTECTION R/H

Quantity in assembly group: 1 Piece / Pos. 5

GUARD R/H

Quantity in assembly group: 1 Piece / Pos. 6

GUARD R/H

Quantity in assembly group: 1 Piece / Pos. 7

CHAIN 1"X5/8"-ASA80-64R

Quantity in assembly group: 1 Piece / Pos. 8

COVER PLATE

Quantity in assembly group: 2 Piece / Pos. 9

SHC-SCREW DIN912 M8X20 8.8 GAL

Quantity in assembly group: 2 Piece / Pos. 10

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 11

COACH BOLT M8X55-DIN603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 12

CONTACT WASHER FORM M 8-GAL

Quantity in assembly group: 2 Piece / Pos. 13

HEXAGON NUT M8 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 14

RETAINING WASHER

Quantity in assembly group: 1 Piece / Pos. 15

WASHER 17X70X5

Quantity in assembly group: 4 Piece / Pos. 16

HEX BOLT M16X80-DIN931-8.8-G

Quantity in assembly group: 4 Piece / Pos. 17

SPACER 20MM

Quantity in assembly group: 5 Piece / Pos. 18

SUPPORT ROLLER DM75

Quantity in assembly group: 4 Piece / Pos. 19

ROLLER CAP

Quantity in assembly group: 4 Piece / Pos. 20

LEVER

Quantity in assembly group: 2 Piece / Pos. 21

SPACER 24X3.5X9

Quantity in assembly group: 2 Piece / Pos. 22

CONTROL LEVER

Quantity in assembly group: 1 Piece / Pos. 23

TUBE STAY

Quantity in assembly group: 2 Piece / Pos. 24

TENSION LOCK NUT ZINC M20

Quantity in assembly group: 2 Piece / Pos. 25

HEXAGON NUT M20 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 26

CRANKED ADJUSTING STRAP

Quantity in assembly group: 2 Piece / Pos. 27

BRACKET L/H

Quantity in assembly group: 1 Piece / Pos. 28

BRACKET R/H

Quantity in assembly group: 1 Piece / Pos. 29

CYLINDER BRACKET

Quantity in assembly group: 1 Piece / Pos. 30

COACH BOLT M12X30-DIN603-8.8-G

Quantity in assembly group: 4 Piece / Pos. 31

HEXAGON NUT M12 934-10.9-flZn

Quantity in assembly group: 4 Piece / Pos. 32

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 4 Piece / Pos. 33

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 3 Piece / Pos. 34

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 3 Piece / Pos. 35

BUSHING

Quantity in assembly group: 1 Piece / Pos. 36

SPACER PIECE 16,5X30X10

Quantity in assembly group: 1 Piece / Pos. 37

HHC-SCREW M16X60 933-10.9 flZn

Quantity in assembly group: 2 Piece / Pos. 38

TUBE

Quantity in assembly group: 1 Piece / Pos. 39

CYLINDER BRACKET

Quantity in assembly group: 1 Piece / Pos. 40

SET SCREW M16X70-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 41

DOUBLE ACTING HYD RAM

Quantity in assembly group: 1 Piece / Pos. 42

CYL-SEAL SET

Quantity in assembly group: 1 Piece / Pos. 43

SPROCKET 1"-T12

Quantity in assembly group: 1 Piece / Pos. 44

SPROCKET BEARING NECK

Quantity in assembly group: 1 Piece / Pos. 45

BALL BEARING 6205-2RS

Quantity in assembly group: 1 Piece / Pos. 46

RETAINING RING A 25X1,2 DIN471

Quantity in assembly group: 1 Piece / Pos. 47

RETAINING RING J 52X2 DIN472

Quantity in assembly group: 1 Piece / Pos. 48

STAY L/H

Quantity in assembly group: 1 Piece / Pos. 49

IDLER SPROCKET 1"-Z12

Quantity in assembly group: 1 Piece / Pos. 60
