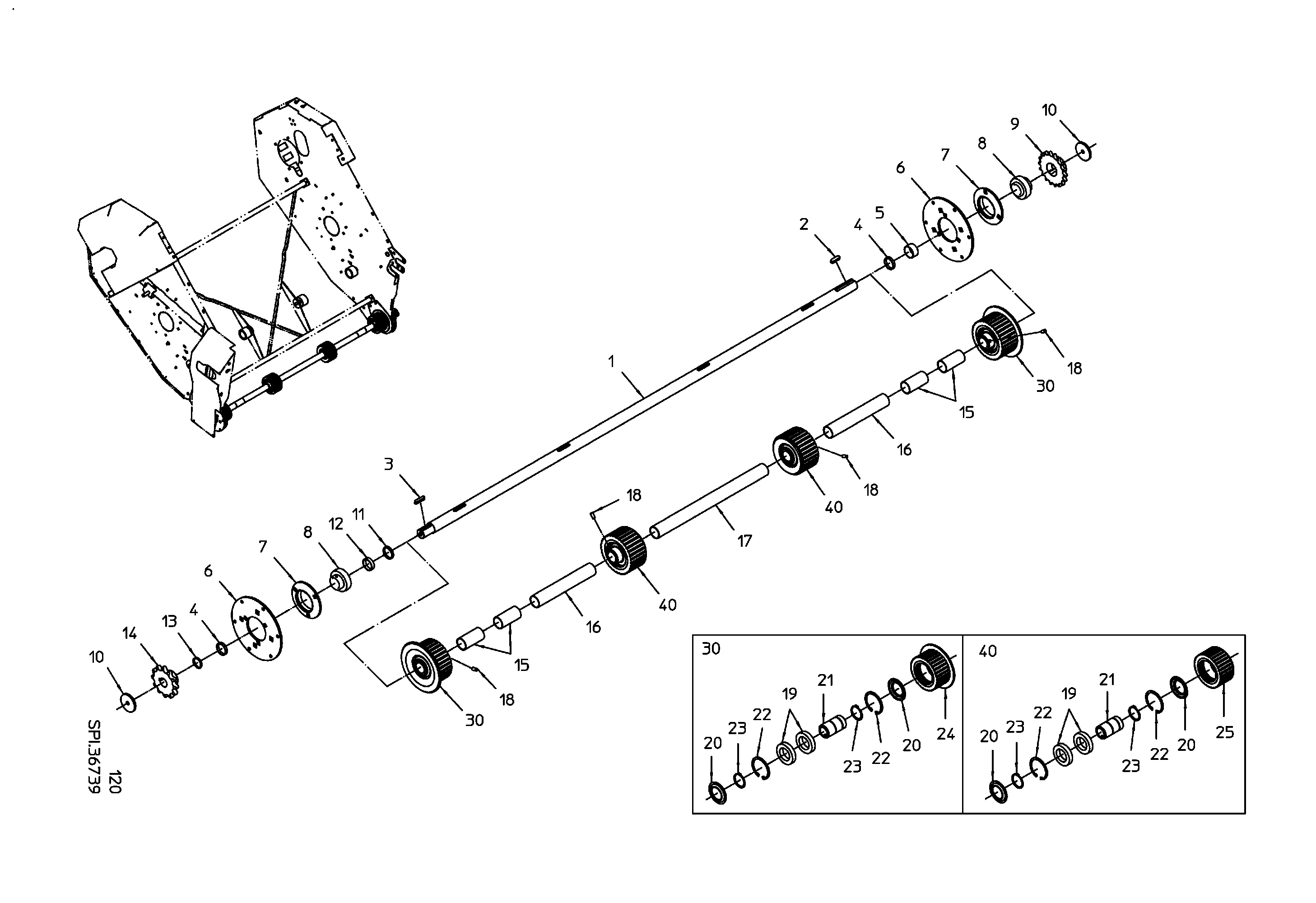

Parts by subassemblies

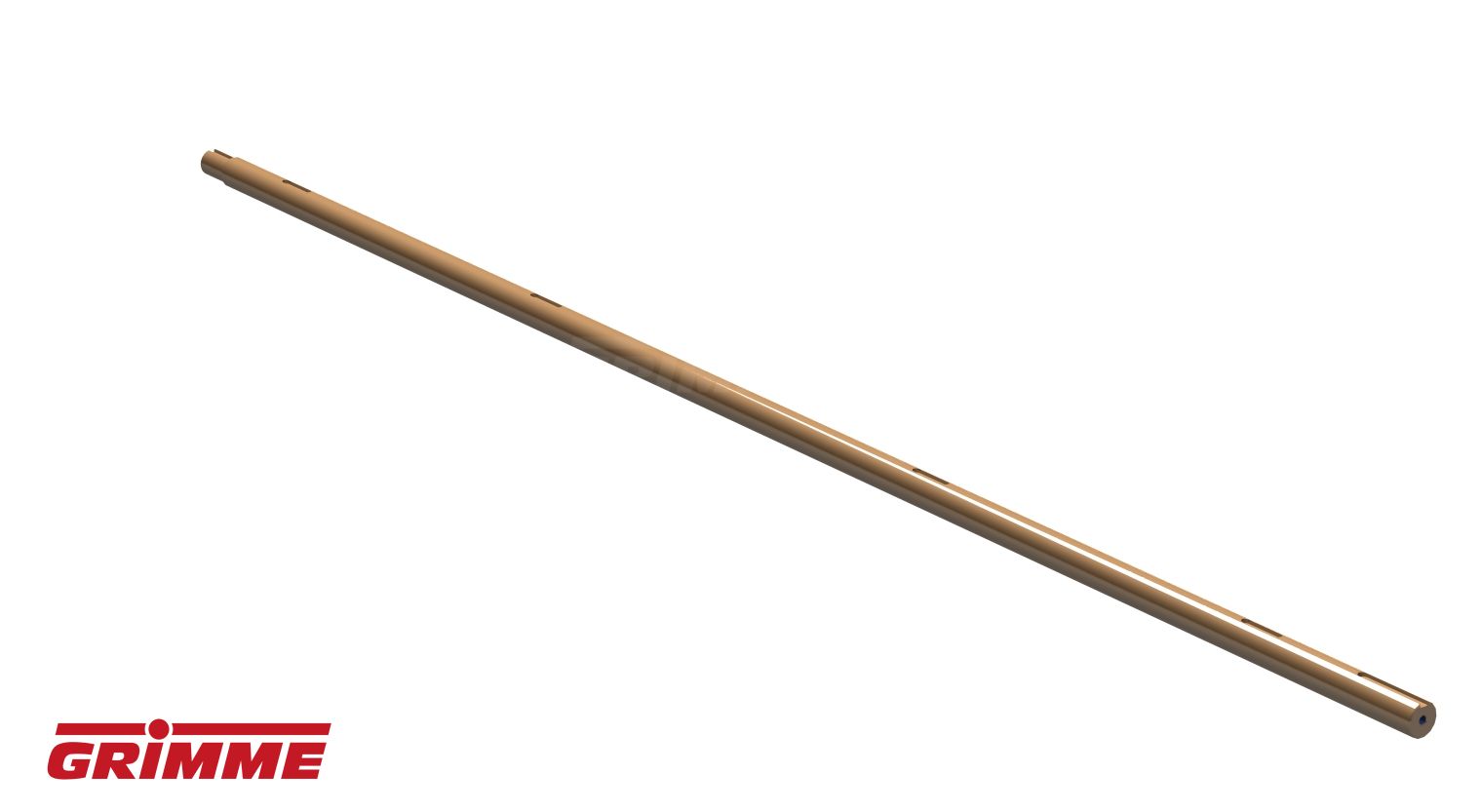

SHAFT

Quantity in assembly group: 1 Piece / Pos. 1

FEATHER KEY A 10X8X35 DIN6885

Quantity in assembly group: 1 Piece / Pos. 2

FEATHER KEY A 8X8X40 DIN6885

Quantity in assembly group: 1 Piece / Pos. 3

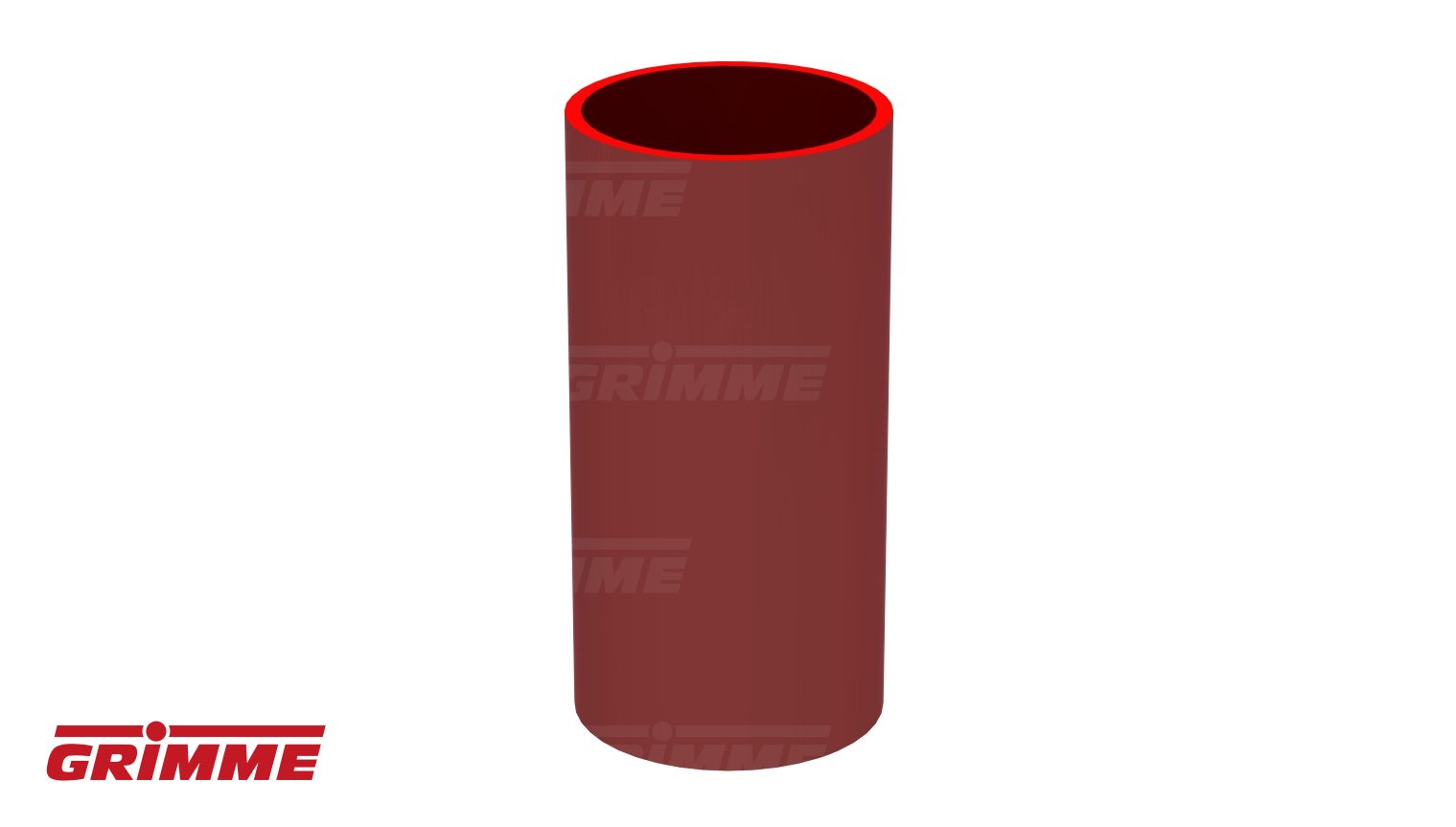

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 4

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 5

BEARING PLATE

Quantity in assembly group: 2 Piece / Pos. 6

FLANGE PLATE (PR) PF72/PF207

Quantity in assembly group: 2 Piece / Pos. 7

BEARING YAR 207-2RF/UC207

Quantity in assembly group: 2 Piece / Pos. 8

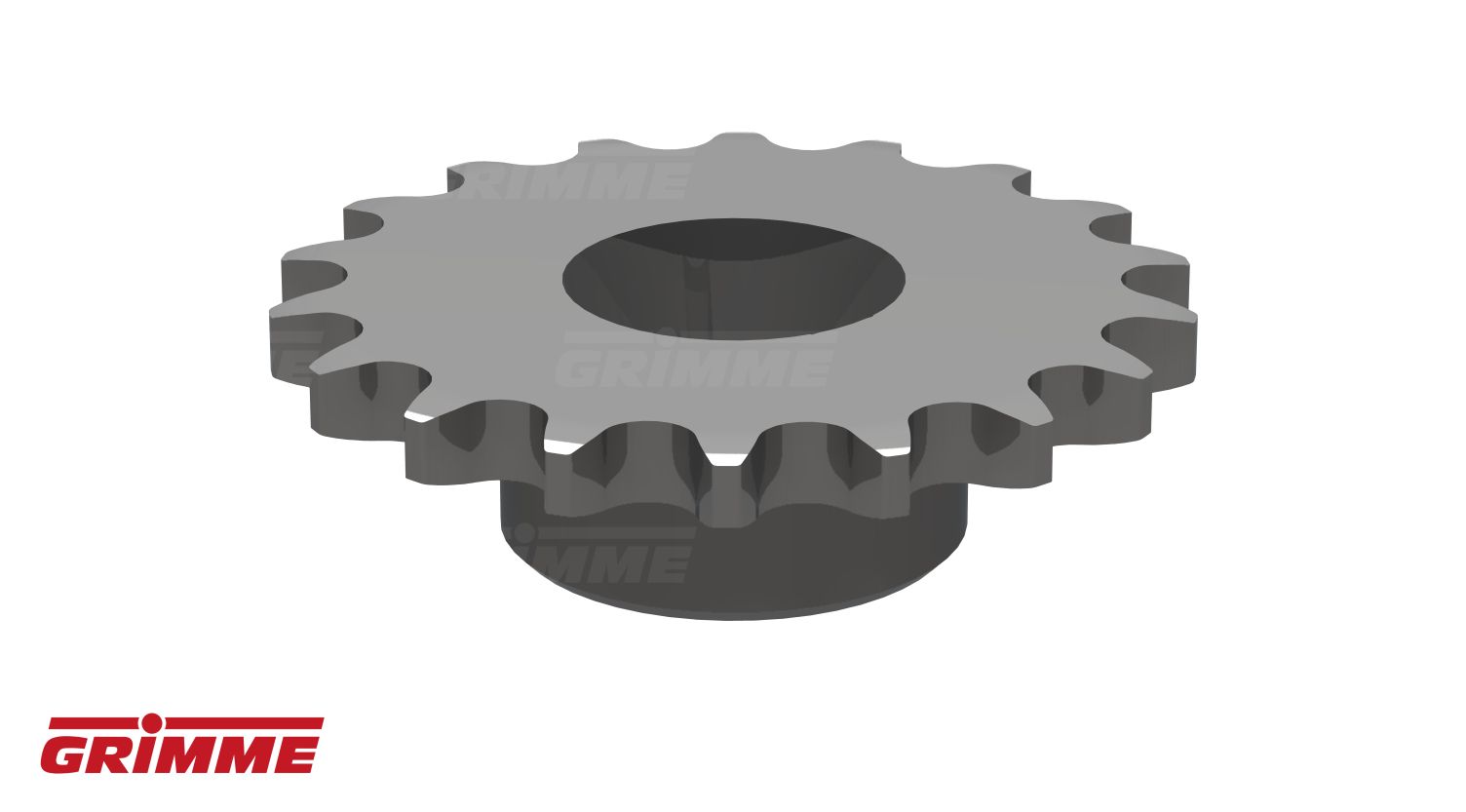

SPROCKET ASA60-1 T18

Quantity in assembly group: 1 Piece / Pos. 9

WASHER

Quantity in assembly group: 2 Piece / Pos. 10

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 11

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 12

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 13

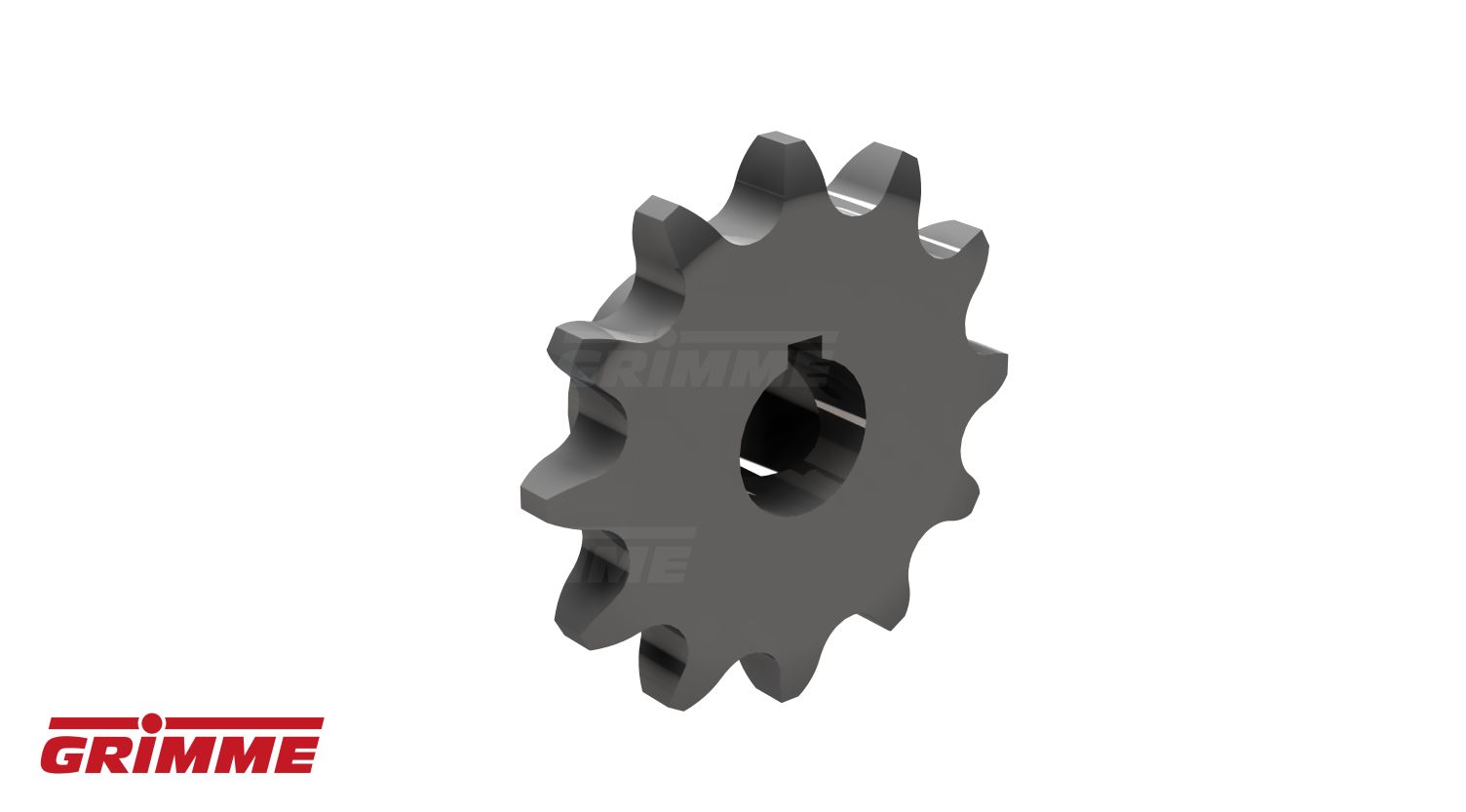

SPROCKET ASA80-1-T12

Quantity in assembly group: 1 Piece / Pos. 14

SPACER TUBE

Quantity in assembly group: 4 Piece / Pos. 15

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 16

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 17

ALLEN CONE SCREW M8X20-914flZn

Quantity in assembly group: 4 Piece / Pos. 18

BALL BEARING 6010-2RS

Quantity in assembly group: 4 Piece / Pos. 19

SEALING RING 84-50-3

Quantity in assembly group: 4 Piece / Pos. 20

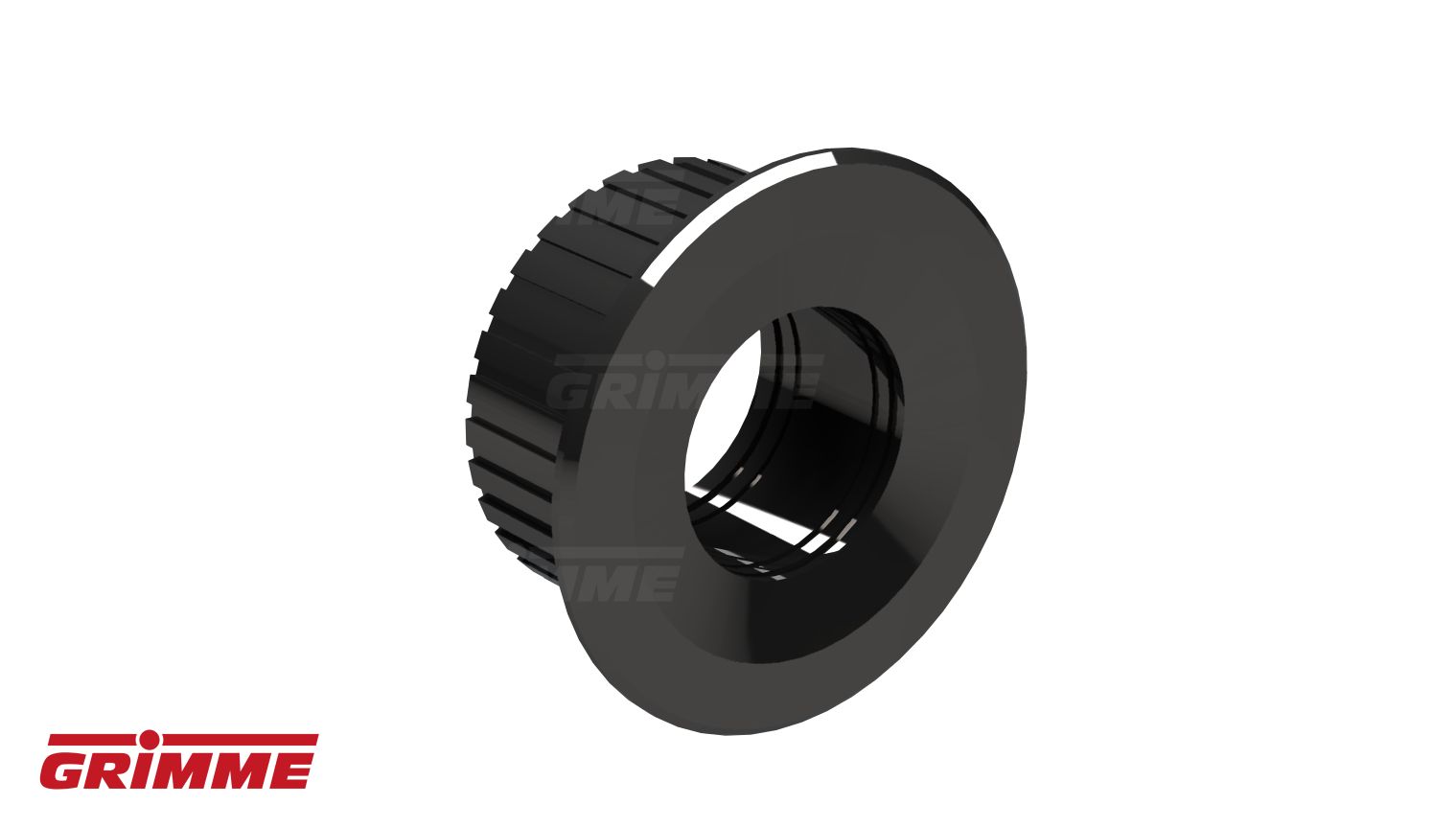

BEARING SLEEVE

Quantity in assembly group: 2 Piece / Pos. 21

RETAINING RING J 80X2,5 DIN472

Quantity in assembly group: 4 Piece / Pos. 22

RETAINING RING A 50X2 DIN471

Quantity in assembly group: 4 Piece / Pos. 23

IDLER ROLLER

Quantity in assembly group: 1 Piece / Pos. 24

IDLER ROLLER -VULC-

Quantity in assembly group: 1 Piece / Pos. 25

DEFLECTION ROLLER OUTSIDE

Quantity in assembly group: 2 Piece / Pos. 30

DEFLECTION ROLLER MIDDLE

Quantity in assembly group: 2 Piece / Pos. 40
