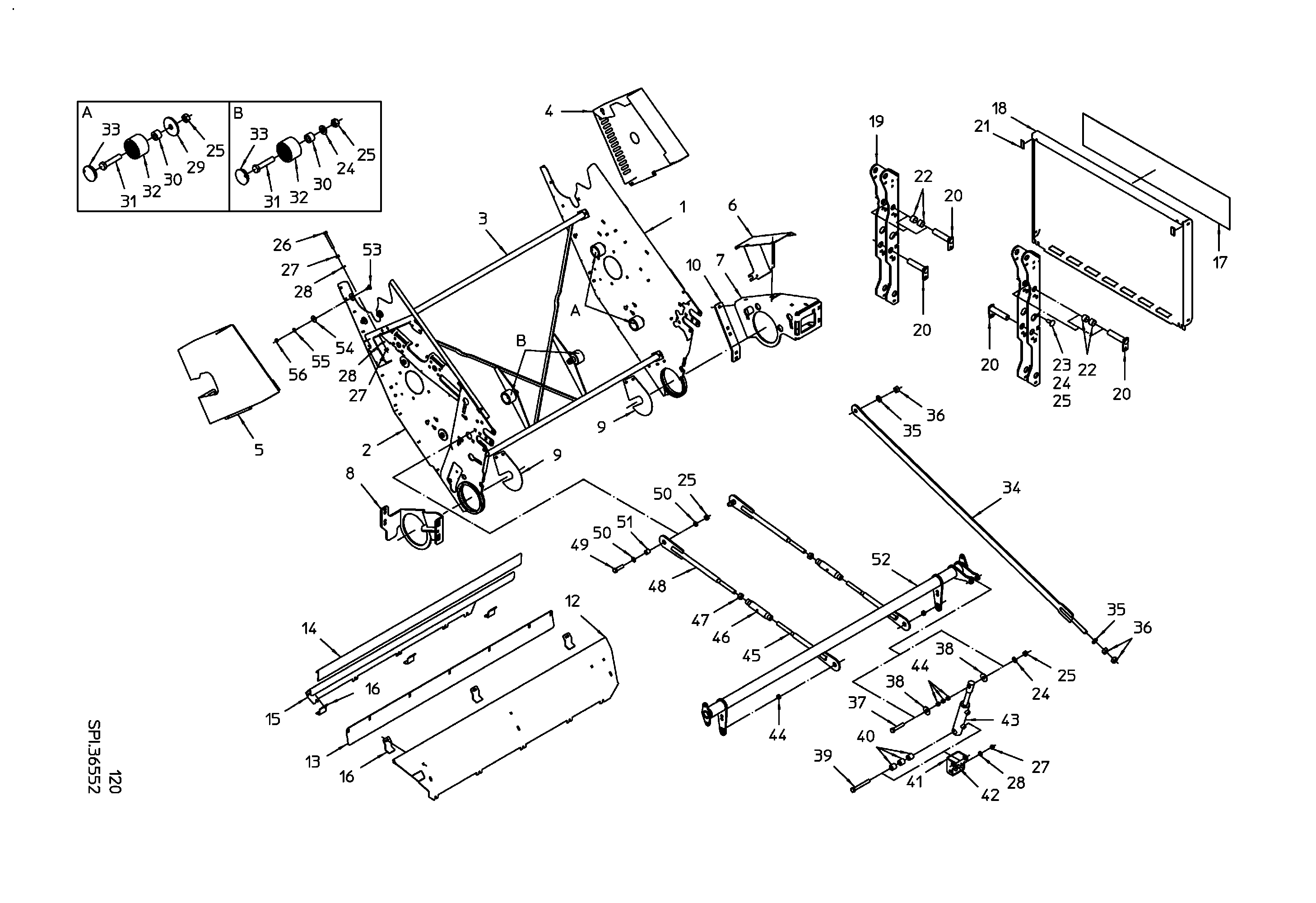

Parts by subassemblies

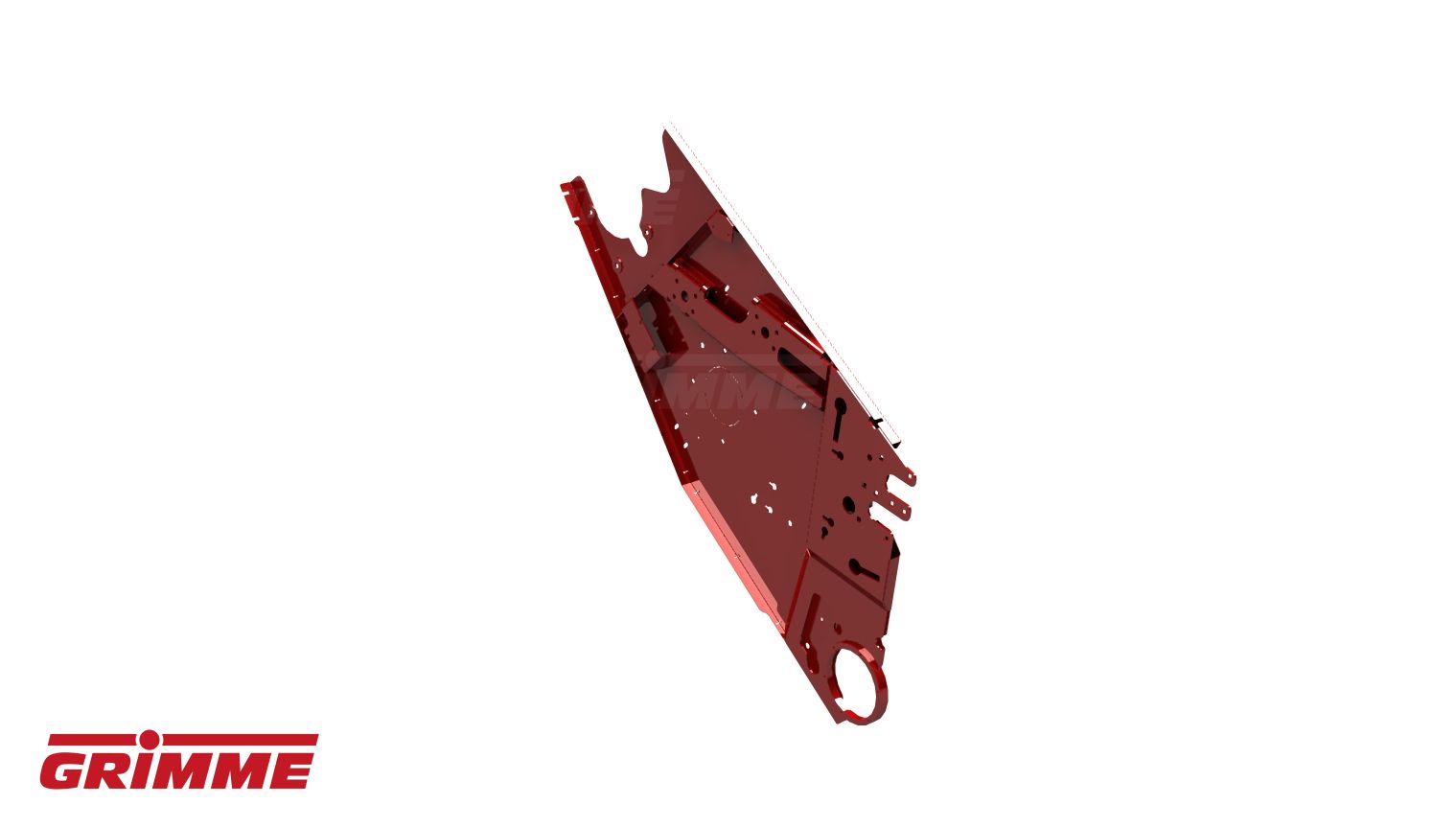

SIDE PART L/H

Quantity in assembly group: 1 Piece / Pos. 1

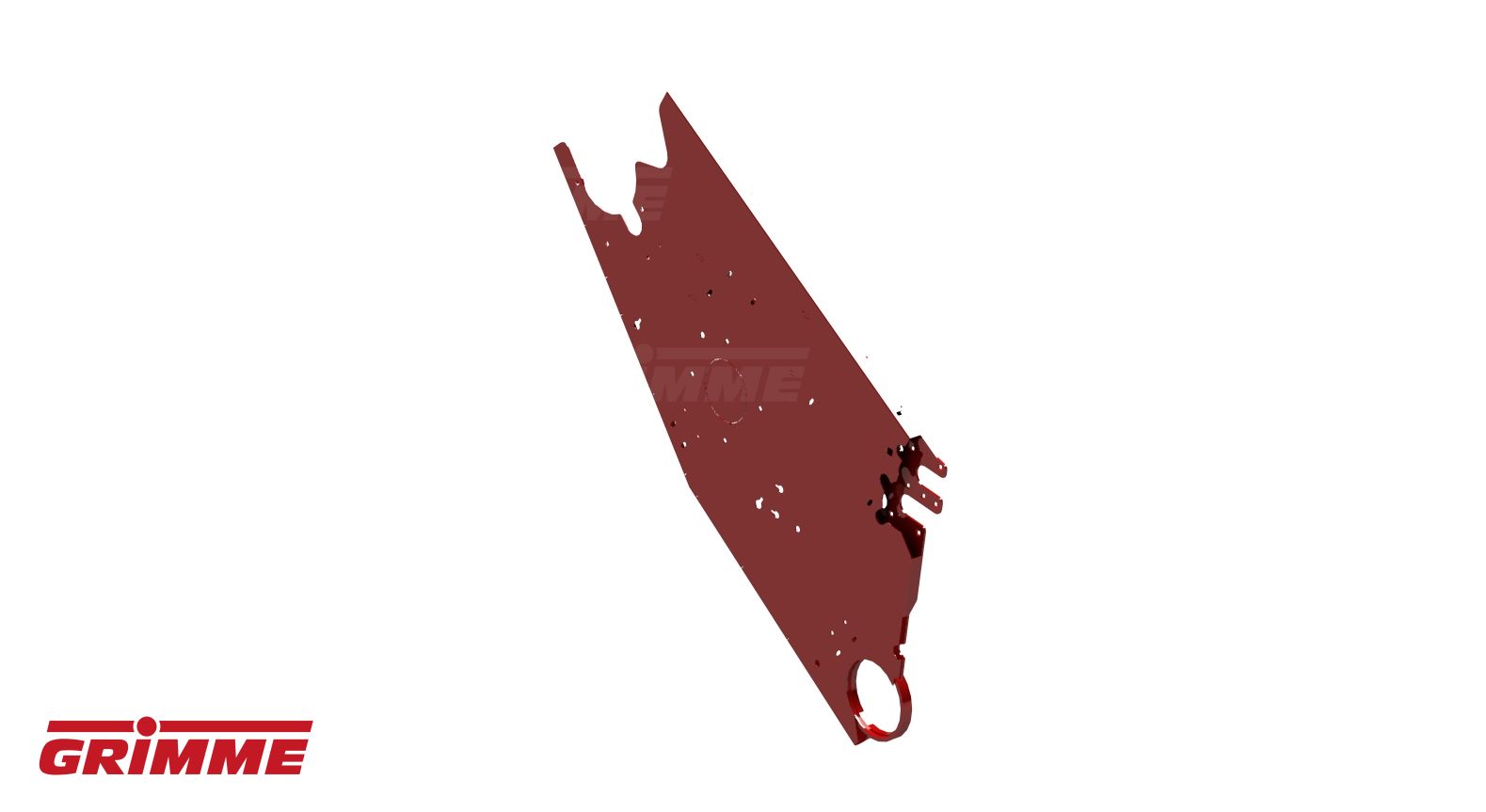

SIDE PART R/H

Quantity in assembly group: 1 Piece / Pos. 2

SUPPORT FRAME

Quantity in assembly group: 1 Piece / Pos. 3

PROTECTION L/H

Quantity in assembly group: 1 Piece / Pos. 4

PROTECTION R/H

Quantity in assembly group: 1 Piece / Pos. 5

PROTECTION REAR

Quantity in assembly group: 1 Piece / Pos. 6

BRACKET L/H

Quantity in assembly group: 1 Piece / Pos. 7

HINGE BRACKET

Quantity in assembly group: 1 Piece / Pos. 8

COVER PLATE

Quantity in assembly group: 2 Piece / Pos. 9

BRACKET

Quantity in assembly group: 1 Piece / Pos. 10

COVER PLATE FRONT

Quantity in assembly group: 1 Piece / Pos. 12

PROTECTION FHELV FRONT

Quantity in assembly group: 1 Piece / Pos. 13

COVER PLATE

Quantity in assembly group: 1 Piece / Pos. 14

COVER PLATE REAR

Quantity in assembly group: 1 Piece / Pos. 15

BRACKET

Quantity in assembly group: 6 Piece / Pos. 16

STICKER L/H REAR

Quantity in assembly group: 1 Piece / Pos. 17

PROTECTION

Quantity in assembly group: 1 Piece / Pos. 18

PROFILE

Quantity in assembly group: 2 Piece / Pos. 19

BOLT

Quantity in assembly group: 4 Piece / Pos. 20

SEALING STRIP BLACK 20X12

Quantity in assembly group: 2 Piece / Pos. 21

SPACER TUBE

Quantity in assembly group: 4 Piece / Pos. 22

COACH BOLT M16X40-DIN603-8.8-G

Quantity in assembly group: 1 Piece / Pos. 23

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 4 Piece / Pos. 24

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 10 Piece / Pos. 25

HHC-SCREW M12X100 DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 26

HEXAGON NUT M12 DIN934-8-GAL

Quantity in assembly group: 5 Piece / Pos. 27

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 5 Piece / Pos. 28

WASHER 17X70X5

Quantity in assembly group: 4 Piece / Pos. 29

SPACER 20MM

Quantity in assembly group: 6 Piece / Pos. 30

HEX BOLT M16X80-DIN931-8.8-G

Quantity in assembly group: 6 Piece / Pos. 31

SUPPORT ROLLER DM75

Quantity in assembly group: 6 Piece / Pos. 32

ROLLER CAP

Quantity in assembly group: 6 Piece / Pos. 33

BRACE BAR

Quantity in assembly group: 1 Piece / Pos. 34

FLAT WASHER M20-FORM A

Quantity in assembly group: 2 Piece / Pos. 35

HEXAGON NUT M20 DIN934-10 flZn

Quantity in assembly group: 3 Piece / Pos. 36

HEX BOLT M16X85-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 37

DISC A 17 DIN9021-GAL

Quantity in assembly group: 2 Piece / Pos. 38

HEX BOLT M16X130-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 39

SPACER 16,5X30X30

Quantity in assembly group: 3 Piece / Pos. 40

RAM BRACKET

Quantity in assembly group: 1 Piece / Pos. 41

MH-SCREW wSS M12X35 DIN603-8.8

Quantity in assembly group: 1 Piece / Pos. 42

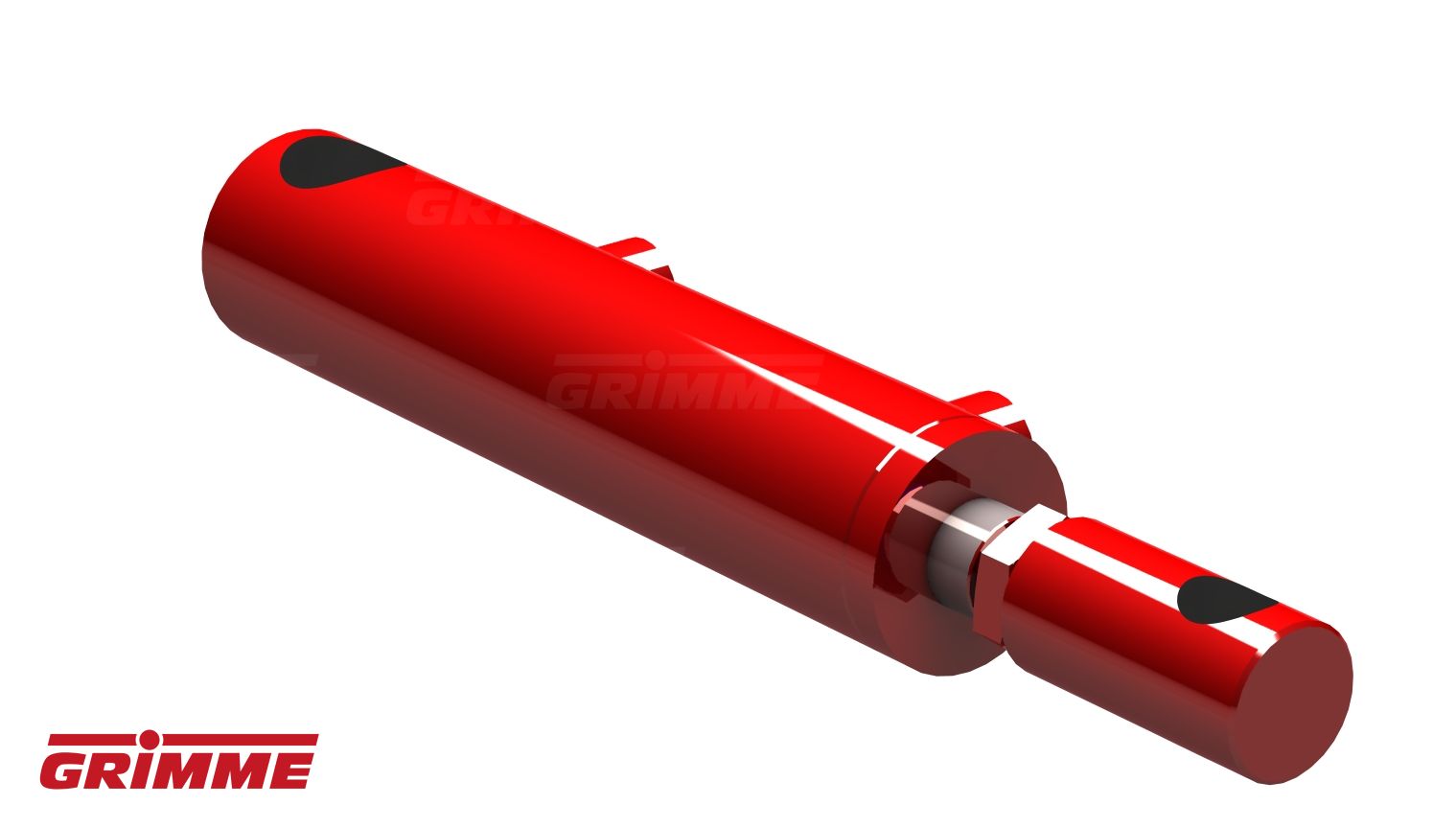

DOUBLE ACTING CYLINDER

Quantity in assembly group: 1 Piece / Pos. 43

SPACER 24X3.5X9

Quantity in assembly group: 2 Piece / Pos. 44

SPACER

Quantity in assembly group: 3 Piece / Pos. 44

TUBE STAY

Quantity in assembly group: 2 Piece / Pos. 45

TENSION LOCK NUT ZINC M20

Quantity in assembly group: 2 Piece / Pos. 46

HEXAGON NUT M20 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 47

STAY L/H

Quantity in assembly group: 2 Piece / Pos. 48

HEX BOLT M16X60-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 49

DISC 17 DIN433-GAL

Quantity in assembly group: 4 Piece / Pos. 50

SPACER TUBE 24X3,5X23

Quantity in assembly group: 2 Piece / Pos. 51

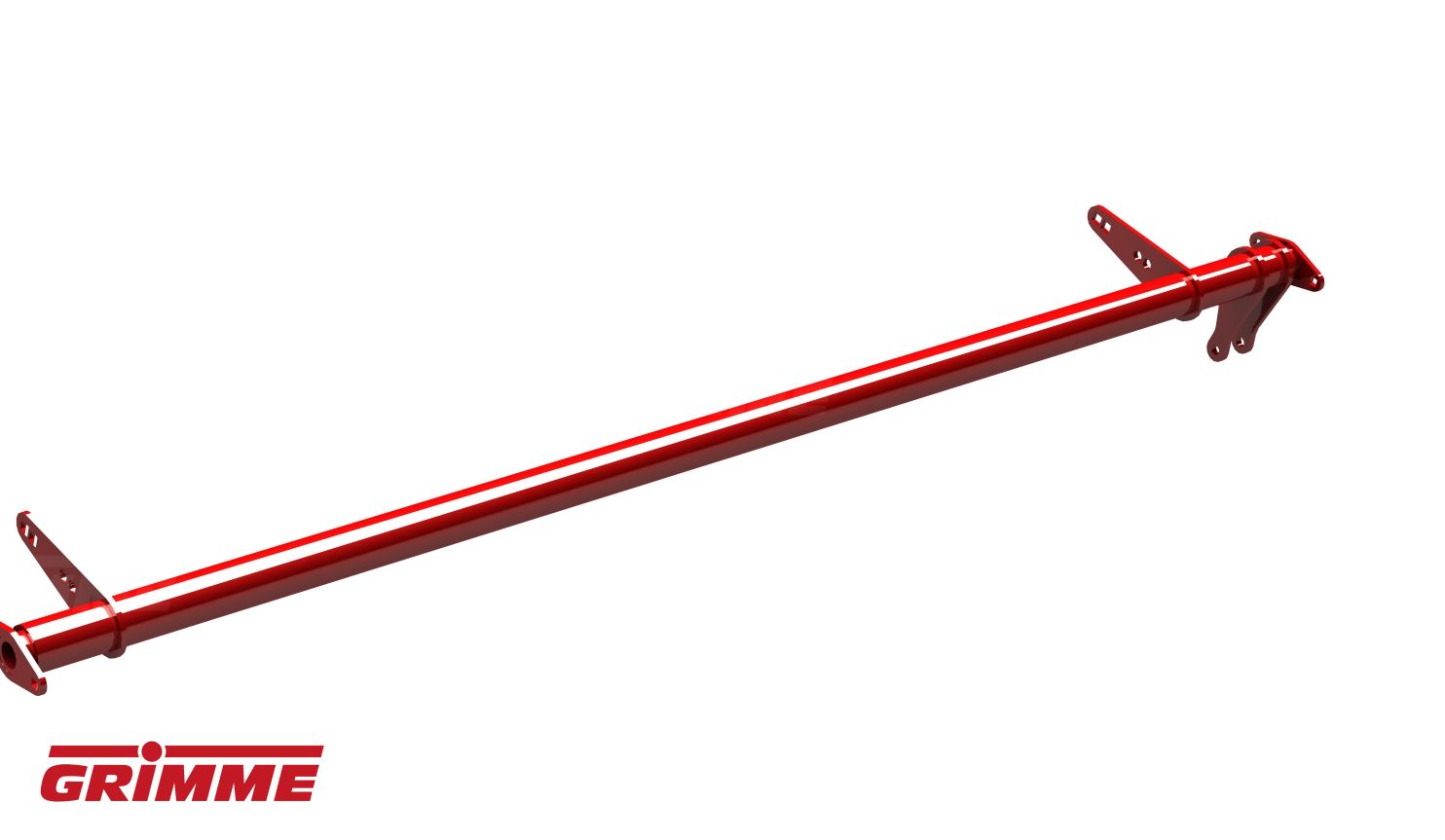

LIFTING TUBE

Quantity in assembly group: 1 Piece / Pos. 52

MH-SCREW M10X25-603-8.8-GAL

Quantity in assembly group: 3 Piece / Pos. 53

DISC A 13 DIN9021-GAL

Quantity in assembly group: 2 Piece / Pos. 54

CONTACT WASHER FORM M 10-GAL

Quantity in assembly group: 3 Piece / Pos. 55

HEXAGON NUT M10 DIN934-8-GAL

Quantity in assembly group: 3 Piece / Pos. 56
