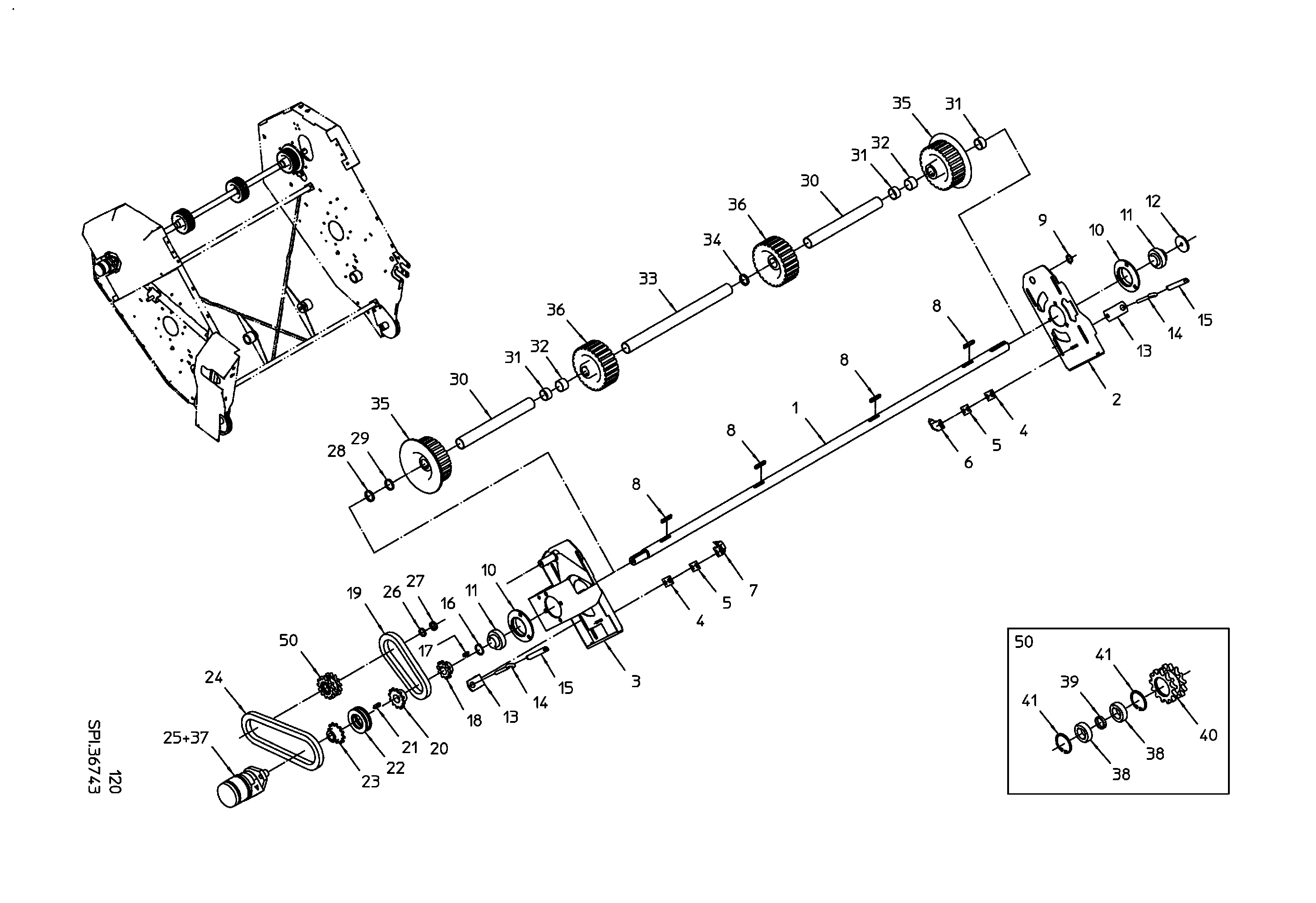

Parts by subassemblies

DRIVE SHAFT

Quantity in assembly group: 1 Piece / Pos. 1

TENSION PROFILE L/H

Quantity in assembly group: 1 Piece / Pos. 2

SPANNPROFIL RECHTS

Quantity in assembly group: 1 Piece / Pos. 3

SPACING PIECE

Quantity in assembly group: 2 Piece / Pos. 4

SPACER PLATE

Quantity in assembly group: 2 Piece / Pos. 5

SCRAPER R/H

Quantity in assembly group: 1 Piece / Pos. 6

SCRAPER L/H

Quantity in assembly group: 1 Piece / Pos. 7

FEATHER KEY A 8X8X50 DIN6885

Quantity in assembly group: 4 Piece / Pos. 8

RETAINING RING A 25X2 DIN471

Quantity in assembly group: 1 Piece / Pos. 9

FLANGE PLATE (PR) PF72/PF207

Quantity in assembly group: 2 Piece / Pos. 10

BEARING YAR 207-2RF/UC207

Quantity in assembly group: 2 Piece / Pos. 11

WASHER

Quantity in assembly group: 1 Piece / Pos. 12

ANGLE

Quantity in assembly group: 2 Piece / Pos. 13

EYELET SCREW

Quantity in assembly group: 2 Piece / Pos. 14

TENSION SPRING

Quantity in assembly group: 2 Piece / Pos. 15

RETAINING RING AS 35X2,5 DIN47

Quantity in assembly group: 1 Piece / Pos. 16

FEATHER KEY A 8X8X25 DIN6885

Quantity in assembly group: 1 Piece / Pos. 17

SPROCKET 3/4"-T10

Quantity in assembly group: 1 Piece / Pos. 18

CHAIN 3/4"X1/2"-ASA60-28R

Quantity in assembly group: 1 Piece / Pos. 19

SPROCKET 3/4" -T12-B30

Quantity in assembly group: 1 Piece / Pos. 20

FEATHER KEY A 8X8X30 DIN6885

Quantity in assembly group: 1 Piece / Pos. 21

CHAIN 3/4"X1/2"-ASA60-12R

Quantity in assembly group: 1 Piece / Pos. 22

SPROCKET 3/4" -T12-B25

Quantity in assembly group: 1 Piece / Pos. 23

CHAIN 3/4"X1/2"-ASA60-42R

Quantity in assembly group: 1 Piece / Pos. 24

HYD MOTOR MF130

Quantity in assembly group: 1 Piece / Pos. 25

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 26

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 27

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 28

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 29

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 30

SPACER RING

Quantity in assembly group: 3 Piece / Pos. 31

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 32

TUBE

Quantity in assembly group: 1 Piece / Pos. 33

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 34

DRIVE ROLLER -VULC-

Quantity in assembly group: 2 Piece / Pos. 35

DRIVE ROLLER -VULC-

Quantity in assembly group: 2 Piece / Pos. 36

SEAL SET STAND F MF HYD-MOTOR

Quantity in assembly group: 1 Piece / Pos. 37

BALL BEARING 6005-ZZRST

Quantity in assembly group: 2 Piece / Pos. 38

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 39

SPROCKET 3/4"/7/16"T13/13

Quantity in assembly group: 1 Piece / Pos. 40

RETAINING RING J 47X1,75 DIN47

Quantity in assembly group: 2 Piece / Pos. 41

DOUBLE SPROCKET T13

Quantity in assembly group: 1 Piece / Pos. 50
