Your machine: POTATO HARVESTER GT 170 M+S GT170(S/N: 45002062) modify ▸

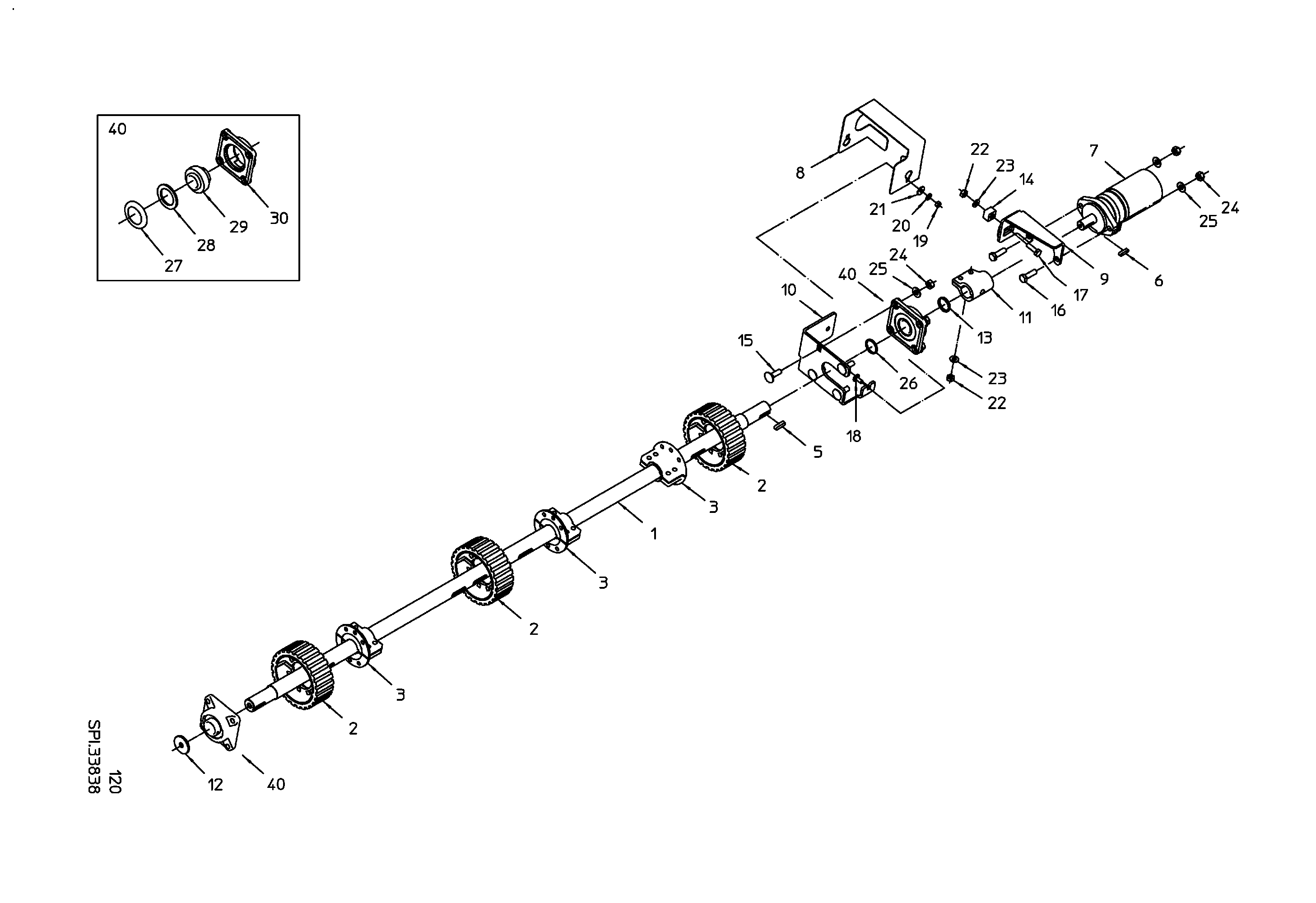

Subassembly drawing

▸ Selected assembly group:

Selected subassembly

▸
WEB SHAFT FHELV SEPARATOR (30 Parts)
▸

Subassembly parts

All items Equipment ex work ()
WELLE
Quantity in assembly group: 1 Piece / Pos. 1
FRICTION ROLLER DM168 60WIDE
Quantity in assembly group: 3 Piece / Pos. 2
SPLIT ROLLER HUB - B40
Quantity in assembly group: 3 Piece / Pos. 3
FEATHER KEY
Quantity in assembly group: 1 Piece / Pos. 5
FEATHER KEY A 8X7X30 DIN6885
Quantity in assembly group: 1 Piece / Pos. 6
HYDRAULIC MOTOR MF390 CYL-W
Quantity in assembly group: 1 Piece / Pos. 7
PROTECTION
Quantity in assembly group: 1 Piece / Pos. 8
TORQUE PILLAR
Quantity in assembly group: 1 Piece / Pos. 9

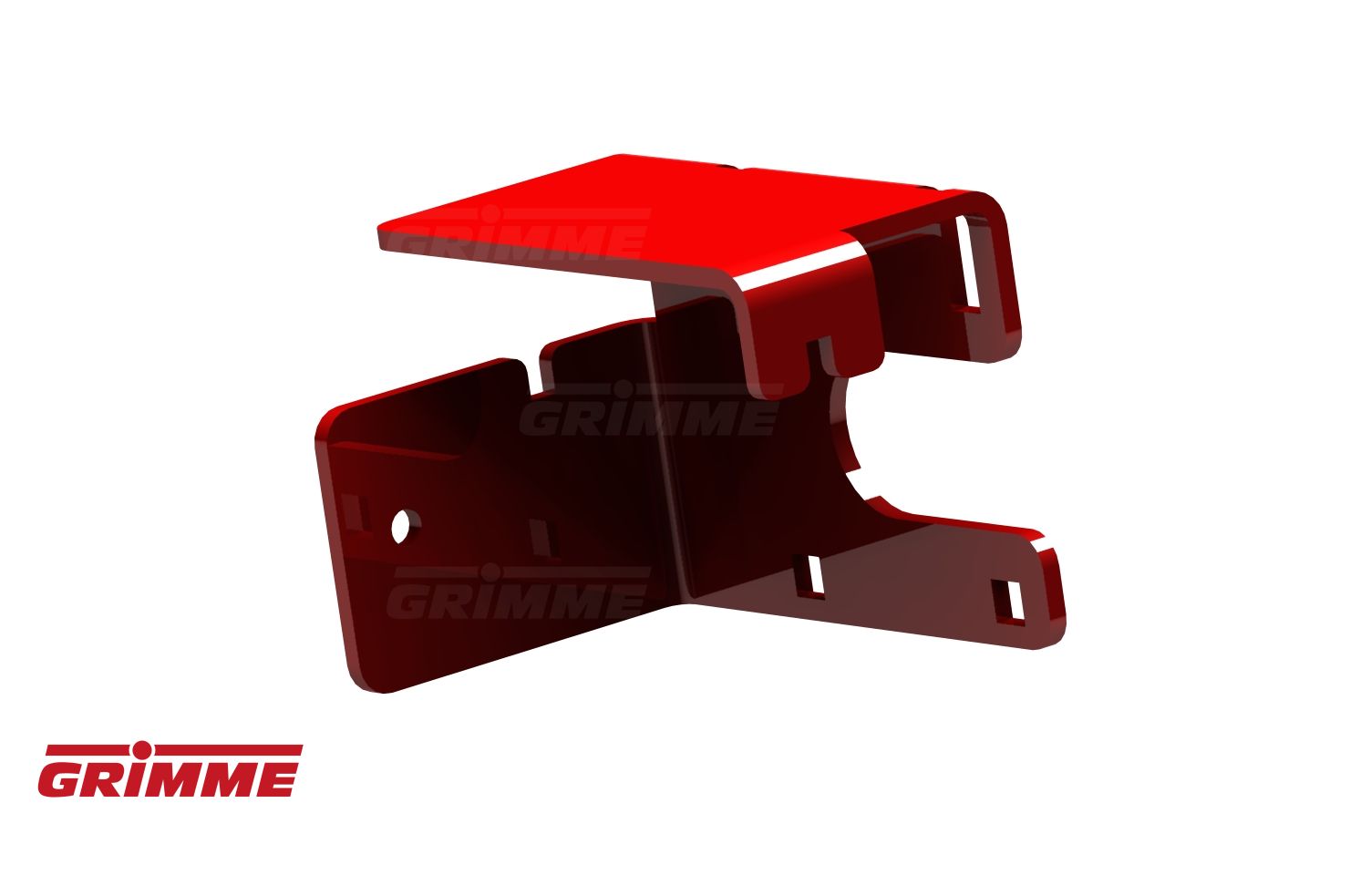

BRACKET
Quantity in assembly group: 1 Piece / Pos. 10
CLAMP HUB
Quantity in assembly group: 1 Piece / Pos. 11
RETAINING WASHER
Quantity in assembly group: 1 Piece / Pos. 12
SPACER TUBE
Quantity in assembly group: 1 Piece / Pos. 13
SQUARE-BOLT
Quantity in assembly group: 1 Piece / Pos. 14
COACH BOLT M12X40-DIN603-8.8-G
Quantity in assembly group: 4 Piece / Pos. 15
SET SCREW M12X40-DIN933-8.8-G
Quantity in assembly group: 2 Piece / Pos. 16
SET SCREW M10X35-DIN933-8.8-G
Quantity in assembly group: 1 Piece / Pos. 17
COACH BOLT/SS M8X20-603-8.8-G
Quantity in assembly group: 2 Piece / Pos. 18
HEXAGON NUT M8 DIN934-8-GAL
Quantity in assembly group: 2 Piece / Pos. 19
CONTACT WASHER FORM M 8-GAL
Quantity in assembly group: 2 Piece / Pos. 20
DISC A 8,4 DIN9021-GAL
Quantity in assembly group: 2 Piece / Pos. 21
HEXAGON NUT M10 DIN934-8-GAL
Quantity in assembly group: 2 Piece / Pos. 22
CONTACT WASHER FORM M 10-GAL
Quantity in assembly group: 2 Piece / Pos. 23
HEXAGON NUT M12 DIN934-8-GAL
Quantity in assembly group: 6 Piece / Pos. 24
CONTACT DISC FORM M 12-GAL
Quantity in assembly group: 6 Piece / Pos. 25
SPACER TUBE
Quantity in assembly group: 1 Piece / Pos. 26
SEALING CAP
Quantity in assembly group: 2 Piece / Pos. 27
SEALING RING
Quantity in assembly group: 2 Piece / Pos. 28
BEARING YAR 207-2RF/UC207
Quantity in assembly group: 2 Piece / Pos. 29
BEARING HOUSING
Quantity in assembly group: 2 Piece / Pos. 30
FLANGE BEARING
Quantity in assembly group: 2 Piece / Pos. 40
