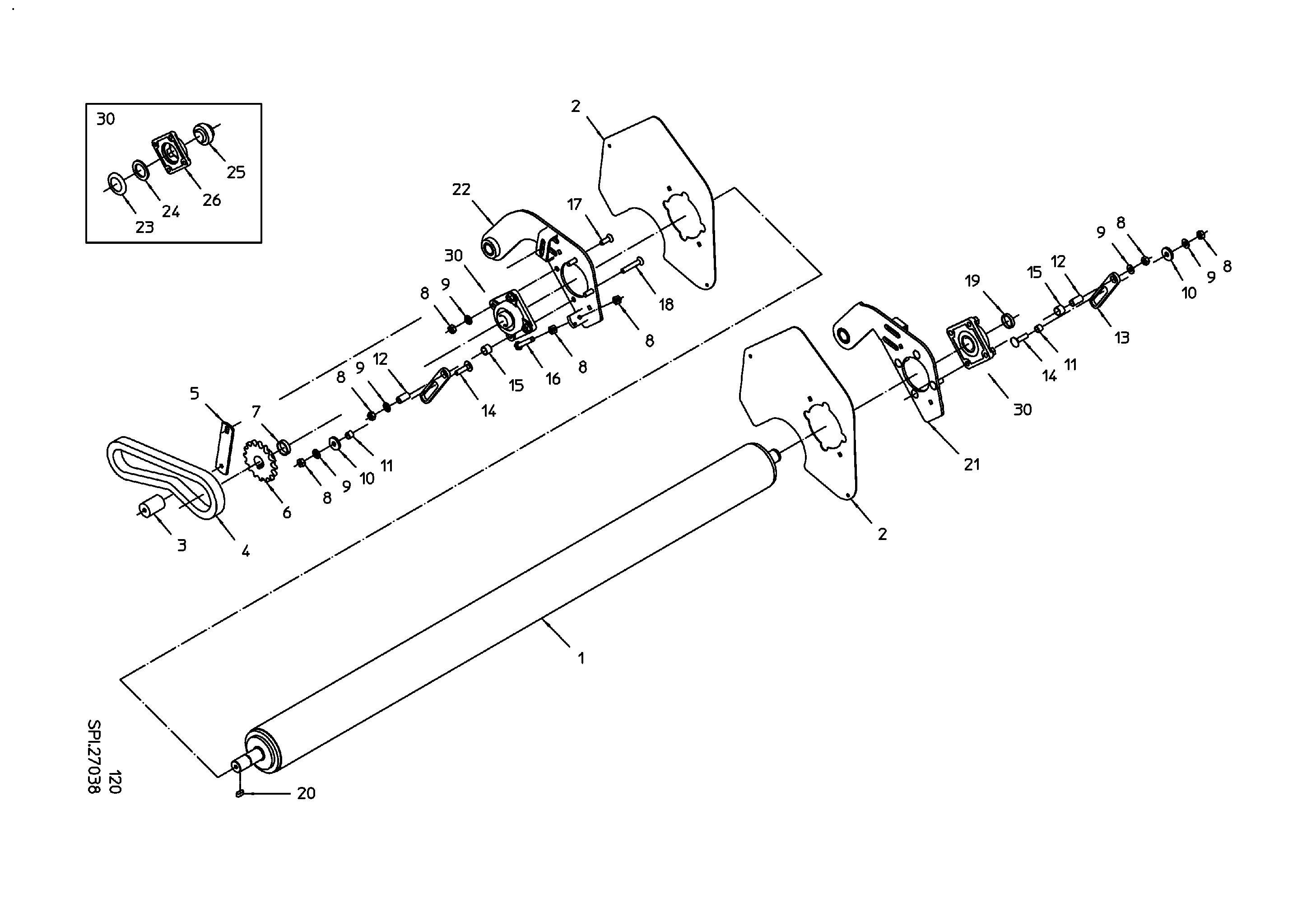

Parts by subassemblies

HINGE ARM L/H

Quantity in assembly group: 1 Piece / Pos. 0

BUSHING

Quantity in assembly group: 1 Piece / Pos. 0

HINGE ARM R/H

Quantity in assembly group: 1 Piece / Pos. 0

DRUM

Quantity in assembly group: 1 Piece / Pos. 1

COVER PLATE

Quantity in assembly group: 2 Piece / Pos. 2

TENSION BLOCK 50LONG

Quantity in assembly group: 1 Piece / Pos. 3

CHAIN 3/4"X1/2"-ASA60-42R

Quantity in assembly group: 1 Piece / Pos. 4

TENSION ROLLER BRACKET

Quantity in assembly group: 1 Piece / Pos. 5

SPROCKET ASA60-1 T16

Quantity in assembly group: 1 Piece / Pos. 6

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 7

HEXAGON NUT M10 DIN934-8-GAL

Quantity in assembly group: 13 Piece / Pos. 8

CONTACT WASHER FORM M 10-GAL

Quantity in assembly group: 10 Piece / Pos. 9

END COLLAR 10,5X32X5

Quantity in assembly group: 2 Piece / Pos. 10

SPACING PIECE

Quantity in assembly group: 2 Piece / Pos. 11

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 12

BRACKET

Quantity in assembly group: 2 Piece / Pos. 13

MH-SCREW M10X40-603-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 14

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 15

HHC-SCREW M10X60 DIN933-8.8-GA

Quantity in assembly group: 2 Piece / Pos. 16

CSK. ALLEN SCREW M10X30-DIN791

Quantity in assembly group: 6 Piece / Pos. 17

CSK. ALLEN SCREW M10X60-DIN791

Quantity in assembly group: 2 Piece / Pos. 18

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 19

FEATHER KEY A 8X8X20 DIN6885

Quantity in assembly group: 1 Piece / Pos. 20

HINGE ARM L/H

Quantity in assembly group: 1 Piece / Pos. 21

HINGE ARM R/H

Quantity in assembly group: 1 Piece / Pos. 22

SEALING CAP 74

Quantity in assembly group: 2 Piece / Pos. 23

SEALING RING 60-40-4

Quantity in assembly group: 2 Piece / Pos. 24

BEARING YAR 206-2RF/UC206

Quantity in assembly group: 2 Piece / Pos. 25

FLANGE BEARING HOUSING S30

Quantity in assembly group: 2 Piece / Pos. 26

FLANGE BEARING S30

Quantity in assembly group: 2 Piece / Pos. 30
