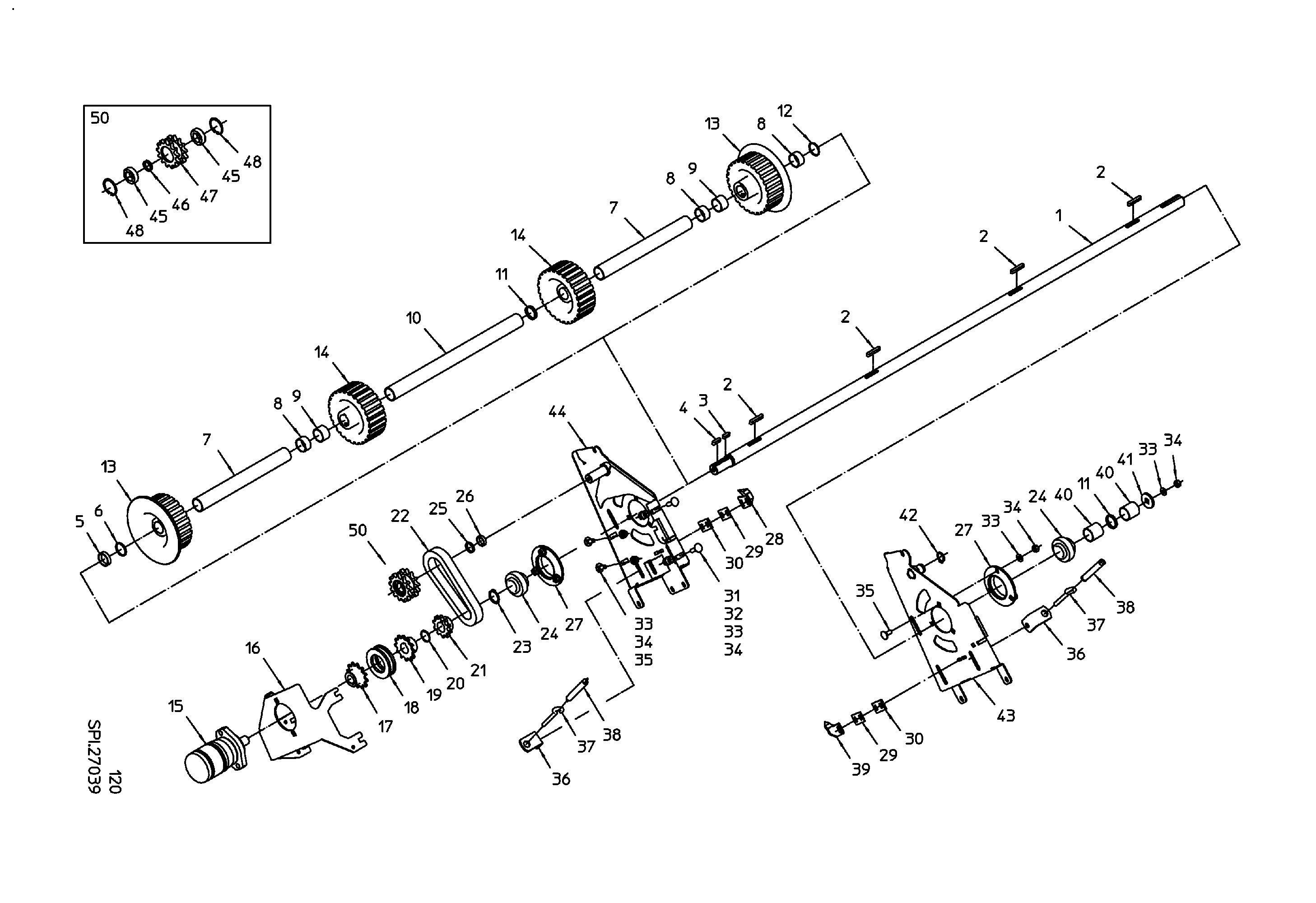

Parts by subassemblies

DRIVE SHAFT

Quantity in assembly group: 1 Piece / Pos. 1

FEATHER KEY A 8X8X50 DIN6885

Quantity in assembly group: 4 Piece / Pos. 2

FEATHER KEY A 8X8X25 DIN6885

Quantity in assembly group: 1 Piece / Pos. 3

FEATHER KEY A 8X8X30 DIN6885

Quantity in assembly group: 1 Piece / Pos. 4

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 5

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 6

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 7

SPACER RING

Quantity in assembly group: 3 Piece / Pos. 8

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 9

TUBE

Quantity in assembly group: 1 Piece / Pos. 10

SPACER RING

Quantity in assembly group: 2 Piece / Pos. 11

SPACER

Quantity in assembly group: 1 Piece / Pos. 12

DRIVE ROLLER -VULC-

Quantity in assembly group: 2 Piece / Pos. 13

DRIVE ROLLER -VULC-

Quantity in assembly group: 2 Piece / Pos. 14

HYD MOTOR MF130

Quantity in assembly group: 1 Piece / Pos. 15

BRACKET

Quantity in assembly group: 1 Piece / Pos. 16

SPROCKET 3/4" -T12-B25

Quantity in assembly group: 1 Piece / Pos. 17

CHAIN 3/4"X1/2"-ASA60-12R

Quantity in assembly group: 1 Piece / Pos. 18

SPROCKET 3/4" -T12-B30

Quantity in assembly group: 1 Piece / Pos. 19

COMPENSATING RING

Quantity in assembly group: 1 Piece / Pos. 20

SPROCKET 3/4"-T10

Quantity in assembly group: 1 Piece / Pos. 21

CHAIN 3/4"X1/2"-ASA60-28R

Quantity in assembly group: 1 Piece / Pos. 22

RETAINING RING AS 35X2,5 DIN47

Quantity in assembly group: 1 Piece / Pos. 23

BEARING YAR 207-2RF/UC207

Quantity in assembly group: 2 Piece / Pos. 24

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 25

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 26

FLANGE PLATE (PR) PF72/PF207

Quantity in assembly group: 2 Piece / Pos. 27

SCRAPER L/H

Quantity in assembly group: 1 Piece / Pos. 28

SPACER PLATE

Quantity in assembly group: 2 Piece / Pos. 29

SPACING PIECE

Quantity in assembly group: 2 Piece / Pos. 30

MH-SCREW M10X35-603-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 31

SPACER

Quantity in assembly group: 2 Piece / Pos. 32

CONTACT WASHER FORM M 10-GAL

Quantity in assembly group: 11 Piece / Pos. 33

HEXAGON NUT M10 DIN934-8-GAL

Quantity in assembly group: 11 Piece / Pos. 34

MH-SCREW M10X25-603-8.8-GAL

Quantity in assembly group: 3 Piece / Pos. 35

ANGLE

Quantity in assembly group: 2 Piece / Pos. 36

EYELET SCREW

Quantity in assembly group: 2 Piece / Pos. 37

TENSION SPRING

Quantity in assembly group: 2 Piece / Pos. 38

SCRAPER R/H

Quantity in assembly group: 1 Piece / Pos. 39

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 40

REINFORCING DISC

Quantity in assembly group: 1 Piece / Pos. 41

RETAINING RING A 25X2 DIN471

Quantity in assembly group: 1 Piece / Pos. 42

TENSION PROFILE L/H

Quantity in assembly group: 1 Piece / Pos. 43

TENSION PROFILE R/H

Quantity in assembly group: 1 Piece / Pos. 44

BALL BEARING 6005-ZZRST

Quantity in assembly group: 2 Piece / Pos. 45

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 46

SPROCKET 3/4"/7/16"T13/13

Quantity in assembly group: 1 Piece / Pos. 47

RETAINING RING J 47X1,75 DIN47

Quantity in assembly group: 2 Piece / Pos. 48

DOUBLE SPROCKET T13

Quantity in assembly group: 1 Piece / Pos. 50
