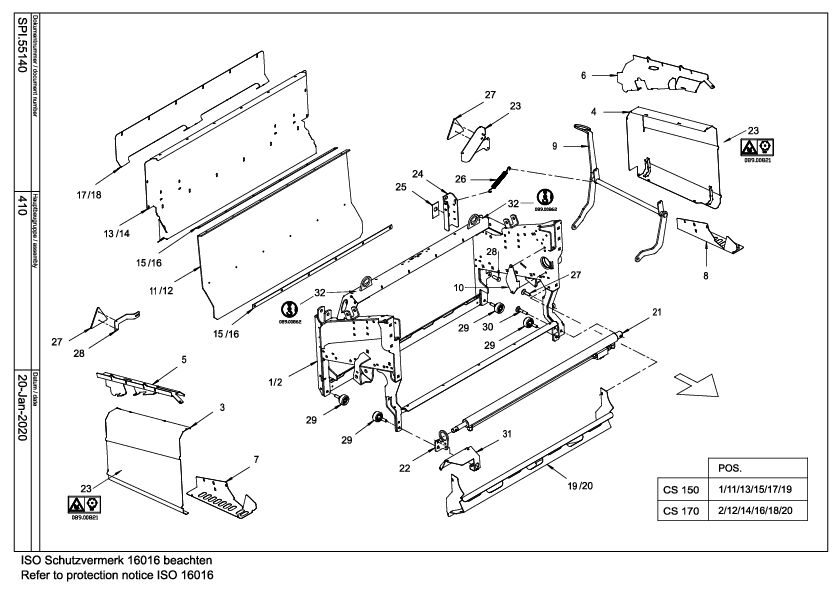

Parts by subassemblies

CHECK VALVE FOR D/A RAM

Quantity in assembly group: 1 Piece / Pos. 0

CYL SEAL SET

Quantity in assembly group: 1 Piece / Pos. 0

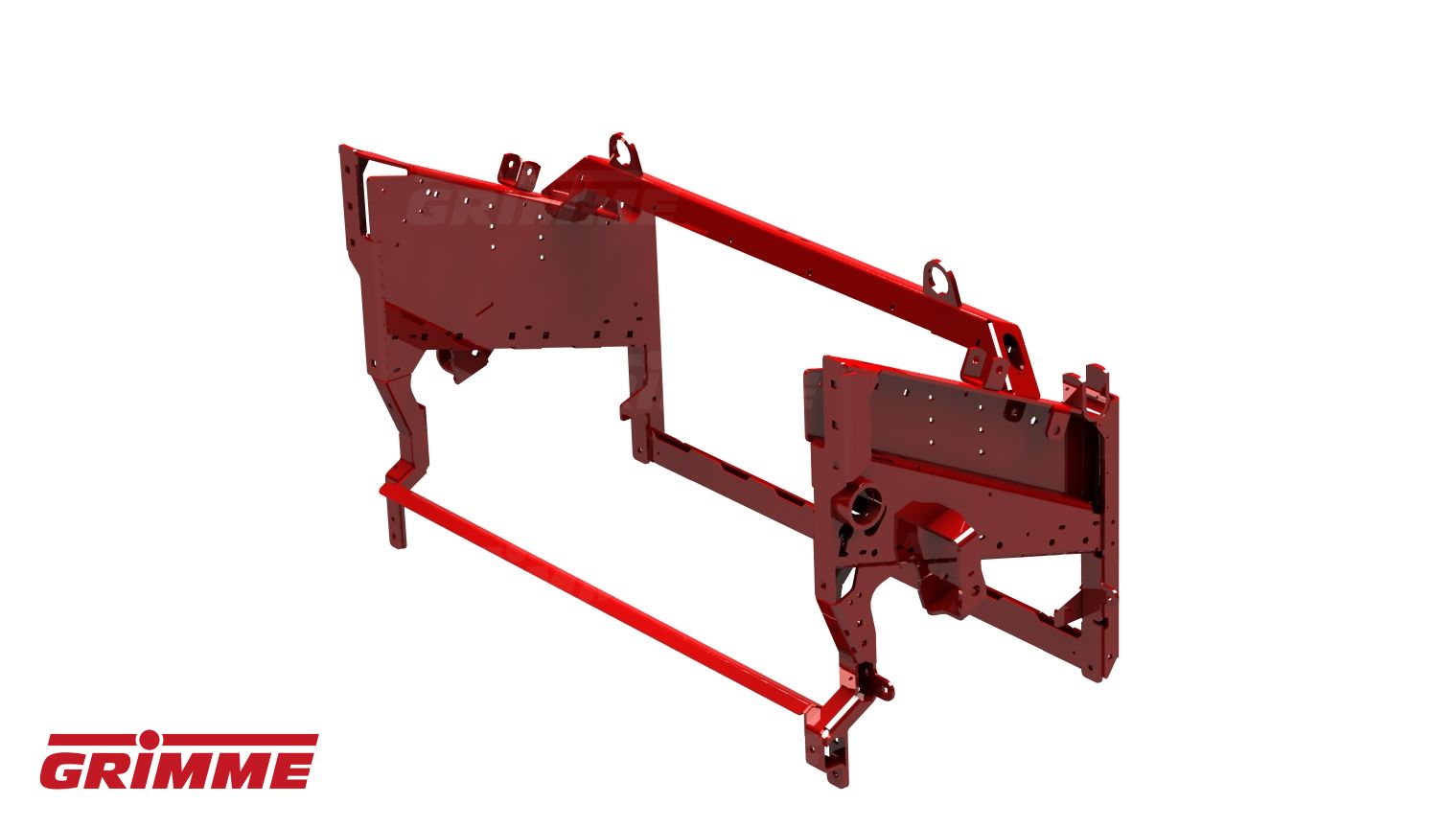

CROSS CONVEYOR MOUNTING 150

Quantity in assembly group: 1 Piece / Pos. 1

CROSS CONVEYOR MOUNTING 170

Quantity in assembly group: 1 Piece / Pos. 2

GUARD HOOD R/H

Quantity in assembly group: 1 Piece / Pos. 3

GUARD HOOD L/H

Quantity in assembly group: 1 Piece / Pos. 4

PROTECTION HOOD R/H

Quantity in assembly group: 1 Piece / Pos. 5

PROTECTION HOOD L/H

Quantity in assembly group: 1 Piece / Pos. 6

BOTTOM COVER R/H

Quantity in assembly group: 1 Piece / Pos. 7

BOTTOM COVER L/H

Quantity in assembly group: 1 Piece / Pos. 8

BRACKET

Quantity in assembly group: 1 Piece / Pos. 9

COVER

Quantity in assembly group: 1 Piece / Pos. 10

RUBBER PLATE

Quantity in assembly group: 1 Piece / Pos. 11

RUBBER CURTAIN

Quantity in assembly group: 1 Piece / Pos. 12

END PLATE

Quantity in assembly group: 1 Piece / Pos. 13

PLATE

Quantity in assembly group: 1 Piece / Pos. 14

CLAMP STRIP

Quantity in assembly group: 2 Piece / Pos. 15

FLAT STAY

Quantity in assembly group: 2 Piece / Pos. 16

END PLATE CS150

Quantity in assembly group: 1 Piece / Pos. 17

END/FINAL PLATE 170

Quantity in assembly group: 1 Piece / Pos. 18

PLATE FRONT

Quantity in assembly group: 1 Piece / Pos. 19

FRONT PANEL 170

Quantity in assembly group: 1 Piece / Pos. 20

DOUBLE ACTING RAM

Quantity in assembly group: 1 Piece / Pos. 21

CYLINDER SUPPORT

Quantity in assembly group: 1 Piece / Pos. 22

089.00821-WARNING SYM

Quantity in assembly group: 2 Piece / Pos. 23

BRACKET

Quantity in assembly group: 1 Piece / Pos. 24

STICKER F CROSS CO WEB HEAD

Quantity in assembly group: 1 Piece / Pos. 25

TENSION SPRING

Quantity in assembly group: 1 Piece / Pos. 26

COACH BOLT/SS M16X50-603-8.8-G

Quantity in assembly group: 1 Piece / Pos. 27

SET SCREW M16X45-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 28

SUPPORT ROLLER

Quantity in assembly group: 4 Piece / Pos. 29

COACH BOLT M16X90-DIN603-8.8-G

Quantity in assembly group: 1 Piece / Pos. 30

GUARD FOR CYLINDER

Quantity in assembly group: 1 Piece / Pos. 31

STICKER-LIFTING POINT HOOK

Quantity in assembly group: 2 Piece / Pos. 32
