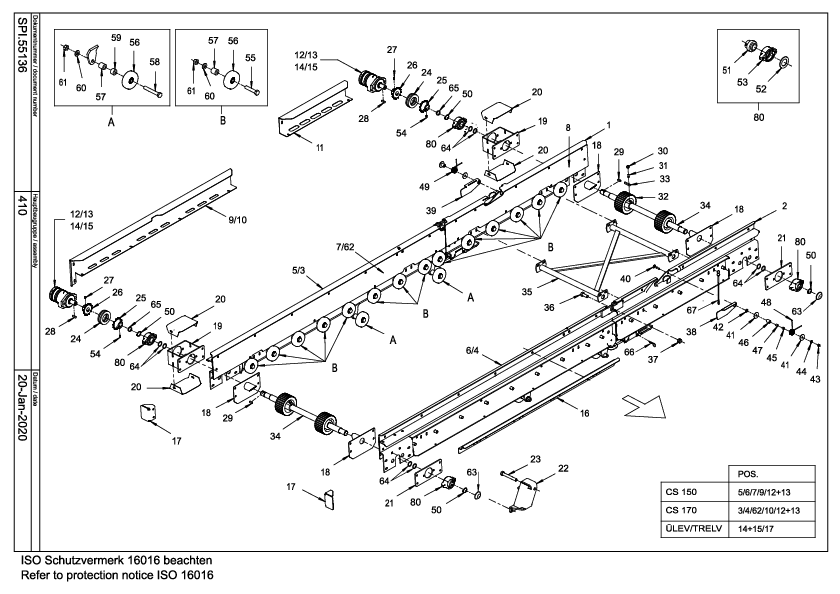

Parts by subassemblies

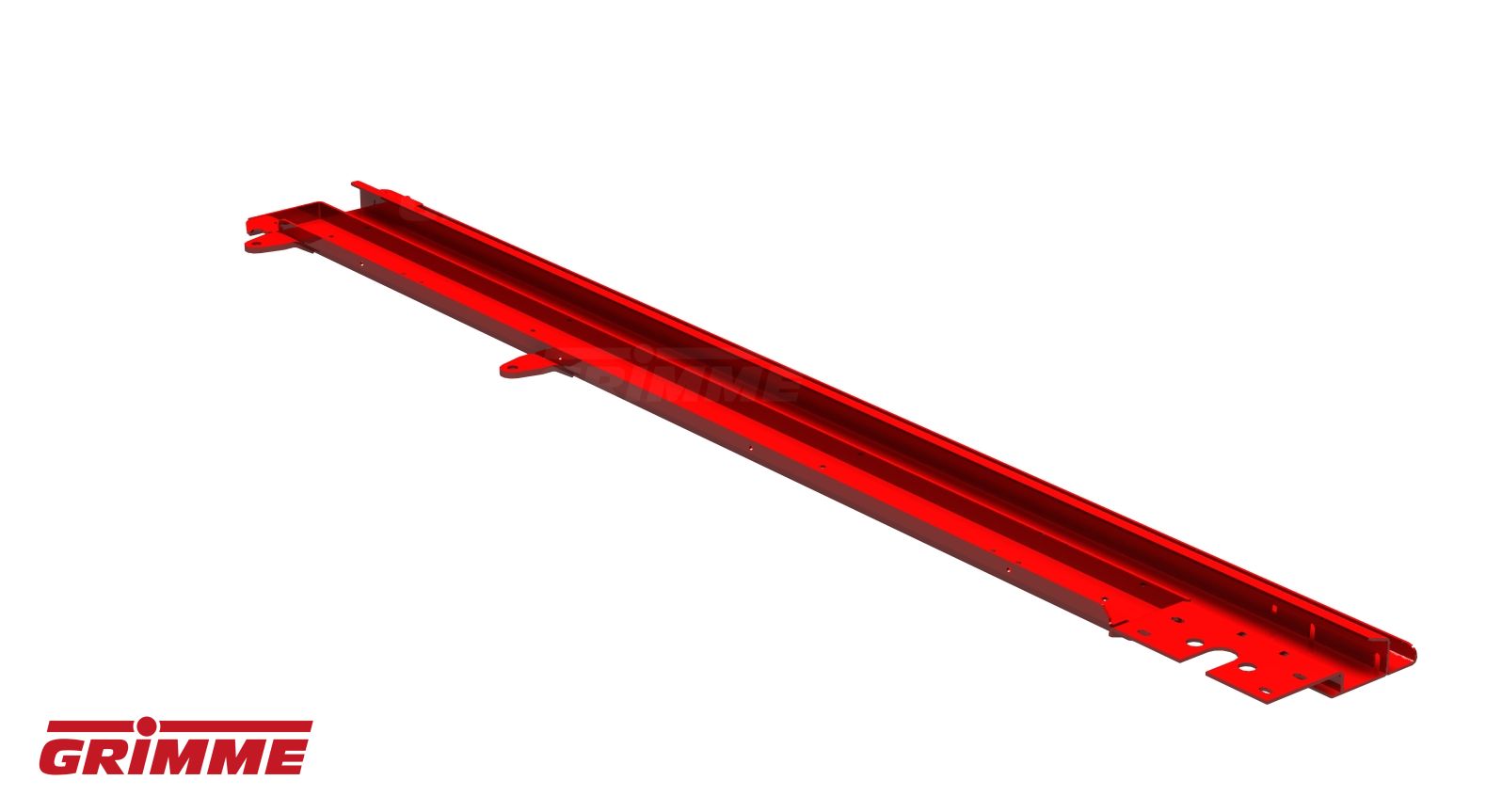

SIDE CHANNEL REAR

Quantity in assembly group: 1 Piece / Pos. 1

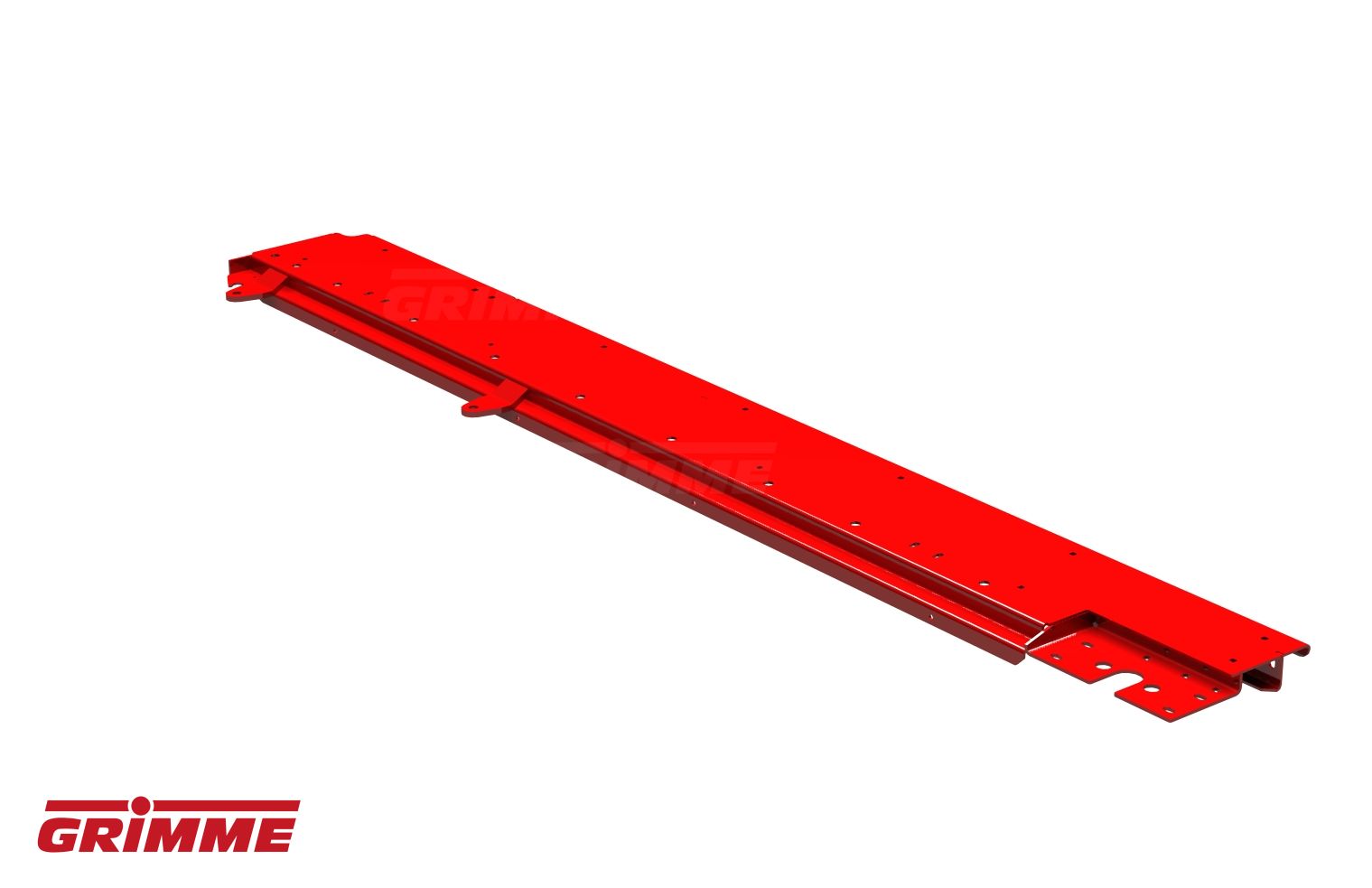

SIDE CHANNEL FRONT

Quantity in assembly group: 1 Piece / Pos. 2

SIDE CHANNEL REAR

Quantity in assembly group: 1 Piece / Pos. 3

SIDE CHANNEL FRONT

Quantity in assembly group: 1 Piece / Pos. 4

SIDE CHANNEL REAR

Quantity in assembly group: 1 Piece / Pos. 5

SIDE CHANNEL FRONT

Quantity in assembly group: 1 Piece / Pos. 6

WEAR+TEAR PANEL LONG 150

Quantity in assembly group: 2 Piece / Pos. 7

WEAR+TEAR PANEL SHORT

Quantity in assembly group: 2 Piece / Pos. 8

SPLINED SHEET LONG

Quantity in assembly group: 1 Piece / Pos. 9

PROFILE PLATE

Quantity in assembly group: 1 Piece / Pos. 10

SPLINED SHEET SHORT

Quantity in assembly group: 1 Piece / Pos. 11

HYDRAULIC MOTOR MF80

Quantity in assembly group: 2 Piece / Pos. 12

SEAL SET

Quantity in assembly group: 1 Piece / Pos. 13

HYD MOTOR MF165 CYL-SHAFT

Quantity in assembly group: 2 Piece / Pos. 14

SEAL SET STAND F MF HYD-MOTOR

Quantity in assembly group: 1 Piece / Pos. 15

COVER

Quantity in assembly group: 1 Piece / Pos. 16

STOPPER

Quantity in assembly group: 2 Piece / Pos. 17

COVER GUARD

Quantity in assembly group: 4 Piece / Pos. 18

BEARING BRACKET

Quantity in assembly group: 2 Piece / Pos. 19

COVER PLATE

Quantity in assembly group: 4 Piece / Pos. 20

FLANGE PLATE

Quantity in assembly group: 2 Piece / Pos. 21

PLATE

Quantity in assembly group: 1 Piece / Pos. 22

HEX BOLT M16X120-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 23

CHAIN 3/4"X1/2"-ASA60-12R

Quantity in assembly group: 2 Piece / Pos. 24

SPROCKET 3/4" -T12-B30

Quantity in assembly group: 2 Piece / Pos. 25

SPROCKET 3/4" -T12-B25

Quantity in assembly group: 2 Piece / Pos. 26

ALLEN CUP SCREW M8X10-916 flZn

Quantity in assembly group: 2 Piece / Pos. 27

FEATHER KEY A 8X7X32 DIN 6885

Quantity in assembly group: 2 Piece / Pos. 28

FEATHER KEY A 8X8X25 DIN6885

Quantity in assembly group: 2 Piece / Pos. 29

DOME NUT DIN1587 M8-GAL

Quantity in assembly group: 4 Piece / Pos. 30

ALLEN CONE SCREW M8X20-914flZn

Quantity in assembly group: 4 Piece / Pos. 31

DRIVE ROLLER -VULC-

Quantity in assembly group: 4 Piece / Pos. 32

FEATHER KEY

Quantity in assembly group: 4 Piece / Pos. 33

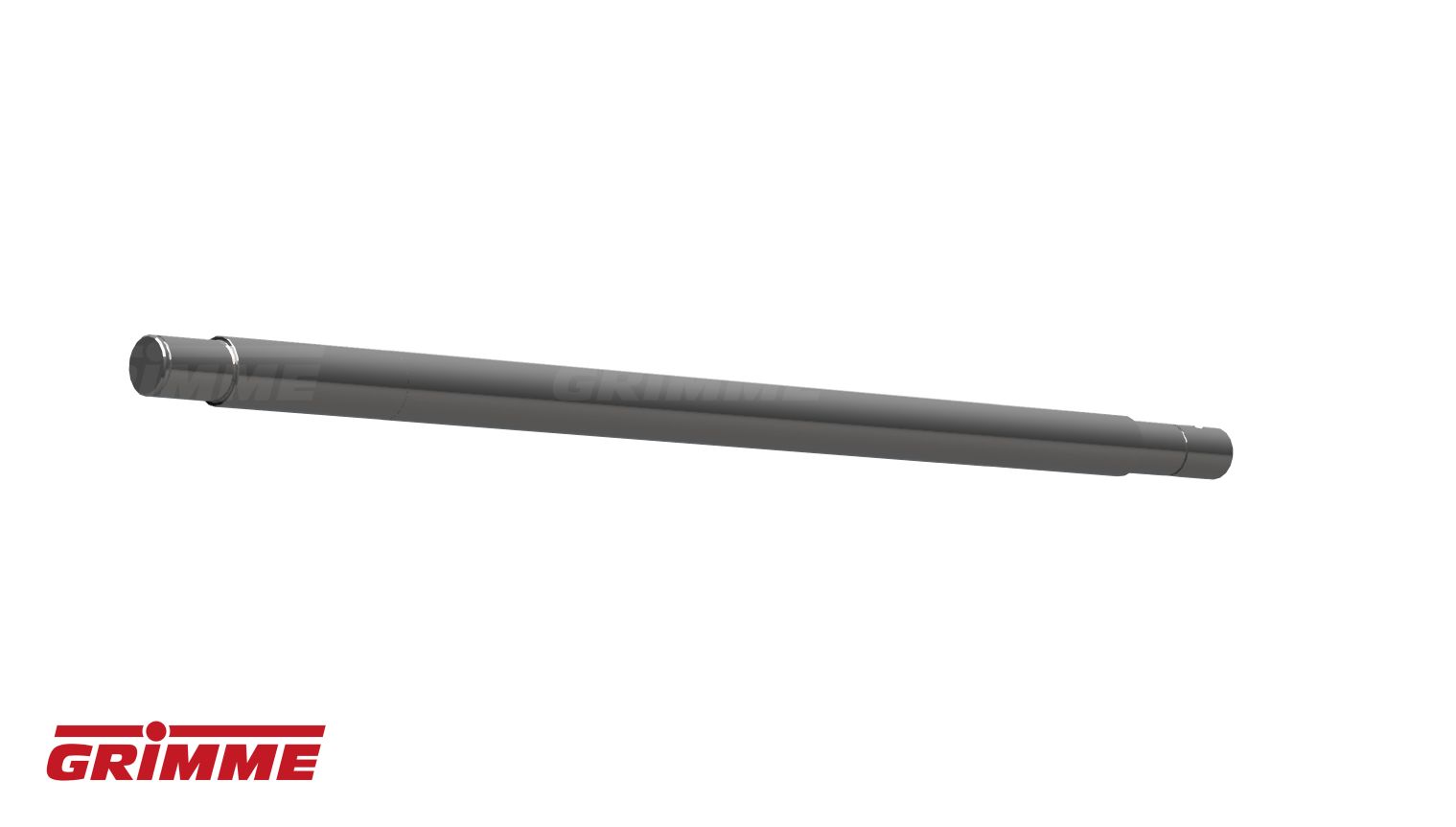

DRIVE SHAFT

Quantity in assembly group: 2 Piece / Pos. 34

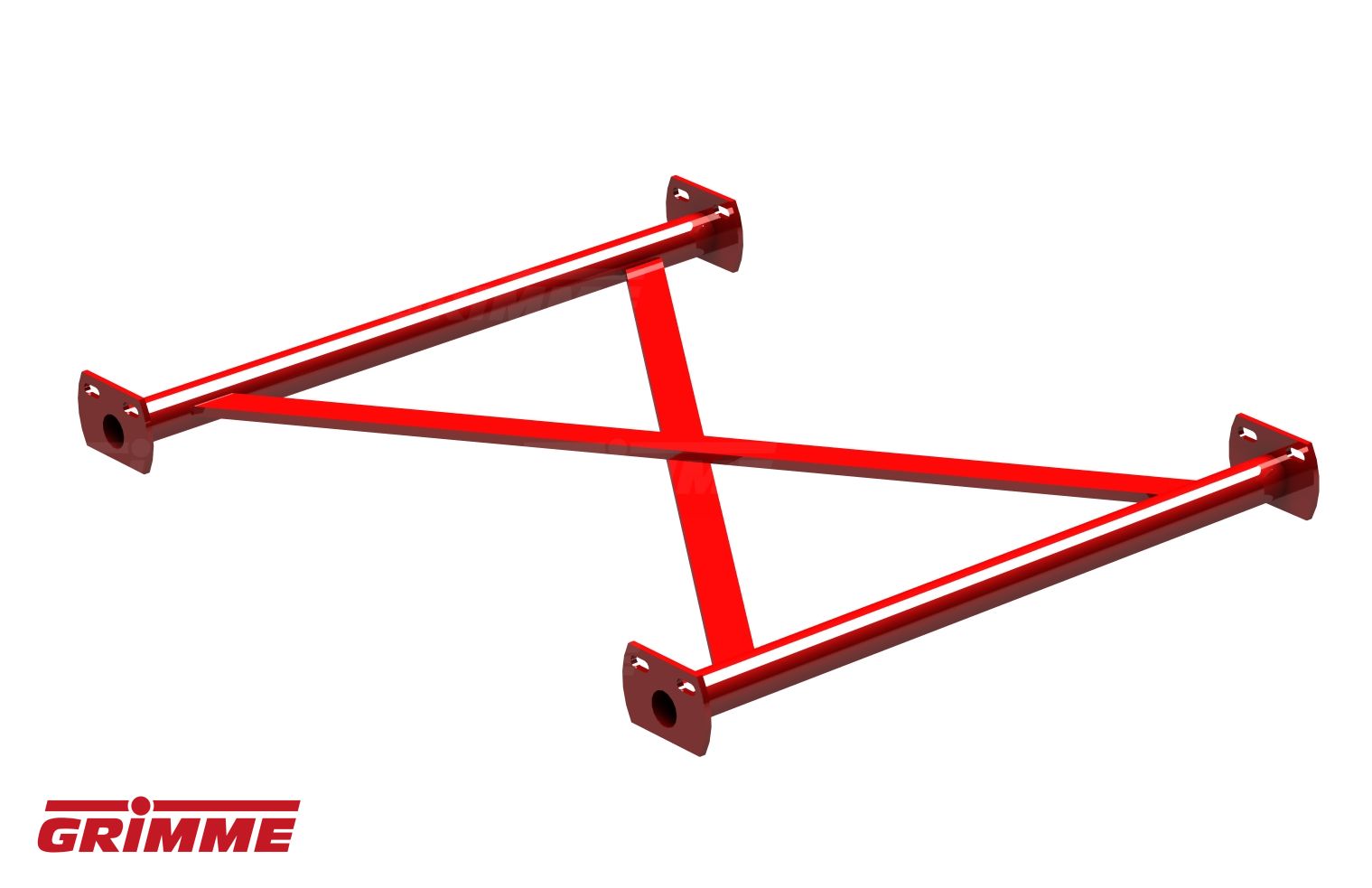

CROSS BRACE

Quantity in assembly group: 1 Piece / Pos. 35

SET SCREW M16X40-DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 36

NYLOC NUT DIN985-M16-8-GAL

Quantity in assembly group: 2 Piece / Pos. 37

COVER FRONT

Quantity in assembly group: 1 Piece / Pos. 38

COVER REAR

Quantity in assembly group: 1 Piece / Pos. 39

COACH BOLT M8X45-DIN603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 40

PLAIN WASHER 9X40X2,5

Quantity in assembly group: 4 Piece / Pos. 41

U-DISC 9X9X20X4

Quantity in assembly group: 2 Piece / Pos. 42

HEXAGON NUT M8 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 43

CONTACT WASHER FORM M 8-GAL

Quantity in assembly group: 2 Piece / Pos. 44

SPACER

Quantity in assembly group: 2 Piece / Pos. 45

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 46

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 47

LEG SPRING-T-19363-L

Quantity in assembly group: 1 Piece / Pos. 48

LEG SPRING-T-19363-R

Quantity in assembly group: 1 Piece / Pos. 49

RETAINING RING A 30X1,5 DIN471

Quantity in assembly group: 4 Piece / Pos. 50

BEARING YAR 206-2RF/UC206

Quantity in assembly group: 1 Piece / Pos. 51

SEALING RING 65-40-4

Quantity in assembly group: 1 Piece / Pos. 52

BEARING HOUSING

Quantity in assembly group: 1 Piece / Pos. 53

ALLEN DOG SCREW M8X16-915 flZn

Quantity in assembly group: 2 Piece / Pos. 54

HEX BOLT M16X80-DIN931-8.8-G

Quantity in assembly group: 28 Piece / Pos. 55

ROLLER D100

Quantity in assembly group: 32 Piece / Pos. 56

SPACER 16,5X30X30

Quantity in assembly group: 32 Piece / Pos. 57

HEX BOLT M16X110-DIN931-8.8-G

Quantity in assembly group: 4 Piece / Pos. 58

SPACER 20MM

Quantity in assembly group: 4 Piece / Pos. 59

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 4 Piece / Pos. 60

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 5 Piece / Pos. 61

WEAR+TEAR PANEL LONG 170

Quantity in assembly group: 2 Piece / Pos. 62

SEALING CAP 64,5-3

Quantity in assembly group: 2 Piece / Pos. 63

SHIM WASHER PS 30X42X1 DIN988

Quantity in assembly group: 8 Piece / Pos. 64

SPACER RING

Quantity in assembly group: 2 Piece / Pos. 65

SPRING CLIP 7 DIN11024-GAL

Quantity in assembly group: 2 Piece / Pos. 66

SAFETY CHAIN -PLASTIC-

Quantity in assembly group: 2 Piece / Pos. 67

FLANGE BEARING

Quantity in assembly group: 4 Piece / Pos. 80
