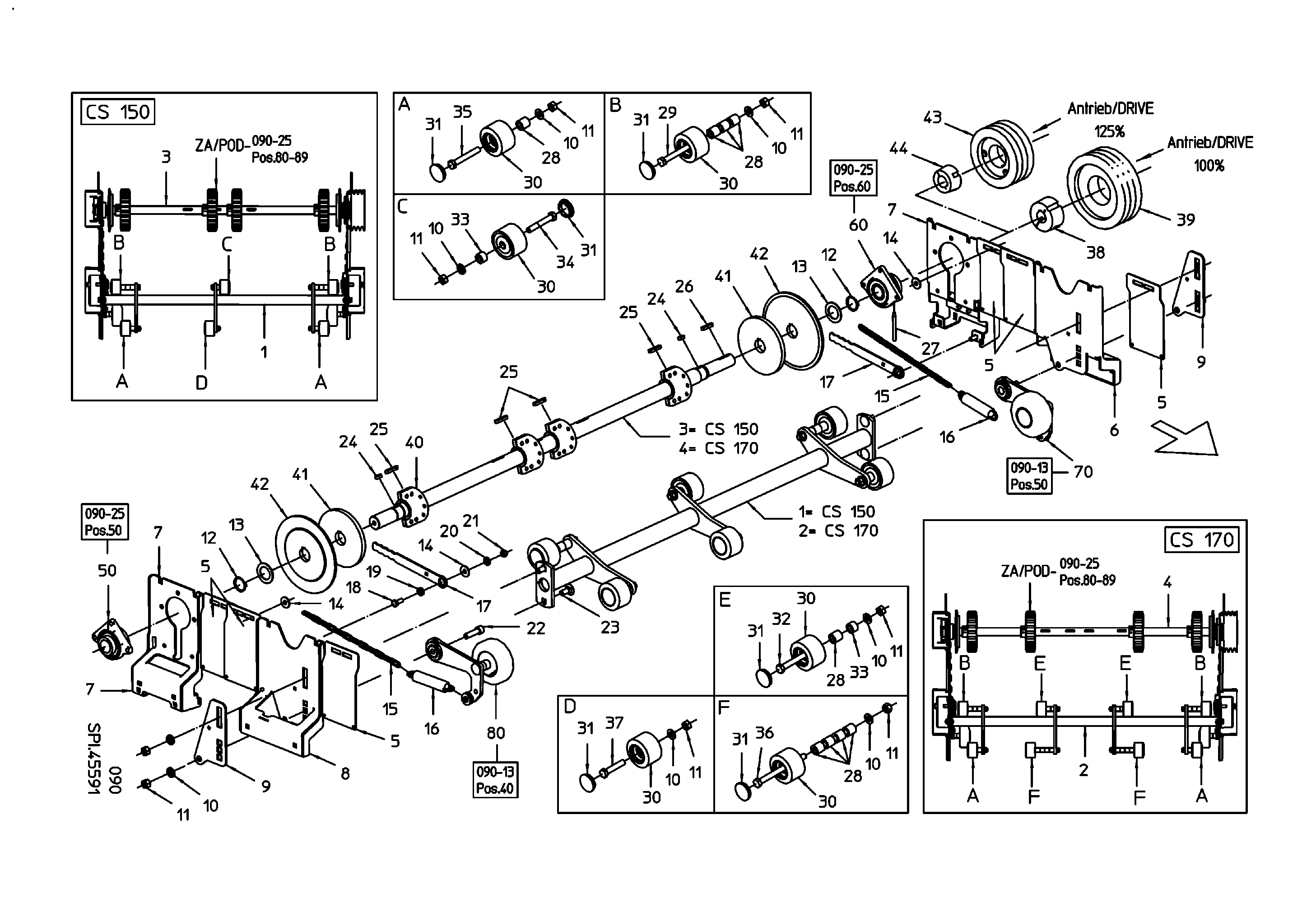

Parts by subassemblies

ROLLER HOLDER

Quantity in assembly group: 1 Piece / Pos. 1

ROLLER HOLDER MWEB 170

Quantity in assembly group: 1 Piece / Pos. 2

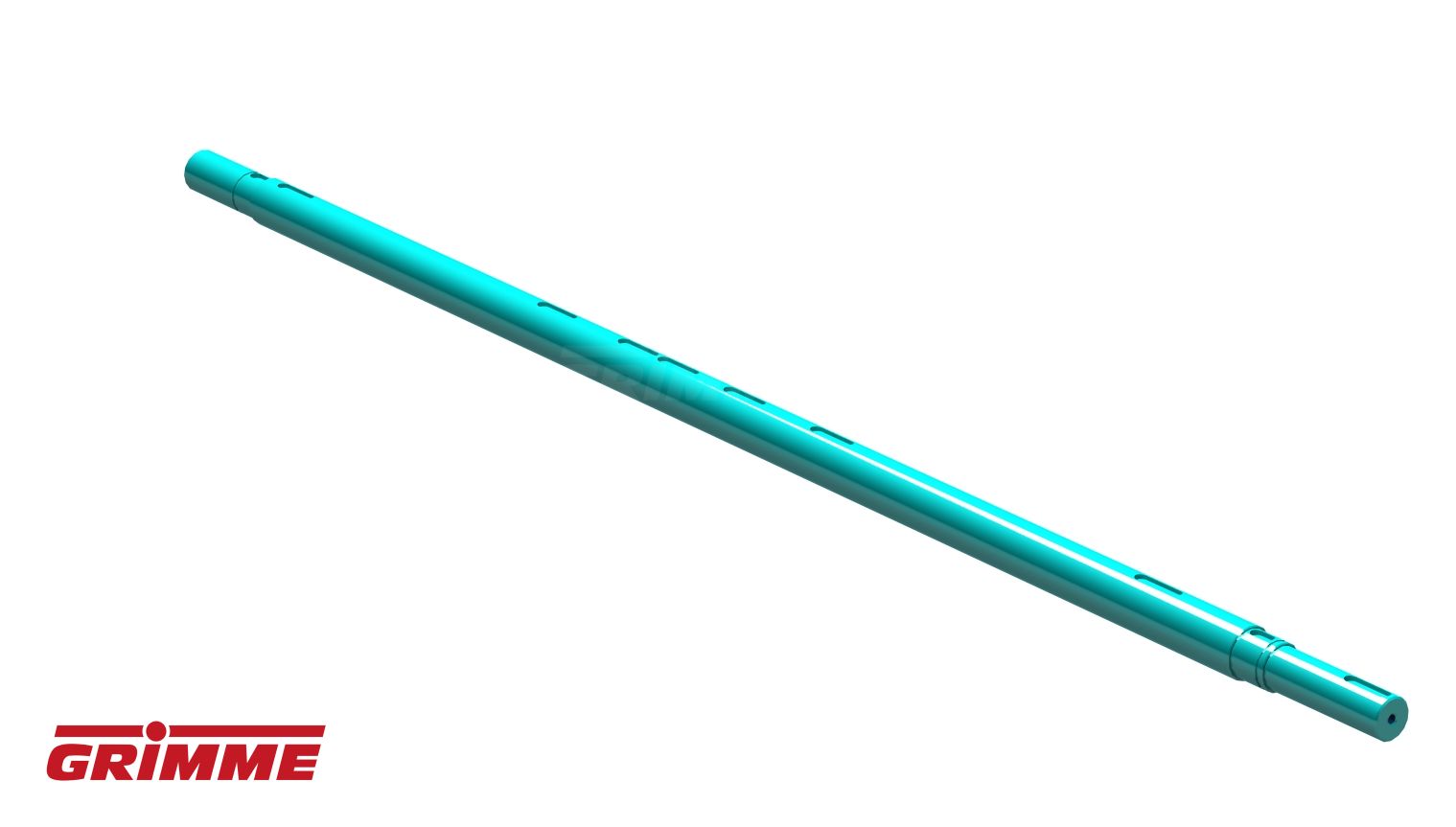

1ST WEB DRIVE SHAFT CW150

Quantity in assembly group: 1 Piece / Pos. 3

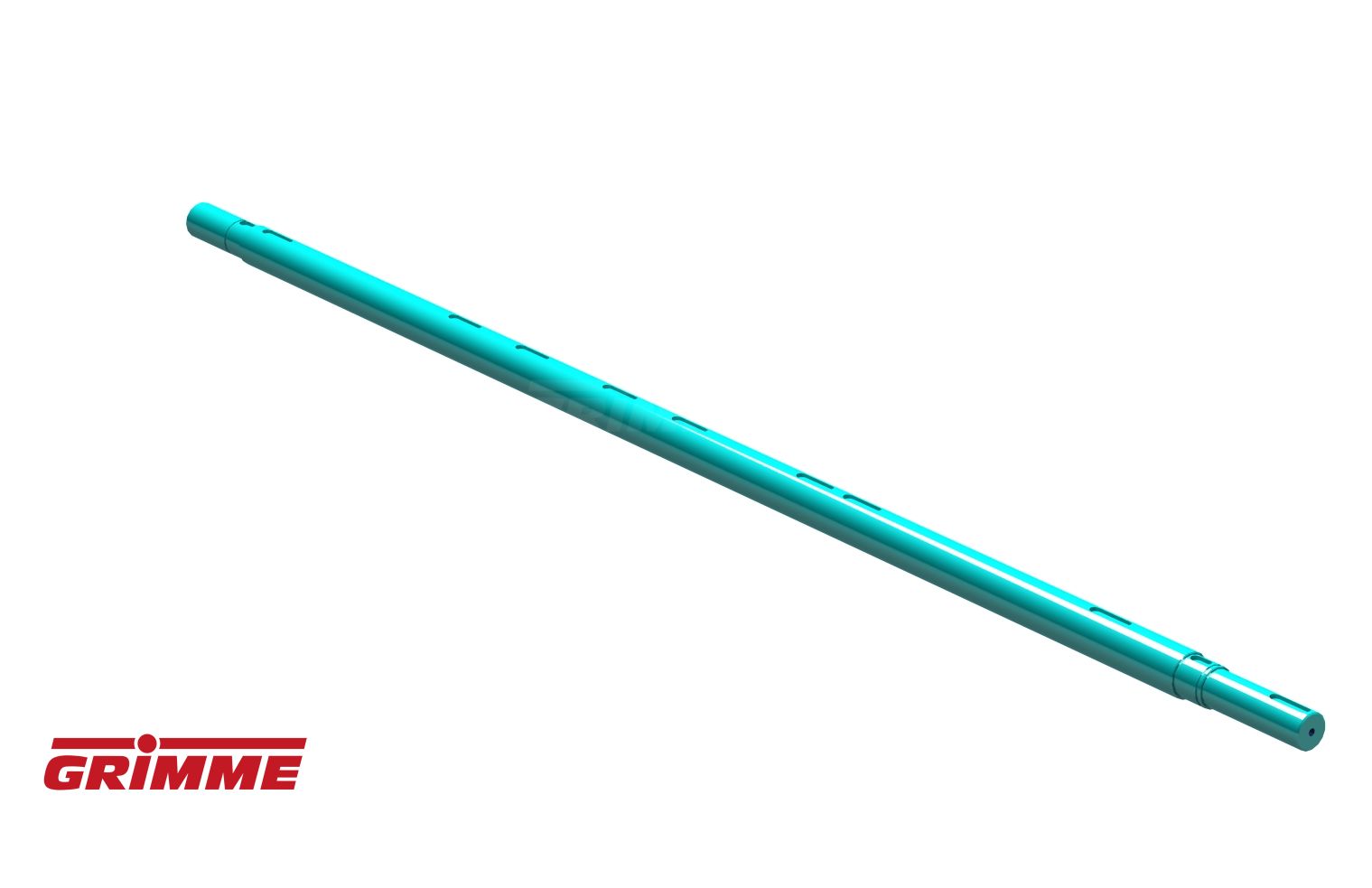

1ST WEB DRIVE SHAFT CW170

Quantity in assembly group: 1 Piece / Pos. 4

COVER

Quantity in assembly group: 6 Piece / Pos. 5

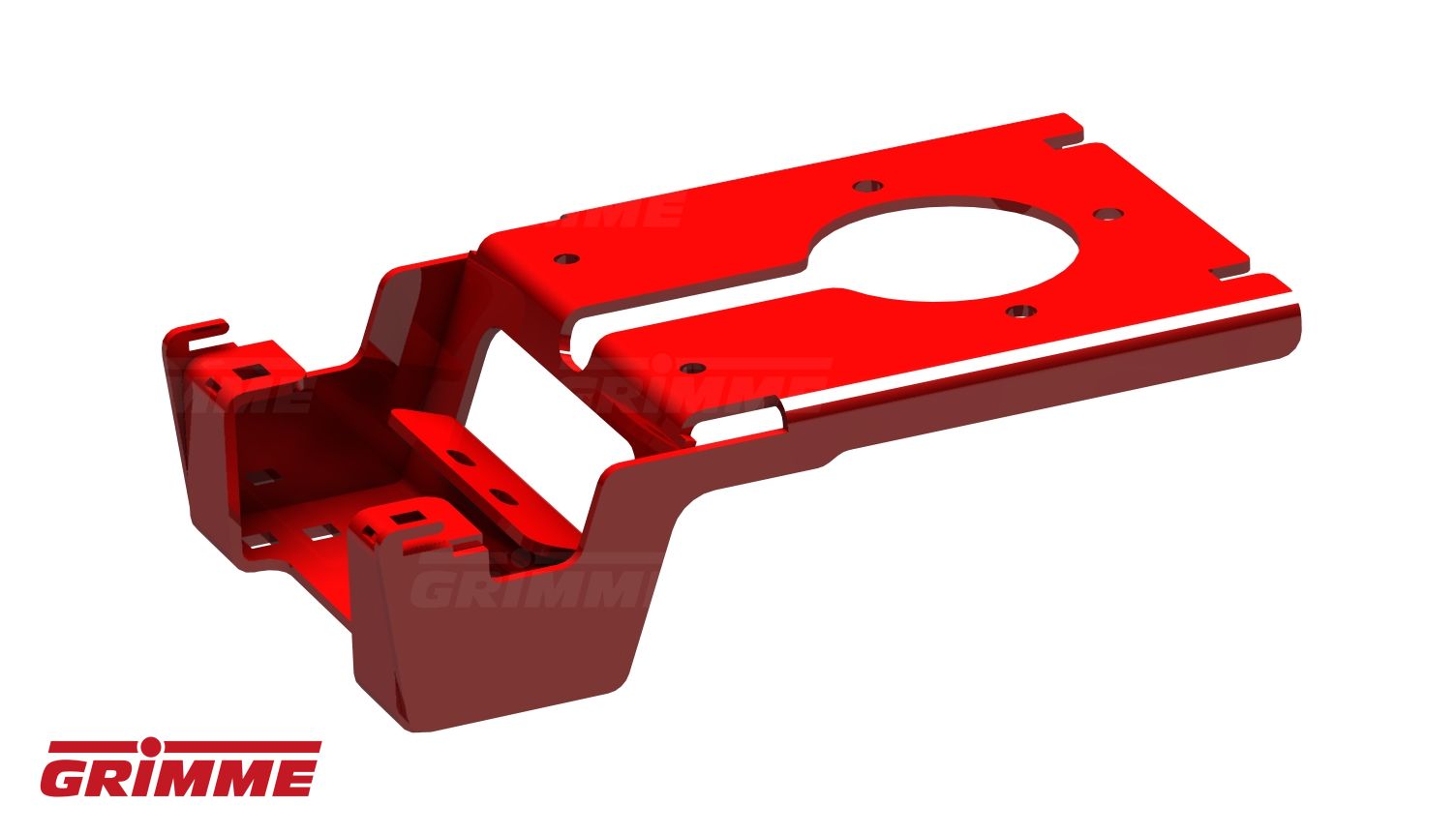

BRACKET L/H

Quantity in assembly group: 1 Piece / Pos. 6

BRACKET

Quantity in assembly group: 2 Piece / Pos. 7

BRACKET R/H

Quantity in assembly group: 1 Piece / Pos. 8

SUPPORTING

Quantity in assembly group: 2 Piece / Pos. 9

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 13 Piece / Pos. 10

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 11 Piece / Pos. 11

RETAINING RING AS 45X2,5 DIN47

Quantity in assembly group: 2 Piece / Pos. 12

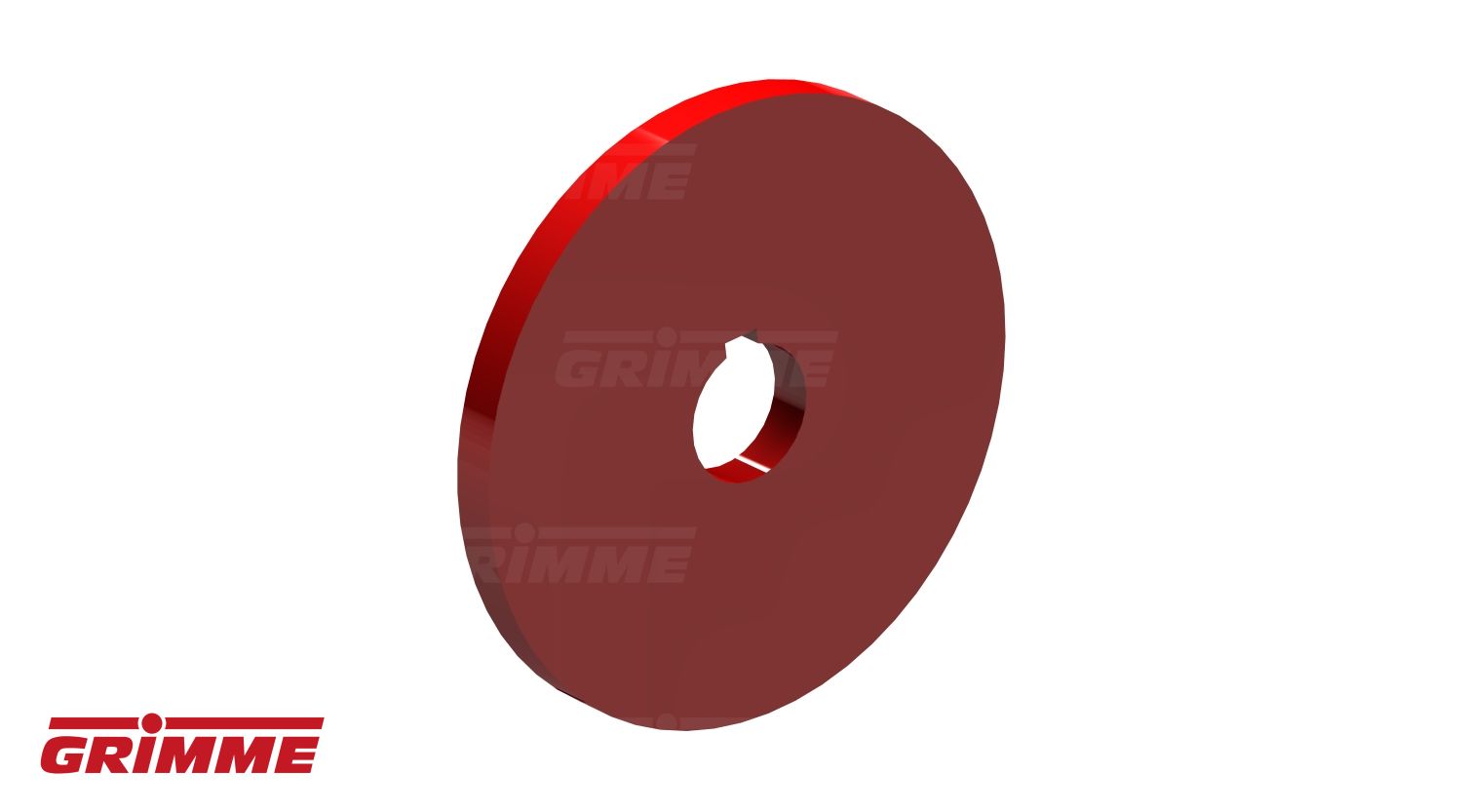

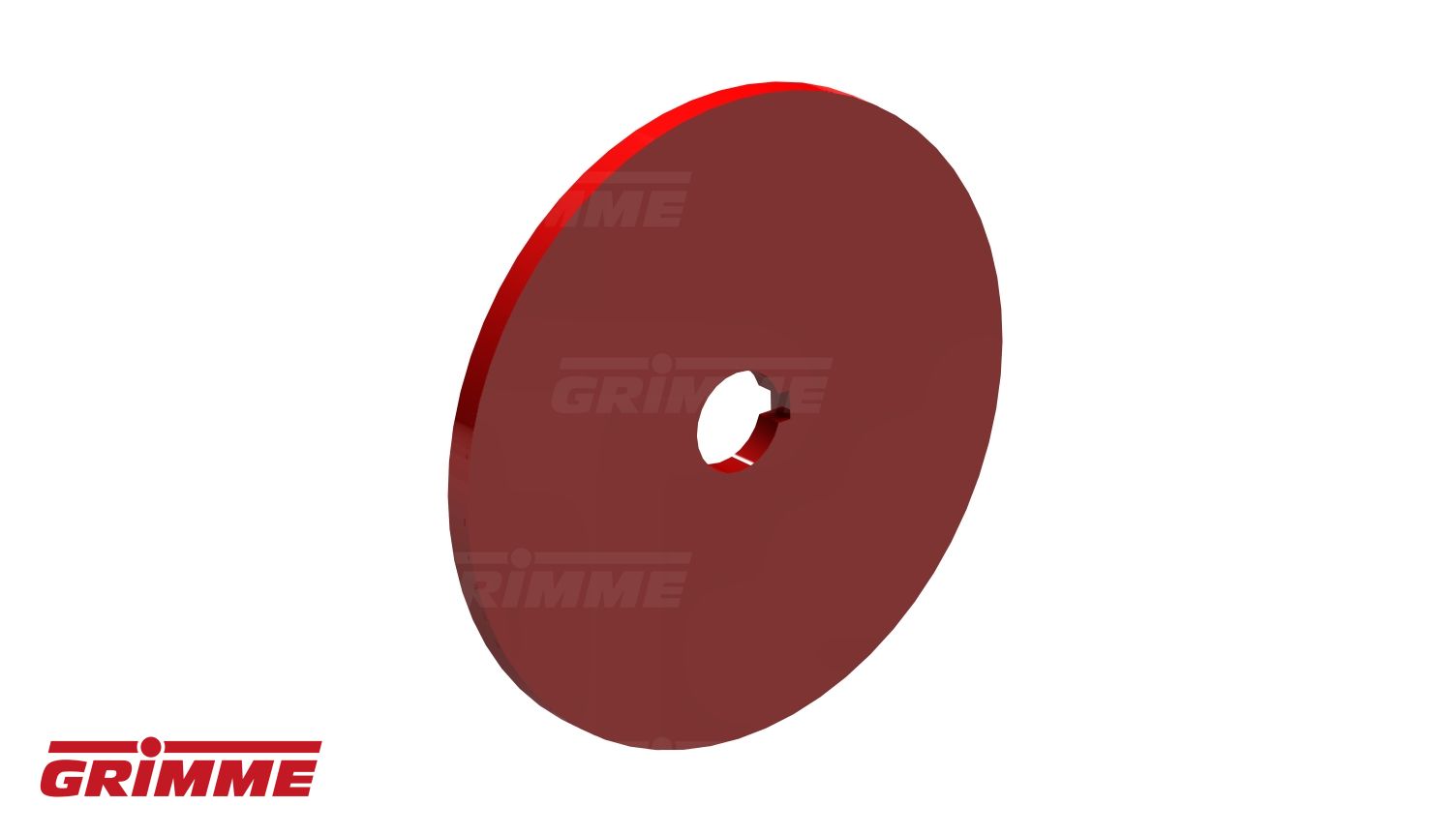

END DISC

Quantity in assembly group: 2 Piece / Pos. 13

DISC A 13 DIN9021-GAL

Quantity in assembly group: 4 Piece / Pos. 14

LC 12LINKS C5X36 DIN763-BRIGHT

Quantity in assembly group: 2 Piece / Pos. 15

TENSION SPRING

Quantity in assembly group: 2 Piece / Pos. 16

HANDLE

Quantity in assembly group: 2 Piece / Pos. 17

SET SCREW M12X30-DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 18

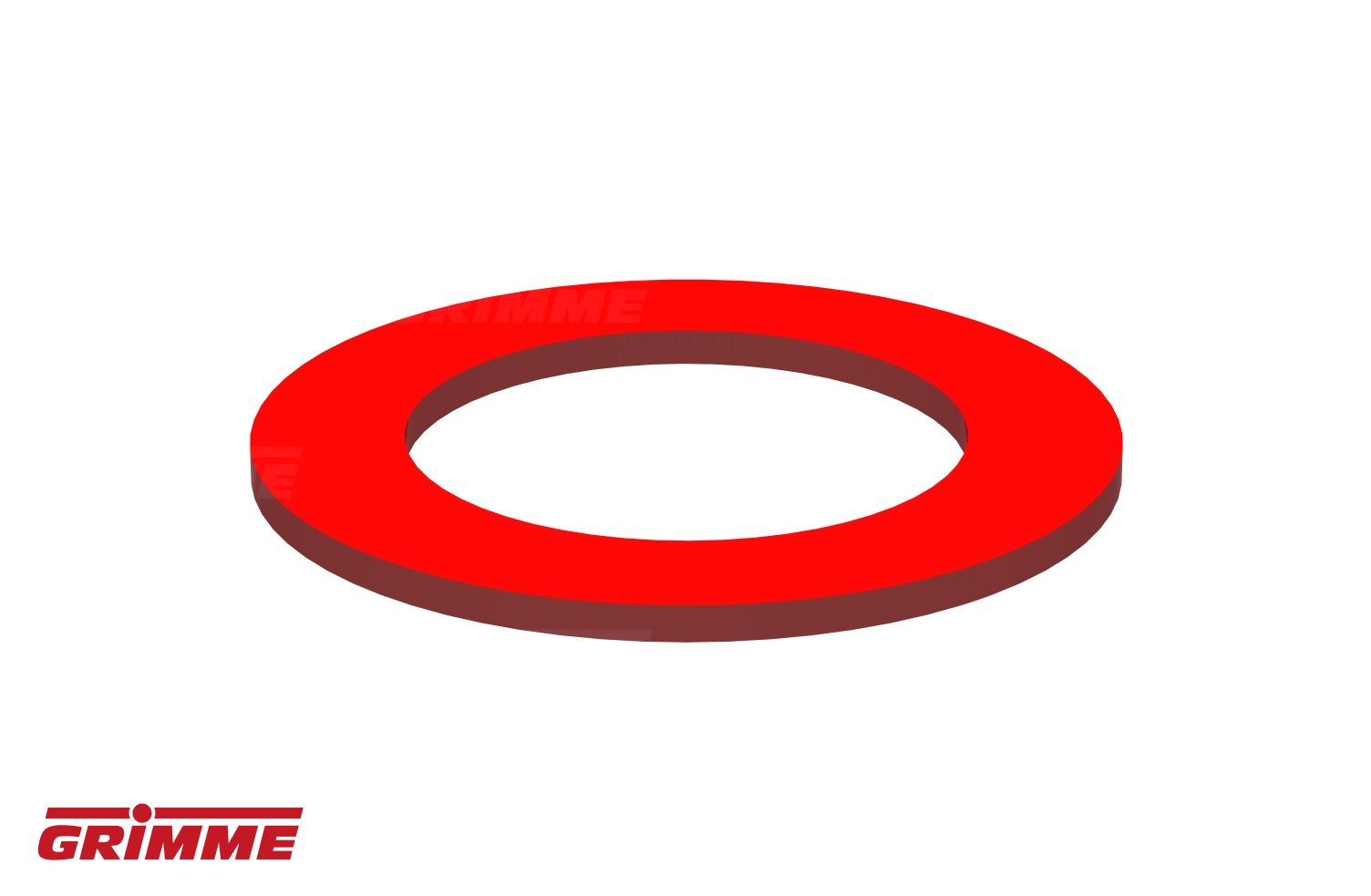

DISC

Quantity in assembly group: 2 Piece / Pos. 19

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 2 Piece / Pos. 20

HEXAGON NUT M12 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 21

SHC-SCREW DIN912M16X60-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 22

COACH BOLT M16X40-DIN603-8.8-G

Quantity in assembly group: 4 Piece / Pos. 23

FEATHER KEY A 12X8X25 DIN6885

Quantity in assembly group: 2 Piece / Pos. 24

FEATHER KEY A 12X8X55 DIN6885

Quantity in assembly group: 4 Piece / Pos. 25

FEATHER KEY A 12X8X50 DIN6885

Quantity in assembly group: 1 Piece / Pos. 26

EXTENSION

Quantity in assembly group: 1 Piece / Pos. 27

SPACER 16,5X30X30

Quantity in assembly group: 13 Piece / Pos. 28

HHC-SCREW M16X170 931-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 29

SUPPORT ROLLER D95

Quantity in assembly group: 7 Piece / Pos. 30

ROLLER CAP

Quantity in assembly group: 7 Piece / Pos. 31

HEX BOLT M16X130-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 32

SPACER 20MM

Quantity in assembly group: 6 Piece / Pos. 33

HEX BOLT M16X100 DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 34

HEX BOLT M16X110-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 35

HHC-SCREW M16X200 931-8.8-GAL

Quantity in assembly group: 1 Piece / Pos. 36

HEX BOLT M16X80-DIN931-8.8-G

Quantity in assembly group: 1 Piece / Pos. 37

TAPER-BUSH 3020-040

Quantity in assembly group: 1 Piece / Pos. 38

PULLEY 3V SPCX250

Quantity in assembly group: 1 Piece / Pos. 39

SPLIT ROLLER HUB D50

Quantity in assembly group: 4 Piece / Pos. 40

GUIDE FLANGE

Quantity in assembly group: 2 Piece / Pos. 41

GUIDE FLANGE

Quantity in assembly group: 2 Piece / Pos. 42

PULLEY 3V SPC200

Quantity in assembly group: 1 Piece / Pos. 43

TAPER-BUSH 2517-040

Quantity in assembly group: 1 Piece / Pos. 44

BEARING CPTE B45

Quantity in assembly group: 1 Piece / Pos. 50

BEARING CPTE D40

Quantity in assembly group: 1 Piece / Pos. 60

TENSION ARM L/H

Quantity in assembly group: 1 Piece / Pos. 70

TENSION ARM R/H

Quantity in assembly group: 1 Piece / Pos. 80
