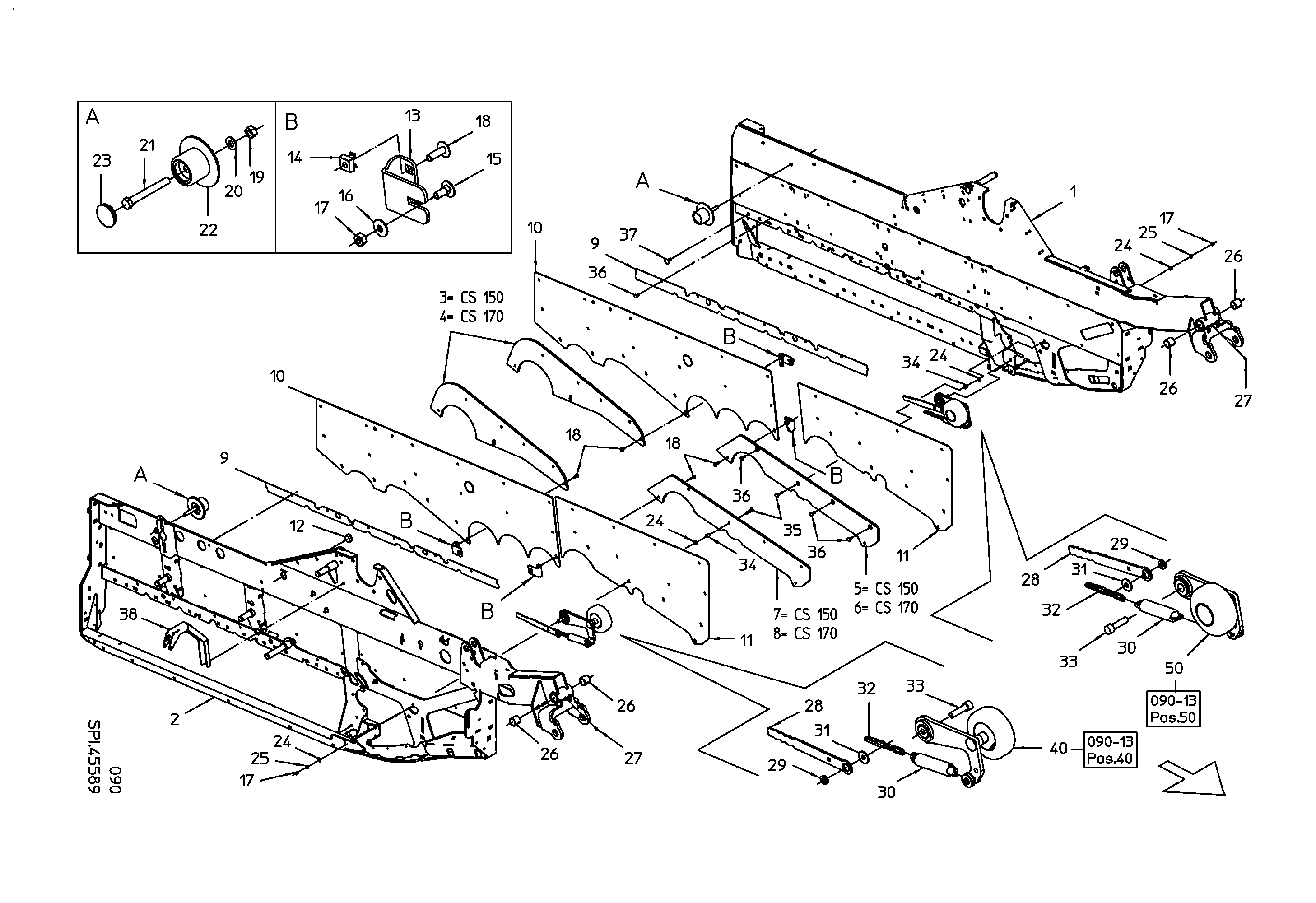

Parts by subassemblies

SIDE PART L/H

Quantity in assembly group: 1 Piece / Pos. 1

SIDE PART R/H

Quantity in assembly group: 1 Piece / Pos. 2

WEAR+TEAR PLATE 3STAR RO MW

Quantity in assembly group: 2 Piece / Pos. 3

WEAR+TEAR PLATE MWEB 170

Quantity in assembly group: 2 Piece / Pos. 4

WEAR PLATE

Quantity in assembly group: 1 Piece / Pos. 5

WEAR PLATE

Quantity in assembly group: 1 Piece / Pos. 6

PANEL R/H

Quantity in assembly group: 1 Piece / Pos. 7

PANEL R/H

Quantity in assembly group: 1 Piece / Pos. 8

FIXING PLATE

Quantity in assembly group: 2 Piece / Pos. 9

STAINLESS STEEL SIDE PLATE

Quantity in assembly group: 2 Piece / Pos. 10

STAINLESS STEEL SIDE PLATE

Quantity in assembly group: 2 Piece / Pos. 11

GPN-LOCKING PLUG F31

Quantity in assembly group: 1 Piece / Pos. 12

ANGULAR PLATE

Quantity in assembly group: 4 Piece / Pos. 13

CAGE-NUT M8 4,8-5,5

Quantity in assembly group: 4 Piece / Pos. 14

COACH BOLT M8X20-603-8.8-GAL

Quantity in assembly group: 4 Piece / Pos. 15

CONTACT DISC SHAPE B8 GAL

Quantity in assembly group: 4 Piece / Pos. 16

HEXAGON NUT M8 DIN934-8-GAL

Quantity in assembly group: 10 Piece / Pos. 17

SLOTTED C/BOLT M8X25-603-8.8-G

Quantity in assembly group: 4 Piece / Pos. 18

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 19

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 4 Piece / Pos. 20

HEX BOLT M16X130-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 21

FLANGED SUPPORT ROLLER D75

Quantity in assembly group: 2 Piece / Pos. 22

ROLLER CAP

Quantity in assembly group: 2 Piece / Pos. 23

PLAIN WASHER 8.4X20X2 GAL

Quantity in assembly group: 4 Piece / Pos. 24

CONTACT WASHER FORM M 8-GAL

Quantity in assembly group: 4 Piece / Pos. 25

PLAIN BEARING BUSH 404440

Quantity in assembly group: 4 Piece / Pos. 26

GREASE NIPPLE H1/S-M8X1 DIN714

Quantity in assembly group: 2 Piece / Pos. 27

HANDLE

Quantity in assembly group: 2 Piece / Pos. 28

DISC

Quantity in assembly group: 2 Piece / Pos. 29

TENSION SPRING

Quantity in assembly group: 2 Piece / Pos. 30

DISC A 13 DIN9021-GAL

Quantity in assembly group: 2 Piece / Pos. 31

LINK CHAIN-4 LINKS C5X36

Quantity in assembly group: 2 Piece / Pos. 32

SHC-SCREW DIN912M16X60-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 33

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 34

COACH BOLT M8X45-DIN603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 35

COACH BOLT M8X25-603-8.8-GAL

Quantity in assembly group: 4 Piece / Pos. 36

COACH BOLT M12X30-DIN603-8.8-G

Quantity in assembly group: 1 Piece / Pos. 37

BRACKET

Quantity in assembly group: 1 Piece / Pos. 38

TENSION ARM R/H

Quantity in assembly group: 1 Piece / Pos. 40

TENSION ARM L/H

Quantity in assembly group: 1 Piece / Pos. 50
