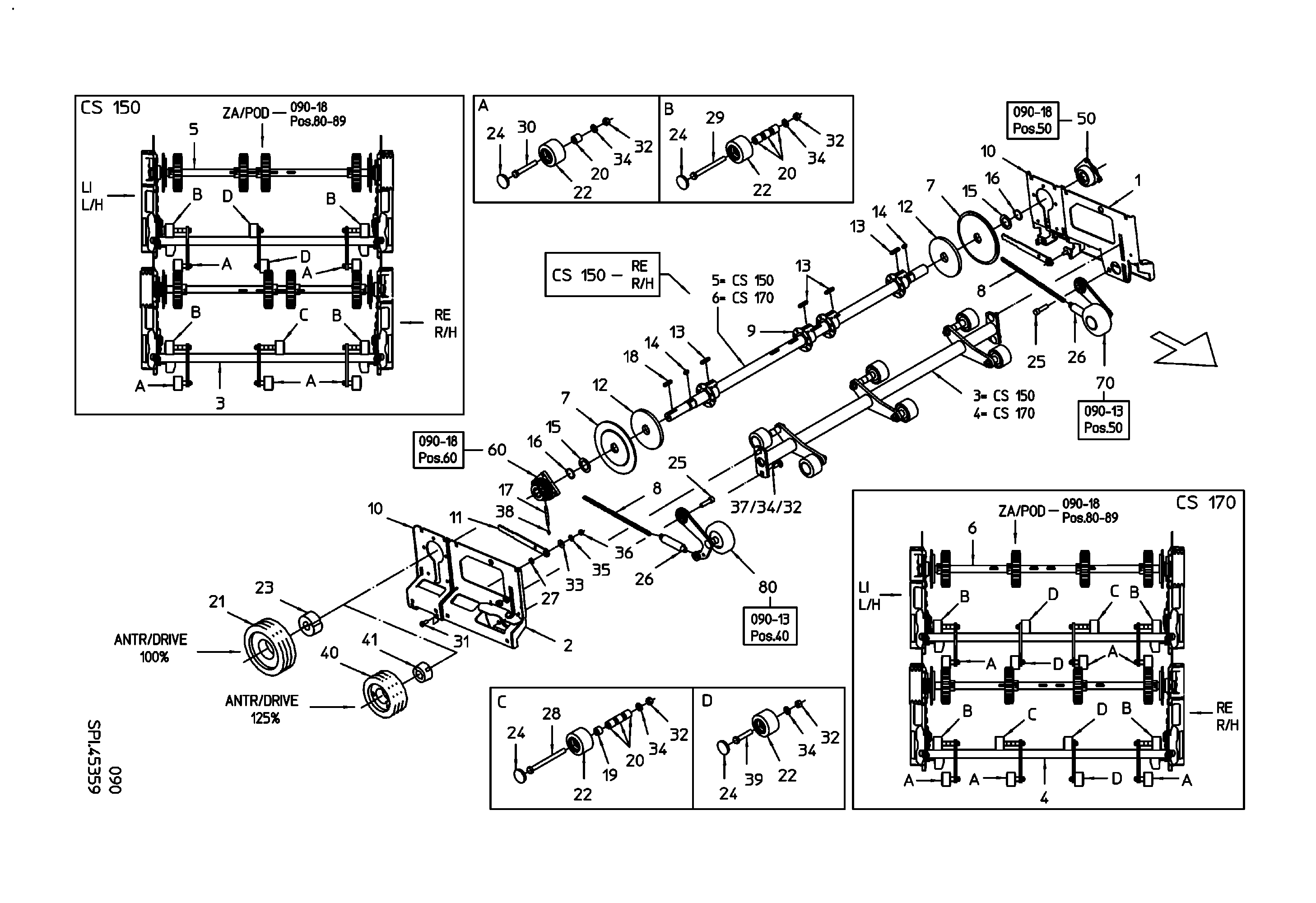

Parts by subassemblies

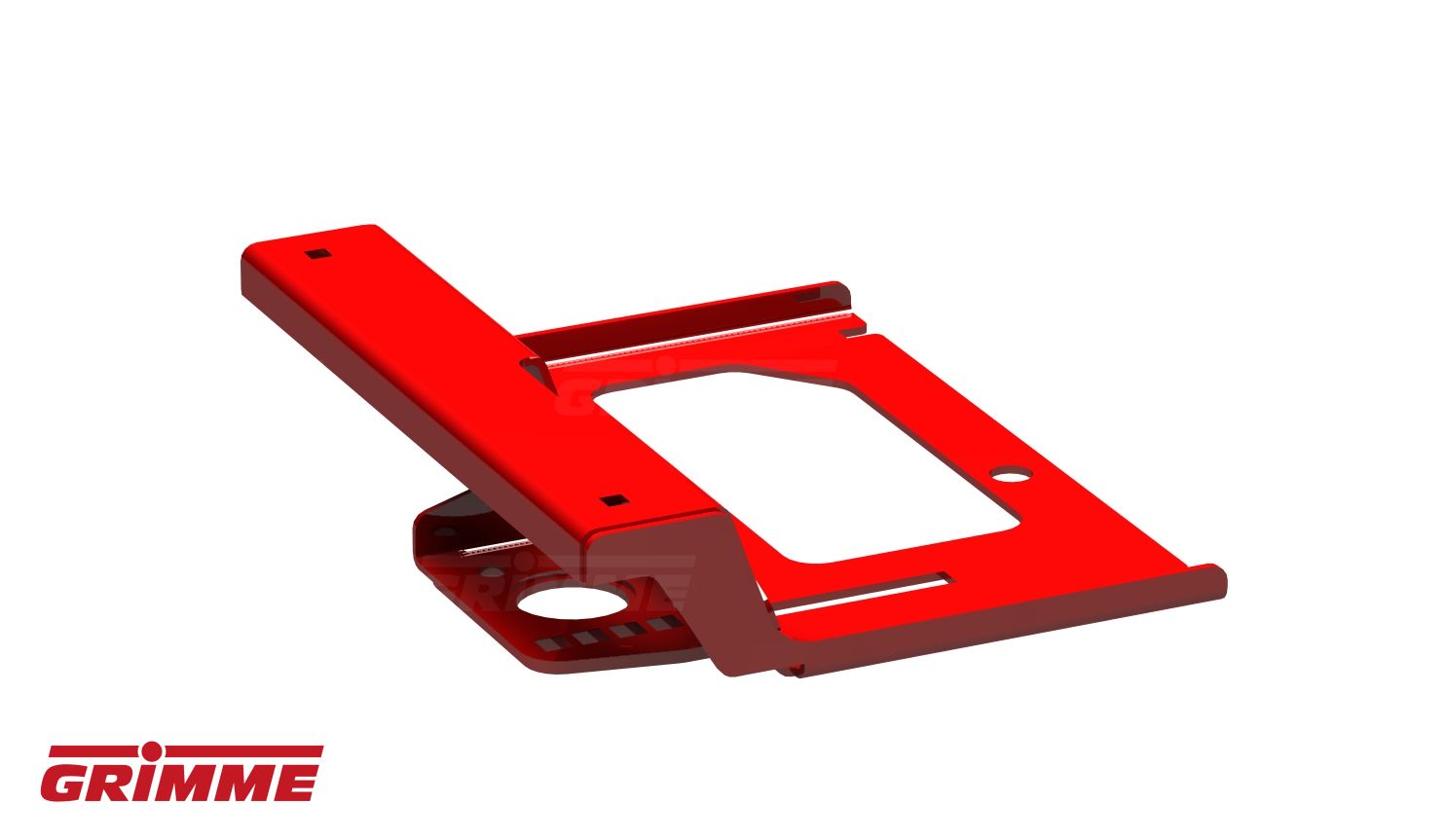

BRACKET L/H

Quantity in assembly group: 4 Piece / Pos. 1

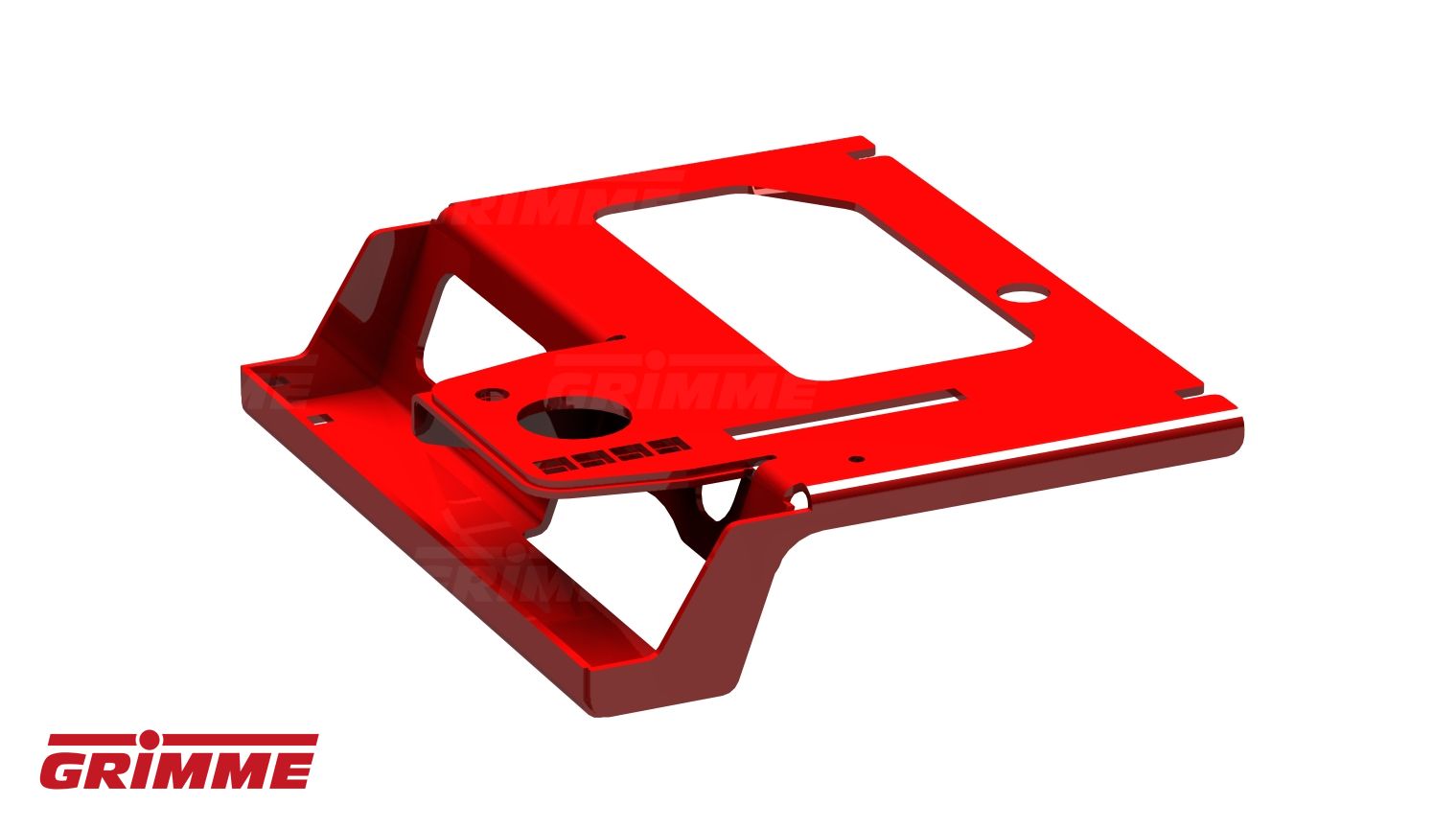

BRACKET R/H

Quantity in assembly group: 4 Piece / Pos. 2

ROLLER HOLDER

Quantity in assembly group: 2 Piece / Pos. 3

ROLLER HOLDER MWEB 170

Quantity in assembly group: 2 Piece / Pos. 4

1ST WEB DRIVE SHAFT CW150

Quantity in assembly group: 2 Piece / Pos. 5

1ST WEB DRIVE SHAFT CW170

Quantity in assembly group: 2 Piece / Pos. 6

GUIDE FLANGE

Quantity in assembly group: 8 Piece / Pos. 7

LC 12LINKS C5X36 DIN763-BRIGHT

Quantity in assembly group: 8 Piece / Pos. 8

SPLIT ROLLER HUB D50

Quantity in assembly group: 16 Piece / Pos. 9

BRACKET

Quantity in assembly group: 8 Piece / Pos. 10

HANDLE

Quantity in assembly group: 8 Piece / Pos. 11

GUIDE FLANGE

Quantity in assembly group: 8 Piece / Pos. 12

FEATHER KEY A 12X8X55 DIN6885

Quantity in assembly group: 16 Piece / Pos. 13

FEATHER KEY A 12X8X25 DIN6885

Quantity in assembly group: 8 Piece / Pos. 14

END DISC

Quantity in assembly group: 8 Piece / Pos. 15

RETAINING RING AS 45X2,5 DIN47

Quantity in assembly group: 8 Piece / Pos. 16

EXTENSION

Quantity in assembly group: 4 Piece / Pos. 17

FEATHER KEY A 12X8X50 DIN6885

Quantity in assembly group: 4 Piece / Pos. 18

SPACER 20MM

Quantity in assembly group: 19 Piece / Pos. 19

SPACER 16,5X30X30

Quantity in assembly group: 44 Piece / Pos. 20

PULLEY 3V SPCX250

Quantity in assembly group: 4 Piece / Pos. 21

SUPPORT ROLLER D95

Quantity in assembly group: 28 Piece / Pos. 22

TAPER-BUSH 3020-040

Quantity in assembly group: 4 Piece / Pos. 23

ROLLER CAP

Quantity in assembly group: 28 Piece / Pos. 24

SHC-SCREW DIN912M16X60-8.8-GAL

Quantity in assembly group: 8 Piece / Pos. 25

TENSION SPRING

Quantity in assembly group: 8 Piece / Pos. 26

DISC

Quantity in assembly group: 8 Piece / Pos. 27

HEX BOLT M16X190-DIN931-8.8-G

Quantity in assembly group: 3 Piece / Pos. 28

HHC-SCREW M16X170 931-8.8-GAL

Quantity in assembly group: 8 Piece / Pos. 29

HEX BOLT M16X110-DIN931-8.8-G

Quantity in assembly group: 11 Piece / Pos. 30

SET SCREW M12X30-DIN933-8.8-G

Quantity in assembly group: 8 Piece / Pos. 31

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 44 Piece / Pos. 32

DISC A 13 DIN9021-GAL

Quantity in assembly group: 8 Piece / Pos. 33

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 44 Piece / Pos. 34

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 8 Piece / Pos. 35

HEXAGON NUT M12 DIN934-8-GAL

Quantity in assembly group: 8 Piece / Pos. 36

COACH BOLT M16X40-DIN603-8.8-G

Quantity in assembly group: 16 Piece / Pos. 37

GREASE NIPPLE H1/S-M8X1 DIN714

Quantity in assembly group: 6 Piece / Pos. 38

HEX BOLT M16X80-DIN931-8.8-G

Quantity in assembly group: 6 Piece / Pos. 39

PULLEY 3V SPC200

Quantity in assembly group: 1 Piece / Pos. 40

TAPER-BUSH 2517-040

Quantity in assembly group: 1 Piece / Pos. 41

BEARING CPTE B45

Quantity in assembly group: 4 Piece / Pos. 50

BEARING CPTE D40

Quantity in assembly group: 4 Piece / Pos. 60

TENSION ARM L/H

Quantity in assembly group: 4 Piece / Pos. 70

TENSION ARM R/H

Quantity in assembly group: 4 Piece / Pos. 80
