Your machine: CLOD SEPARATOR CS 150 CS 150 modify ▸

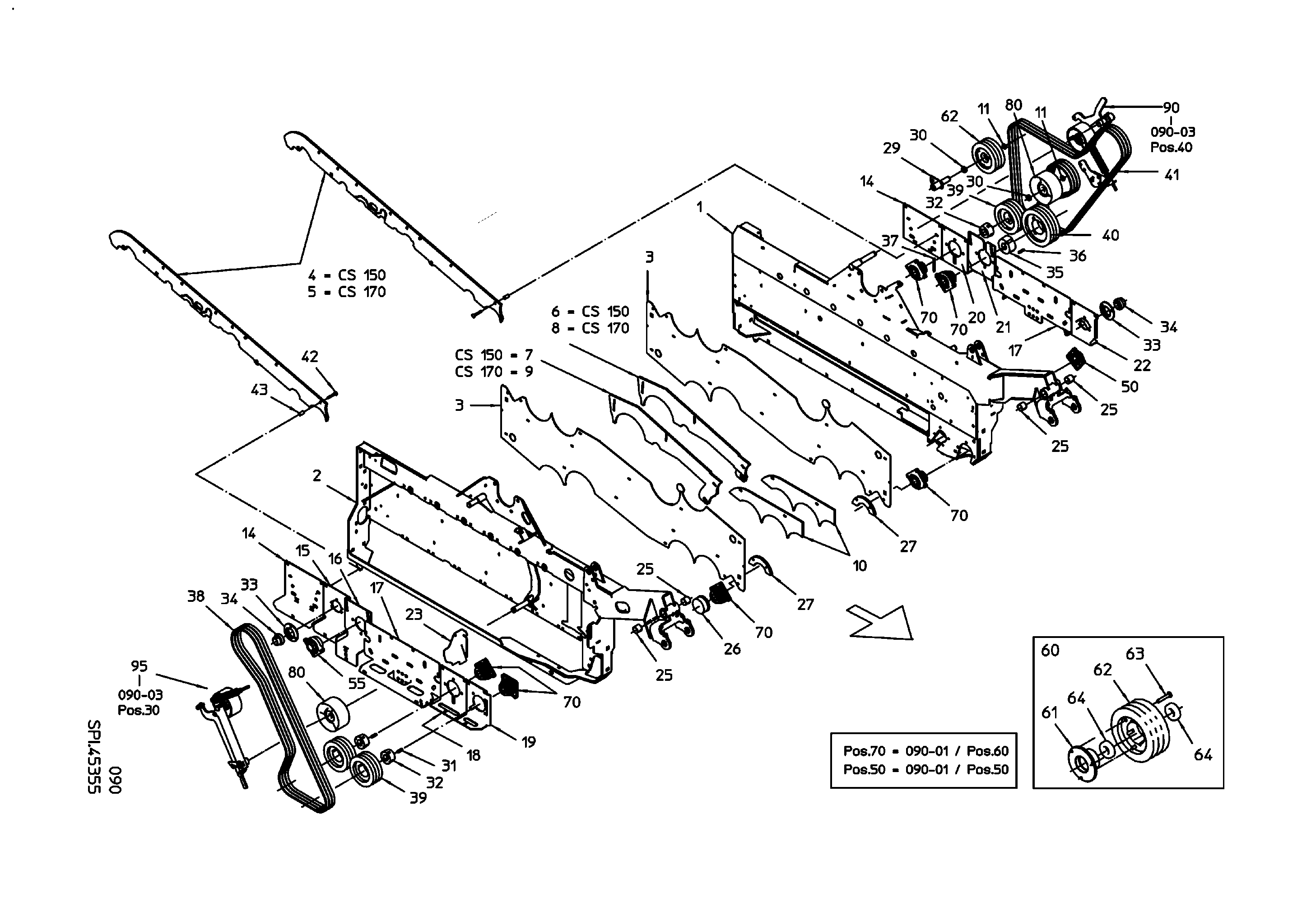

Subassembly drawing
▸ Selected assembly group:
Selected subassembly
Subassembly parts

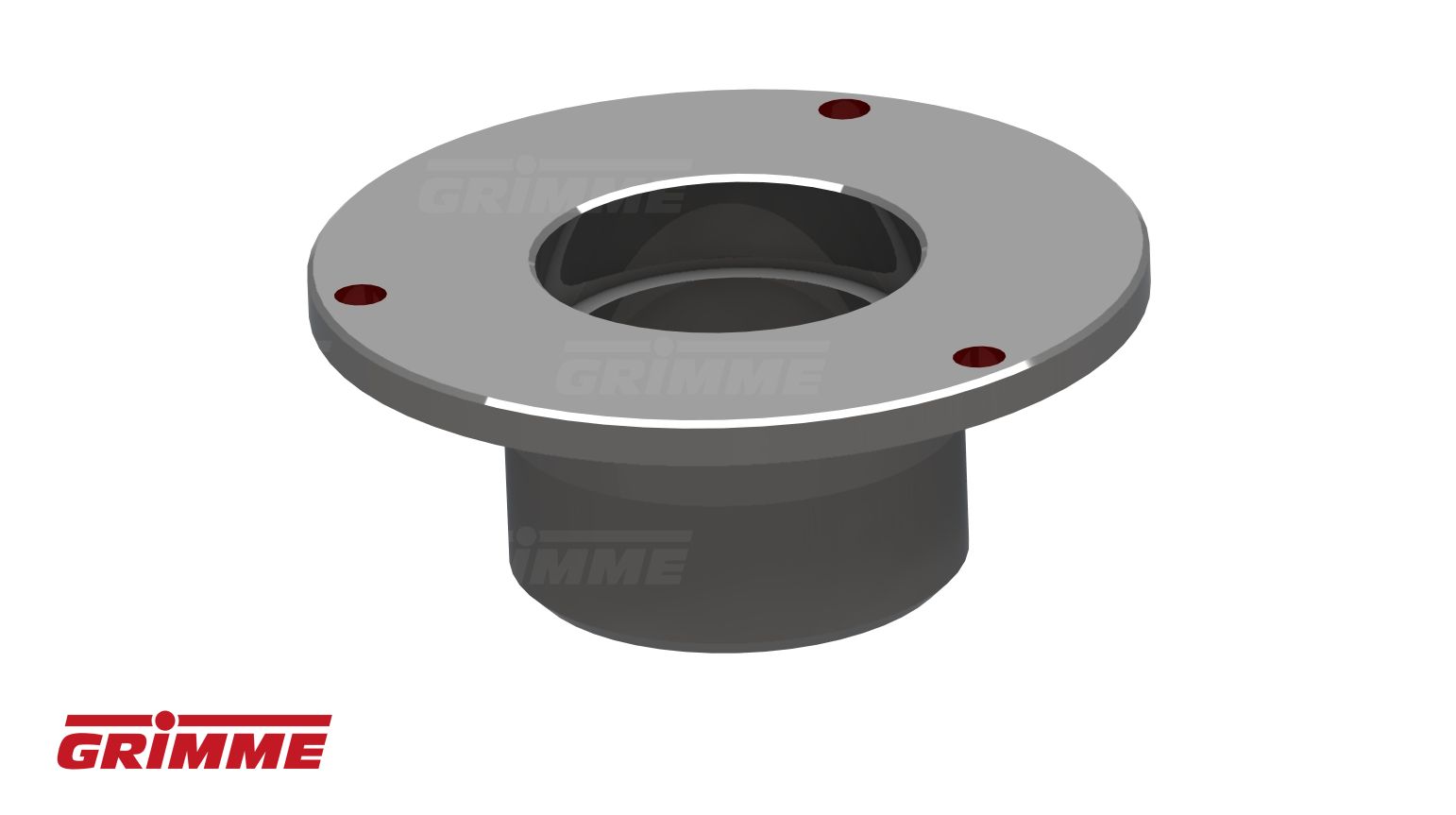

BEARING HOUSING
Quantity in assembly group:
1 Piece / Pos. 0
BEARING HOUSING
Quantity in assembly group:
1 Piece / Pos. 0
SEALING CAP
Quantity in assembly group:
1 Piece / Pos. 0
BEARING YAR 207-2RF/UC207
Quantity in assembly group:
1 Piece / Pos. 0
SEALING RING 84-50-4
Quantity in assembly group:
1 Piece / Pos. 0
SEALING RING
Quantity in assembly group:
1 Piece / Pos. 0
BEARING YEL 209-2FF
Quantity in assembly group:
1 Piece / Pos. 0

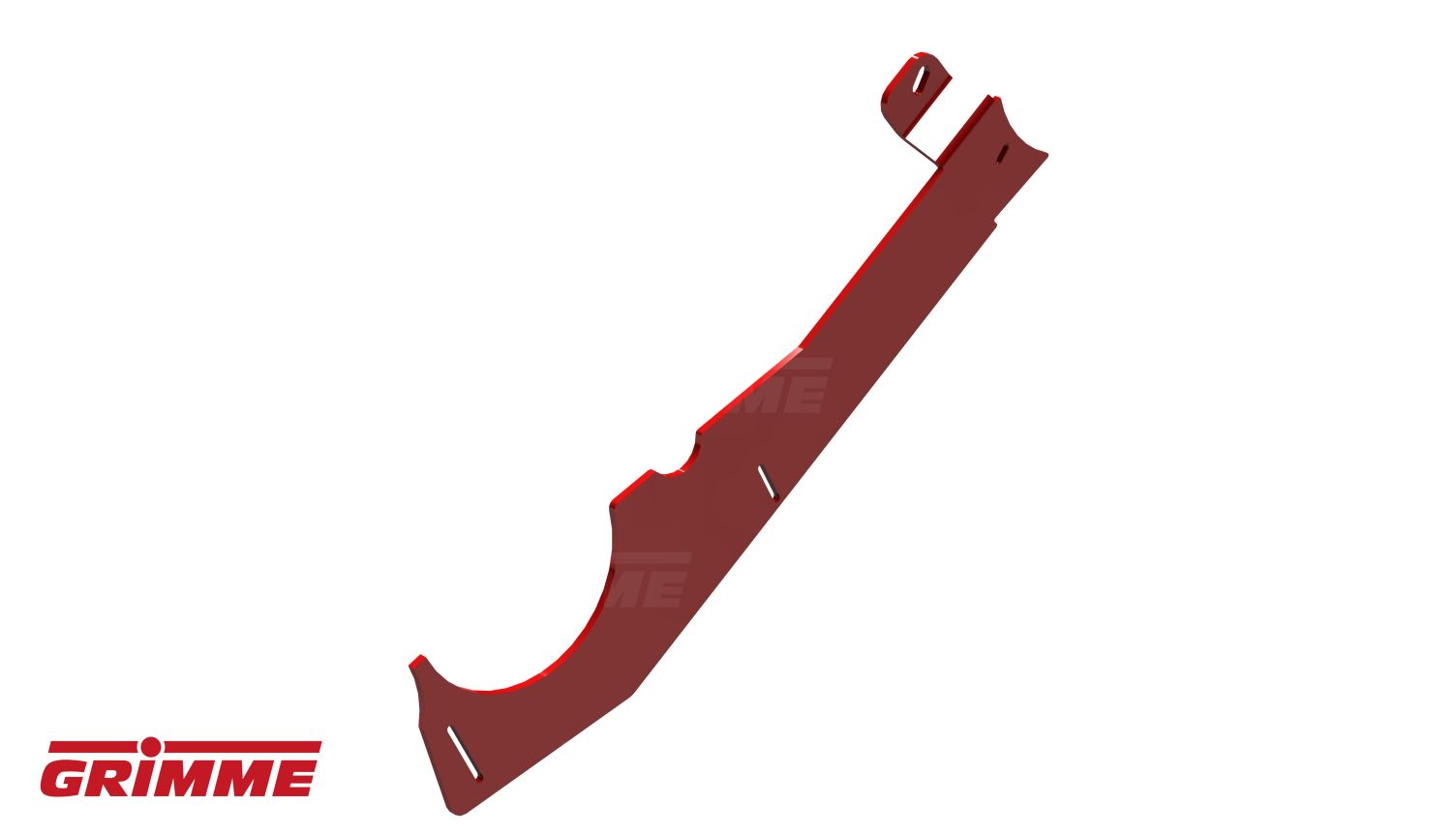

SIDE PART L/H
Quantity in assembly group:
1 Piece / Pos. 1
SIDE PART R/H
Quantity in assembly group:
1 Piece / Pos. 2

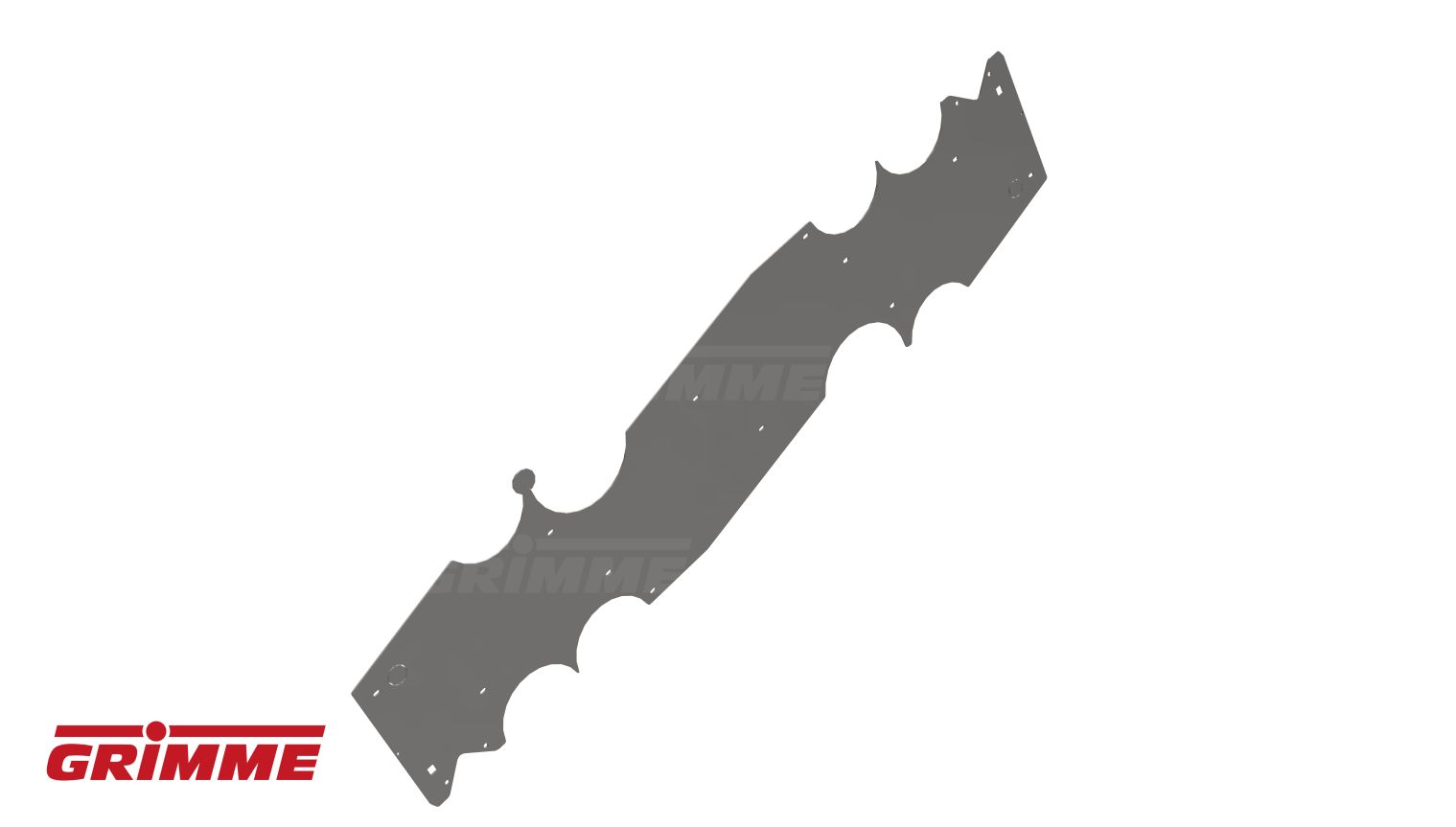

STAINLESS SIDE PLATE
Quantity in assembly group:
2 Piece / Pos. 3

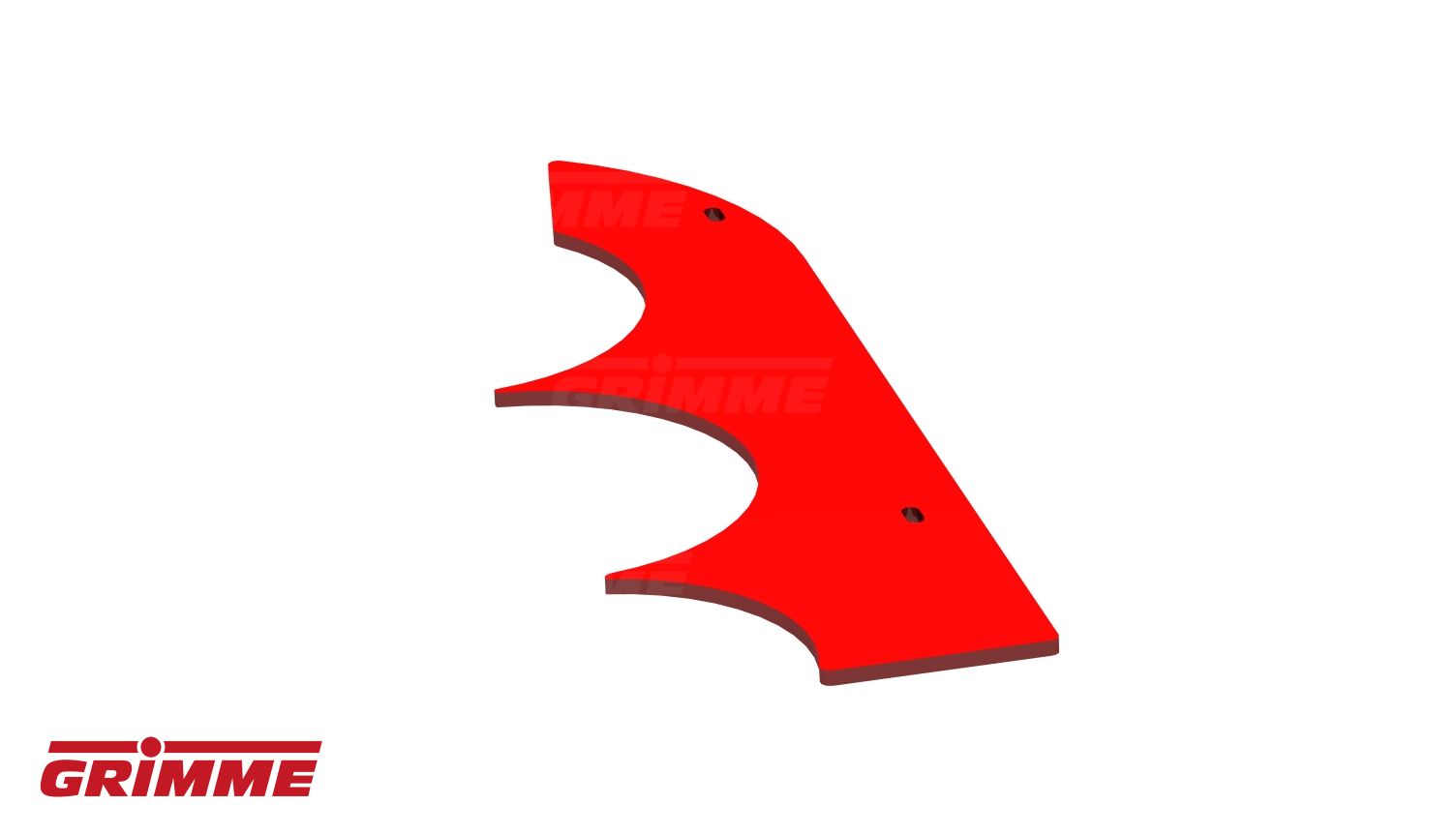

WEAR PLATE
Quantity in assembly group:
2 Piece / Pos. 4
WEAR PLATE
Quantity in assembly group:
2 Piece / Pos. 5
WEAR PLATE L/H-CS150
Quantity in assembly group:
1 Piece / Pos. 6
WEAR PLATE R/H-CS150
Quantity in assembly group:
1 Piece / Pos. 7
WEAR PLATE L/H-CS170
Quantity in assembly group:
1 Piece / Pos. 8
WEAR PLATE R/H
Quantity in assembly group:
1 Piece / Pos. 9
WEAR PLATE
Quantity in assembly group:
2 Piece / Pos. 10
RETAINING RING AS 30X2 DIN471
Quantity in assembly group:
2 Piece / Pos. 11

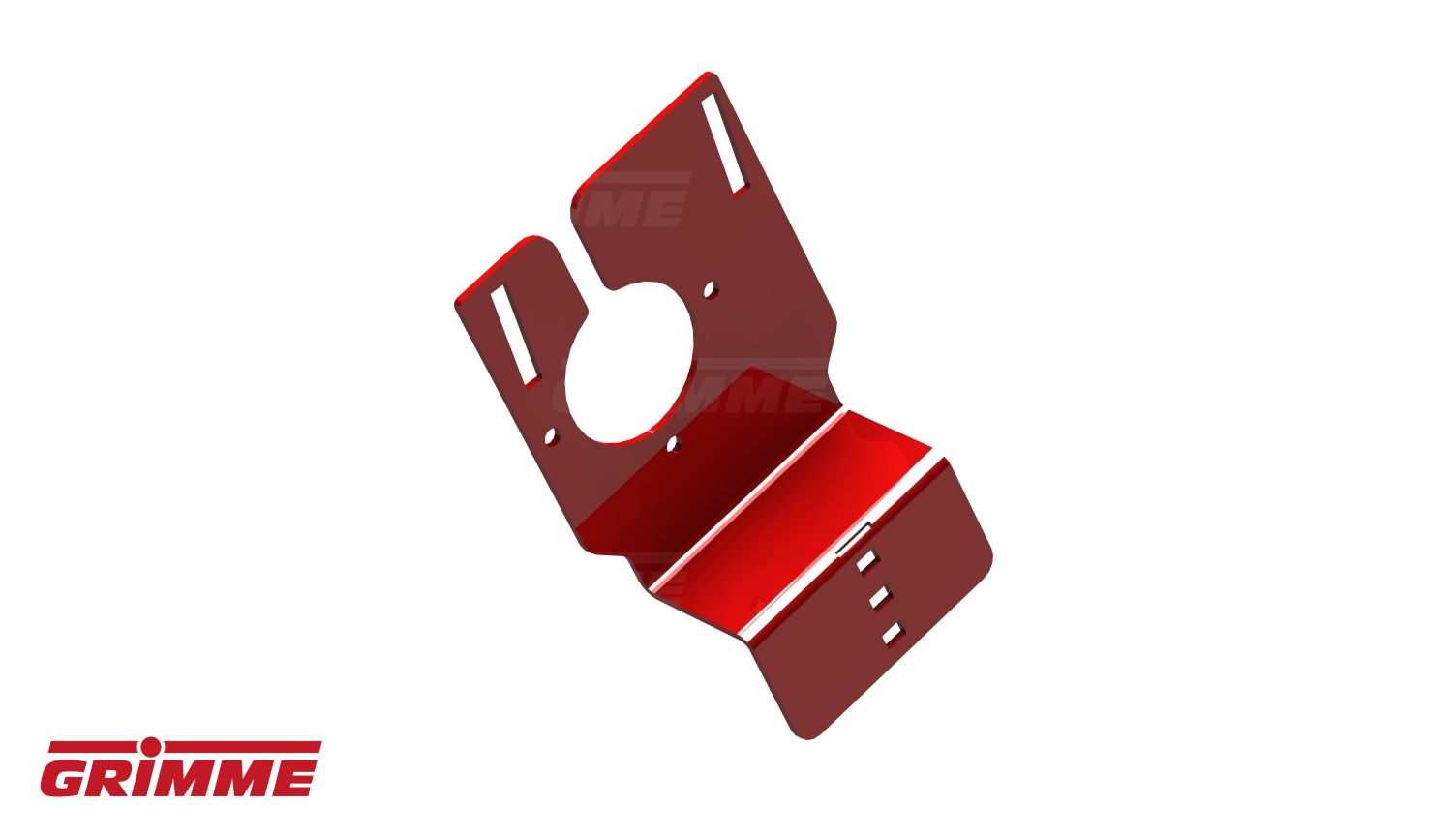

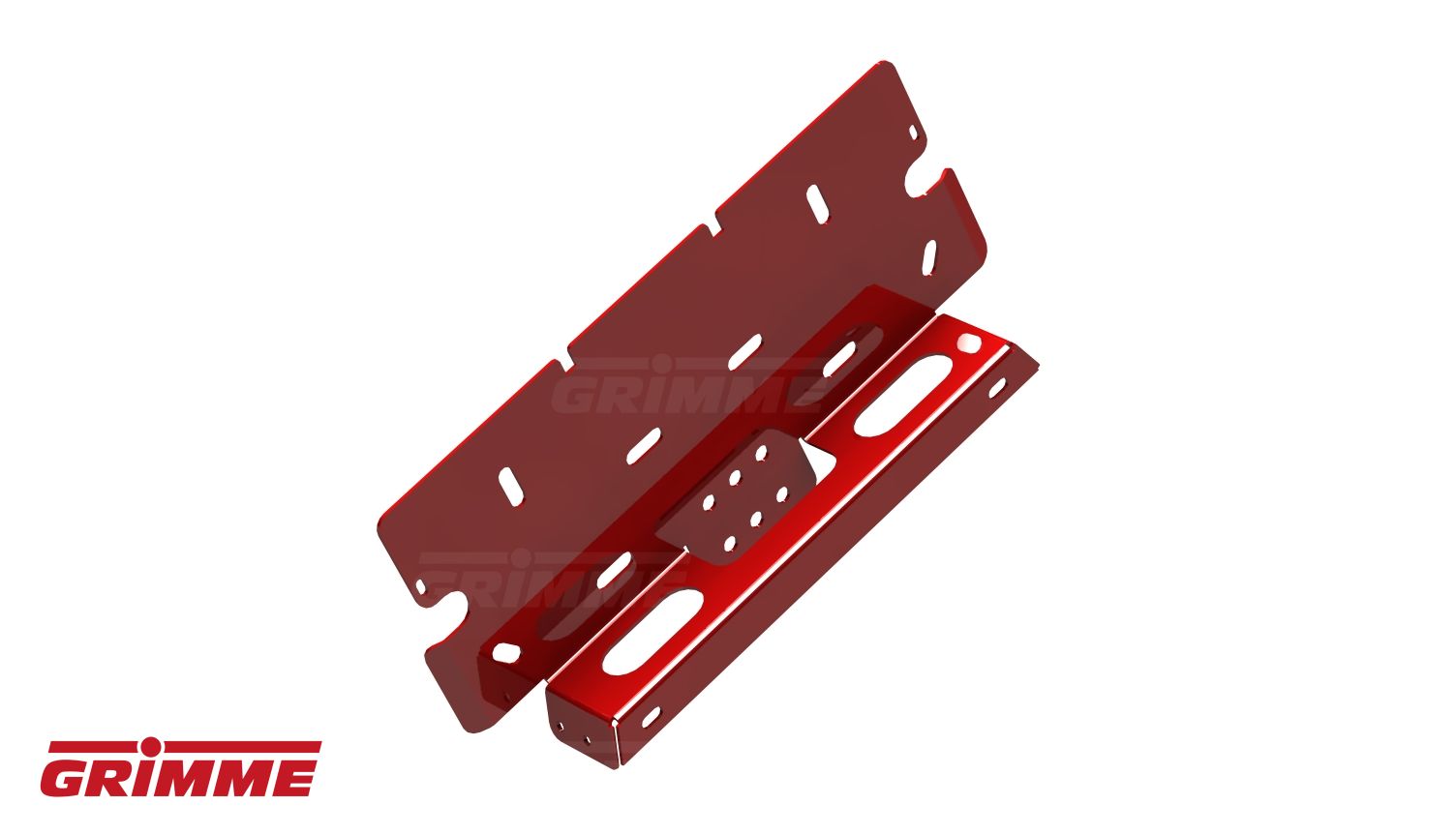

MOUNTING PLATE
Quantity in assembly group:
2 Piece / Pos. 14

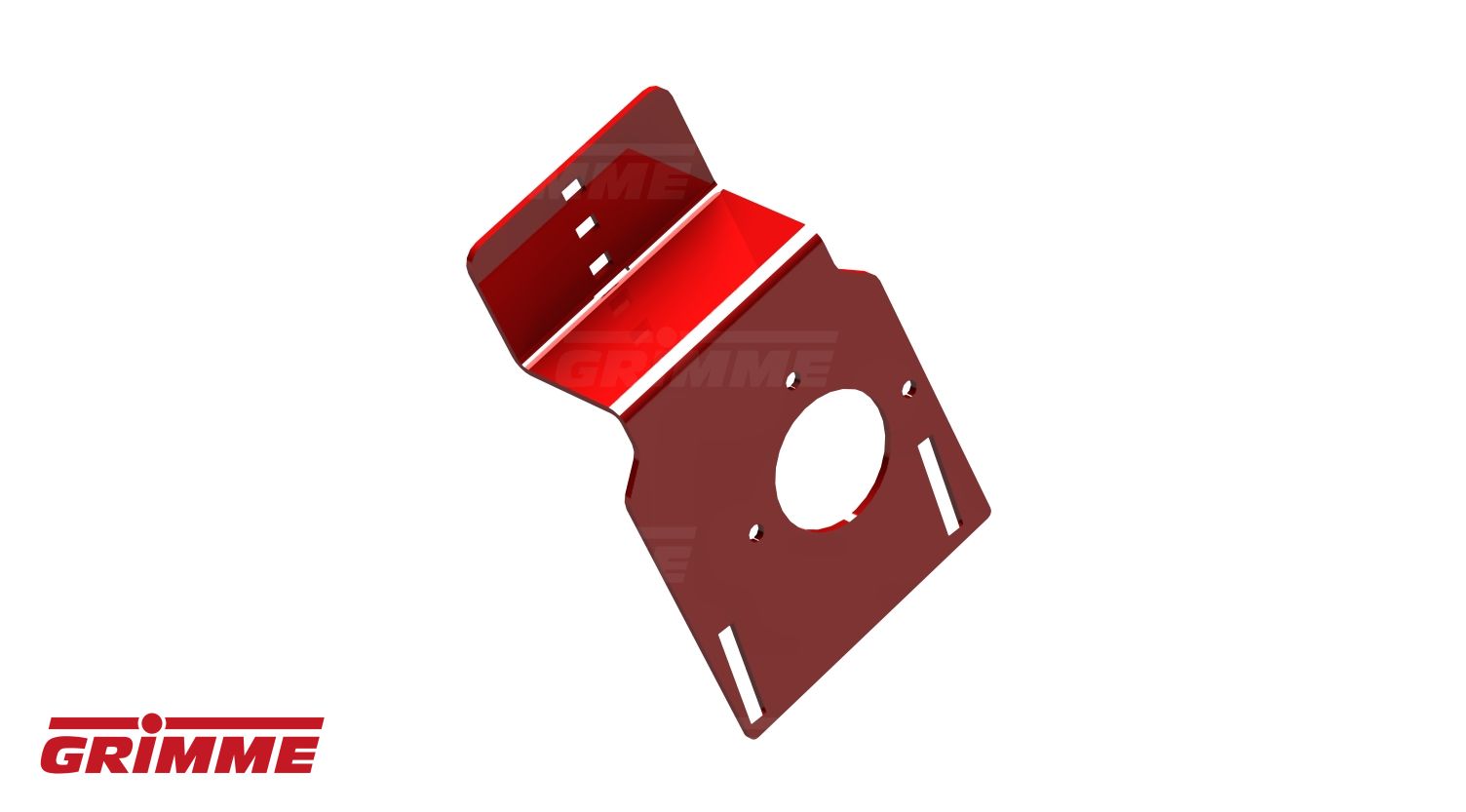

BEARING PLATE
Quantity in assembly group:
1 Piece / Pos. 15

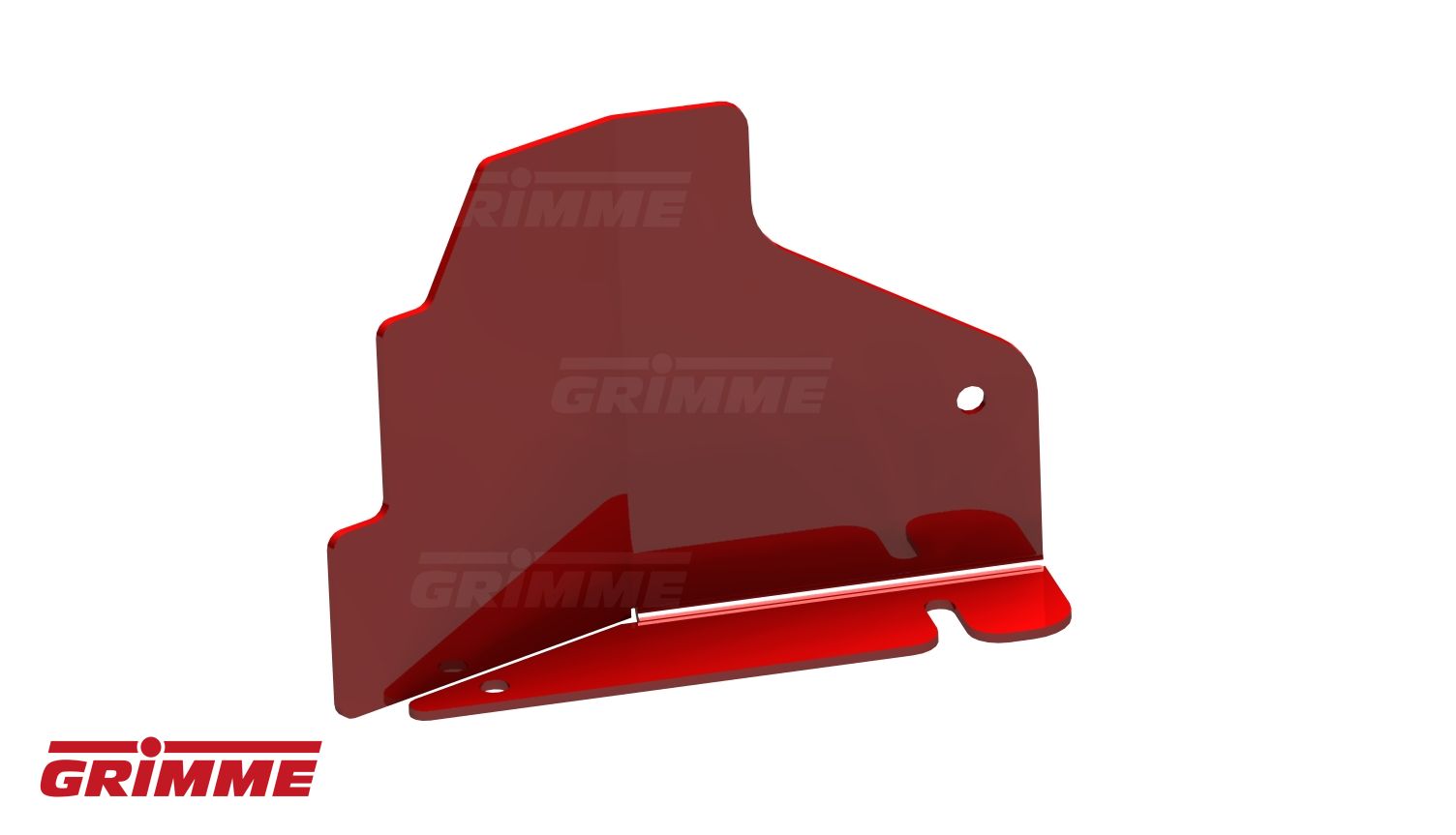

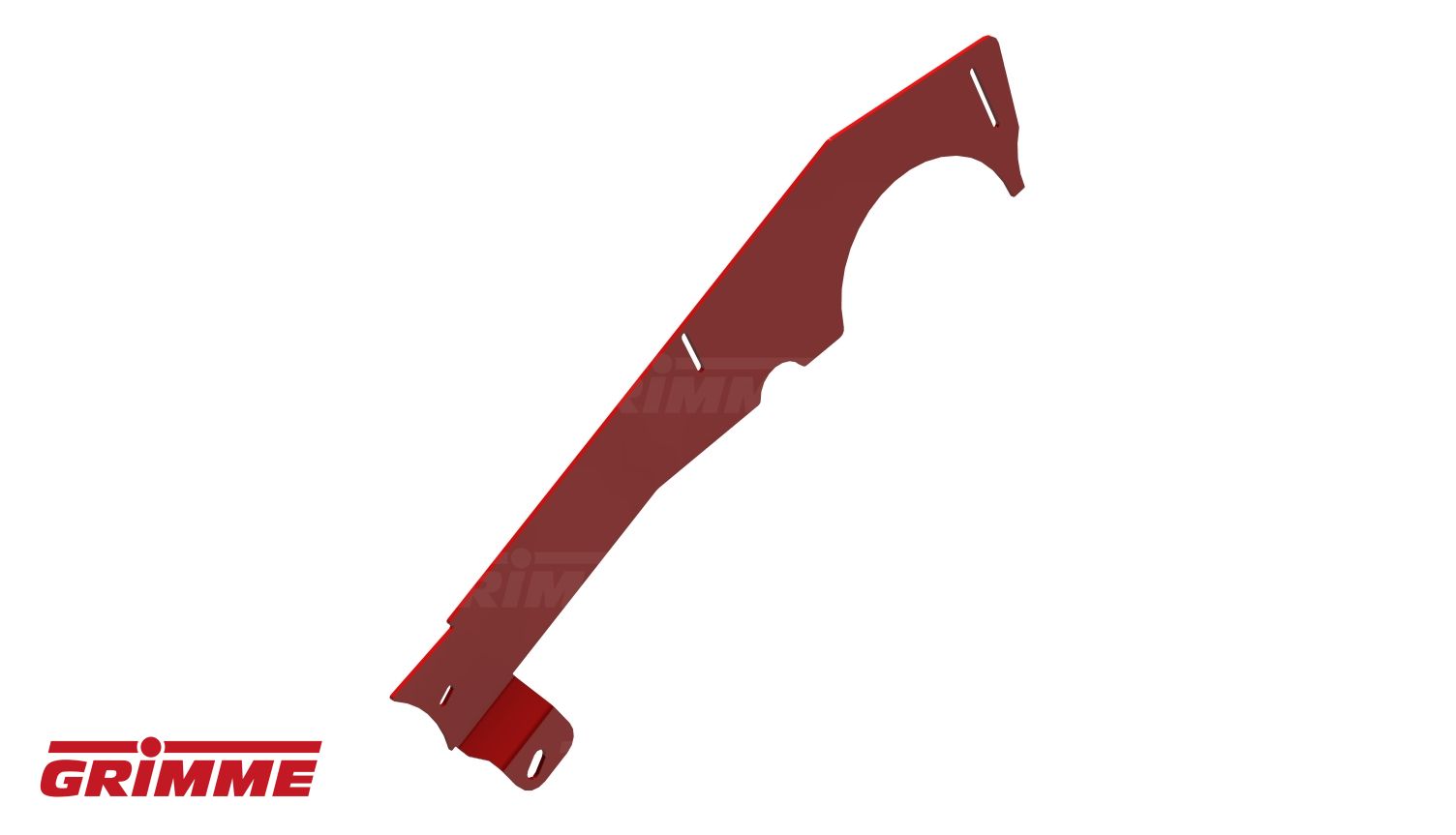

PLATE L/H
Quantity in assembly group:
1 Piece / Pos. 16
MOUNTING PLATE
Quantity in assembly group:
2 Piece / Pos. 17
BEARING PLATE
Quantity in assembly group:
1 Piece / Pos. 18
BEARING PLATE
Quantity in assembly group:
1 Piece / Pos. 19
BEARING PLATE
Quantity in assembly group:
1 Piece / Pos. 20
PLATE L/H
Quantity in assembly group:
1 Piece / Pos. 21
BEARING PLATE L/H
Quantity in assembly group:
1 Piece / Pos. 22
PANEL
Quantity in assembly group:
1 Piece / Pos. 23
PLAIN BEARING BUSH 404440
Quantity in assembly group:
4 Piece / Pos. 25
DUST CAP
Quantity in assembly group:
1 Piece / Pos. 26
PROTECTION PLATE
Quantity in assembly group:
2 Piece / Pos. 27
SPINDLE
Quantity in assembly group:
1 Piece / Pos. 29
SPACER RING
Quantity in assembly group:
2 Piece / Pos. 30
FEATHER KEY A 12X8X45 DIN6885
Quantity in assembly group:
2 Piece / Pos. 31
TAPER-BUSH 2517-040
Quantity in assembly group:
3 Piece / Pos. 32
FLANGE PLATE (PR) PF72/PF207
Quantity in assembly group:
2 Piece / Pos. 33
BEARING YEL 207-2RF/VL065
Quantity in assembly group:
2 Piece / Pos. 34
TAPER-BUSH 3020-040
Quantity in assembly group:
1 Piece / Pos. 35
FEATHER KEY A 12X8X50 DIN6885
Quantity in assembly group:
1 Piece / Pos. 36
EXTENSION
Quantity in assembly group:
1 Piece / Pos. 37
V-BELT 22X3020 LI - SET=3
Quantity in assembly group:
1 Piece / Pos. 38

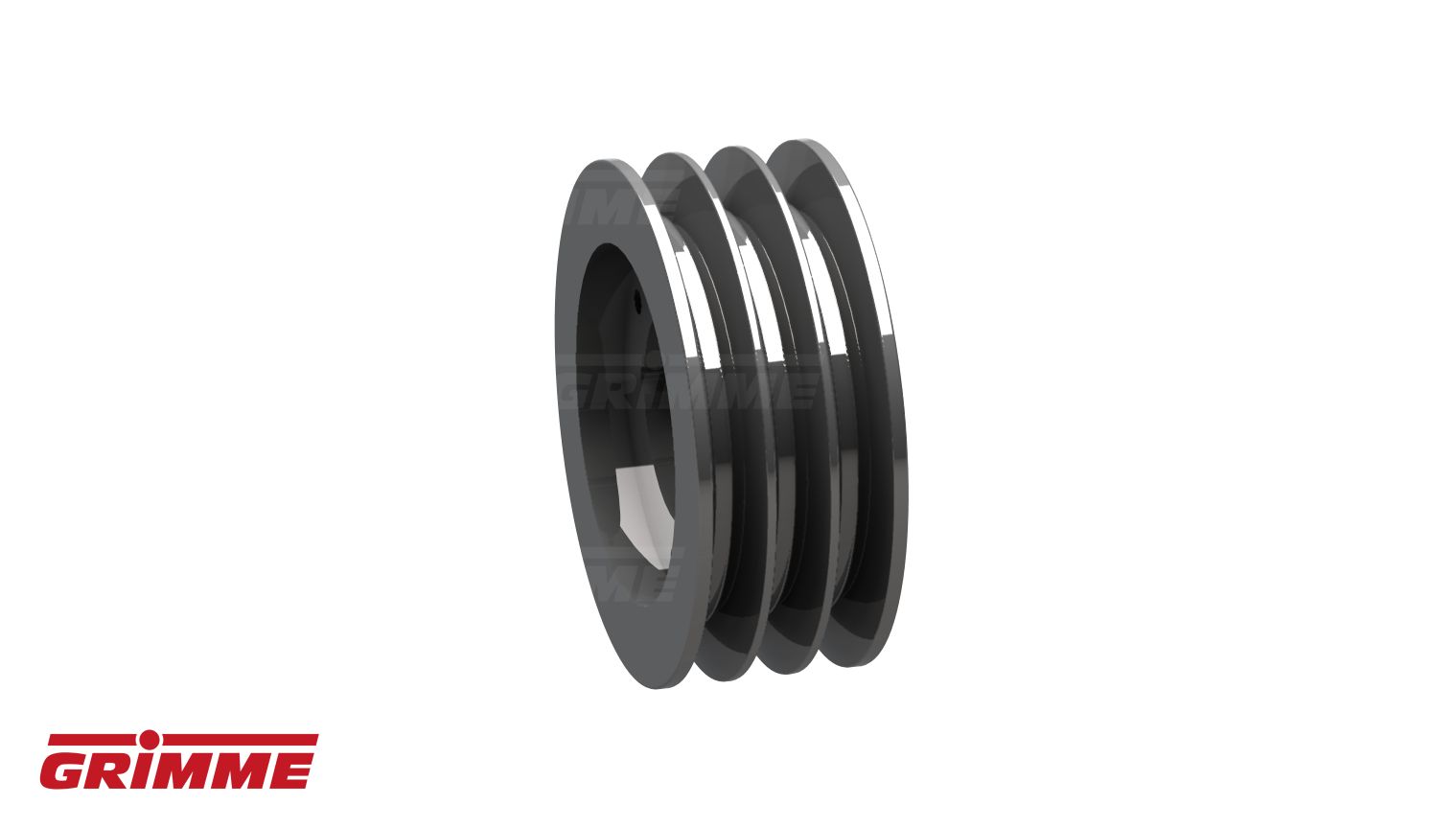

PULLEY 3V SPCX200
Quantity in assembly group:
3 Piece / Pos. 39

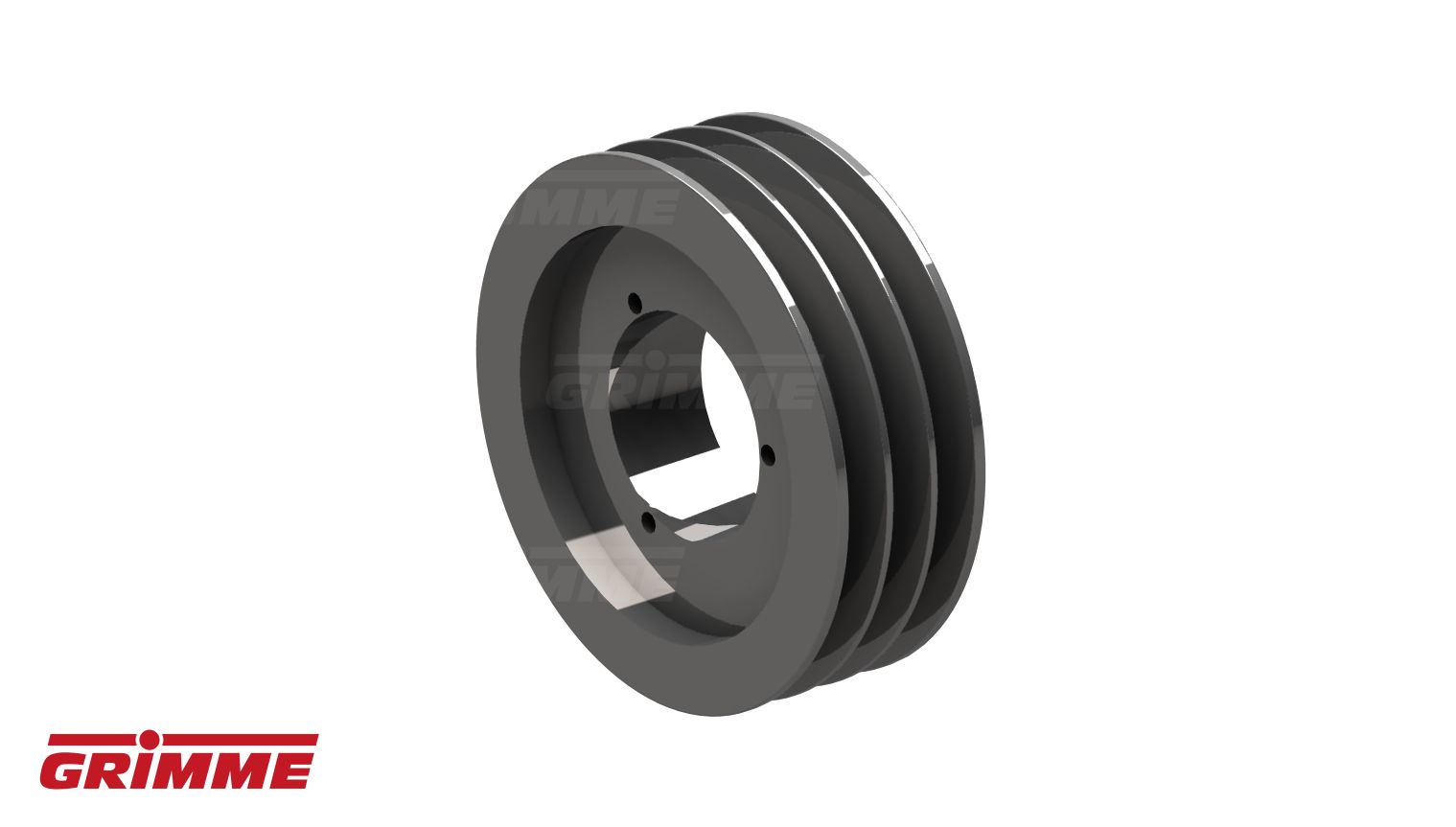

PULLEY 3V SPC250
Quantity in assembly group:
1 Piece / Pos. 40
V-BELT 22X4660 LI - SET=3
Quantity in assembly group:
1 Piece / Pos. 41
COACH BOLT M10X70-DIN603-8.8-G
Quantity in assembly group:
2 Piece / Pos. 42
BUSHING
Quantity in assembly group:
2 Piece / Pos. 43
FLANGE BEARING
Quantity in assembly group:
1 Piece / Pos. 50
BEARING CPTE B45
Quantity in assembly group:
1 Piece / Pos. 55
BT-DISC-WITH-STORE
Quantity in assembly group:
1 Piece / Pos. 60
BEARING BUSH
Quantity in assembly group:
1 Piece / Pos. 61
PULLEY 3V SPC200
Quantity in assembly group:
1 Piece / Pos. 62
CSK. ALLEN SCREW M10X60-DIN791
Quantity in assembly group:
3 Piece / Pos. 63
BALL BEARING 6206-2RS
Quantity in assembly group:
2 Piece / Pos. 64
BEARING CPTE D40
Quantity in assembly group:
6 Piece / Pos. 70
IDLER PULLEY C/W BEARINGS
Quantity in assembly group:
2 Piece / Pos. 80
BELT TENSIONER CPTE
Quantity in assembly group:
1 Piece / Pos. 90

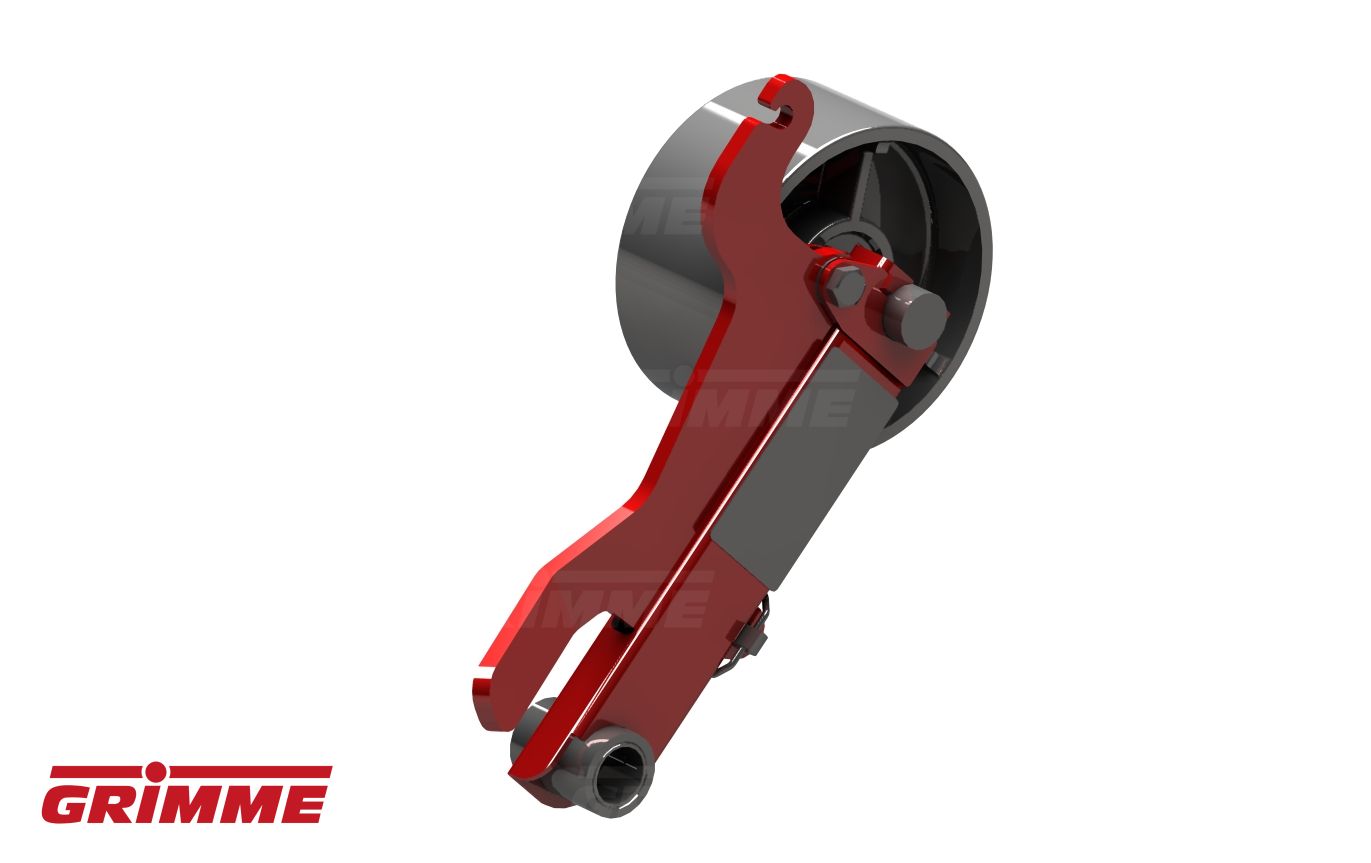

CLAMPING LEVER
Quantity in assembly group:
1 Piece / Pos. 95
