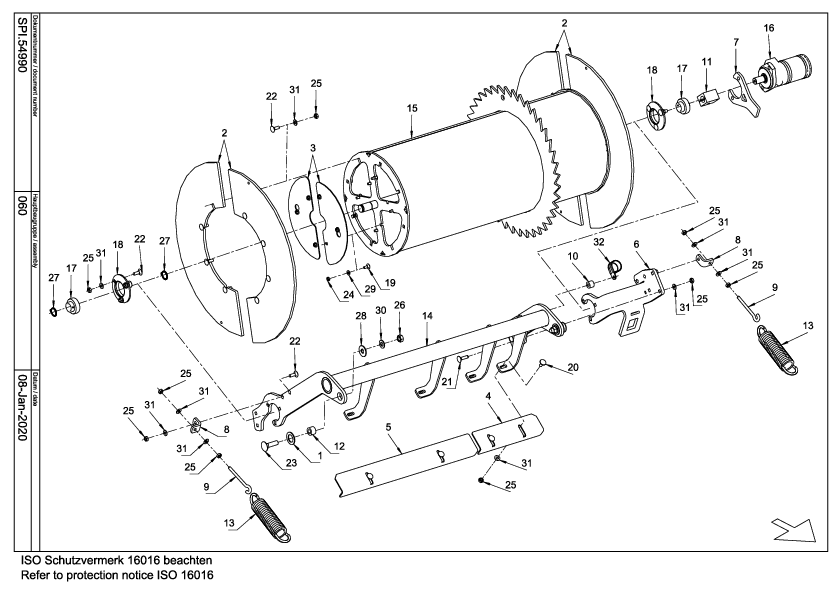

Parts by subassemblies

SPLIT WASHER

Quantity in assembly group: 2 Piece / Pos. 1

END PLATE

Quantity in assembly group: 4 Piece / Pos. 2

COVER

Quantity in assembly group: 2 Piece / Pos. 3

DIABLO SCRAPER SHORT

Quantity in assembly group: 1 Piece / Pos. 4

DIABLO SCRAPER LONG

Quantity in assembly group: 1 Piece / Pos. 5

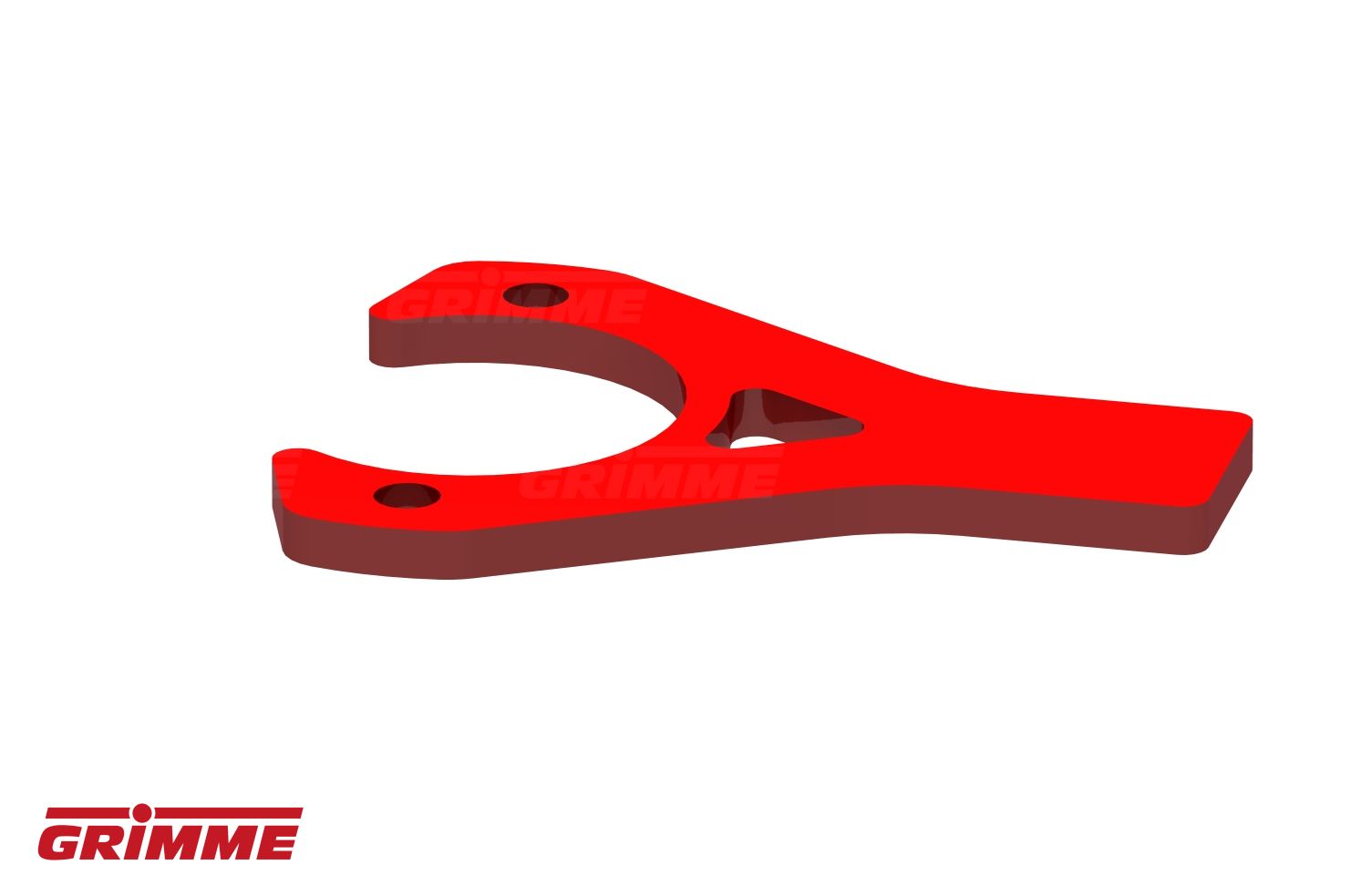

MOUNTING ARM

Quantity in assembly group: 1 Piece / Pos. 6

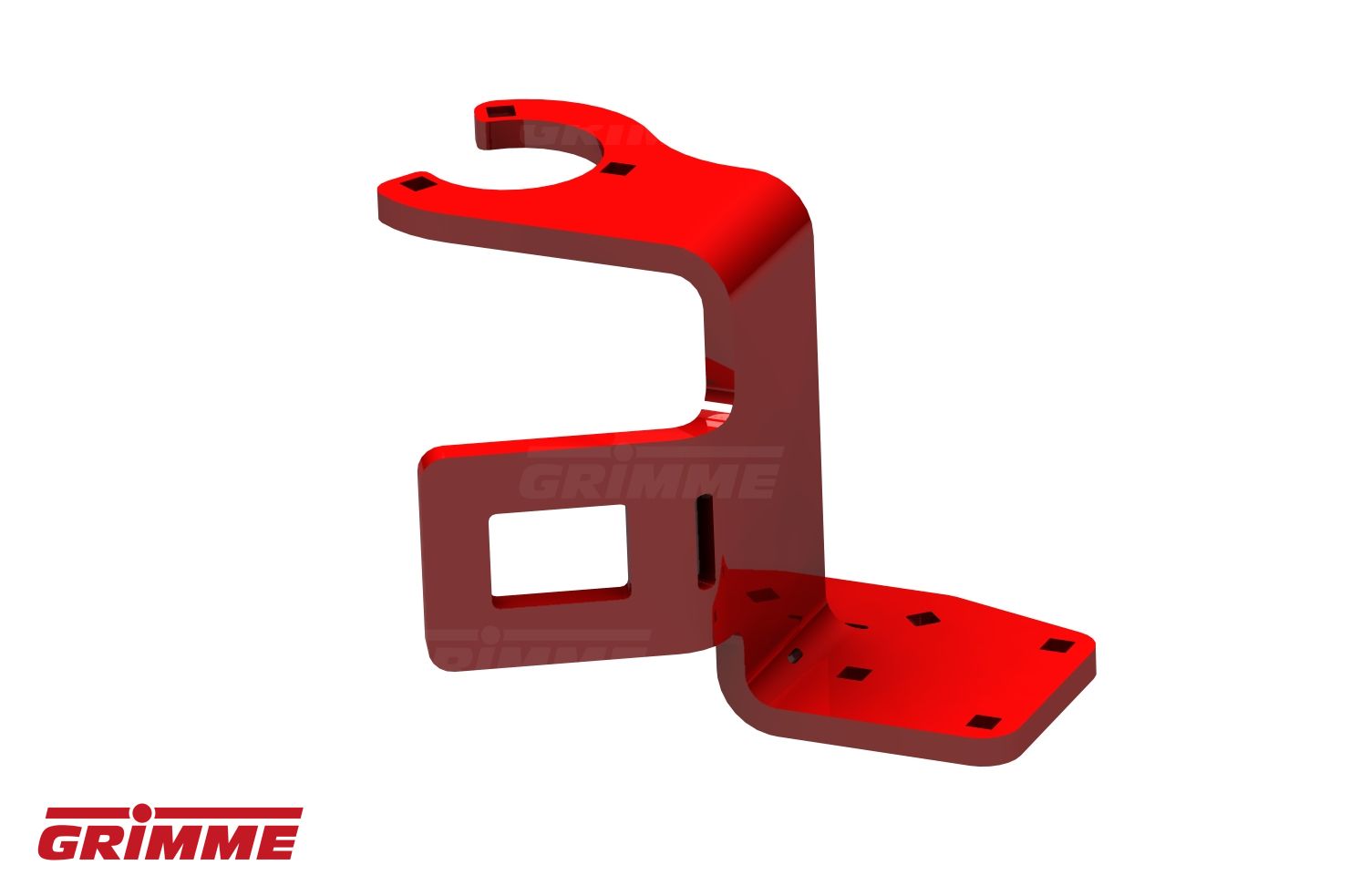

MOTOR BRACKET

Quantity in assembly group: 1 Piece / Pos. 7

MOUNTING ANGLE

Quantity in assembly group: 2 Piece / Pos. 8

EYELET SCREW

Quantity in assembly group: 2 Piece / Pos. 9

BUSH

Quantity in assembly group: 1 Piece / Pos. 10

CLAMPING PIECE

Quantity in assembly group: 1 Piece / Pos. 11

SPACER 20MM

Quantity in assembly group: 2 Piece / Pos. 12

TENSION SPRING

Quantity in assembly group: 2 Piece / Pos. 13

DIABLO ROLLER FRAME

Quantity in assembly group: 1 Piece / Pos. 14

DIABLO ROLLER

Quantity in assembly group: 1 Piece / Pos. 15

HYDRAULIC MOTOR MF330 CYL-S

Quantity in assembly group: 1 Piece / Pos. 16

BEARING YAR 206-2RF/UC206

Quantity in assembly group: 2 Piece / Pos. 17

FLANGE PLATE (PR) PF62/PF206

Quantity in assembly group: 2 Piece / Pos. 18

COACH BOLT M8X20-603-8.8-GAL

Quantity in assembly group: 6 Piece / Pos. 19

MH-SCREW M10X25-603-8.8-GAL

Quantity in assembly group: 4 Piece / Pos. 20

MH-SCREW M10X40-603-8.8-GAL

Quantity in assembly group: 3 Piece / Pos. 21

MH-SCREW M10X30-603-8.8-GAL

Quantity in assembly group: 23 Piece / Pos. 22

COACH BOLT/LS M16X60-603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 23

HEXAGON NUT M8 DIN934-8-GAL

Quantity in assembly group: 6 Piece / Pos. 24

HEXAGON NUT M10 DIN934-8-GAL

Quantity in assembly group: 34 Piece / Pos. 25

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 26

RETAINING RING AS 30X2 DIN471

Quantity in assembly group: 2 Piece / Pos. 27

PLAIN WASHER 17X44X3 GAL

Quantity in assembly group: 2 Piece / Pos. 28

CONTACT WASHER FORM M 8-GAL

Quantity in assembly group: 6 Piece / Pos. 29

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 2 Piece / Pos. 30

CONTACT WASHER FORM M 10-GAL

Quantity in assembly group: 34 Piece / Pos. 31

PIPE CLAMP RSGU1100 40/25

Quantity in assembly group: 1 Piece / Pos. 32
