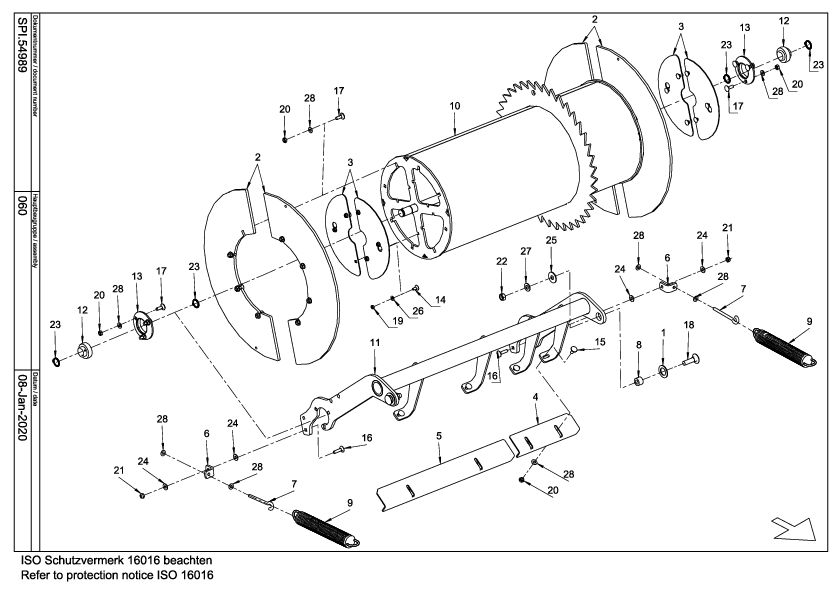

Parts by subassemblies

SPLIT WASHER

Quantity in assembly group: 2 Piece / Pos. 1

END PLATE

Quantity in assembly group: 4 Piece / Pos. 2

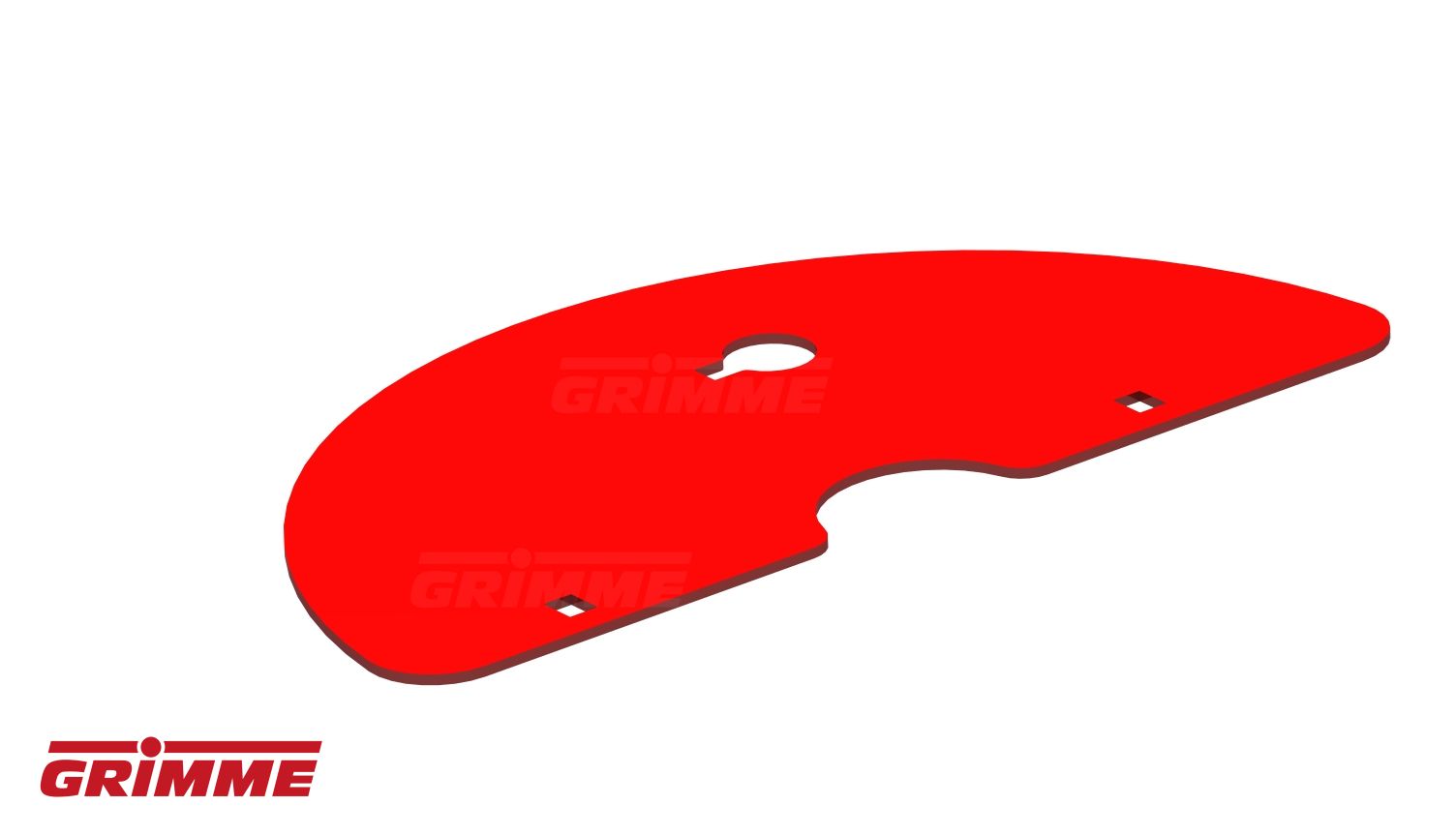

COVER

Quantity in assembly group: 4 Piece / Pos. 3

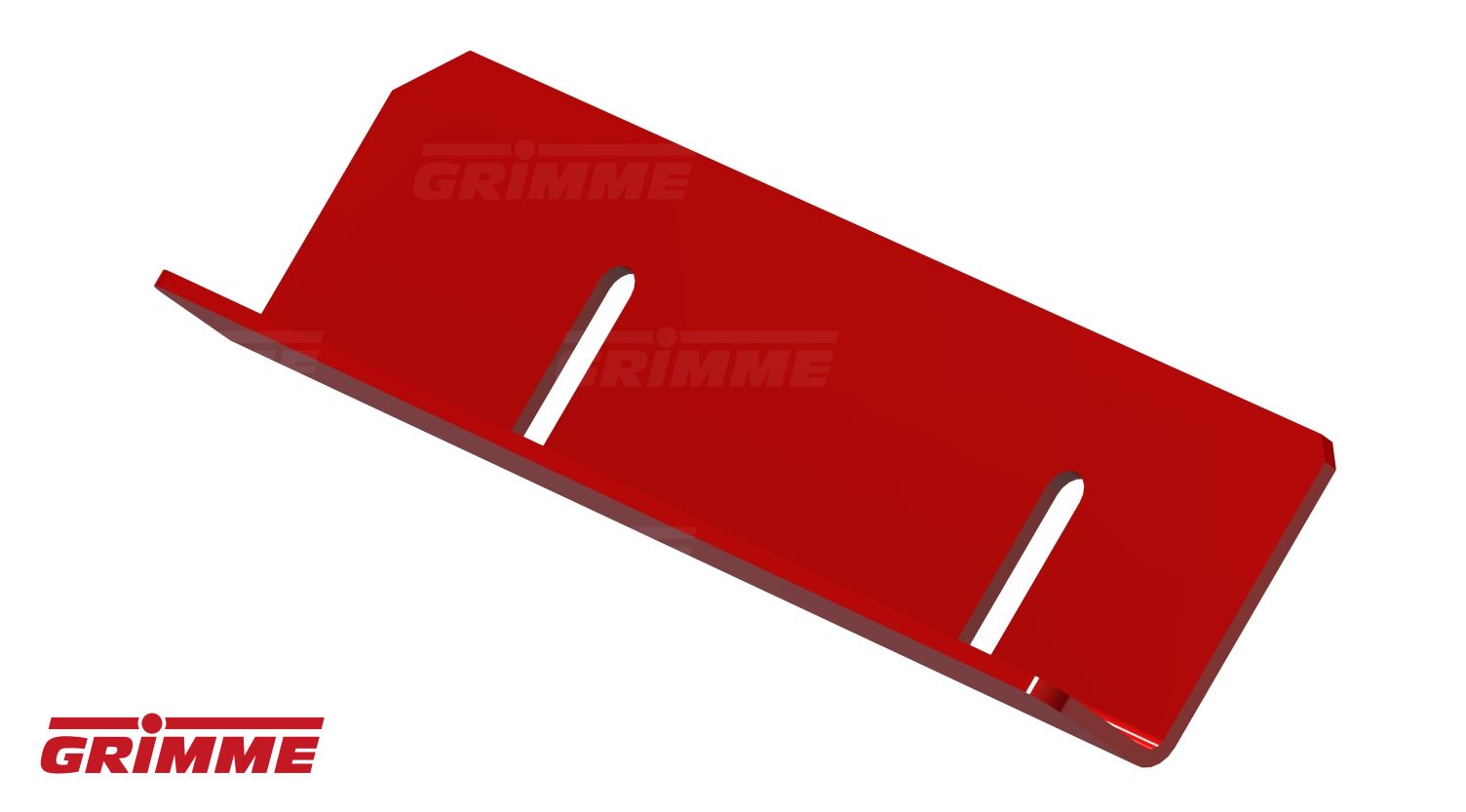

DIABLO SCRAPER SHORT

Quantity in assembly group: 1 Piece / Pos. 4

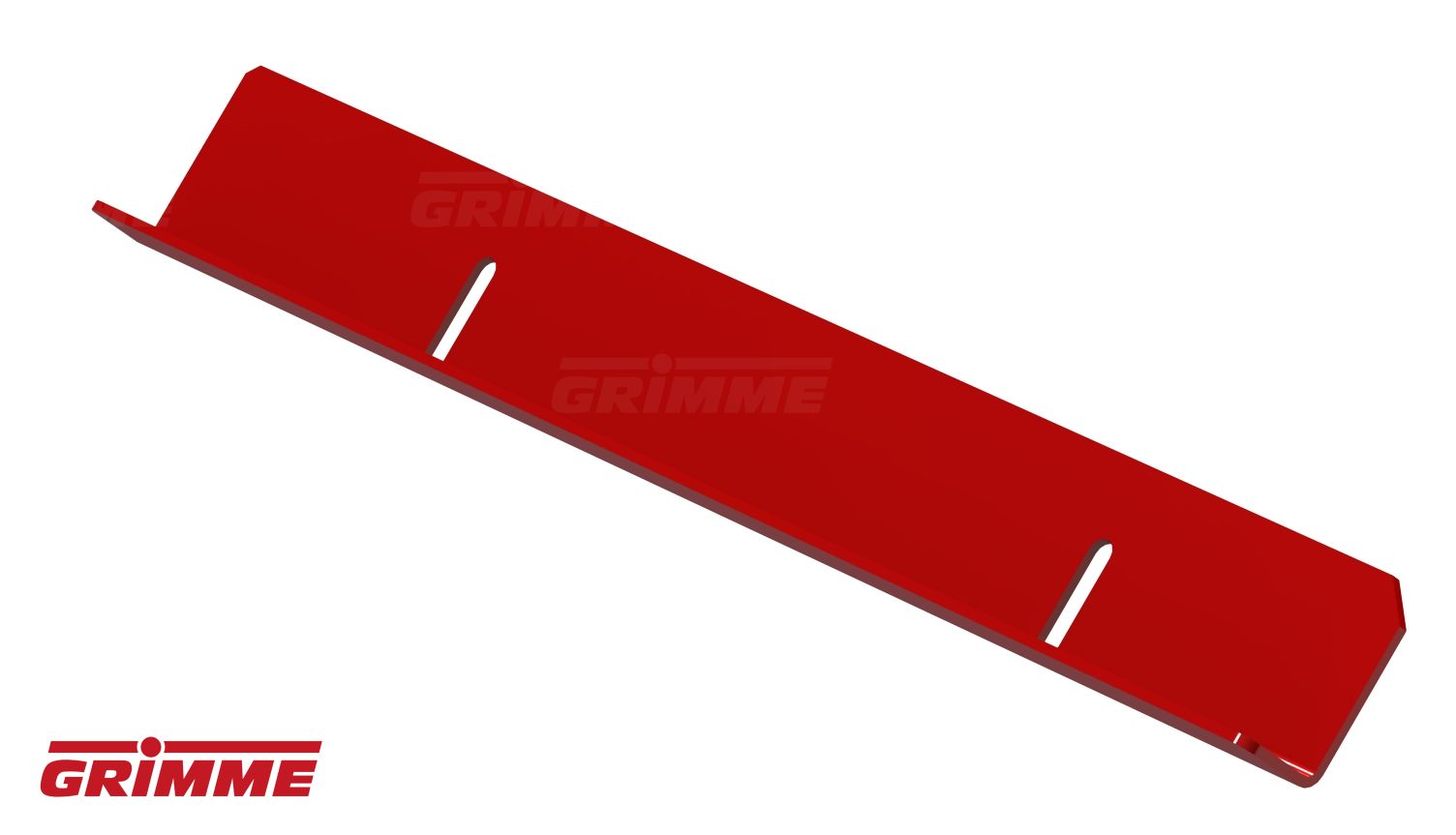

DIABLO SCRAPER LONG

Quantity in assembly group: 1 Piece / Pos. 5

MOUNTING ANGLE

Quantity in assembly group: 2 Piece / Pos. 6

EYELET SCREW

Quantity in assembly group: 2 Piece / Pos. 7

SPACER 20MM

Quantity in assembly group: 2 Piece / Pos. 8

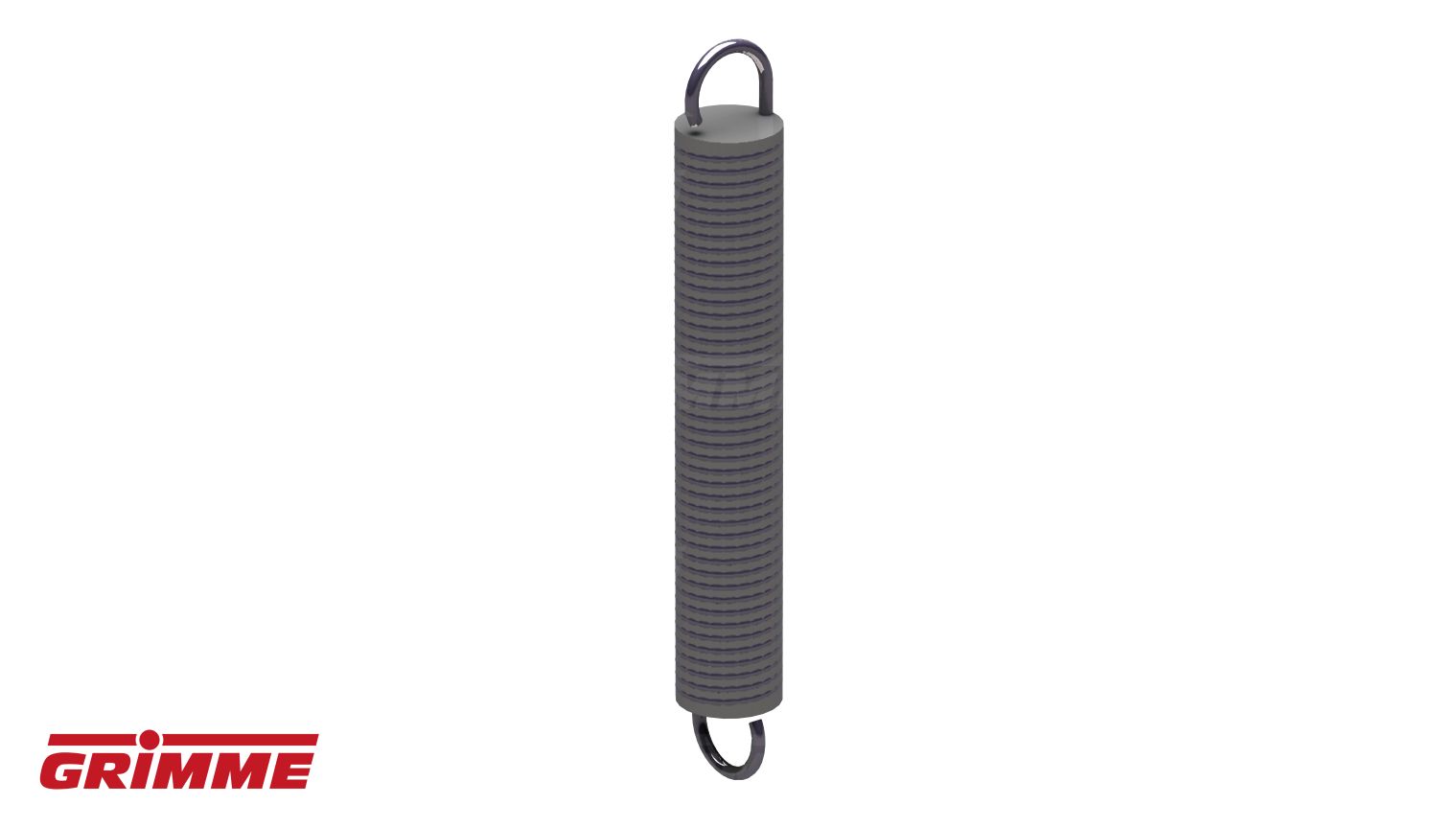

TENSION SPRING

Quantity in assembly group: 2 Piece / Pos. 9

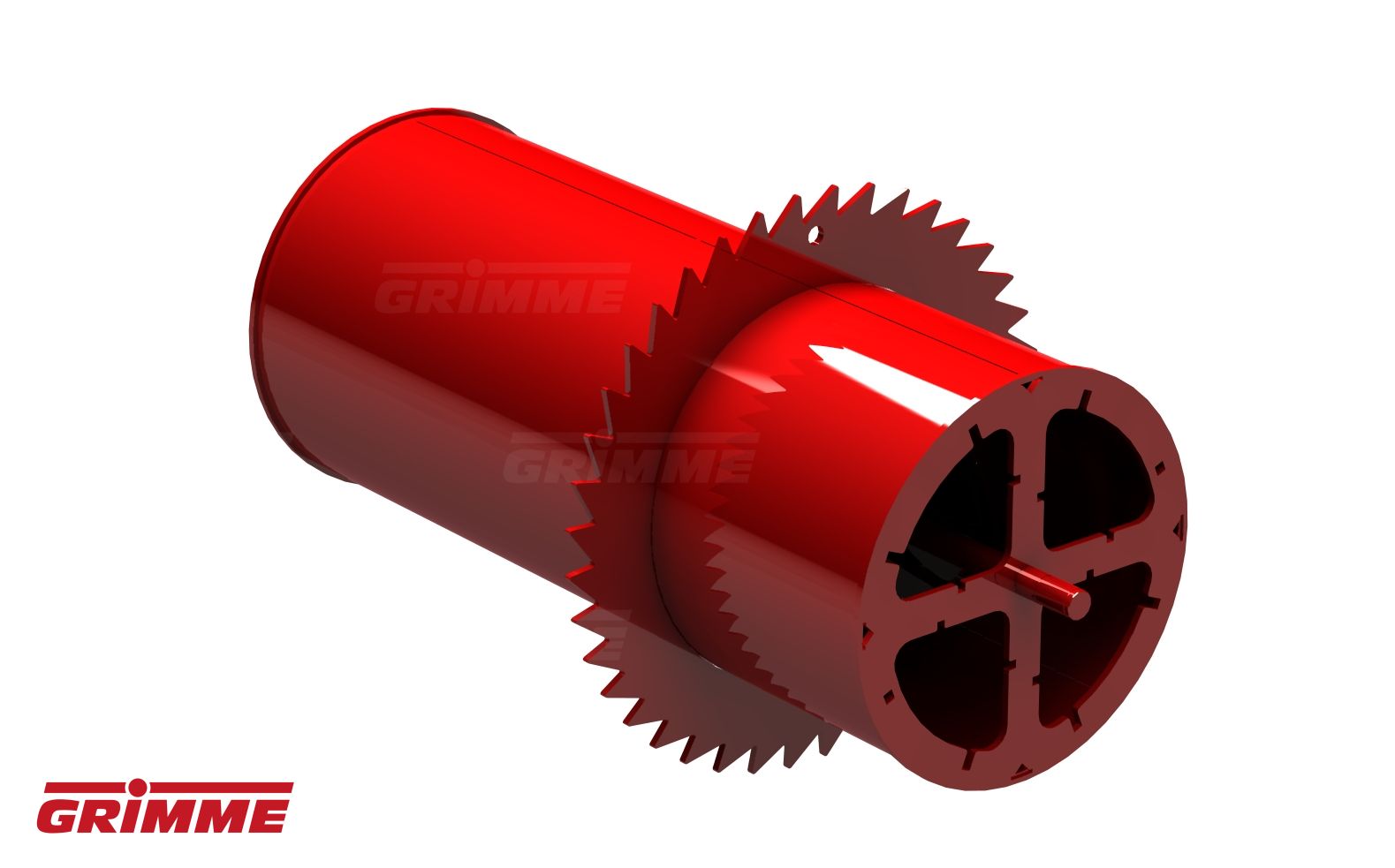

DIABLO ROLLER

Quantity in assembly group: 1 Piece / Pos. 10

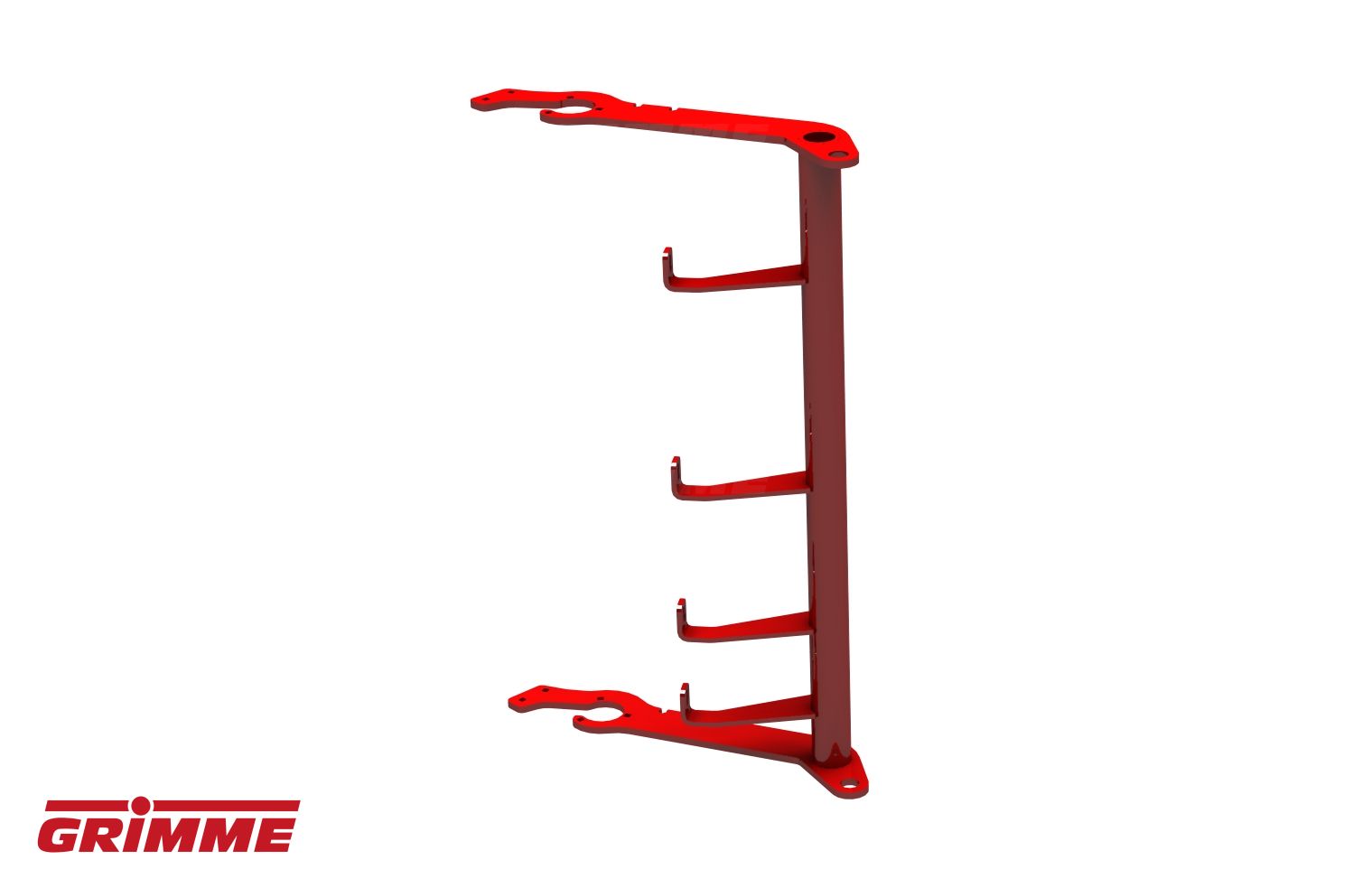

DIABLO FRAME

Quantity in assembly group: 1 Piece / Pos. 11

BEARING YAR 206-2RF/UC206

Quantity in assembly group: 2 Piece / Pos. 12

FLANGE PLATE (PR) PF62/PF206

Quantity in assembly group: 2 Piece / Pos. 13

COACH BOLT M8X20-603-8.8-GAL

Quantity in assembly group: 12 Piece / Pos. 14

MH-SCREW M10X25-603-8.8-GAL

Quantity in assembly group: 4 Piece / Pos. 15

MH-SCREW M10X40-603-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 16

MH-SCREW M10X30-603-8.8-GAL

Quantity in assembly group: 22 Piece / Pos. 17

COACH BOLT/LS M16X60-603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 18

HEXAGON NUT M8 DIN934-8-GAL

Quantity in assembly group: 12 Piece / Pos. 19

HEXAGON NUT M10 DIN934-8-GAL

Quantity in assembly group: 26 Piece / Pos. 20

NYLOC NUT DIN985-M10-8-GAL

Quantity in assembly group: 2 Piece / Pos. 21

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 2 Piece / Pos. 22

RETAINING RING AS 30X2 DIN471

Quantity in assembly group: 4 Piece / Pos. 23

PLAIN WASHER 11X25X2 GAL

Quantity in assembly group: 4 Piece / Pos. 24

PLAIN WASHER 17X44X3 GAL

Quantity in assembly group: 2 Piece / Pos. 25

CONTACT WASHER FORM M 8-GAL

Quantity in assembly group: 12 Piece / Pos. 26

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 2 Piece / Pos. 27

CONTACT WASHER FORM M 10-GAL

Quantity in assembly group: 30 Piece / Pos. 28
