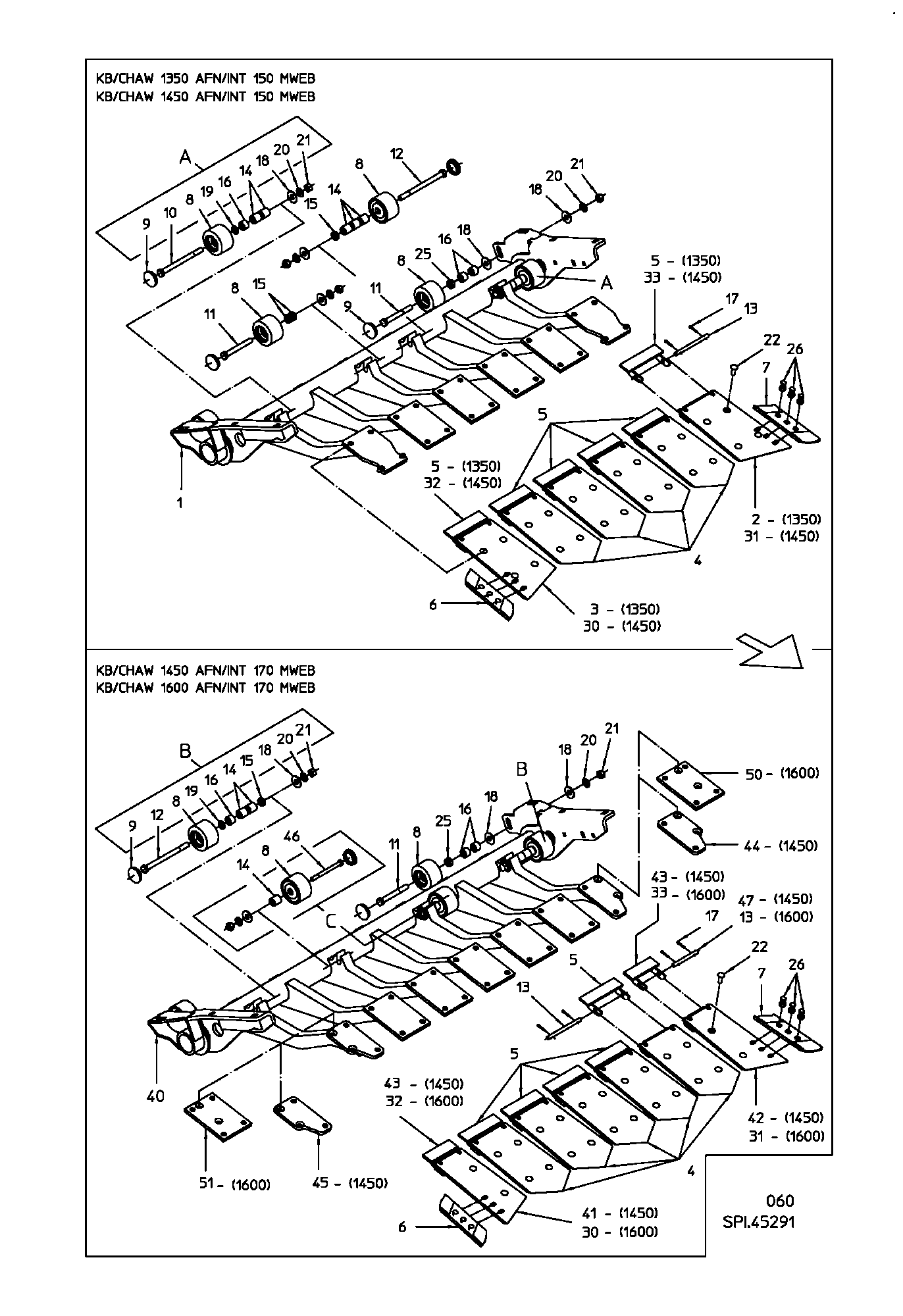

Parts by subassemblies

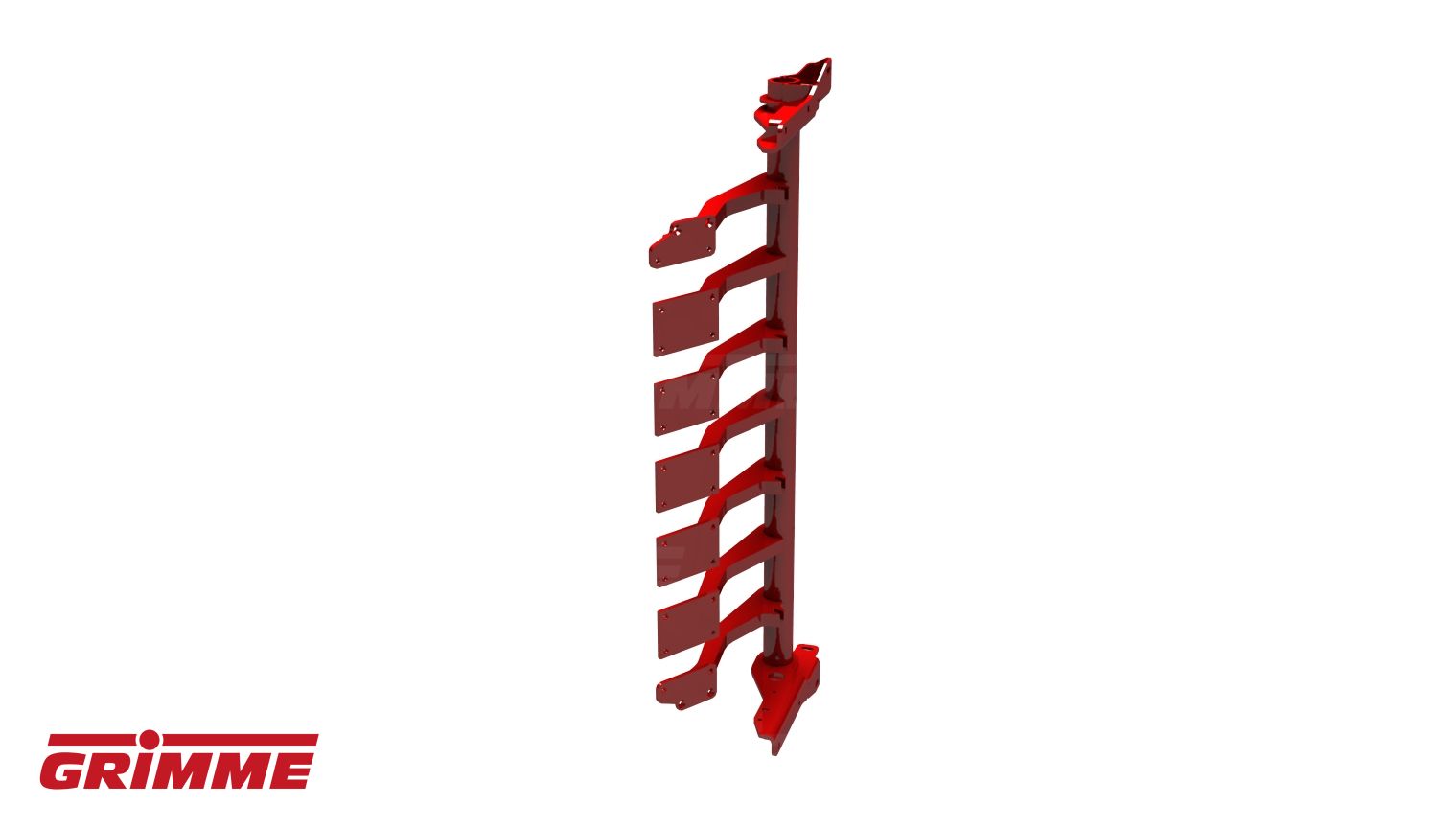

SHARE FRAME

Quantity in assembly group: 1 Piece / Pos. 1

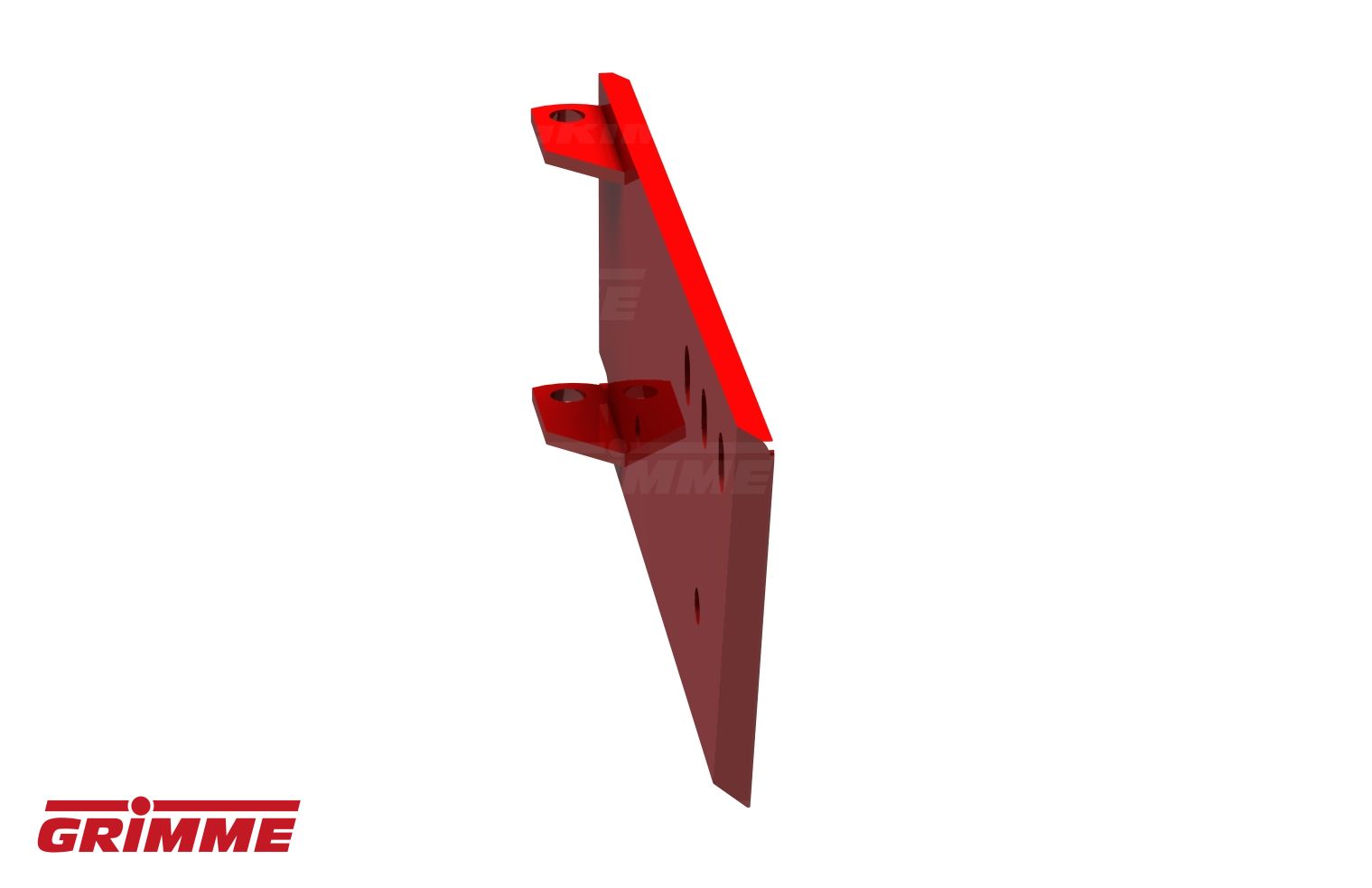

SHARE BLADE L/H

Quantity in assembly group: 1 Piece / Pos. 2

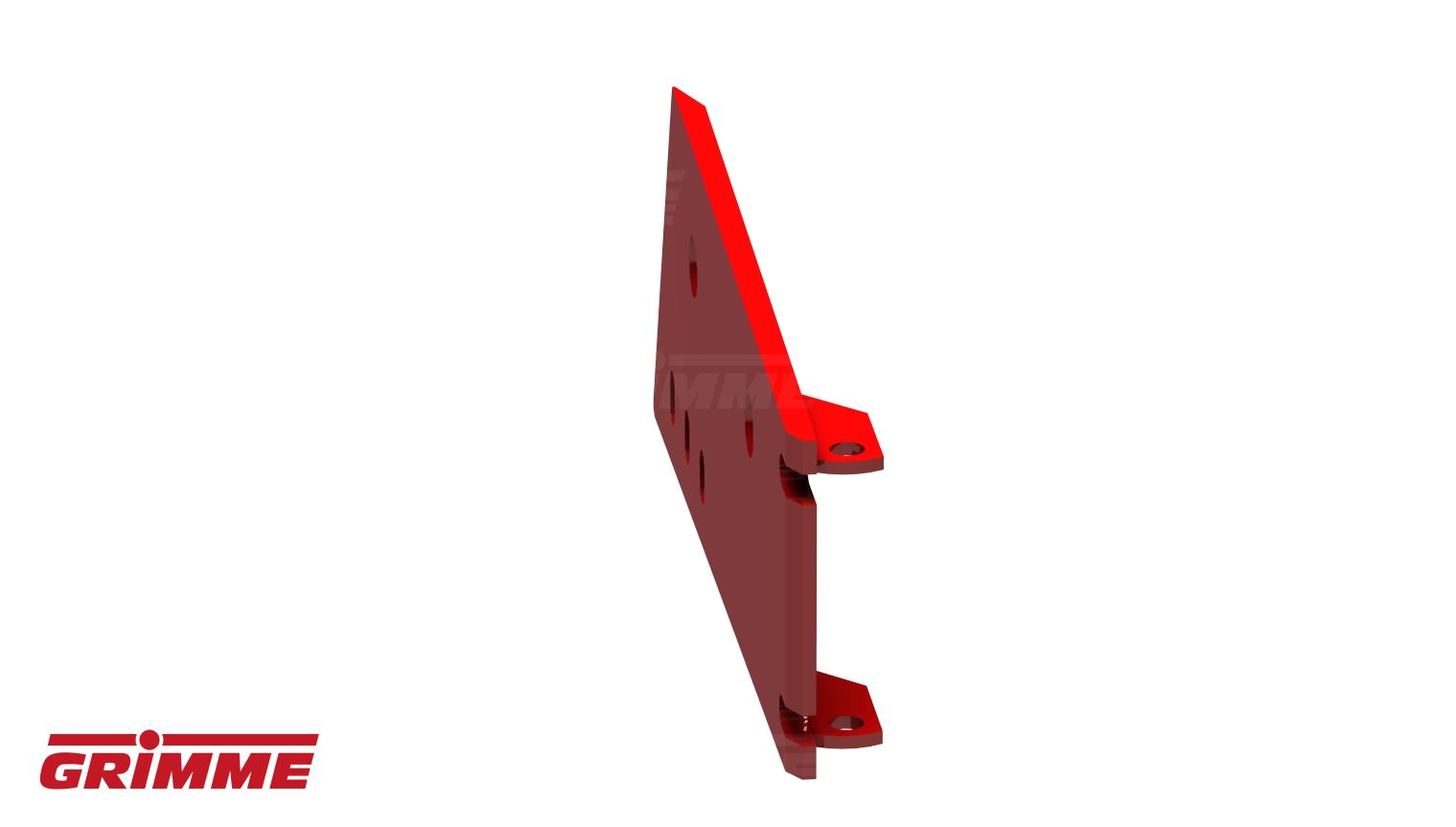

SHARE BLADE R/H

Quantity in assembly group: 1 Piece / Pos. 3

SHARE BLADE

Quantity in assembly group: 5 Piece / Pos. 4

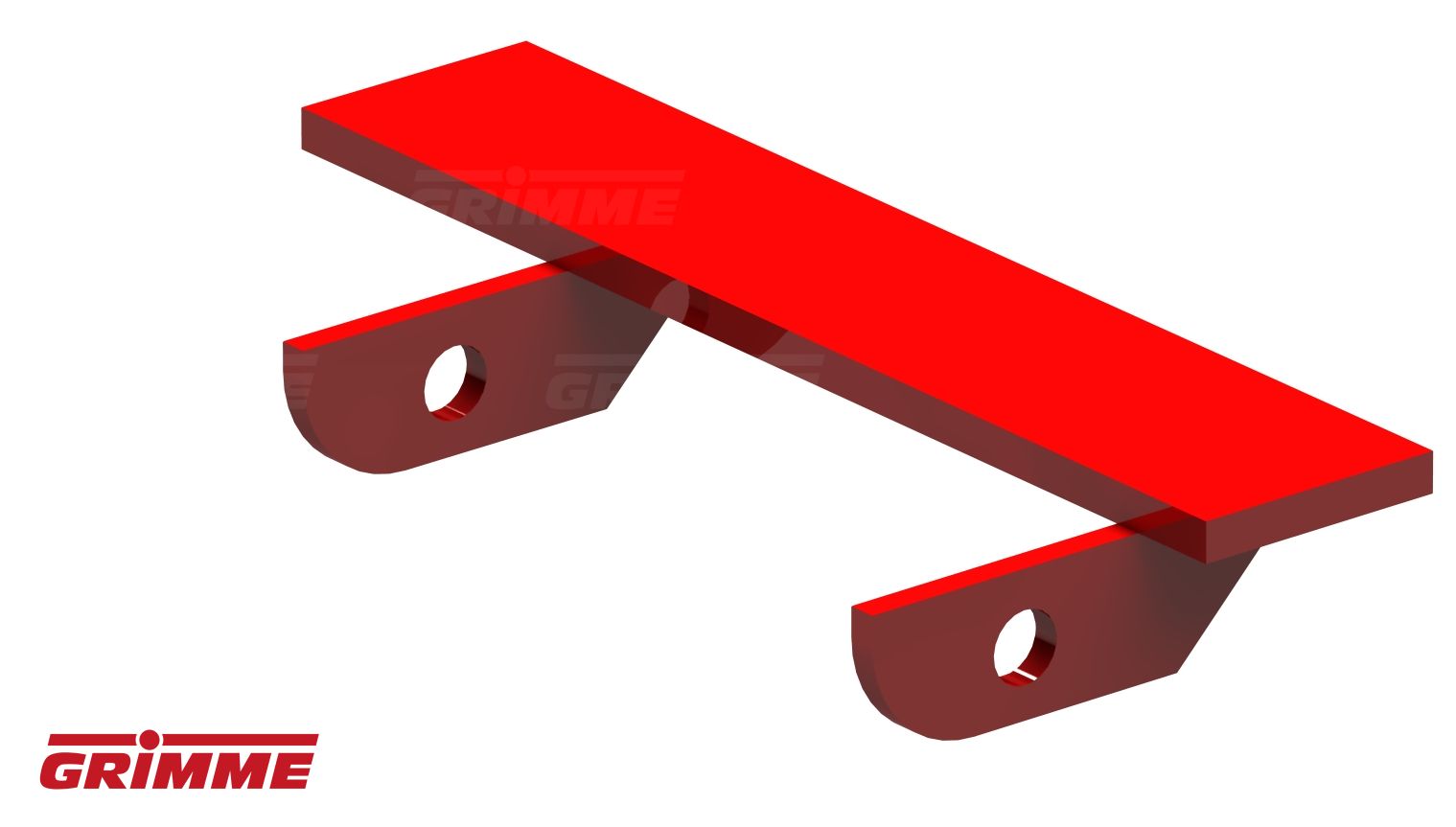

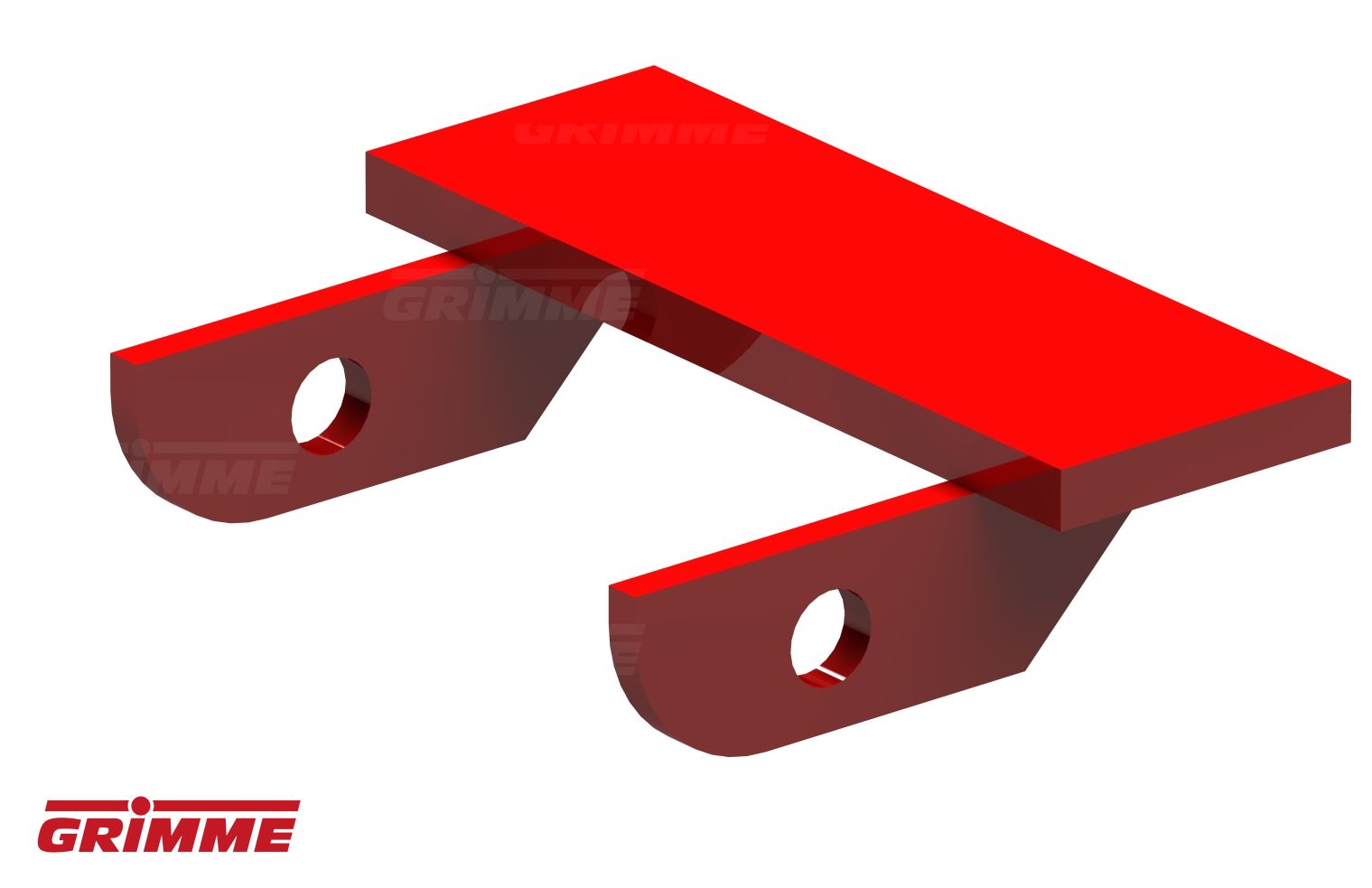

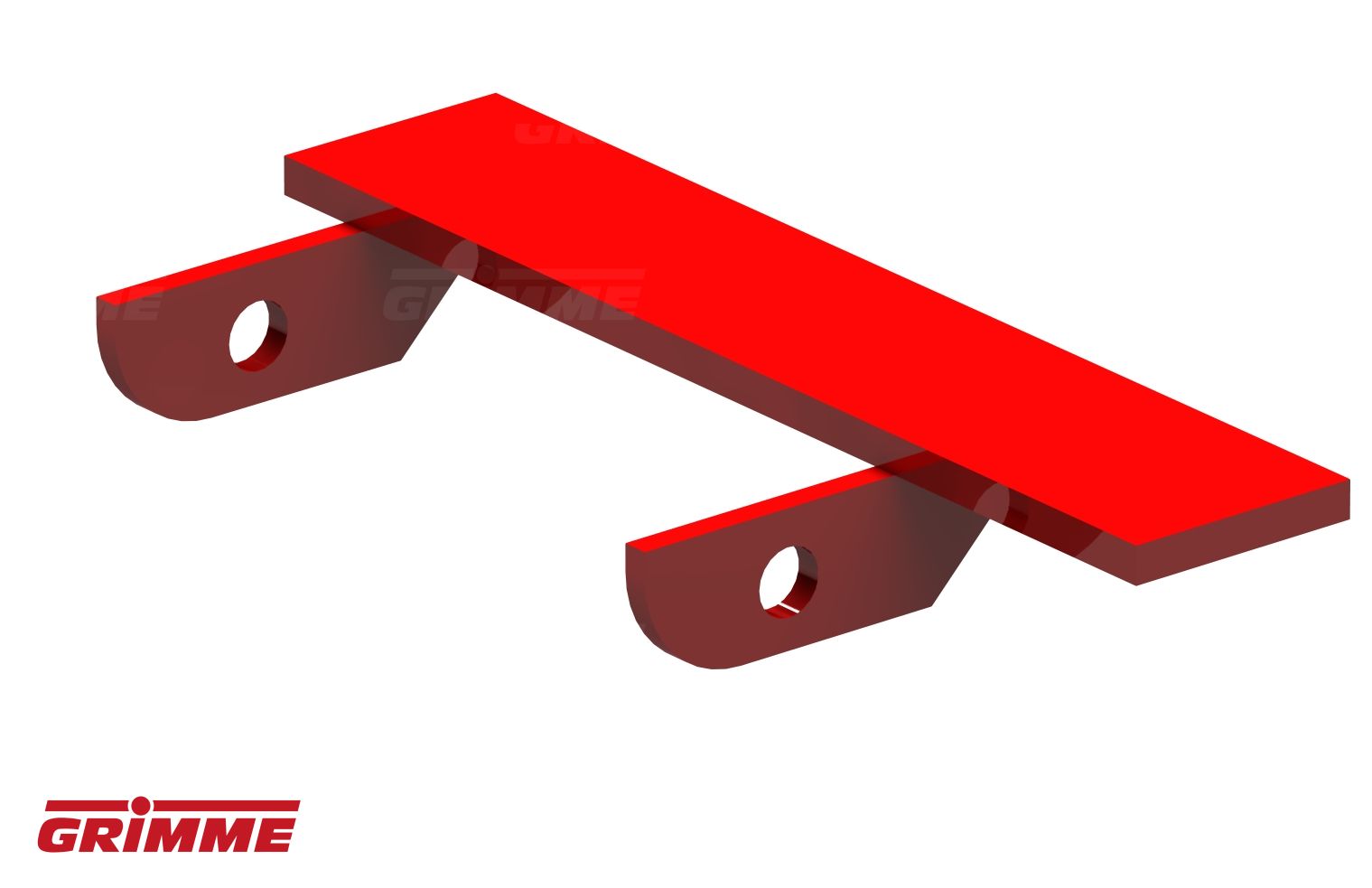

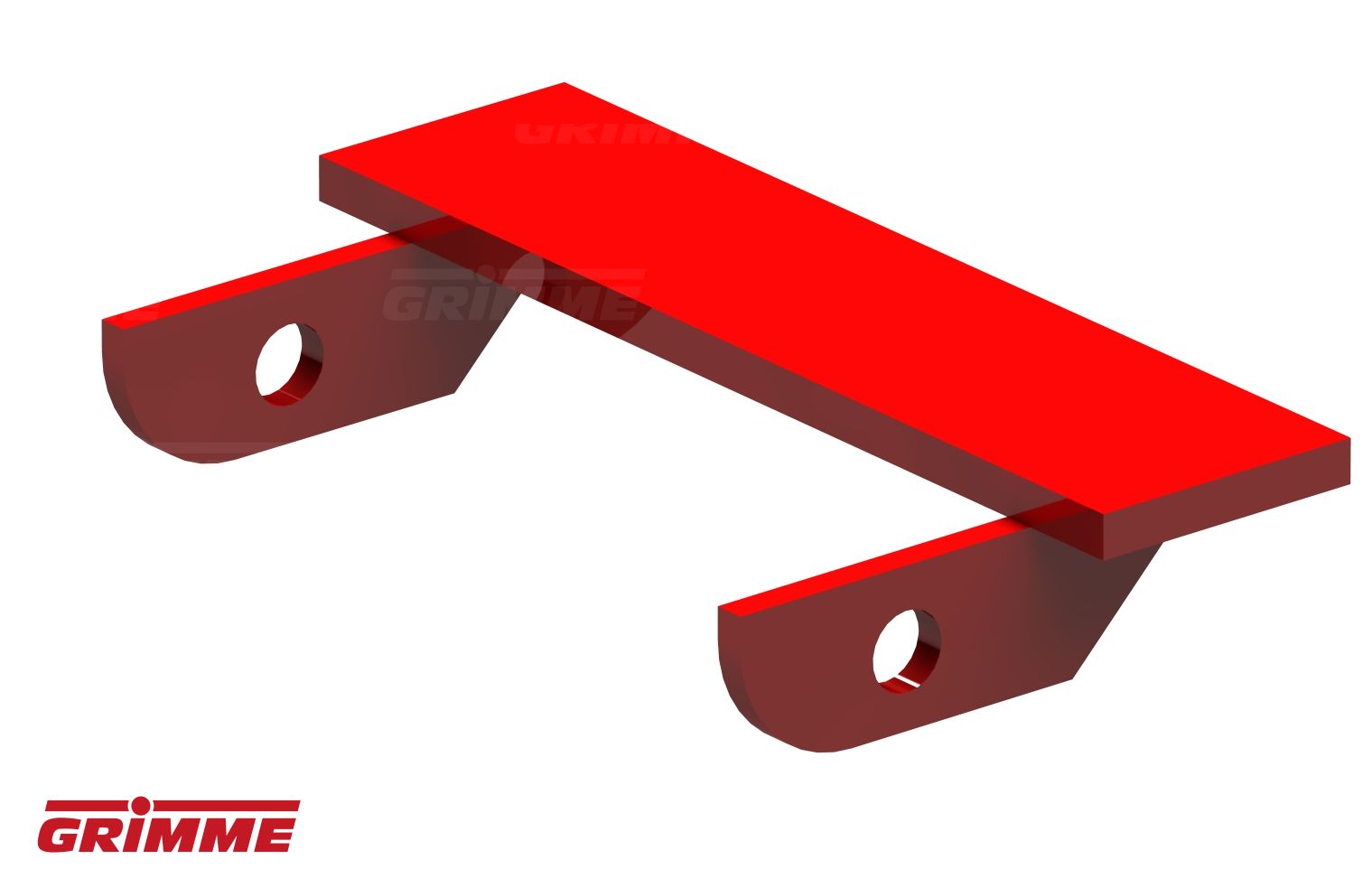

SHARE FLAP

Quantity in assembly group: 5 Piece / Pos. 5

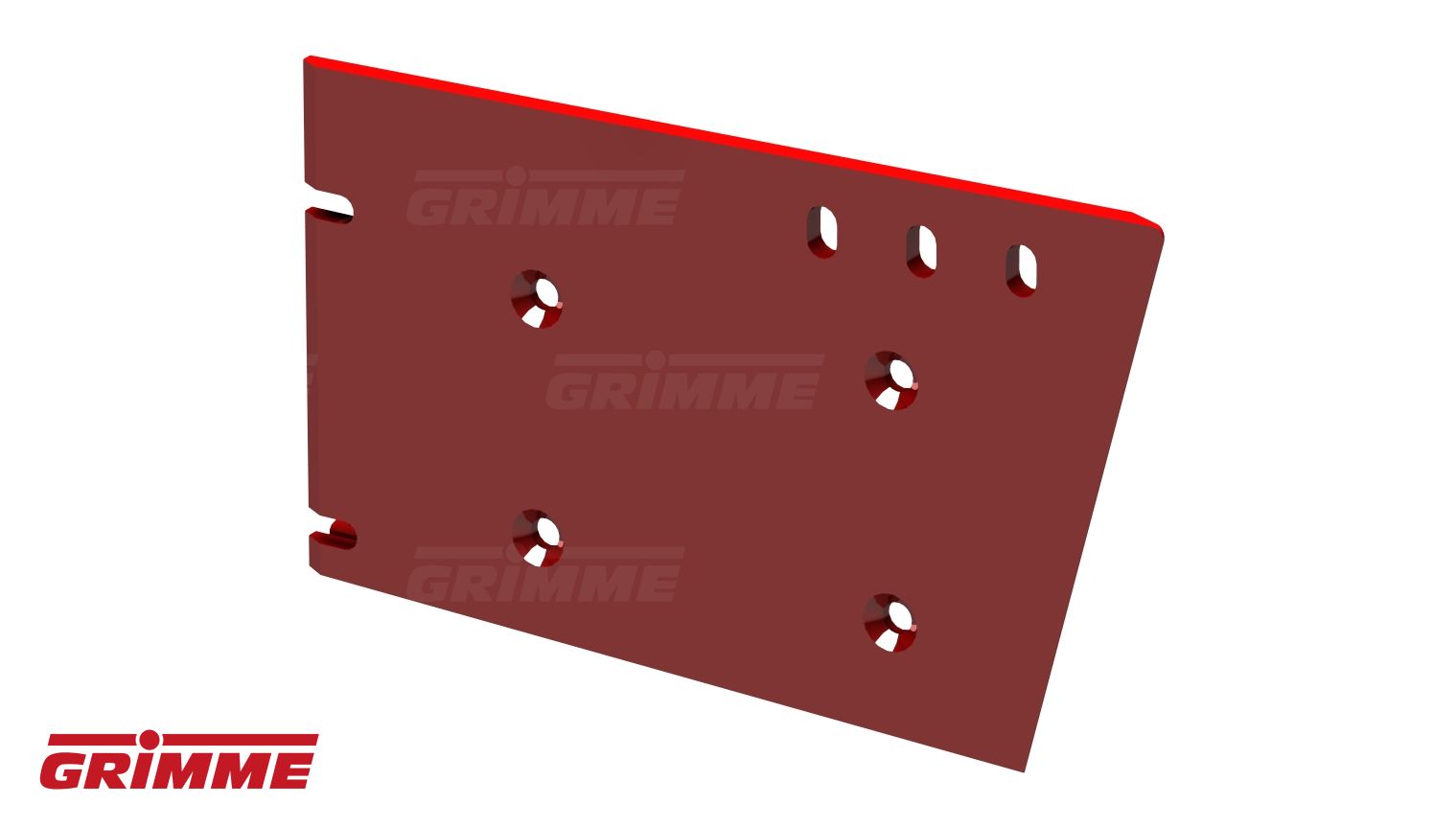

WEAR PLATE L/H

Quantity in assembly group: 1 Piece / Pos. 6

WEAR PLATE R/H

Quantity in assembly group: 1 Piece / Pos. 7

SUPPORT ROLLER D95

Quantity in assembly group: 6 Piece / Pos. 8

ROLLER CAP

Quantity in assembly group: 6 Piece / Pos. 9

HHC-SCREW M16X200 931-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 10

HEX BOLT M16X130-DIN931-8.8-G

Quantity in assembly group: 4 Piece / Pos. 11

HHC-SCREW M16X210 931-10.9flZn

Quantity in assembly group: 1 Piece / Pos. 12

COTTER BOLT

Quantity in assembly group: 6 Piece / Pos. 13

SPACER 16,5X30X30

Quantity in assembly group: 7 Piece / Pos. 14

DISC

Quantity in assembly group: 3 Piece / Pos. 15

SPACER 20MM

Quantity in assembly group: 6 Piece / Pos. 16

COTTER PIN 4X25 DIN94-GAL

Quantity in assembly group: 12 Piece / Pos. 17

PLAIN WASHER 17X44X3 GAL

Quantity in assembly group: 8 Piece / Pos. 18

DISC 16,5X30X3

Quantity in assembly group: 2 Piece / Pos. 19

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 4 Piece / Pos. 20

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 4 Piece / Pos. 21

CSK ALLEN SCREW M12X35-DIN7991

Quantity in assembly group: 24 Piece / Pos. 22

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 24 Piece / Pos. 23

HEXAGON NUT M12 DIN934-8-GAL

Quantity in assembly group: 24 Piece / Pos. 24

SPACER PIECE 16,5X30X10

Quantity in assembly group: 2 Piece / Pos. 25

SHARE BOLT NUT M12X35

Quantity in assembly group: 6 Piece / Pos. 26

SHARE BLADE R/H

Quantity in assembly group: 1 Piece / Pos. 30

SHARE BLADE L/H

Quantity in assembly group: 1 Piece / Pos. 31

SHARE FLAP OUTER R/H

Quantity in assembly group: 1 Piece / Pos. 32

SHARE FLAP OUTER L/H

Quantity in assembly group: 1 Piece / Pos. 33

SHARE FRAME 170 MWV LONG

Quantity in assembly group: 1 Piece / Pos. 40

SHARE BLADE R/H

Quantity in assembly group: 1 Piece / Pos. 41

SHARE BLADE L/H

Quantity in assembly group: 1 Piece / Pos. 42

SHARE FLAP

Quantity in assembly group: 2 Piece / Pos. 43

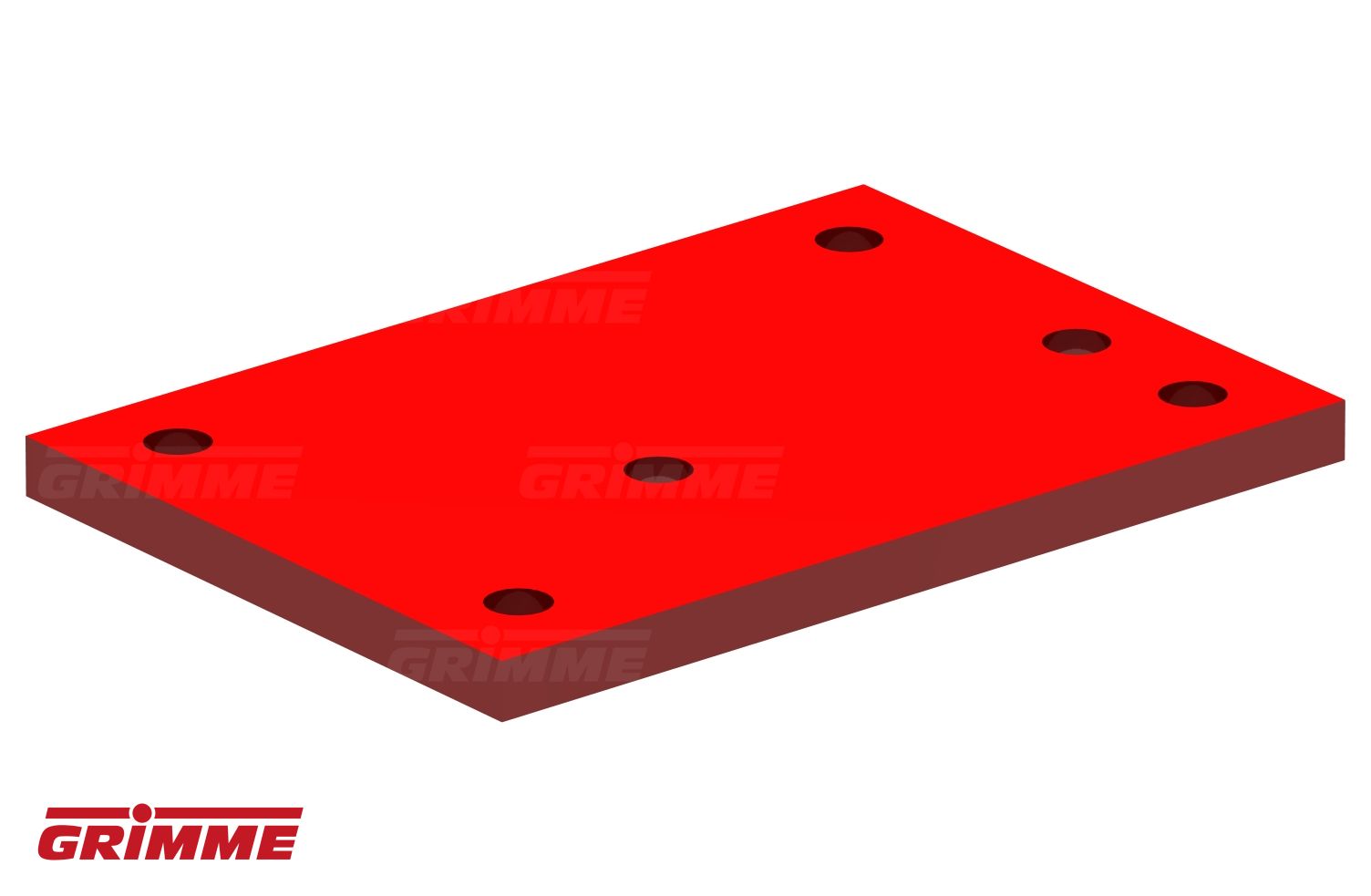

FLANGE PLATE

Quantity in assembly group: 1 Piece / Pos. 44

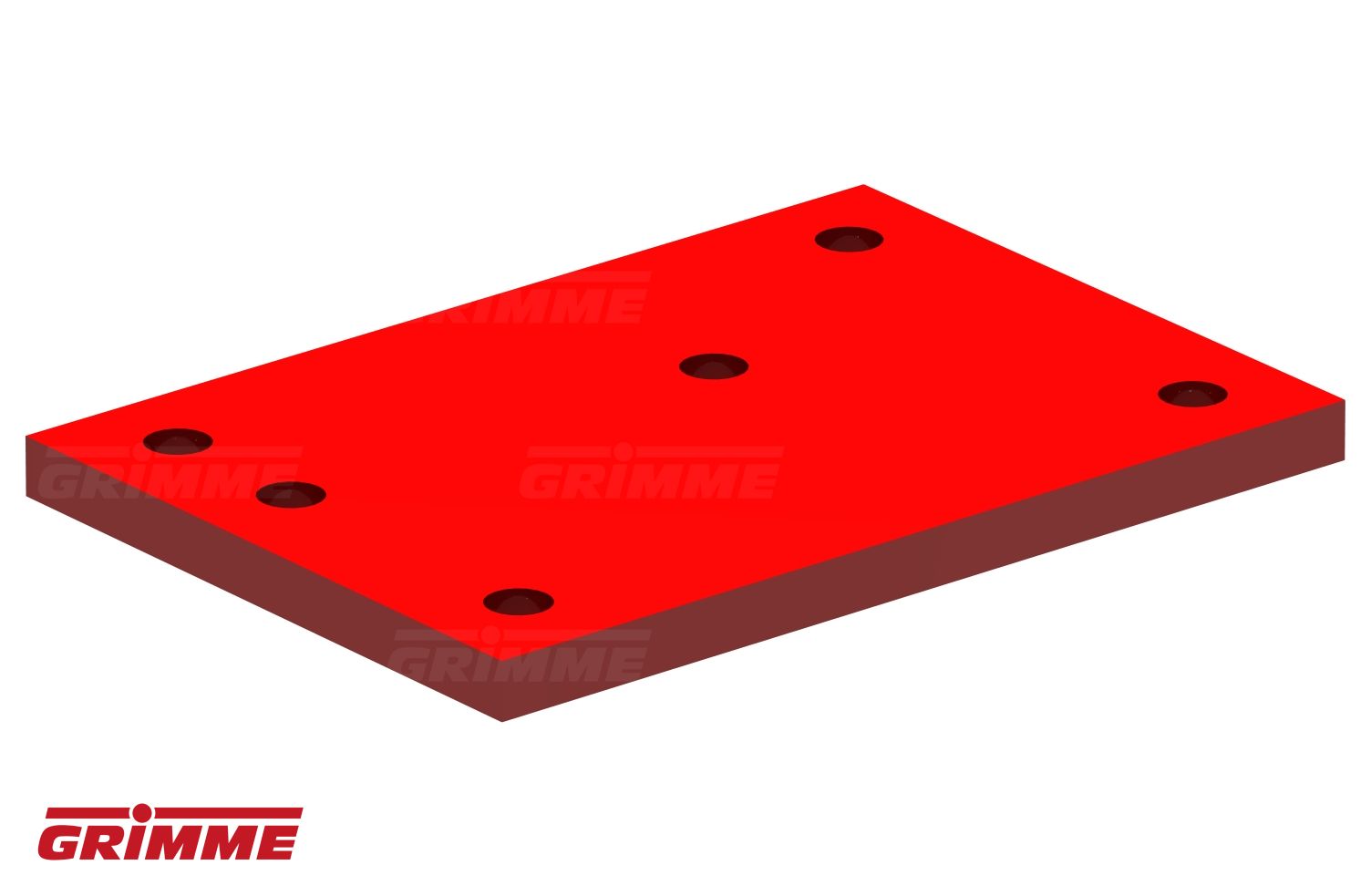

FLANGE PLATE

Quantity in assembly group: 1 Piece / Pos. 45

HEX BOLT M12X140-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 46

COTTER BOLT

Quantity in assembly group: 2 Piece / Pos. 47

FLANGE PLATE

Quantity in assembly group: 1 Piece / Pos. 50

FLANGE PLATE

Quantity in assembly group: 1 Piece / Pos. 51
