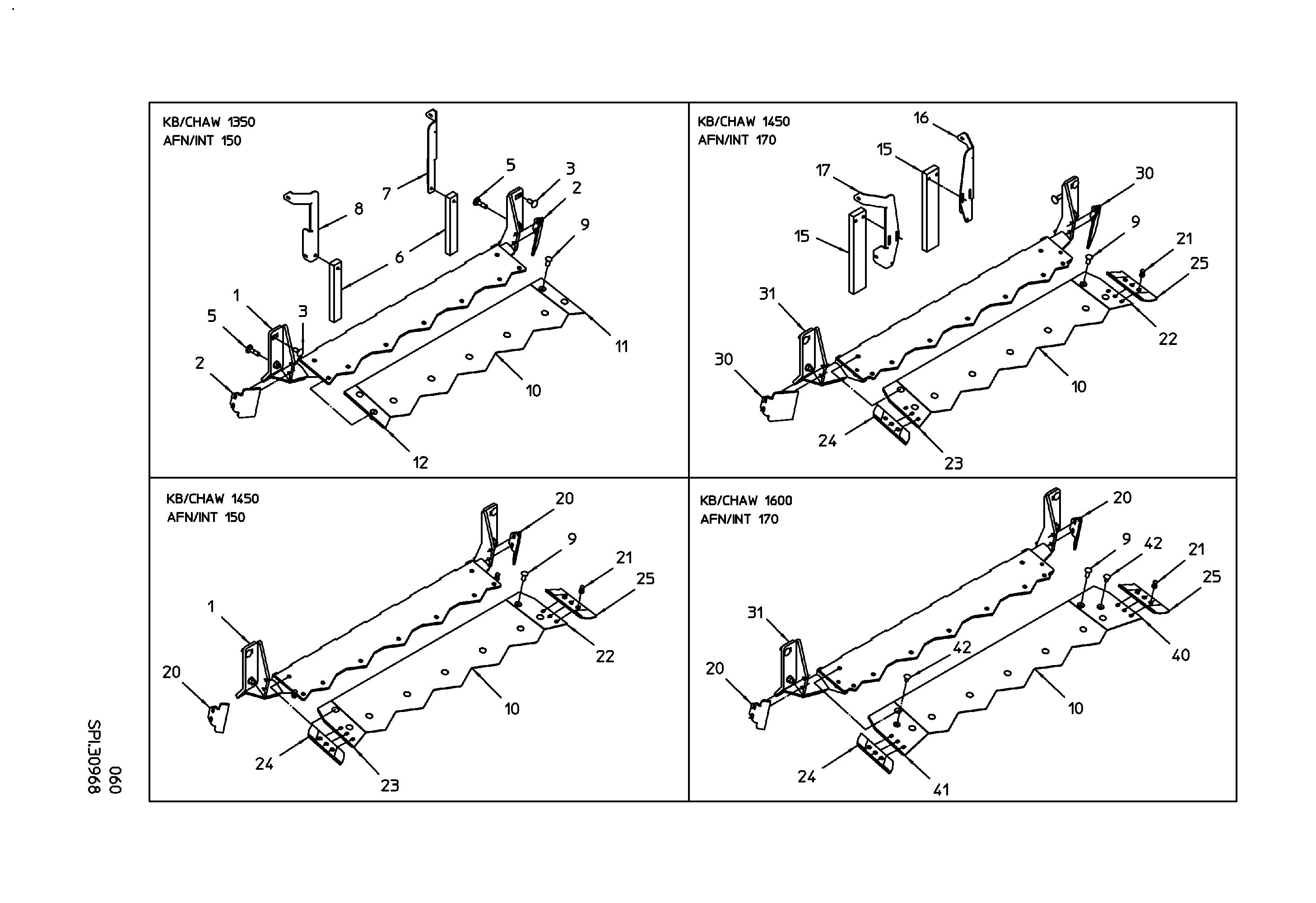

Parts by subassemblies

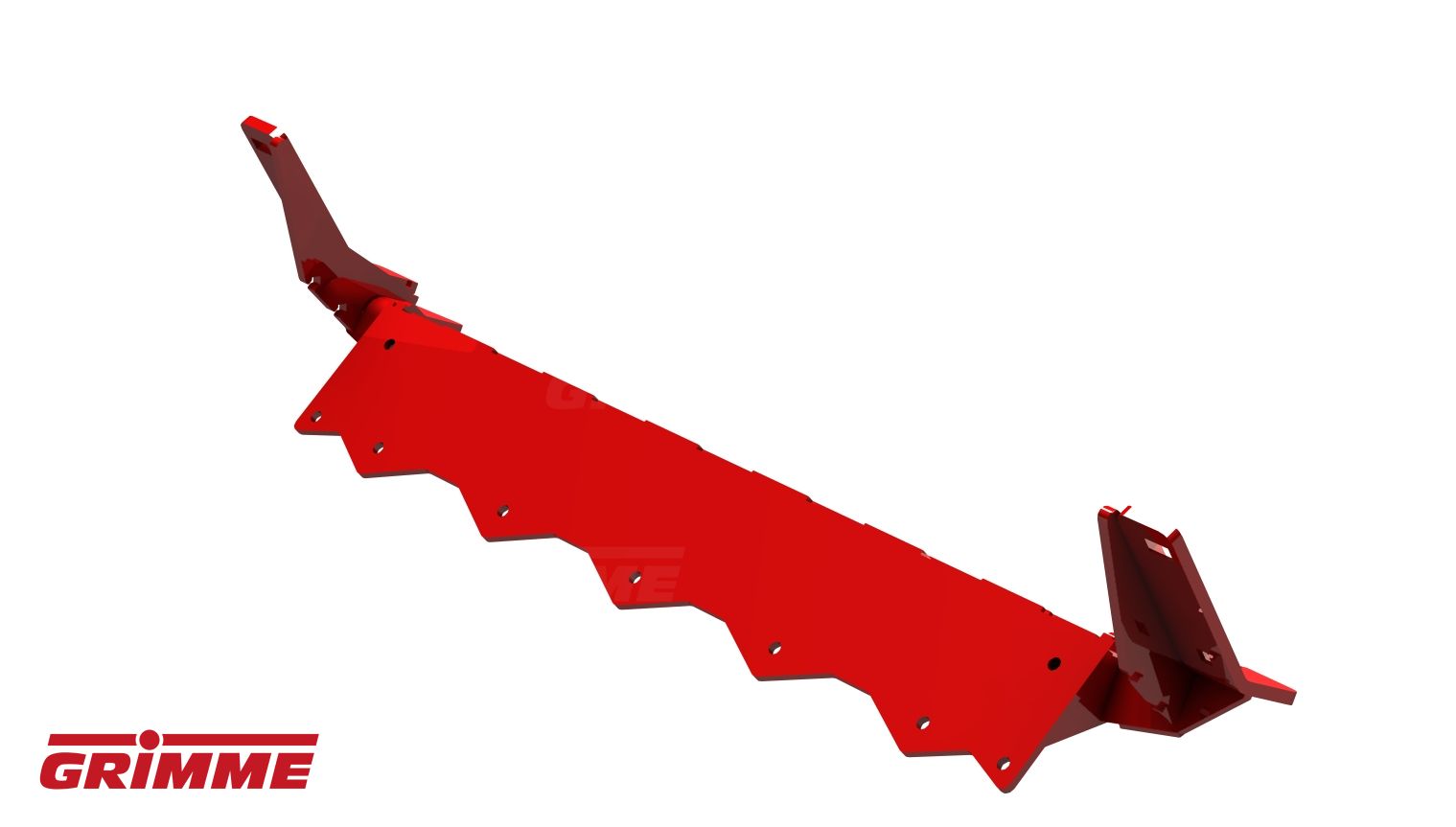

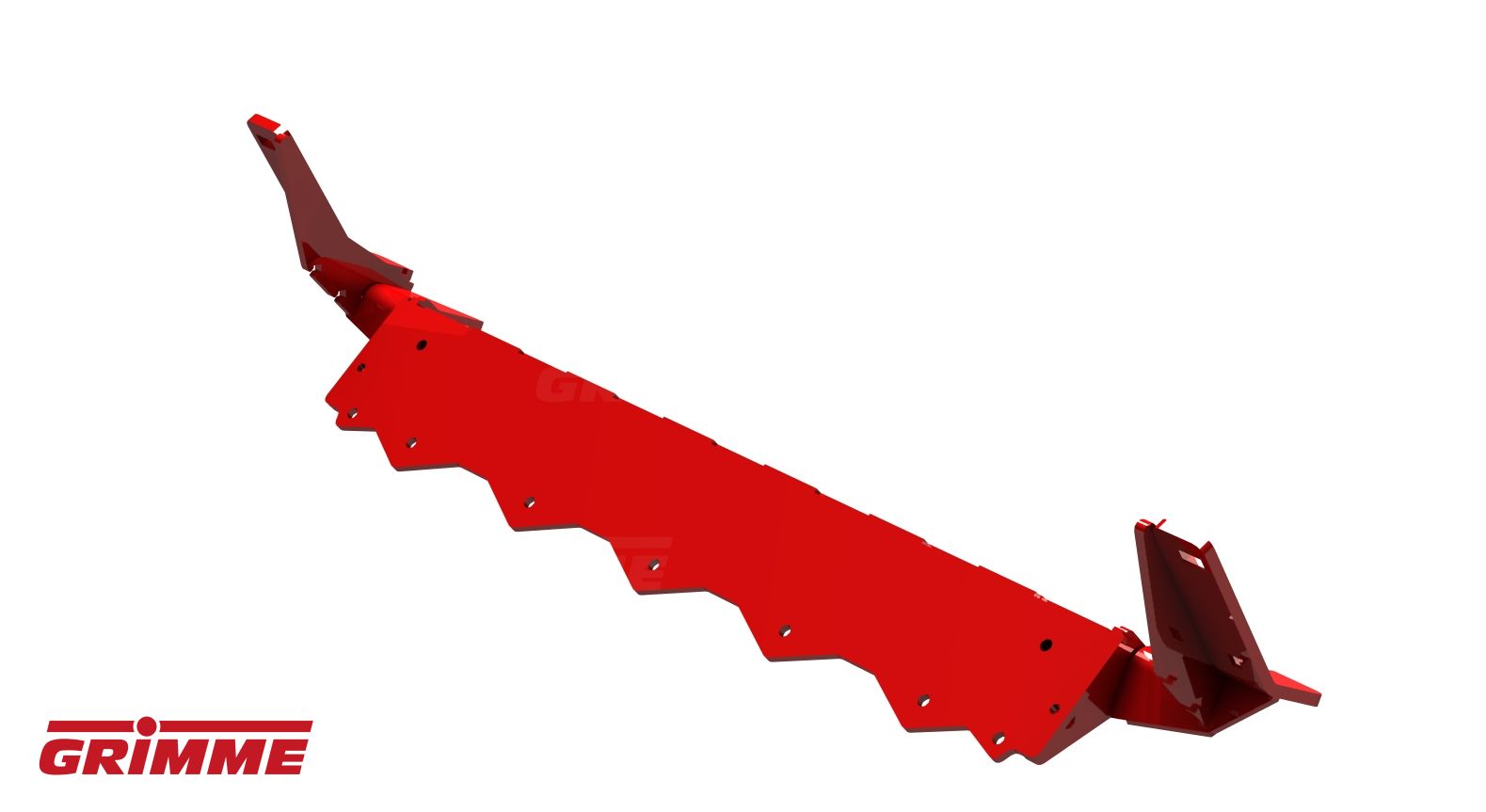

SHARE FRAME CS150 FW

Quantity in assembly group: 1 Piece / Pos. 1

SCRAPER

Quantity in assembly group: 2 Piece / Pos. 2

COACH BOLT M16X40-DIN603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 3

COACH BOLT/LS M16X60-603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 5

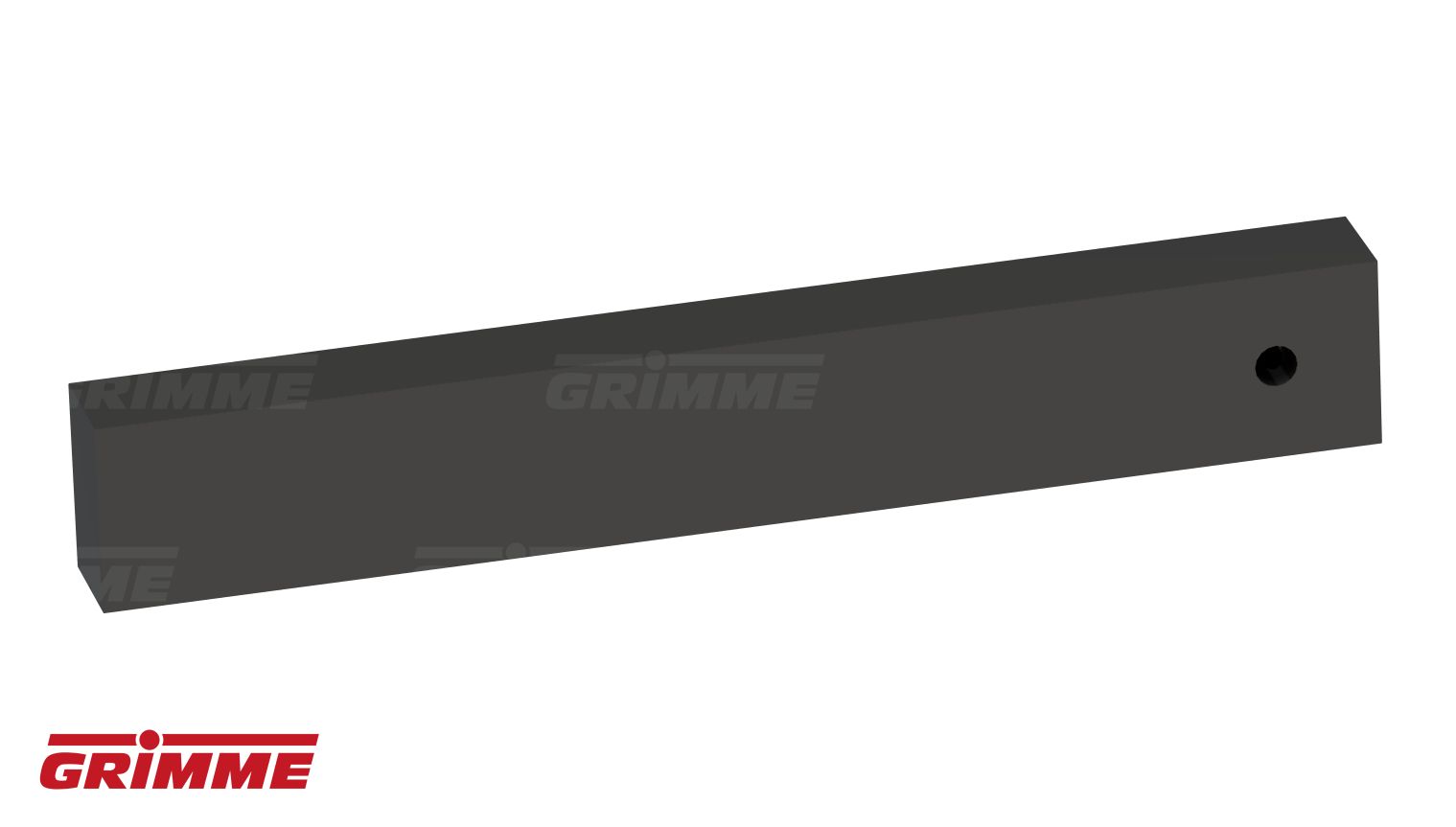

RUBBER DEFLECTOR

Quantity in assembly group: 2 Piece / Pos. 6

BRACKET L/H

Quantity in assembly group: 1 Piece / Pos. 7

BRACKET R/H

Quantity in assembly group: 1 Piece / Pos. 8

CS-SCREW M16X40 DIN7991

Quantity in assembly group: 9 Piece / Pos. 9

SHARE PLATE

Quantity in assembly group: 1 Piece / Pos. 10

SHARE PLATE L/H 1350

Quantity in assembly group: 1 Piece / Pos. 11

SHARE PLATE R/H 1350

Quantity in assembly group: 1 Piece / Pos. 12

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 11 Piece / Pos. 13

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 11 Piece / Pos. 14

RUBBER PLATE FOR SCOCL

Quantity in assembly group: 2 Piece / Pos. 15

BRACKET L/H

Quantity in assembly group: 1 Piece / Pos. 16

BRACKET R/H

Quantity in assembly group: 1 Piece / Pos. 17

SCRAPER

Quantity in assembly group: 2 Piece / Pos. 20

SHARE BOLT NUT M12X35

Quantity in assembly group: 6 Piece / Pos. 21

SHARE PLATE L/H 1450

Quantity in assembly group: 1 Piece / Pos. 22

SHARE PLATE R/H 1450

Quantity in assembly group: 1 Piece / Pos. 23

WEAR PLATE L/H

Quantity in assembly group: 1 Piece / Pos. 24

WEAR PLATE R/H

Quantity in assembly group: 1 Piece / Pos. 25

SCRAPER CS170

Quantity in assembly group: 2 Piece / Pos. 30

SHARE FRAME CS170 FW

Quantity in assembly group: 1 Piece / Pos. 31

SHARE PLATE L/H 1600

Quantity in assembly group: 1 Piece / Pos. 40

SHARE PLATE R/H 1600

Quantity in assembly group: 1 Piece / Pos. 41

CSK ALLEN SCREW M16X25 7991

Quantity in assembly group: 2 Piece / Pos. 42
