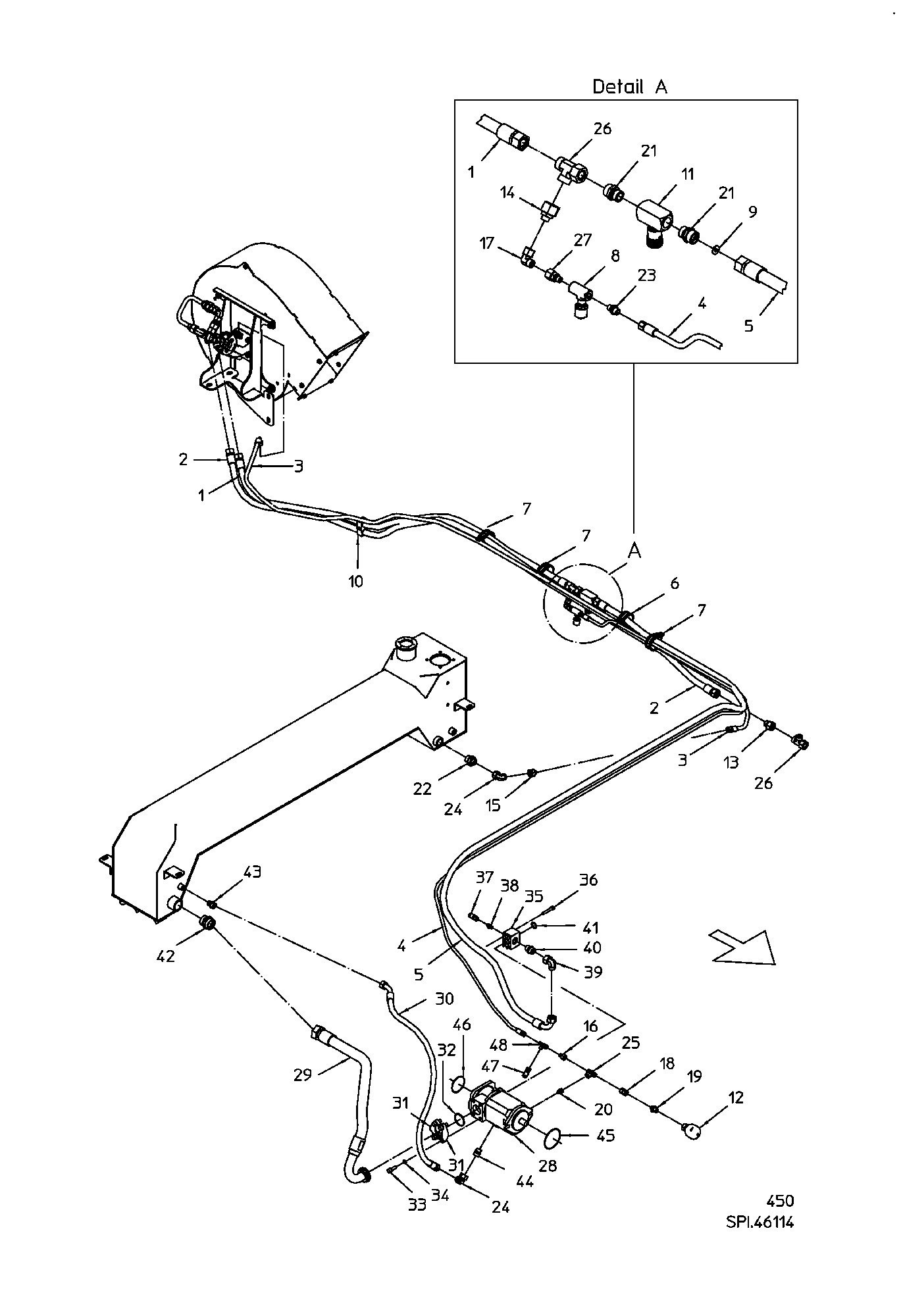

Parts by subassemblies

HY-SCHLAUCH-2400-NW20-287BAR

Quantity in assembly group: 1 Piece / Pos. 1

HYD HOSE-3200-NW20-2SC-287BAR

Quantity in assembly group: 1 Piece / Pos. 2

HOSE-4300-NW10-2SC-375BAR

Quantity in assembly group: 1 Piece / Pos. 3

HYD HOSE 4400-NW6-420BAR

Quantity in assembly group: 1 Piece / Pos. 4

HOSE-4200-NW20-2SC-280BAR

Quantity in assembly group: 1 Piece / Pos. 5

PIPE CLAMP RSGU1100 50/25

Quantity in assembly group: 1 Piece / Pos. 6

PIPE CLAMP RSGU1100 60/25

Quantity in assembly group: 3 Piece / Pos. 7

REDUCER CHECK VALVE R1/4"

Quantity in assembly group: 1 Piece / Pos. 8

THROTTLE DISC DM22/dm7,5

Quantity in assembly group: 1 Piece / Pos. 9

TUBE HOLDER D28-28

Quantity in assembly group: 1 Piece / Pos. 10

VARIABLE RESTRICTOR 9N 1200

Quantity in assembly group: 1 Piece / Pos. 11

ACCUMULATOR 0,075L-250 GAV=72B

Quantity in assembly group: 1 Piece / Pos. 12

P-REDS 22/18L-SV

Quantity in assembly group: 2 Piece / Pos. 13

P-REDS 22/12L-SV

Quantity in assembly group: 1 Piece / Pos. 14

P-REDS 18/12L-SV

Quantity in assembly group: 1 Piece / Pos. 15

P-REDS 12/8L-SV

Quantity in assembly group: 1 Piece / Pos. 16

P-EWS 12L-SV

Quantity in assembly group: 1 Piece / Pos. 17

STRAIGHT CONNECTION SNV 12L

Quantity in assembly group: 1 Piece / Pos. 18

P-GES 12L/R1/2

Quantity in assembly group: 1 Piece / Pos. 19

GE12L7/16UNFOMDCF

Quantity in assembly group: 1 Piece / Pos. 20

GE22LREDOMDCF

Quantity in assembly group: 2 Piece / Pos. 21

GE18LR1EDOMDCF

Quantity in assembly group: 1 Piece / Pos. 22

GE08LREDOMDCF

Quantity in assembly group: 1 Piece / Pos. 23

P-EWS 18L-SV

Quantity in assembly group: 3 Piece / Pos. 24

P-ETS 12L-SV

Quantity in assembly group: 1 Piece / Pos. 25

P-ELS 22L-SV

Quantity in assembly group: 4 Piece / Pos. 26

P-EGES 12L/R1/4-WD-SV

Quantity in assembly group: 1 Piece / Pos. 27

VARIABLE DISPLACEMENT PUMP

Quantity in assembly group: 1 Piece / Pos. 28

SUCTION TUBE-930-DN40-17A-10

Quantity in assembly group: 1 Piece / Pos. 29

HOSE-1200-NW16-2SC-300BAR

Quantity in assembly group: 1 Piece / Pos. 30

FLANGE VALVES 2" 3000 P.S.I

Quantity in assembly group: 2 Piece / Pos. 31

O-RING 56,74X3,53 SAE2" NBR90

Quantity in assembly group: 1 Piece / Pos. 32

CAP HEADED ALLEN BOLT 12X35

Quantity in assembly group: 4 Piece / Pos. 33

BLOCKING DISC SKZ 12-GAL

Quantity in assembly group: 4 Piece / Pos. 34

PUMP FLANGE 3/4" L

Quantity in assembly group: 1 Piece / Pos. 35

SHC-SCREW 912 M10X60-8.8 GAL

Quantity in assembly group: 4 Piece / Pos. 36

GE08LMEDOMDCF

Quantity in assembly group: 1 Piece / Pos. 38

P-EWS 22L-SV

Quantity in assembly group: 1 Piece / Pos. 39

GE22LMEDOMDCF

Quantity in assembly group: 1 Piece / Pos. 40

O-RING FOR SAE-FLANGE 3/4"

Quantity in assembly group: 1 Piece / Pos. 41

GE42LREDOMDCF

Quantity in assembly group: 1 Piece / Pos. 42

GE18LREDOMDCF

Quantity in assembly group: 1 Piece / Pos. 43

P-GES 18L 7/8-14UNF

Quantity in assembly group: 1 Piece / Pos. 44

O-RING 100X3 DIN3771 NBR70

Quantity in assembly group: 1 Piece / Pos. 45

O-RING 80,0X2,5 DIN3771 NBR70

Quantity in assembly group: 1 Piece / Pos. 46

COUPLING SMK 20-8L-PK

Quantity in assembly group: 1 Piece / Pos. 47

P-ELS 8L-SV

Quantity in assembly group: 1 Piece / Pos. 48
