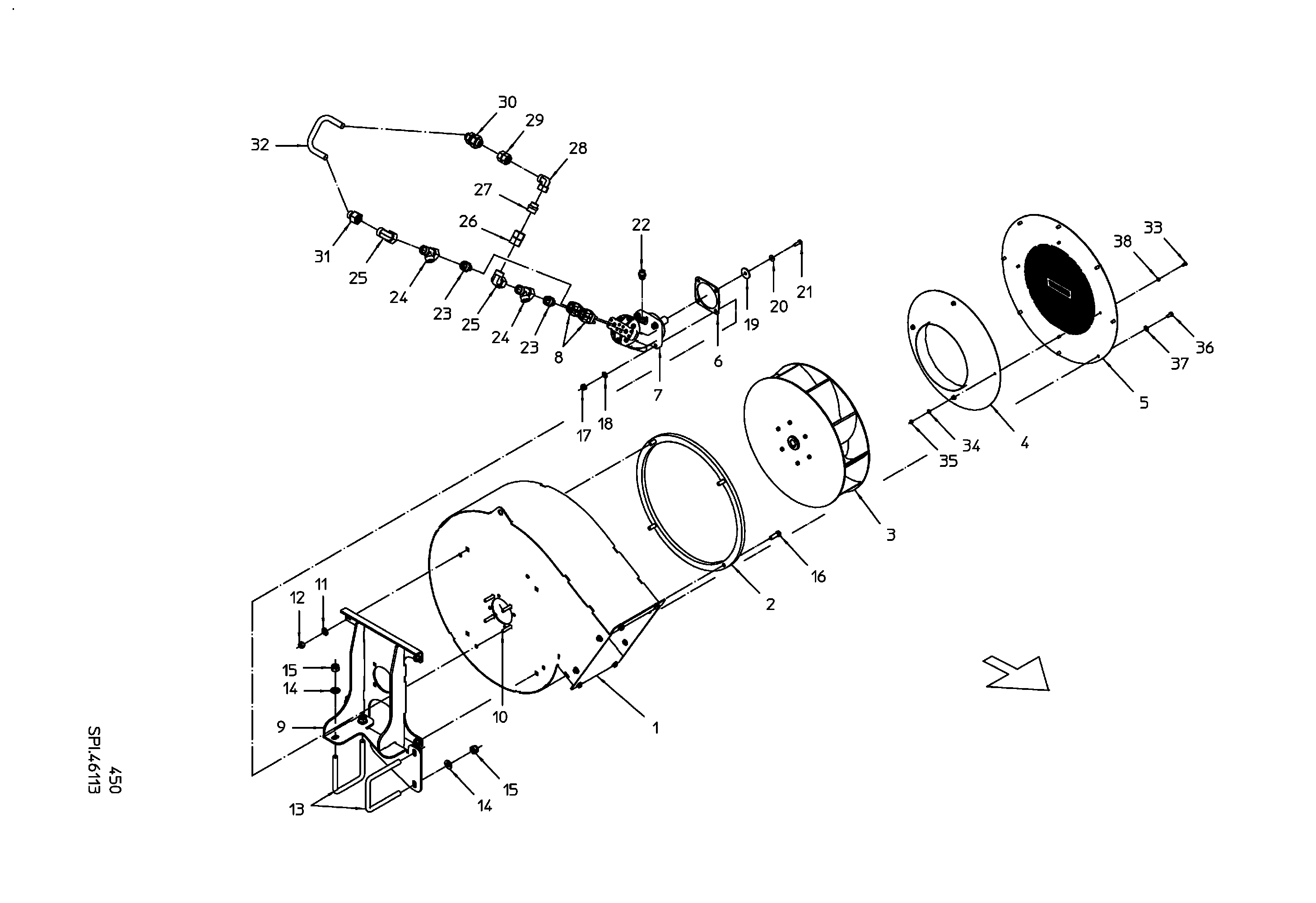

Parts by subassemblies

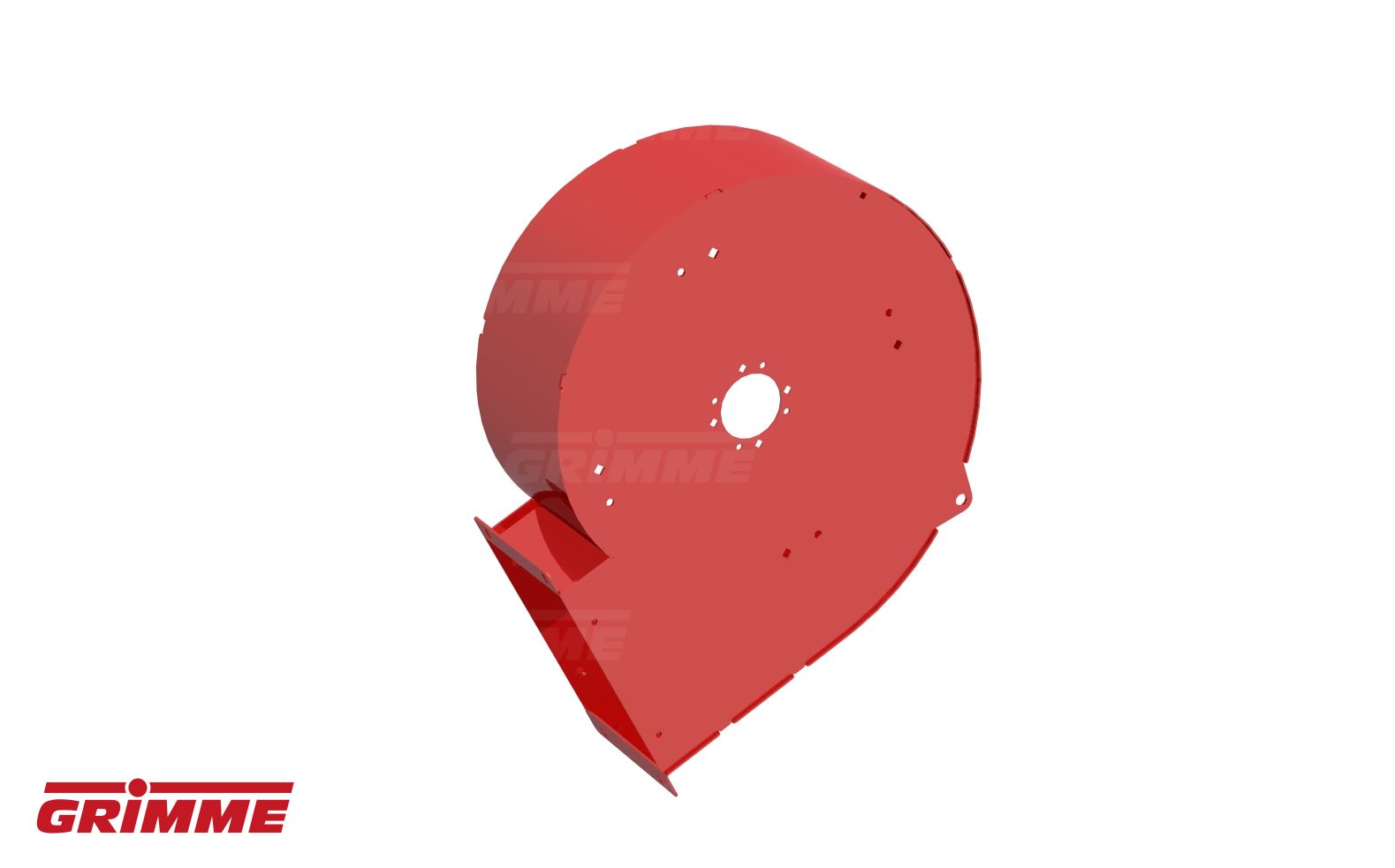

CASING

Quantity in assembly group: 1 Piece / Pos. 1

REINFORCING RING

Quantity in assembly group: 1 Piece / Pos. 2

TURBINE WHEEL HLB56 500X118-L

Quantity in assembly group: 1 Piece / Pos. 3

NOZZLE

Quantity in assembly group: 1 Piece / Pos. 4

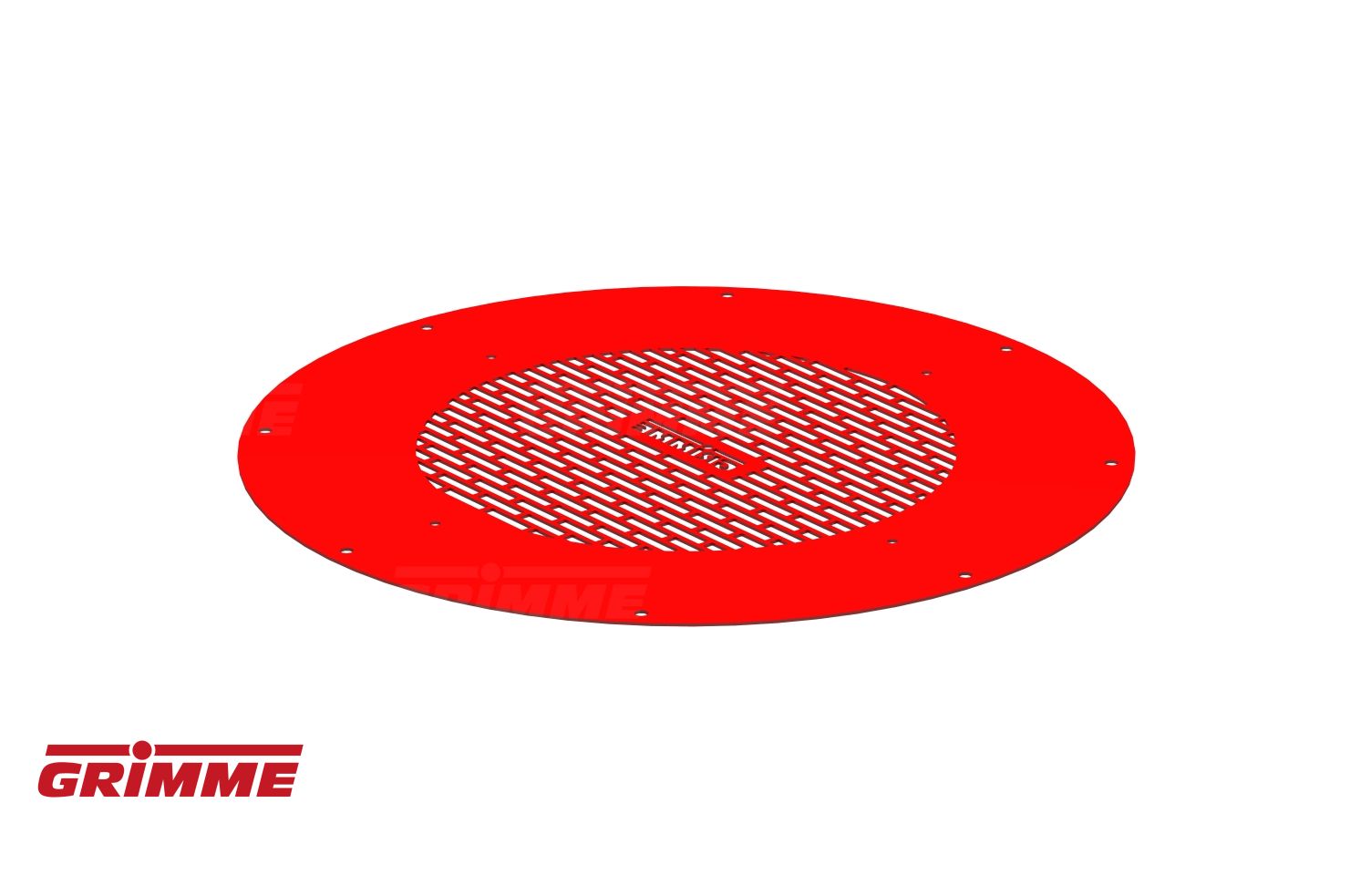

TRELLIS

Quantity in assembly group: 1 Piece / Pos. 5

PLATE

Quantity in assembly group: 1 Piece / Pos. 6

FIXED MOTOR A2FM

Quantity in assembly group: 1 Piece / Pos. 7

PFF62GCFM

Quantity in assembly group: 2 Piece / Pos. 8

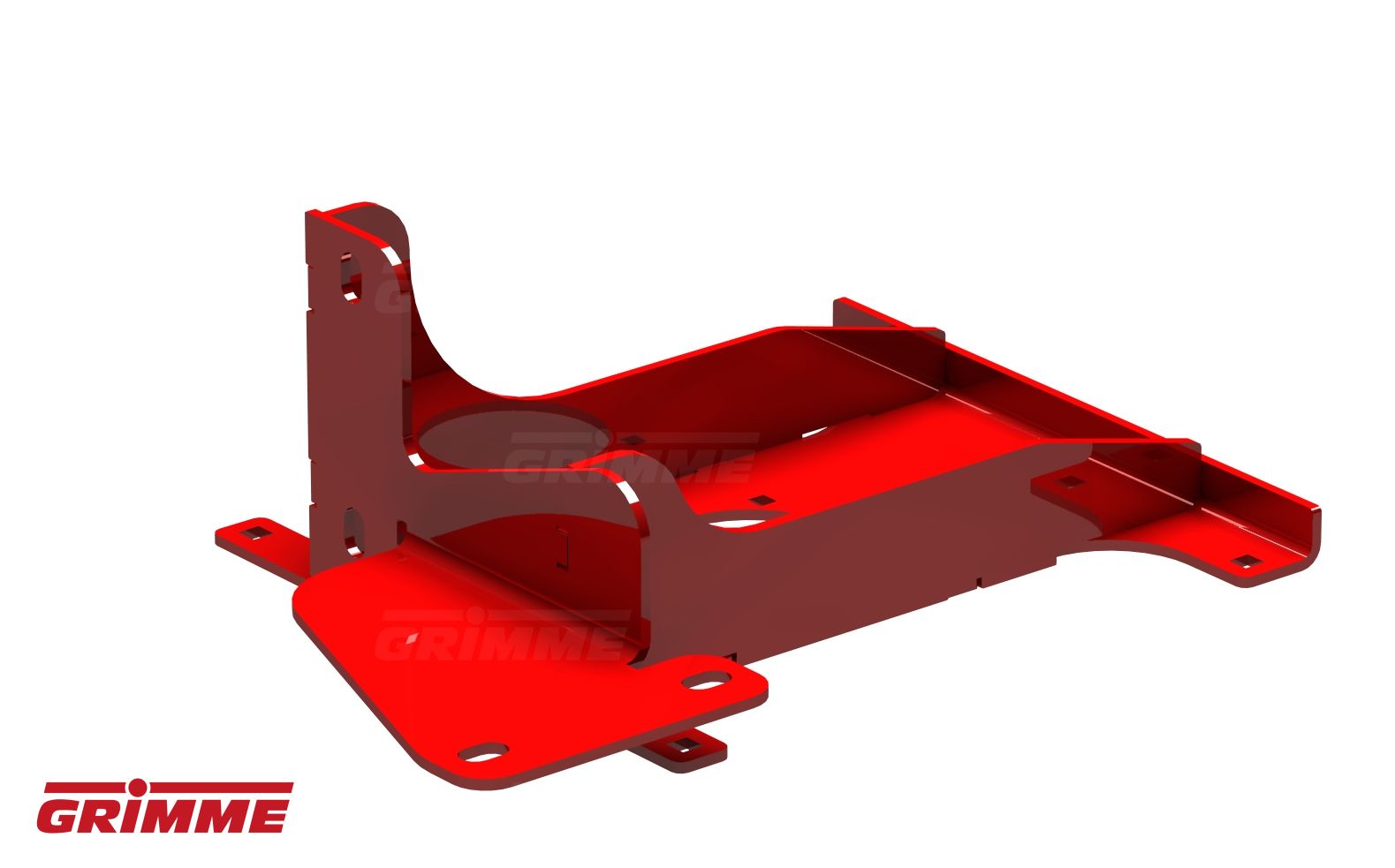

ENGINE BRACKET

Quantity in assembly group: 1 Piece / Pos. 9

HEX BOLT M10X45-DIN931-8.8-G

Quantity in assembly group: 4 Piece / Pos. 10

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 4 Piece / Pos. 11

HEXAGON NUT M12 DIN934-8-GAL

Quantity in assembly group: 4 Piece / Pos. 12

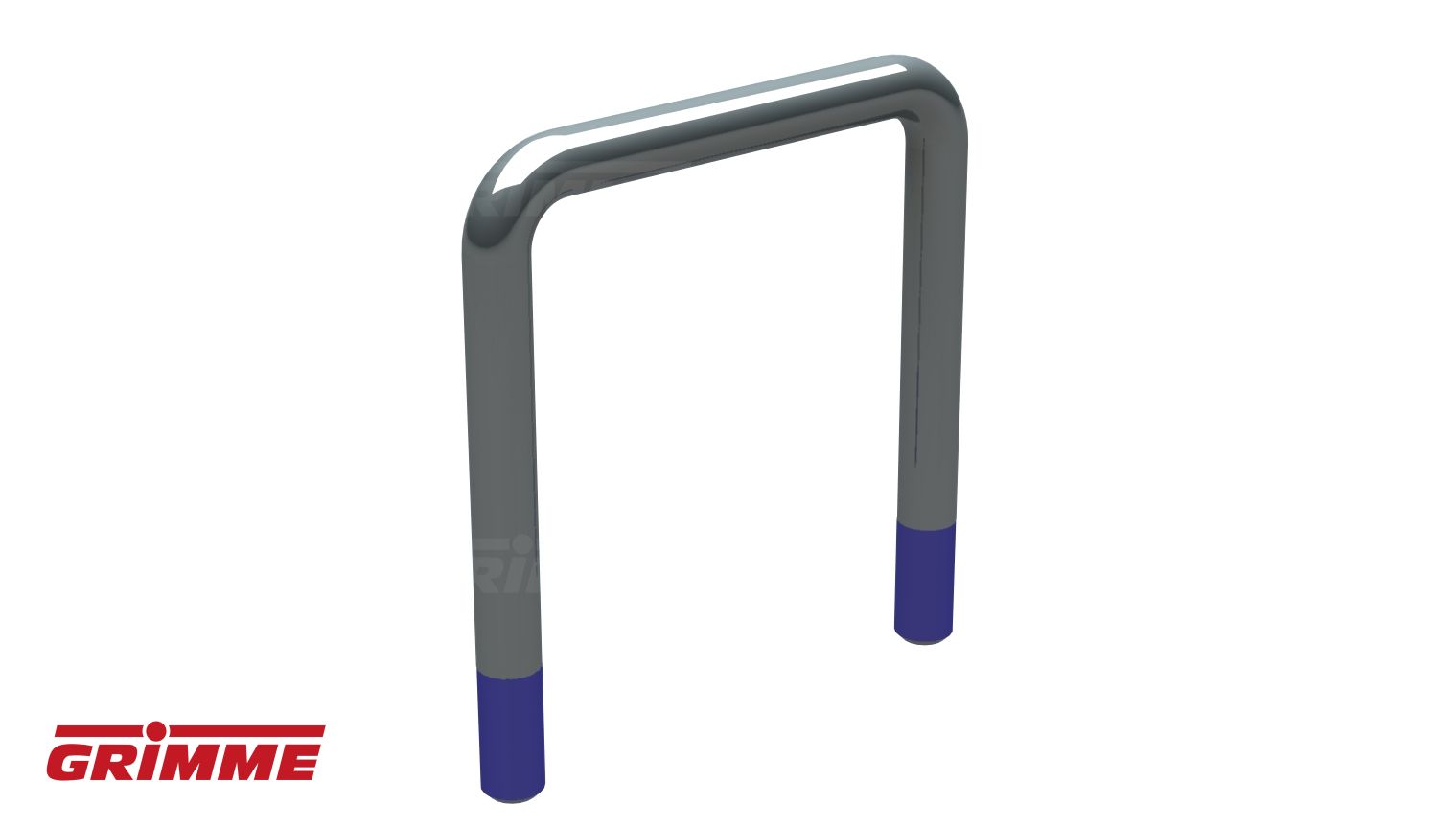

U-BOLT M16X121X150-8.8

Quantity in assembly group: 2 Piece / Pos. 13

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 4 Piece / Pos. 14

NYLOC NUT DIN985-M16-8-GAL

Quantity in assembly group: 5 Piece / Pos. 15

SHC-SCREW M12X35 DIN7984-8.8

Quantity in assembly group: 4 Piece / Pos. 16

NYLOC NUT DIN985-M10-8-GAL

Quantity in assembly group: 4 Piece / Pos. 17

CONTACT WASHER FORM M 10-GAL

Quantity in assembly group: 4 Piece / Pos. 18

PLAIN WASHER 9X40X2,5

Quantity in assembly group: 1 Piece / Pos. 19

CONTACT DISC SHAPE B8 GAL

Quantity in assembly group: 9 Piece / Pos. 20

SET SCREW M8X25-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 21

GE12LMEDOMDCF

Quantity in assembly group: 1 Piece / Pos. 22

PLA-GES 22L/R1/2

Quantity in assembly group: 2 Piece / Pos. 23

P-ELS 22L-SV

Quantity in assembly group: 4 Piece / Pos. 24

P-EWS 22L-SV

Quantity in assembly group: 2 Piece / Pos. 25

STRAIGHT CONNECTION SNV 22L

Quantity in assembly group: 1 Piece / Pos. 26

P-REDS 18/22L-SV

Quantity in assembly group: 1 Piece / Pos. 27

P-EWS 18L-SV

Quantity in assembly group: 2 Piece / Pos. 28

STRAIGHT CONNECTION SNV 18L

Quantity in assembly group: 1 Piece / Pos. 29

RHD18LOMDCF

Quantity in assembly group: 1 Piece / Pos. 30

P-REDS 22/18L-SV

Quantity in assembly group: 2 Piece / Pos. 31

HYD PIPE

Quantity in assembly group: 1 Piece / Pos. 32

HHC-SCREW M6X12 DIN933-8.8-GAL

Quantity in assembly group: 4 Piece / Pos. 33

CONTACT WASHER FORM M 6-GAL

Quantity in assembly group: 10 Piece / Pos. 34

HEXAGON NUT M6 DIN934-8-GAL

Quantity in assembly group: 10 Piece / Pos. 35

SET SCREW M8X16-DIN933-8.8-G

Quantity in assembly group: 8 Piece / Pos. 36

CONTACT WASHER FORM M 8-GAL

Quantity in assembly group: 8 Piece / Pos. 37

WASHER A6,4 125-GAL

Quantity in assembly group: 10 Piece / Pos. 38
