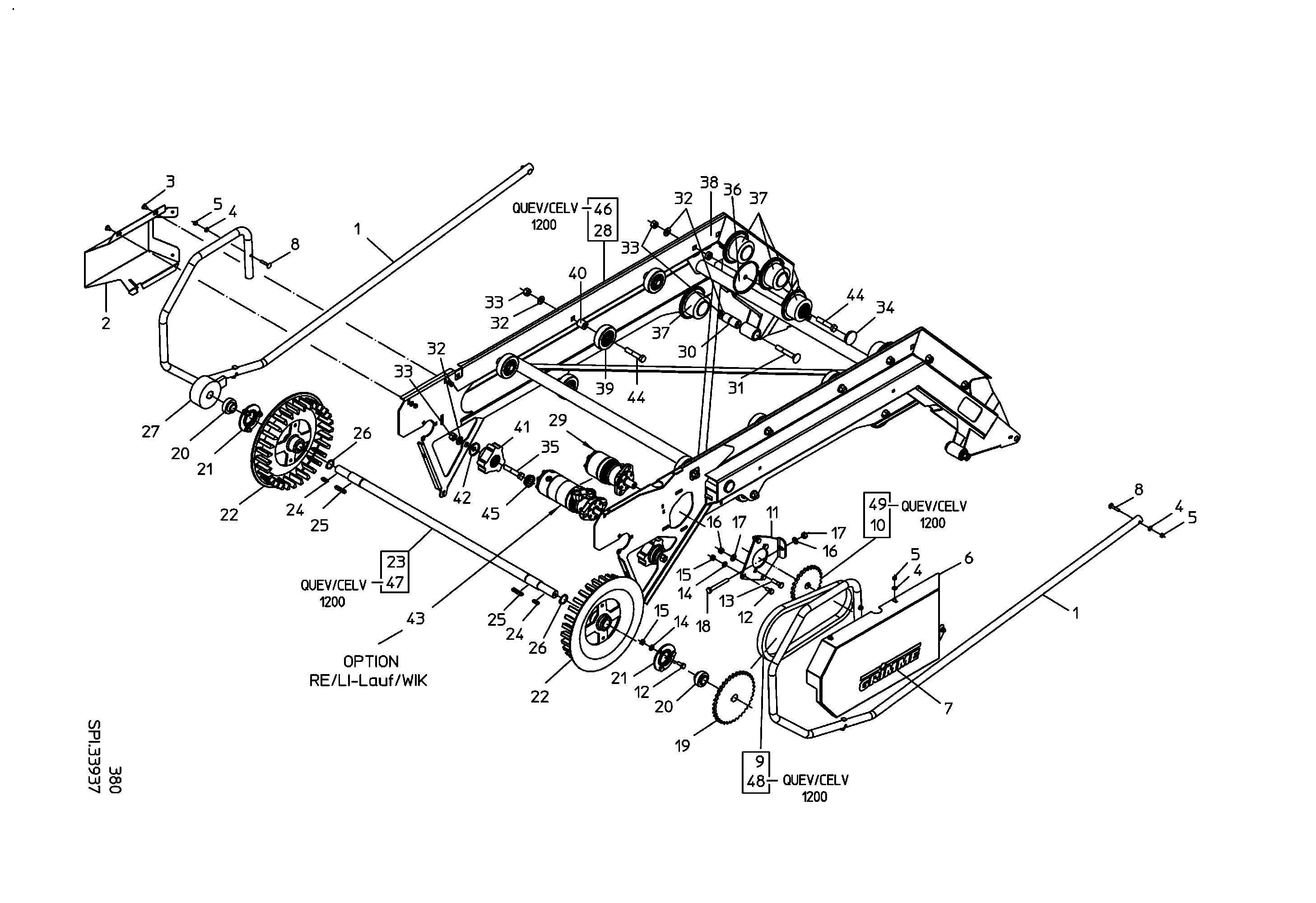

Parts by subassemblies

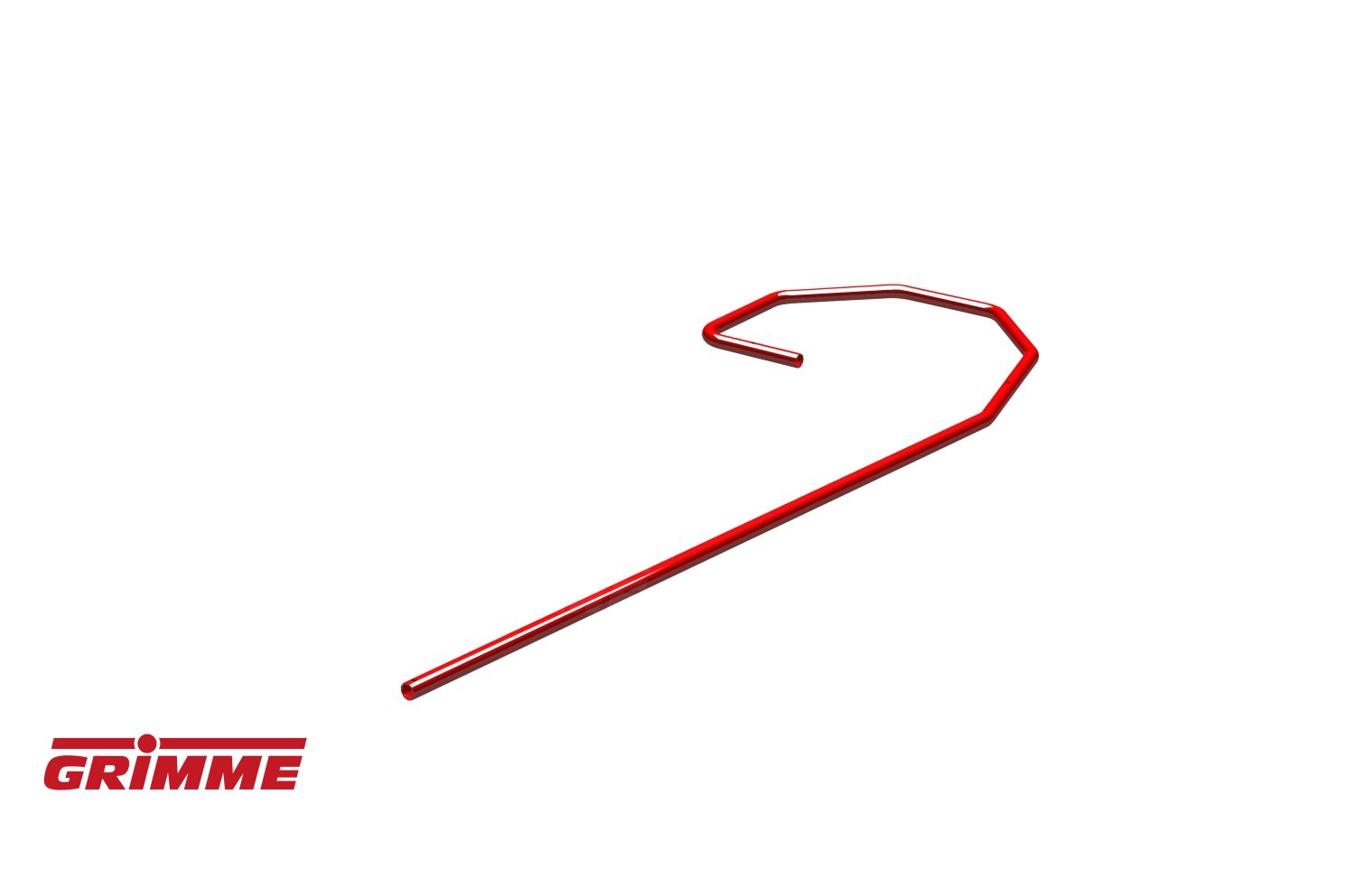

GUARD RAIL

Quantity in assembly group: 2 Piece / Pos. 1

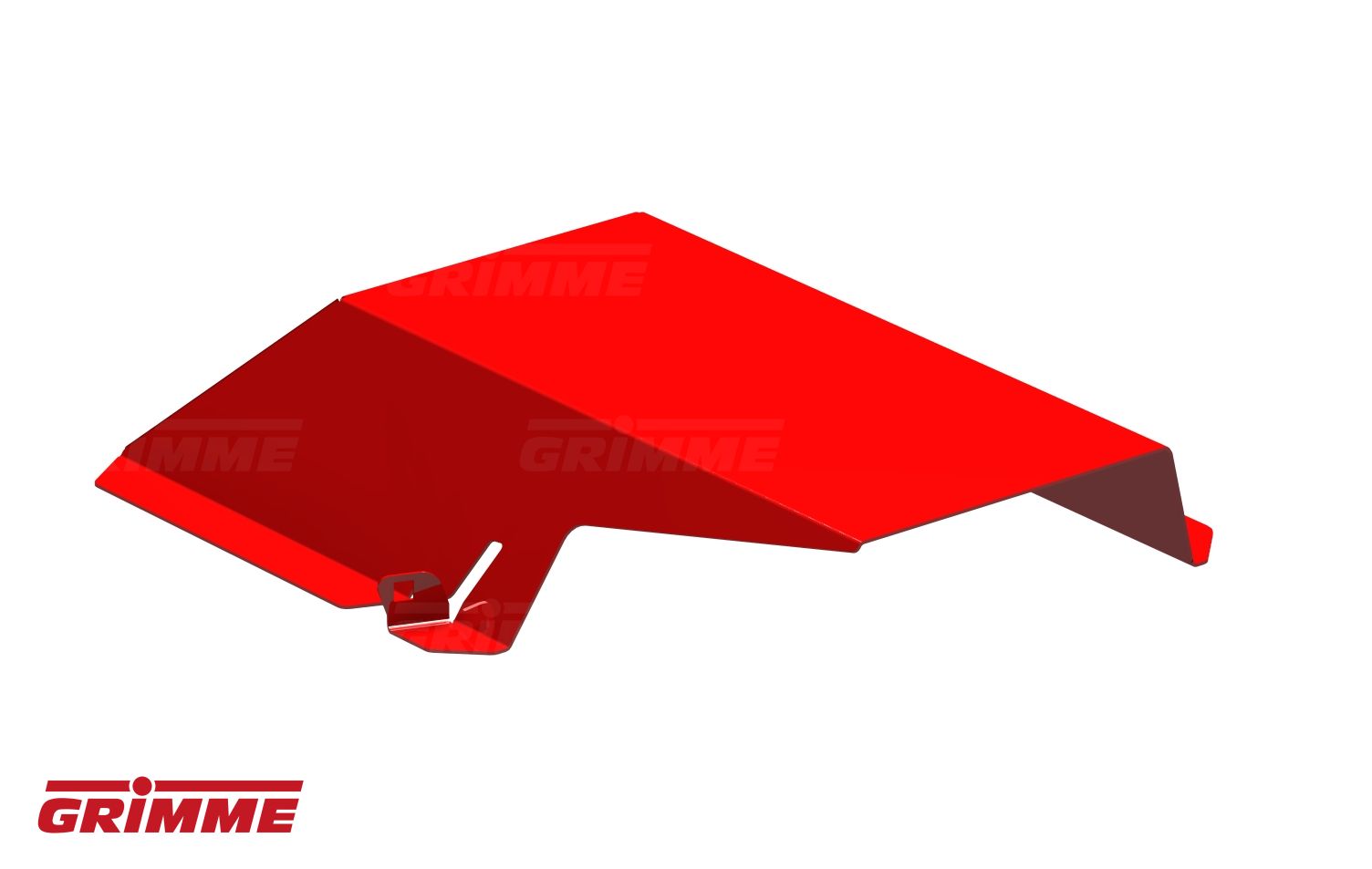

GUARD R/H

Quantity in assembly group: 1 Piece / Pos. 2

SLOTTED C/BOLT M8X16-603-8.8-G

Quantity in assembly group: 7 Piece / Pos. 3

CONTACT WASHER FORM M 8-GAL

Quantity in assembly group: 13 Piece / Pos. 4

HEXAGON NUT M8 DIN934-8-GAL

Quantity in assembly group: 13 Piece / Pos. 5

GUARD L/H

Quantity in assembly group: 1 Piece / Pos. 6

STICKER GRIMME

Quantity in assembly group: 2 Piece / Pos. 7

COACH BOLT M8X45-DIN603-8.8-G

Quantity in assembly group: 6 Piece / Pos. 8

CHAIN 3/4"X1/2"-ASA60-64R

Quantity in assembly group: 1 Piece / Pos. 9

SPROCKET 3/4"-T26

Quantity in assembly group: 1 Piece / Pos. 10

CONSOLE

Quantity in assembly group: 1 Piece / Pos. 11

HHC-SCREW M10X25 933-8.8-GAL

Quantity in assembly group: 9 Piece / Pos. 12

HEX BOLT M12X45-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 13

CONTACT WASHER FORM M 10-GAL

Quantity in assembly group: 9 Piece / Pos. 14

HEXAGON NUT M10 DIN934-8-GAL

Quantity in assembly group: 9 Piece / Pos. 15

HEXAGON NUT M12 934-10.9-flZn

Quantity in assembly group: 3 Piece / Pos. 16

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 3 Piece / Pos. 17

HHC-SCREW M12X100 DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 18

SPROCKET 3/4"-T36

Quantity in assembly group: 1 Piece / Pos. 19

BEARING YAR 206-2RF/UC206

Quantity in assembly group: 2 Piece / Pos. 20

FLANGE PLATE (PR) PF62/PF206

Quantity in assembly group: 2 Piece / Pos. 21

FINGER ROLLER PITCH 40

Quantity in assembly group: 2 Piece / Pos. 22

DRIVE SHAFT

Quantity in assembly group: 1 Piece / Pos. 23

FEATHER KEY A 8X8X30 DIN6885

Quantity in assembly group: 2 Piece / Pos. 24

FEATHER KEY A 10X8X55 DIN6885

Quantity in assembly group: 2 Piece / Pos. 25

RETAINING RING AS 35X2,5 DIN47

Quantity in assembly group: 2 Piece / Pos. 26

FREEWHEELER

Quantity in assembly group: 1 Piece / Pos. 27

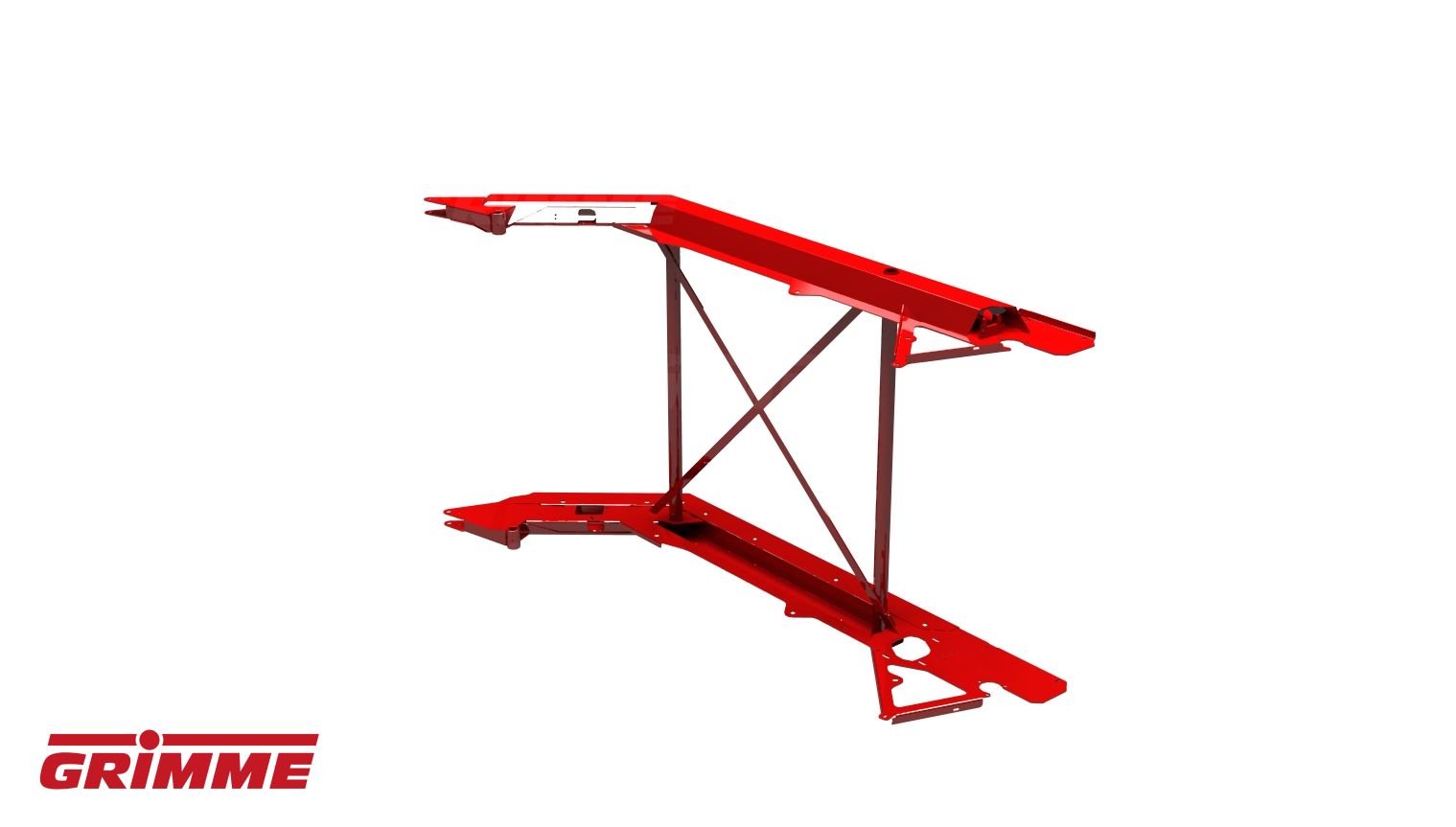

CART ELEV END FRAME

Quantity in assembly group: 1 Piece / Pos. 28

HYDRAULIC MOTOR OMRX 315N

Quantity in assembly group: 1 Piece / Pos. 29

BUSH

Quantity in assembly group: 2 Piece / Pos. 30

COACH BOLT M16X110-DIN603-8.8G

Quantity in assembly group: 2 Piece / Pos. 31

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 18 Piece / Pos. 32

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 18 Piece / Pos. 33

ROLLER CAP

Quantity in assembly group: 8 Piece / Pos. 34

HEX BOLT M16X85-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 35

WINDING PROTECTION

Quantity in assembly group: 6 Piece / Pos. 36

FLANGE ROLLER D95

Quantity in assembly group: 8 Piece / Pos. 37

SPACER PIECE 16,5X30X10

Quantity in assembly group: 8 Piece / Pos. 38

ROLLER D100

Quantity in assembly group: 8 Piece / Pos. 39

SPACER 16,5X30X30

Quantity in assembly group: 8 Piece / Pos. 40

AGITATOR ROLLER -TRIANGULAR-

Quantity in assembly group: 2 Piece / Pos. 41

WINDING PROTECTION

Quantity in assembly group: 2 Piece / Pos. 42

HYDRAULIC MOTOR OMR315 NF

Quantity in assembly group: 1 Piece / Pos. 43

HEX BOLT M16X80-DIN931-8.8-G

Quantity in assembly group: 14 Piece / Pos. 44

LOCKING DISK

Quantity in assembly group: 2 Piece / Pos. 45

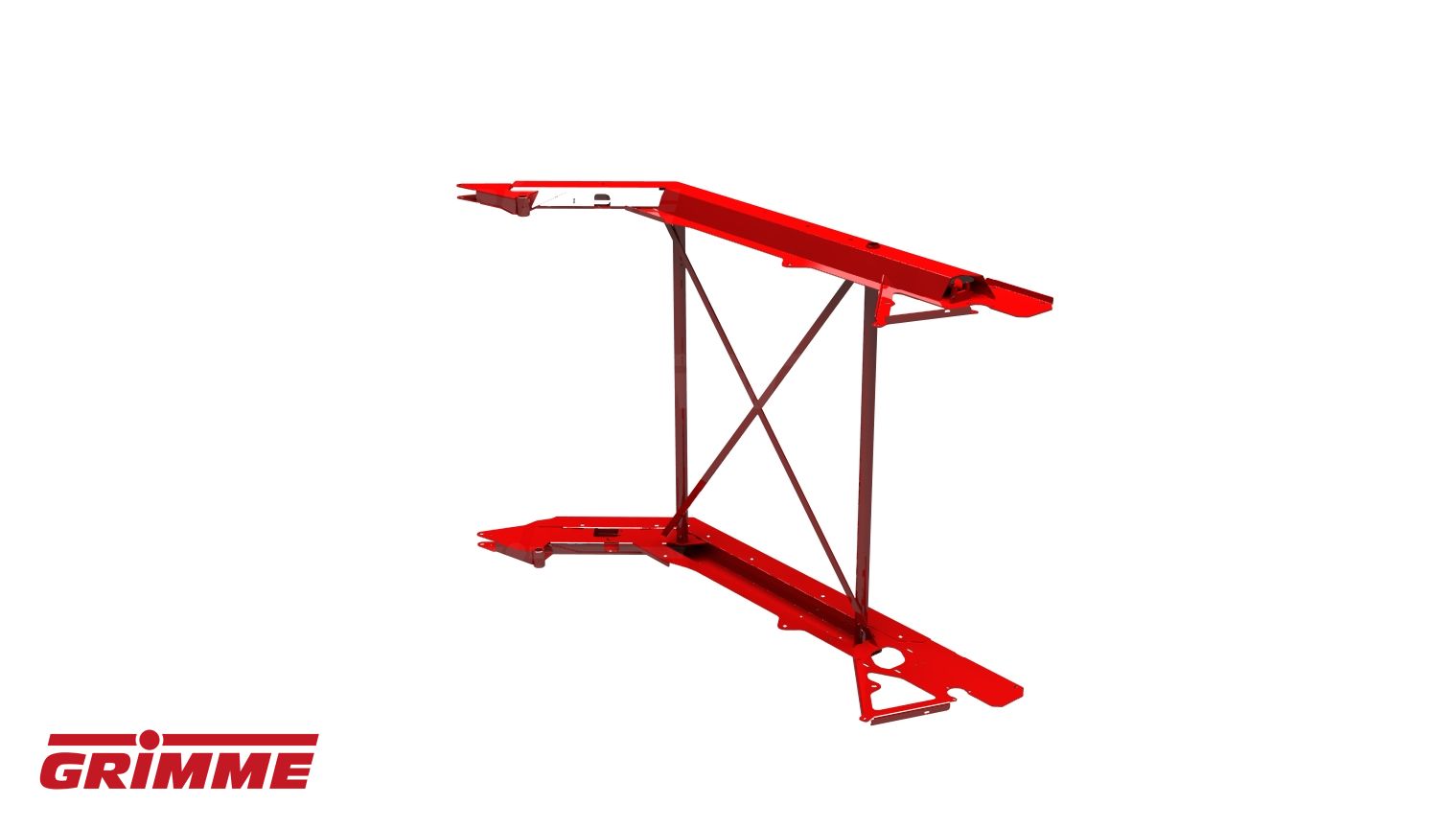

END FRAME GT300

Quantity in assembly group: 1 Piece / Pos. 46

DRIVE SHAFT

Quantity in assembly group: 1 Piece / Pos. 47

CHAIN 3/4"X1/2"-ASA60-62R

Quantity in assembly group: 1 Piece / Pos. 48

SPROCKET ASA60-1 T21

Quantity in assembly group: 1 Piece / Pos. 49
