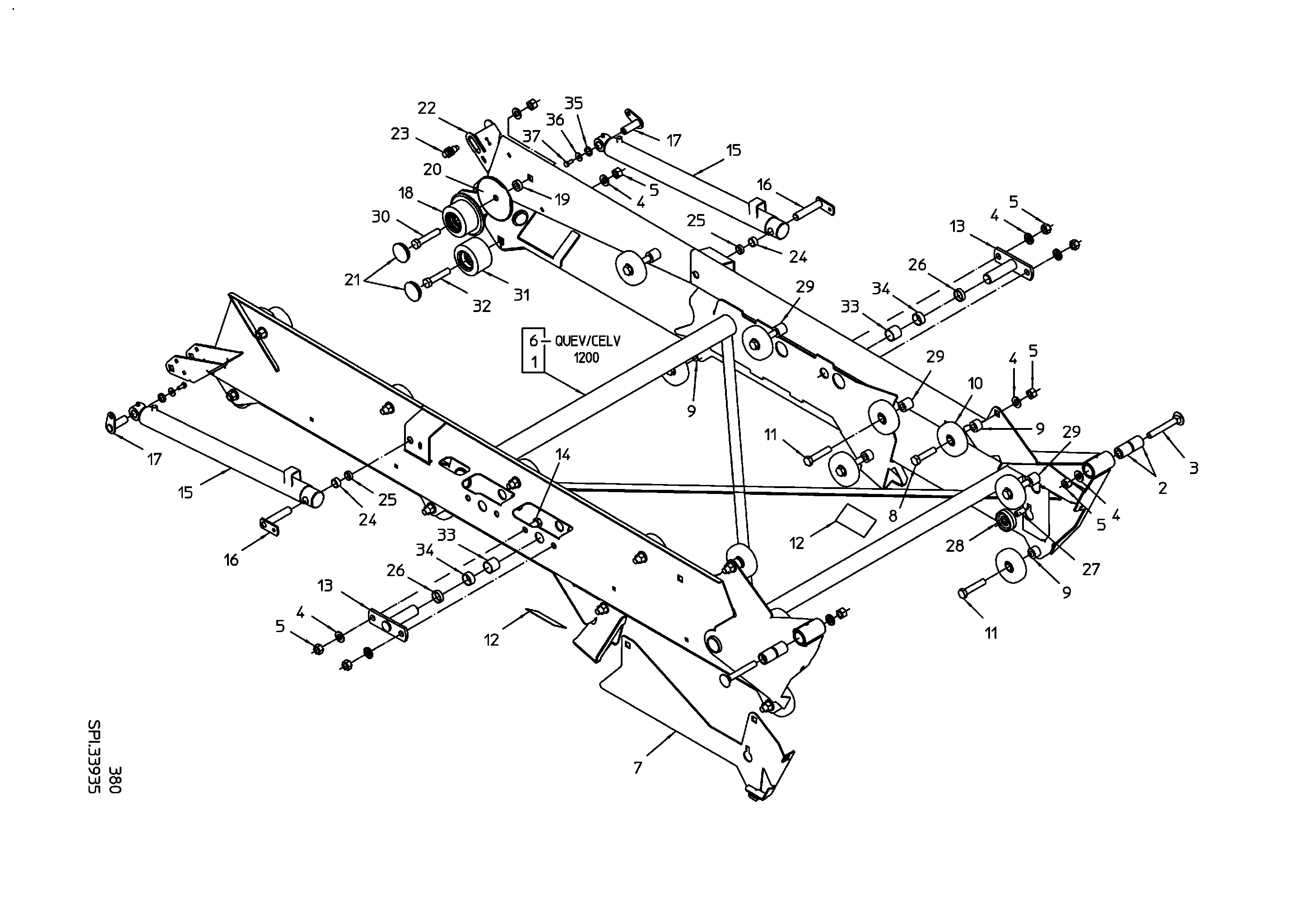

Parts by subassemblies

CYL-SEAL SET

Quantity in assembly group: 1 Piece / Pos. 0

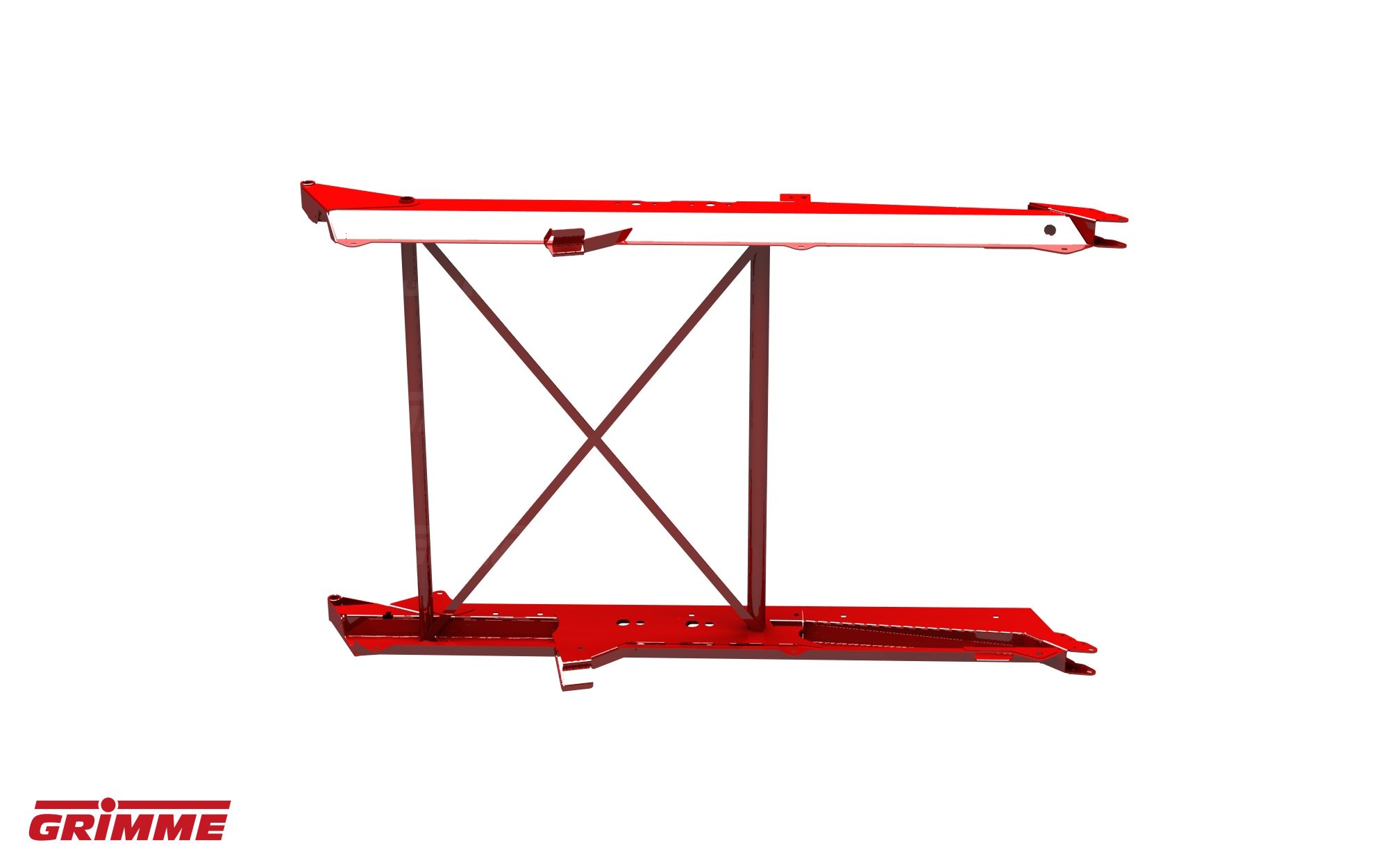

CART ELEV MIDDLE FRAME

Quantity in assembly group: 1 Piece / Pos. 1

BUSH

Quantity in assembly group: 2 Piece / Pos. 2

COACH BOLT M16X120-DIN603-8.8G

Quantity in assembly group: 2 Piece / Pos. 3

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 26 Piece / Pos. 4

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 26 Piece / Pos. 5

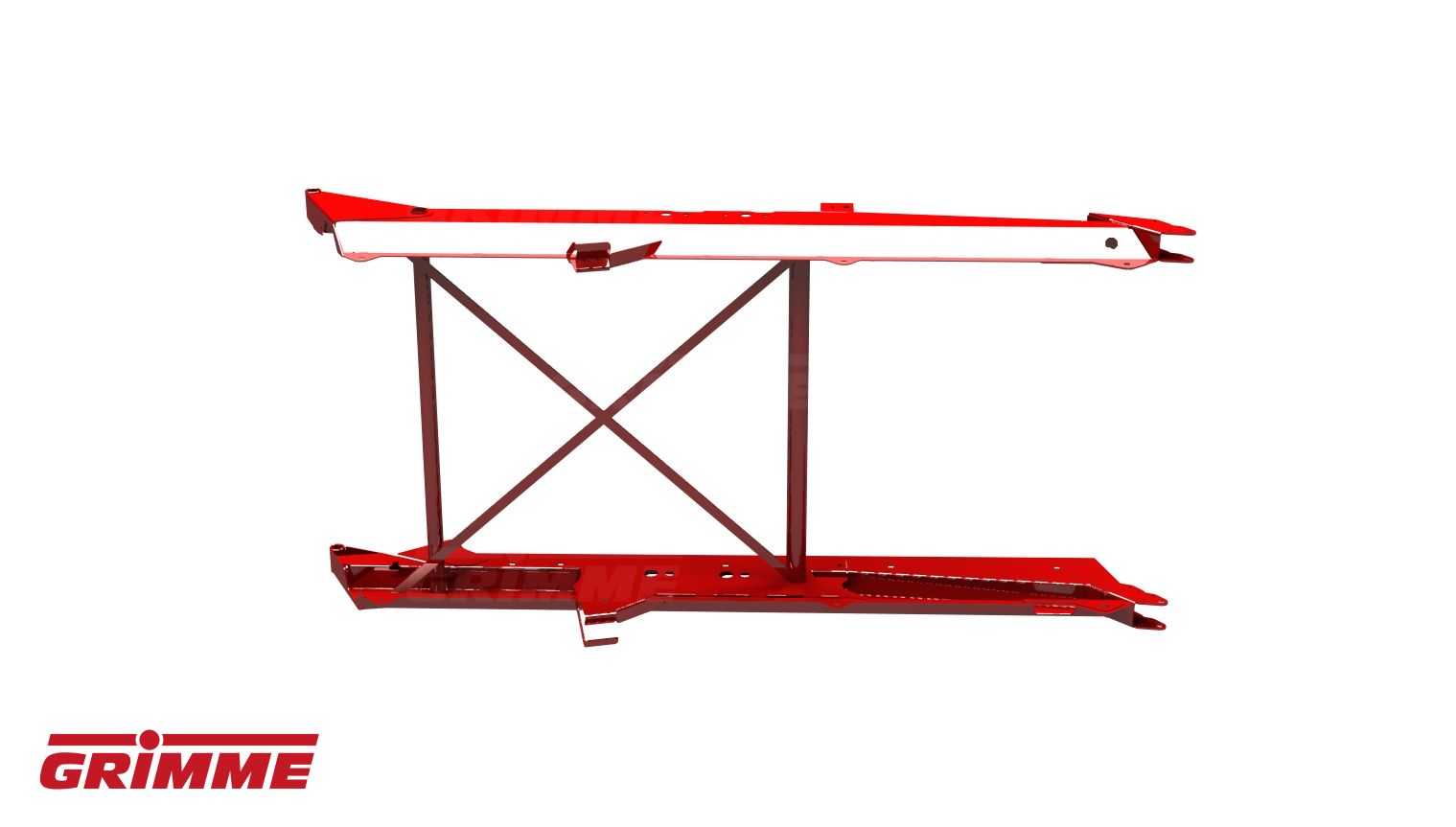

CENTRE SECTION GT300

Quantity in assembly group: 1 Piece / Pos. 6

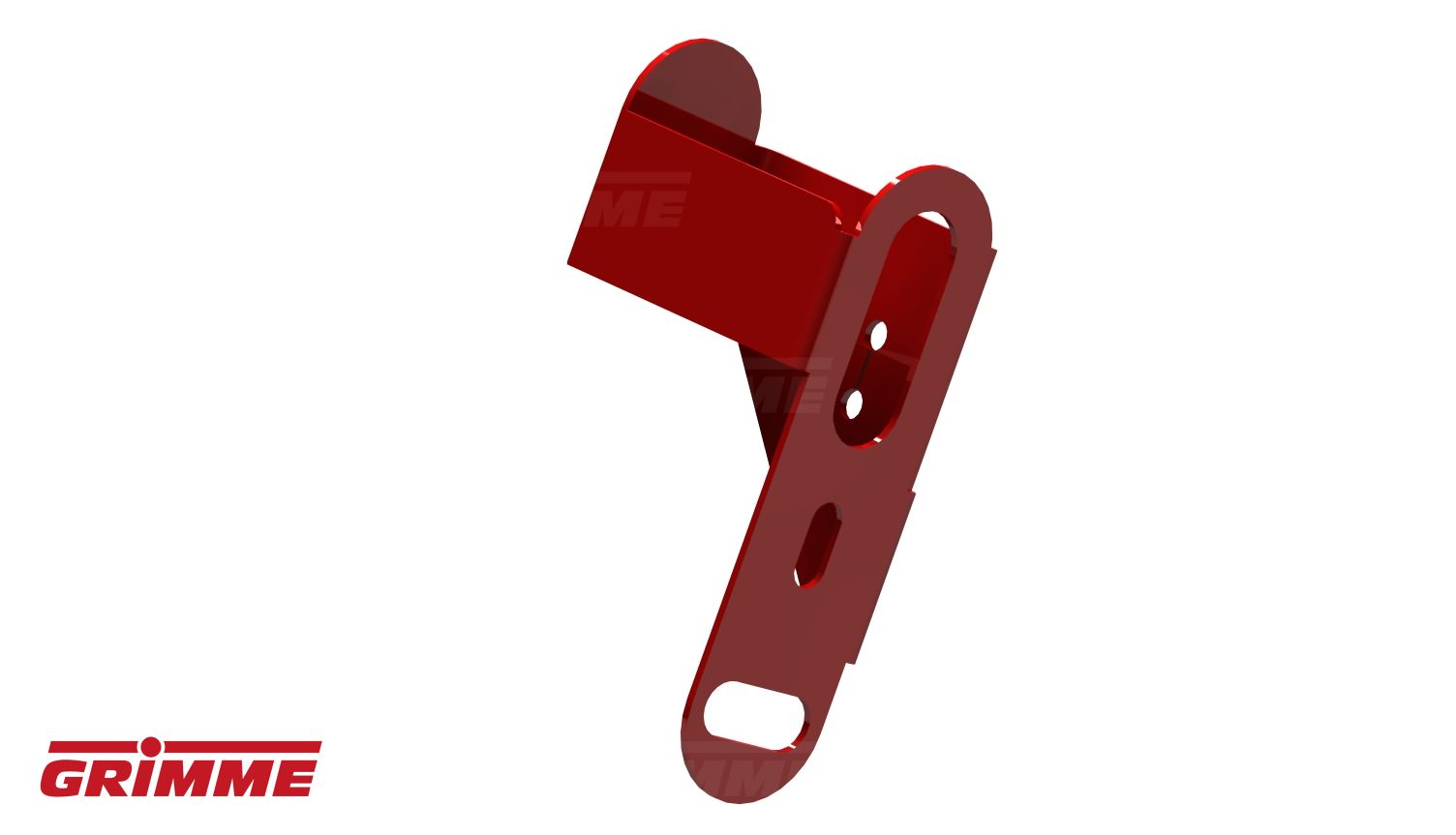

BRACKET

Quantity in assembly group: 1 Piece / Pos. 7

HEX BOLT M16X70-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 8

SPACER 20MM

Quantity in assembly group: 8 Piece / Pos. 9

ROLLER D100

Quantity in assembly group: 16 Piece / Pos. 10

HEX BOLT M16X80-DIN931-8.8-G

Quantity in assembly group: 16 Piece / Pos. 11

089.01266 WARNING SYM

Quantity in assembly group: 2 Piece / Pos. 12

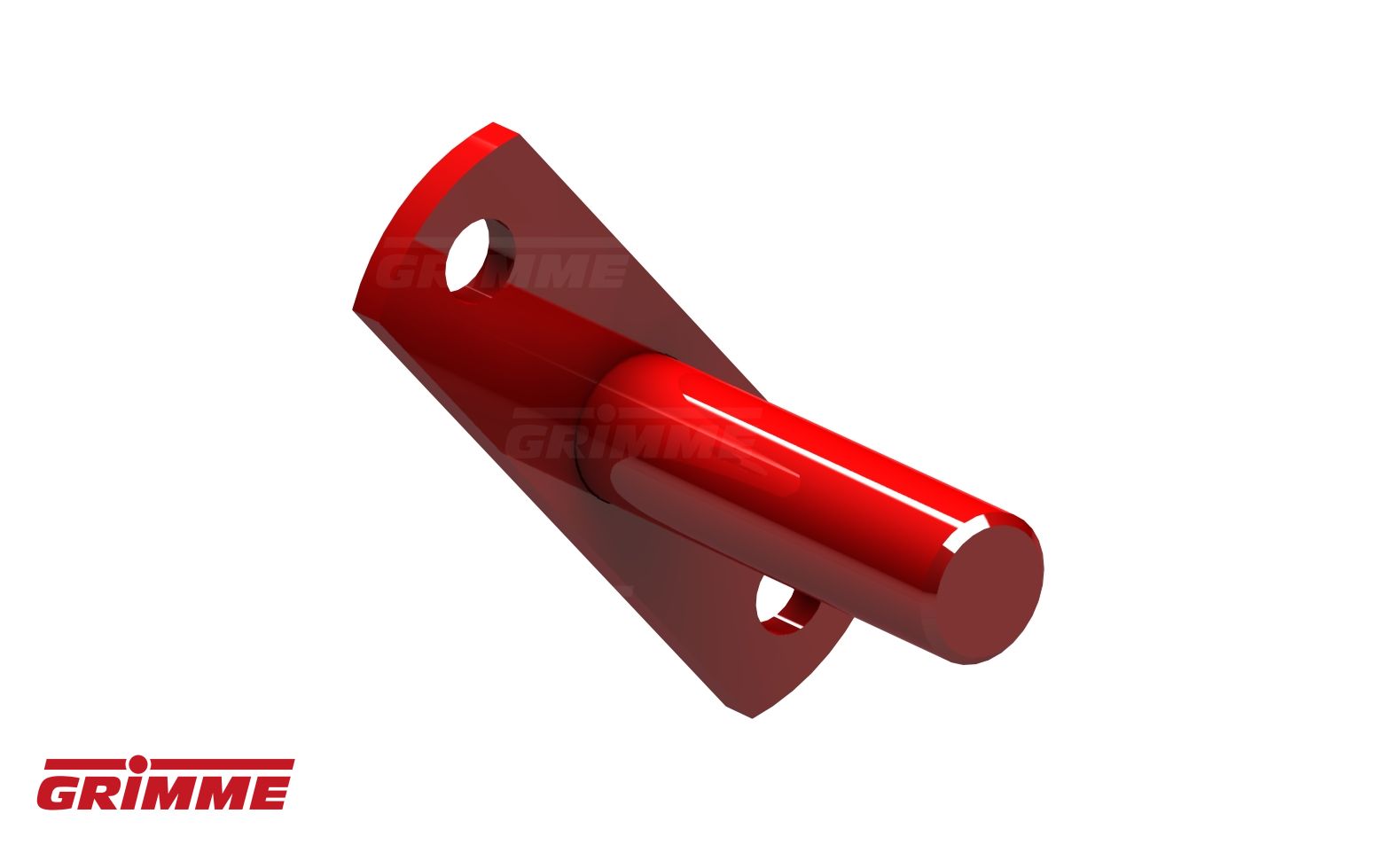

PIN

Quantity in assembly group: 2 Piece / Pos. 13

SET SCREW M16X30-DIN933-8.8-G

Quantity in assembly group: 4 Piece / Pos. 14

DRAWN-IN HYD RAM

Quantity in assembly group: 2 Piece / Pos. 15

PIN

Quantity in assembly group: 2 Piece / Pos. 16

PIN

Quantity in assembly group: 2 Piece / Pos. 17

FLANGE ROLLER D95

Quantity in assembly group: 2 Piece / Pos. 18

SPACER PIECE 16,5X30X10

Quantity in assembly group: 4 Piece / Pos. 19

WINDING PROTECTION

Quantity in assembly group: 4 Piece / Pos. 20

ROLLER CAP

Quantity in assembly group: 4 Piece / Pos. 21

SENSOR BRACKET

Quantity in assembly group: 1 Piece / Pos. 22

SENSOR

Quantity in assembly group: 1 Piece / Pos. 23

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 24

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 25

SPACER RING

Quantity in assembly group: 2 Piece / Pos. 26

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 27

SUPPORT ROLLER

Quantity in assembly group: 2 Piece / Pos. 28

SPACER 16,5X30X30

Quantity in assembly group: 8 Piece / Pos. 29

HEX BOLT M16X85-DIN931-8.8-G

Quantity in assembly group: 4 Piece / Pos. 30

SUPPORT ROLLER D95

Quantity in assembly group: 2 Piece / Pos. 31

COACH BOLT/SS M16X70-603-8.8-G

Quantity in assembly group: 2 Piece / Pos. 32

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 33

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 34

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 35

DISC A 8,4 DIN9021-GAL

Quantity in assembly group: 2 Piece / Pos. 36

SET SCREW M8X20-DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 37
