Parts by subassemblies

Your machine: POTATO HARVESTER GT 170 M+S GT170(S/N: 45002062) modify ▸

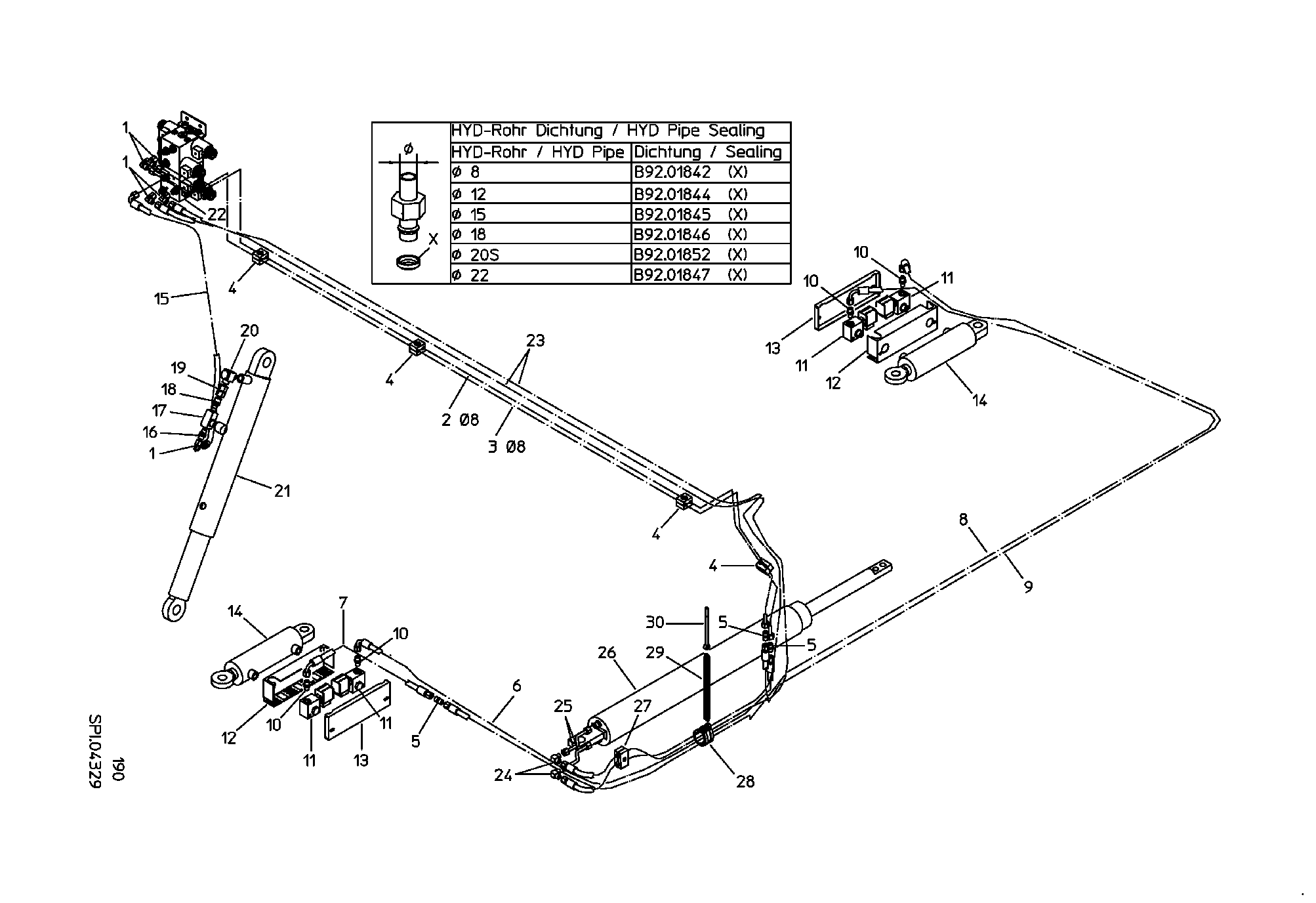

Subassembly drawing

▸ Selected assembly group:

Selected subassembly

▸
HYDRAULIC AXLE 3,0m TRACK (35 Parts)
▸

Subassembly parts

All items Equipment ex work ()
CYL-SEAL SET
Quantity in assembly group: 1 Piece / Pos. 0
HYDRAULIC RESTRICTOR 8L-1MM
Quantity in assembly group: 2 Piece / Pos. 0
VALVE SCREW SET
Quantity in assembly group: 1 Piece / Pos. 0
CYL SEAL SET
Quantity in assembly group: 1 Piece / Pos. 0
CYL-SEAL SET
Quantity in assembly group: 1 Piece / Pos. 0
P-EWS 8L-SV
Quantity in assembly group: 5 Piece / Pos. 1
HYD PIPE
Quantity in assembly group: 1 Piece / Pos. 2
HYD PIPE
Quantity in assembly group: 1 Piece / Pos. 3
HYD PIPE CLAMP 2HOLE D8/8 BG1
Quantity in assembly group: 4 Piece / Pos. 4
P-GS 8L
Quantity in assembly group: 3 Piece / Pos. 5
HYD HOSE 1900-NW6-1X90-450BAR
Quantity in assembly group: 1 Piece / Pos. 6
HOSE-650-NW6-2SC-450BAR
Quantity in assembly group: 1 Piece / Pos. 7
HOSE-5500-NW6-2SC-480BAR
Quantity in assembly group: 1 Piece / Pos. 8
HOSE-4500-NW6-2SC-450BAR
Quantity in assembly group: 1 Piece / Pos. 9
GE08LMEDOMDCF
Quantity in assembly group: 4 Piece / Pos. 10
SEAT VALVE
Quantity in assembly group: 4 Piece / Pos. 11
PLATE
Quantity in assembly group: 1 Piece / Pos. 12
PLATE
Quantity in assembly group: 1 Piece / Pos. 13
DOUBLE ACTING RAM
Quantity in assembly group: 2 Piece / Pos. 14
HOSE-1100-NW6-2SC-450BAR
Quantity in assembly group: 1 Piece / Pos. 15
GE08LREDOMDCF
Quantity in assembly group: 1 Piece / Pos. 16
REDUCER CHECK VALVE R1/4"
Quantity in assembly group: 1 Piece / Pos. 17
P-GES 12L/R1/4
Quantity in assembly group: 1 Piece / Pos. 18
STRAIGHT CONNECTION SNV 12L
Quantity in assembly group: 1 Piece / Pos. 19
WHK12LMCSOMDCF
Quantity in assembly group: 1 Piece / Pos. 20
PRESSURE HYD RAM
Quantity in assembly group: 1 Piece / Pos. 21
4/3 WAY-VALVE CL02
Quantity in assembly group: 1 Piece / Pos. 22
HYD HOSE-4200-NW6-450BAR
Quantity in assembly group: 2 Piece / Pos. 23
P-WS 8L
Quantity in assembly group: 2 Piece / Pos. 24
HYD PIPE
Quantity in assembly group: 2 Piece / Pos. 25
DOUBLE ACTING CYLINDER
Quantity in assembly group: 1 Piece / Pos. 26
PIPE CLAMP 214-14PPS
Quantity in assembly group: 1 Piece / Pos. 27
PIPE CLAMP RSGU1100 40/25
Quantity in assembly group: 1 Piece / Pos. 28
TENSION SPRING
Quantity in assembly group: 1 Piece / Pos. 29
EYE BOLT B M8X140 444-8.8-GAL
Quantity in assembly group: 1 Piece / Pos. 30
