Parts by subassemblies

Your machine: POTATO HARVESTER GT 170 M+S GT170(S/N: 45002062) modify ▸

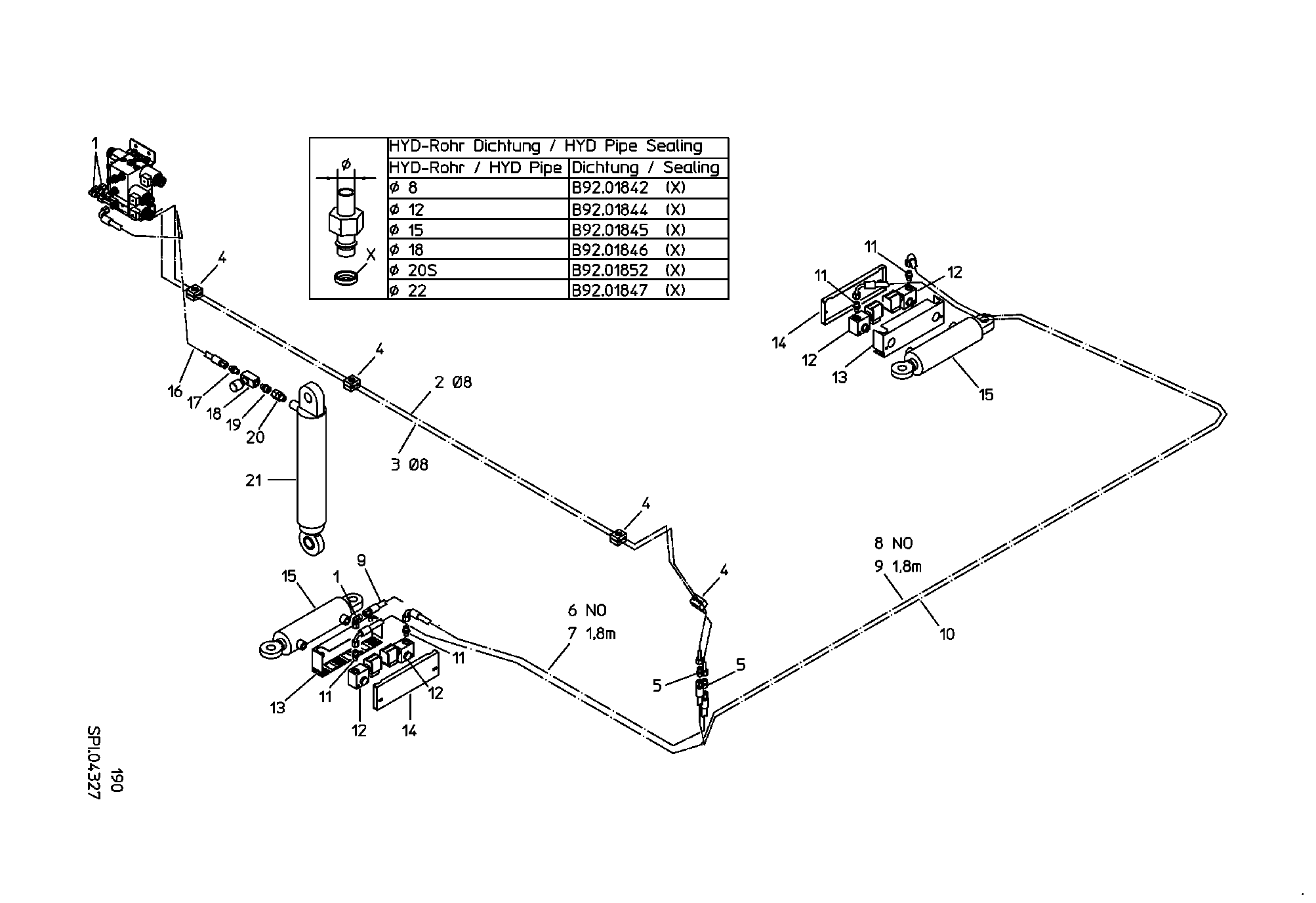

Subassembly drawing

▸ Selected assembly group:

Selected subassembly

▸
HYDRAULIC LEV R/H+STEA (24 Parts)
▸

Subassembly parts

All items Equipment ex work ()
CYL-SEAL SET
Quantity in assembly group: 1 Piece / Pos. 0
HYDRAULIC RESTRICTOR 8L-1MM
Quantity in assembly group: 2 Piece / Pos. 0
CYL-SEAL SET
Quantity in assembly group: 1 Piece / Pos. 0
P-EWS 8L-SV
Quantity in assembly group: 3 Piece / Pos. 1
HYD PIPE
Quantity in assembly group: 1 Piece / Pos. 2
HYD PIPE
Quantity in assembly group: 1 Piece / Pos. 3
HYD PIPE CLAMP 2HOLE D8/8 BG1
Quantity in assembly group: 4 Piece / Pos. 4
P-GS 8L
Quantity in assembly group: 2 Piece / Pos. 5
HOSE-1400-NW6-2SC-450BAR
Quantity in assembly group: 1 Piece / Pos. 6
COVER-2400-NW6-1X45-450BAR
Quantity in assembly group: 1 Piece / Pos. 7
HYD HOSE-5450-NW6-2X90-250BAR
Quantity in assembly group: 1 Piece / Pos. 8
HOSE-3300-DN25-R4-17BAR
Quantity in assembly group: 1 Piece / Pos. 9
HOSE-4500-NW6-2SC-450BAR
Quantity in assembly group: 1 Piece / Pos. 10
GE08LMEDOMDCF
Quantity in assembly group: 4 Piece / Pos. 11
SEAT VALVE
Quantity in assembly group: 4 Piece / Pos. 12
PLATE
Quantity in assembly group: 1 Piece / Pos. 13
PLATE
Quantity in assembly group: 1 Piece / Pos. 14
DOUBLE ACTING RAM
Quantity in assembly group: 2 Piece / Pos. 15
HOSE-1000-NW6-2SC-450BAR
Quantity in assembly group: 1 Piece / Pos. 16
GE08LREDOMDCF
Quantity in assembly group: 1 Piece / Pos. 17
REDUCER CHECK VALVE R1/4"
Quantity in assembly group: 1 Piece / Pos. 18
P-GES 12L/R1/4
Quantity in assembly group: 1 Piece / Pos. 19
EGE12LMEDCF
Quantity in assembly group: 1 Piece / Pos. 20

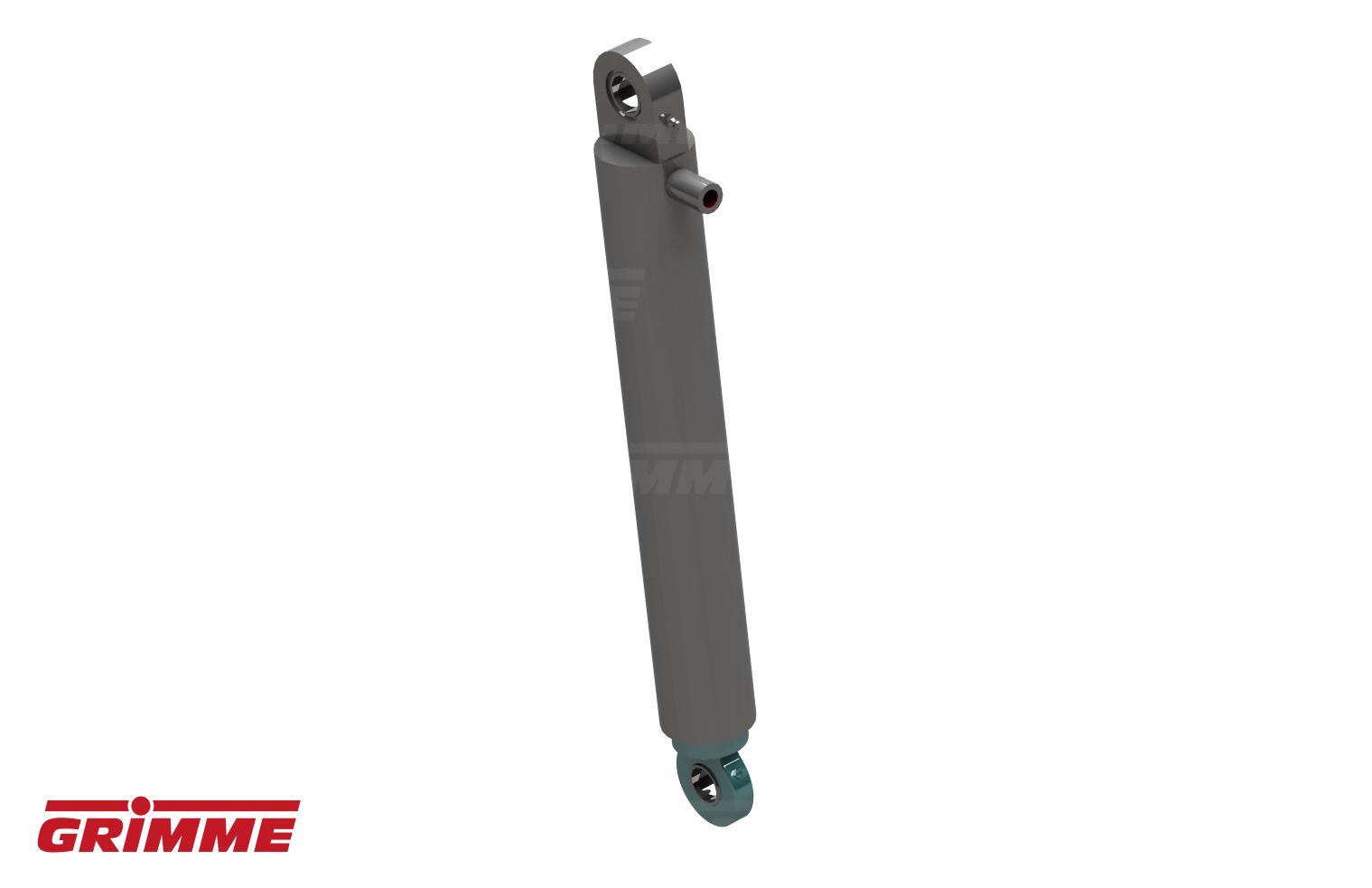

PRESSURE HYD RAM
Quantity in assembly group: 1 Piece / Pos. 21
