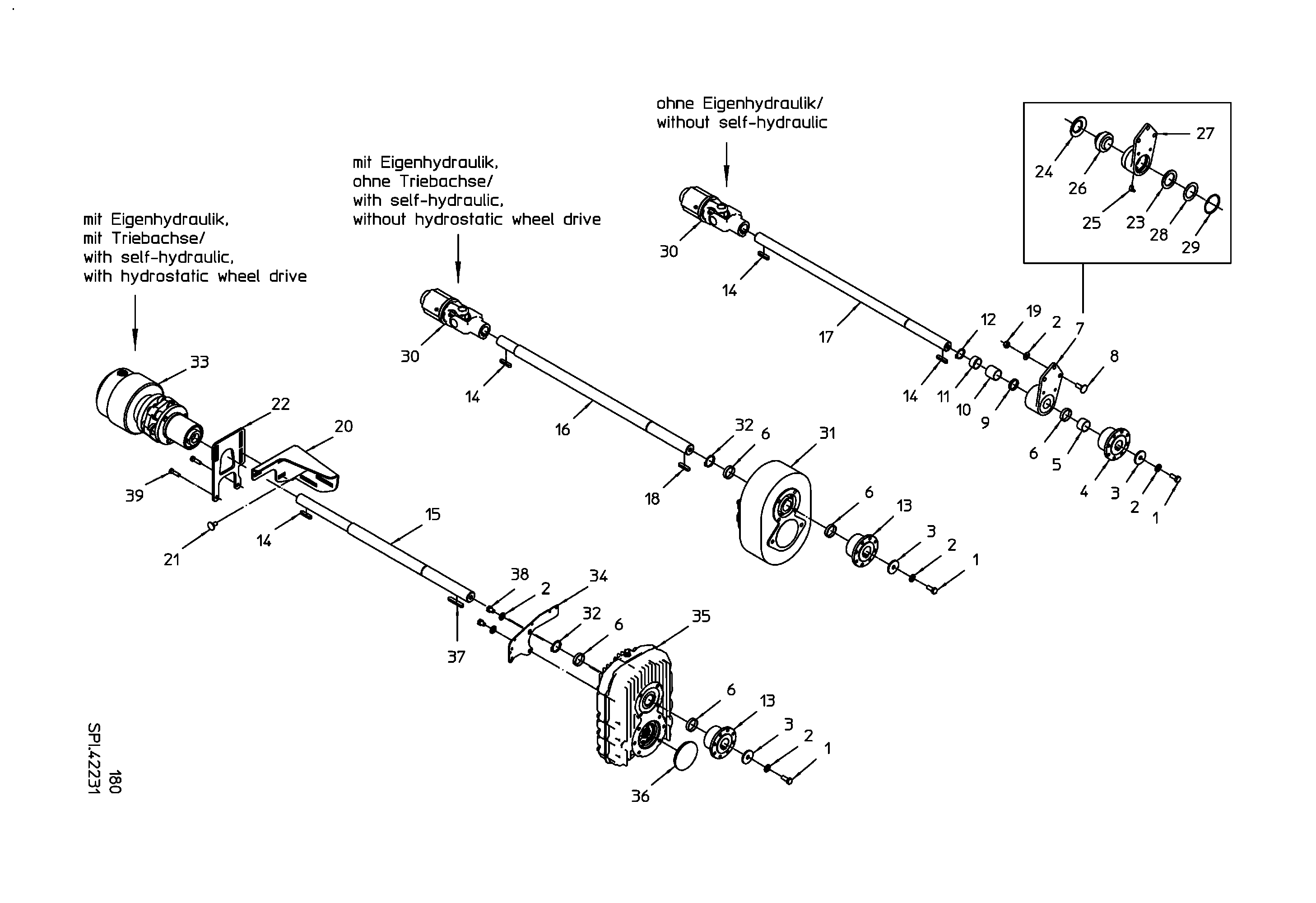

Parts by subassemblies

HHC SCREW M12X30 933-Rs-8.8GAL

Quantity in assembly group: 3 Piece / Pos. 1

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 3 Piece / Pos. 2

RETAINING WASHER

Quantity in assembly group: 3 Piece / Pos. 3

DRIVE HUB

Quantity in assembly group: 1 Piece / Pos. 4

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 5

SPACER RING

Quantity in assembly group: 5 Piece / Pos. 6

FLANGE BEARING S35

Quantity in assembly group: 1 Piece / Pos. 7

COACH BOLT M12X35-DIN603-8.8-G

Quantity in assembly group: 1 Piece / Pos. 8

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 9

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 10

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 11

RETAINING RING AS 35X2,5 DIN47

Quantity in assembly group: 1 Piece / Pos. 12

COUPLING FLANGE

Quantity in assembly group: 2 Piece / Pos. 13

FEATHER KEY A 10X8X50 DIN6885

Quantity in assembly group: 4 Piece / Pos. 14

PUMP DRIVE SHAFT

Quantity in assembly group: 1 Piece / Pos. 15

DRIVE SHAFT DM40

Quantity in assembly group: 1 Piece / Pos. 16

IMPELLER SHAFT

Quantity in assembly group: 1 Piece / Pos. 17

FEATHER KEY A 12X8X50 DIN6885

Quantity in assembly group: 1 Piece / Pos. 18

HEXAGON NUT M12 934-10.9-flZn

Quantity in assembly group: 1 Piece / Pos. 19

BRACKET

Quantity in assembly group: 1 Piece / Pos. 20

COACH BOLT M12X25-DIN603-8.8-G

Quantity in assembly group: 1 Piece / Pos. 21

BRACKET

Quantity in assembly group: 1 Piece / Pos. 22

SEALING RING

Quantity in assembly group: 1 Piece / Pos. 23

SEALING RING 77-42-3

Quantity in assembly group: 1 Piece / Pos. 24

GREASE NIPPLE H3/S-M8X1 DIN714

Quantity in assembly group: 1 Piece / Pos. 25

BEARING YAR 207-2RF/UC207

Quantity in assembly group: 1 Piece / Pos. 26

BEARING HOUSING S35

Quantity in assembly group: 1 Piece / Pos. 27

DISC

Quantity in assembly group: 1 Piece / Pos. 28

RETAINING RING J 70X2,5 DIN472

Quantity in assembly group: 1 Piece / Pos. 29

HUB YOKE NG2400 D35

Quantity in assembly group: 2 Piece / Pos. 30

PUMP GEARBOX GT-SR-1:4.6

Quantity in assembly group: 1 Piece / Pos. 31

RETAINING RING AS 40X2,5 DIN47

Quantity in assembly group: 2 Piece / Pos. 32

HY HWD CLUTCH RE-ENGAGEMENT

Quantity in assembly group: 1 Piece / Pos. 33

BRACKET

Quantity in assembly group: 1 Piece / Pos. 34

GEARBOX 1:4,6 ADJ

Quantity in assembly group: 1 Piece / Pos. 35

SEAL SAEB B

Quantity in assembly group: 1 Piece / Pos. 36

FEATHER KEY A 12X8X70 DIN6885

Quantity in assembly group: 1 Piece / Pos. 37

SET SCREW M12X16-DIN933-8.8-G

Quantity in assembly group: 2 Piece / Pos. 38

CYL-BOLT M10X35 7984-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 39
