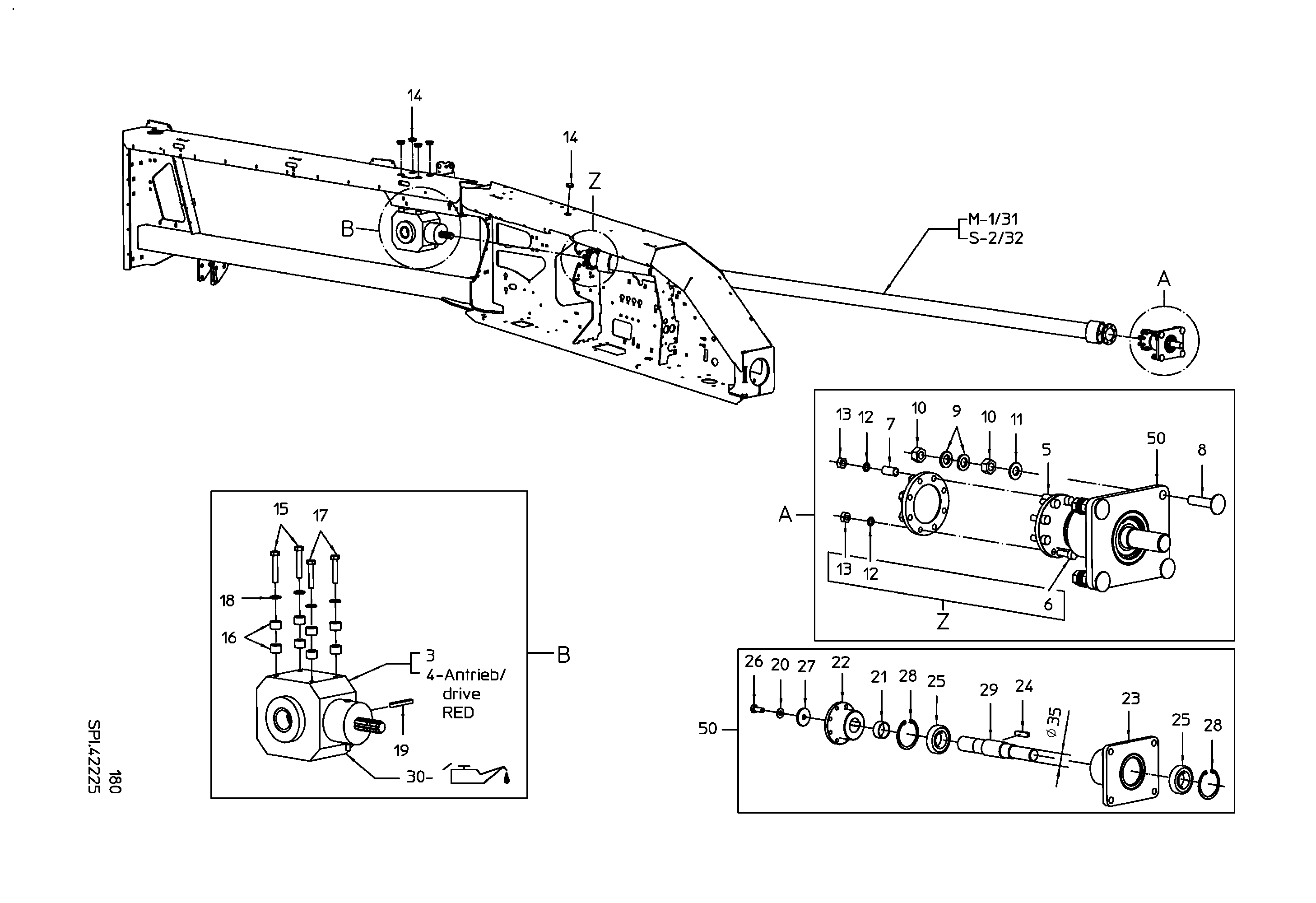

Parts by subassemblies

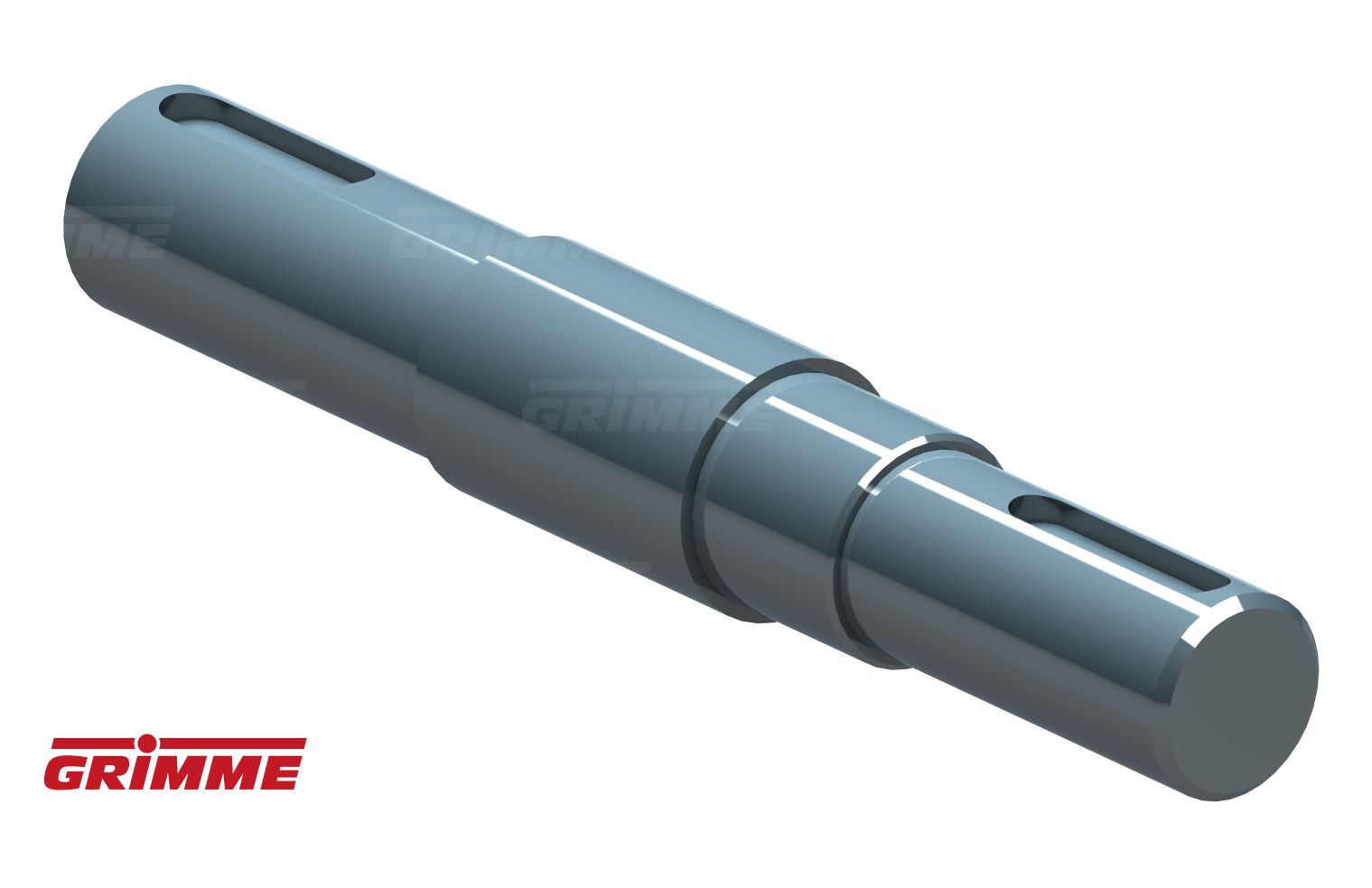

MAIN DRIVE SHAFT GT170M

Quantity in assembly group: 1 Piece / Pos. 1

MAIN DRIVE SHAFT GT170S

Quantity in assembly group: 1 Piece / Pos. 2

GEARBOX GTR-51H-3,18:1 DM45

Quantity in assembly group: 1 Piece / Pos. 3

GEARBOX GTR-51 3,91:1

Quantity in assembly group: 1 Piece / Pos. 4

SHC-SCREW 912 M10X60-8.8 GAL

Quantity in assembly group: 1 Piece / Pos. 5

SHC-SCREW DIN912 M10X30-8.8-GA

Quantity in assembly group: 7 Piece / Pos. 6

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 7

COACH BOLT/SS M16X70-603-8.8-G

Quantity in assembly group: 4 Piece / Pos. 8

PLAIN WASHER 17X30X4

Quantity in assembly group: 8 Piece / Pos. 9

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 8 Piece / Pos. 10

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 4 Piece / Pos. 11

BLOCKING DISC SKZ 10-GAL

Quantity in assembly group: 8 Piece / Pos. 12

HEXAGON NUT M10 DIN934-8-GAL

Quantity in assembly group: 8 Piece / Pos. 13

GPN300-LOCKING PLUG F30

Quantity in assembly group: 5 Piece / Pos. 14

HEX-SCREW M14X80 931-8.8-GAL

Quantity in assembly group: 2 Piece / Pos. 15

SPACER 20MM

Quantity in assembly group: 8 Piece / Pos. 16

HEX BOLT M14X70-DIN931-8.8-G

Quantity in assembly group: 2 Piece / Pos. 17

CONTACT WASHER FORM M 14-GAL

Quantity in assembly group: 4 Piece / Pos. 18

FEATHER KEY A 14X9X90 DIN6885

Quantity in assembly group: 1 Piece / Pos. 19

CONTACT DISC FORM M 12-GAL

Quantity in assembly group: 1 Piece / Pos. 20

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 21

COUPLING FLANGE

Quantity in assembly group: 1 Piece / Pos. 22

BEARING BLOCK

Quantity in assembly group: 1 Piece / Pos. 23

FEATHER KEY A 12X8X50 DIN6885

Quantity in assembly group: 1 Piece / Pos. 24

BALL BEARING 6208-2RS/C3

Quantity in assembly group: 2 Piece / Pos. 25

SET SCREW M12X30-DIN933-8.8-G

Quantity in assembly group: 1 Piece / Pos. 26

RETAINING WASHER

Quantity in assembly group: 1 Piece / Pos. 27

RETAINING RING J 80X2,5 DIN472

Quantity in assembly group: 2 Piece / Pos. 28

INTERMEDIATE SHAFT

Quantity in assembly group: 1 Piece / Pos. 29

GEB OIL HYP SAE 85 W90 API GL5

Quantity in assembly group: 2 Piece / Pos. 30

CROSS JOINT 34,90X106,4 (RED)

Quantity in assembly group: 1 Piece / Pos. 31

CROSS JOINT 42,00X106,0 BLACK

Quantity in assembly group: 1 Piece / Pos. 32

INPUT DRIVE COMPLETE

Quantity in assembly group: 1 Piece / Pos. 50
