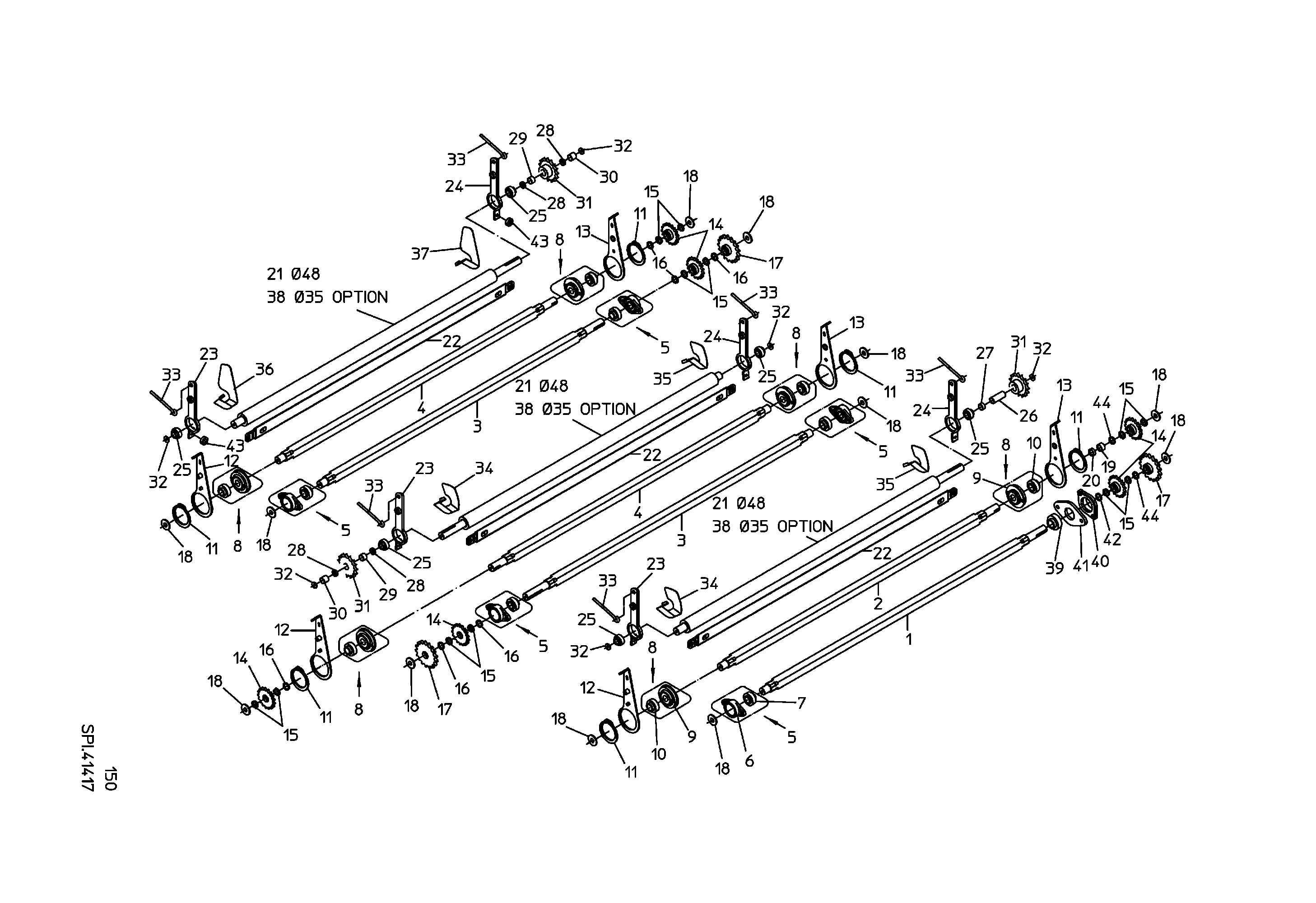

Parts by subassemblies

STAR SHAFT

Quantity in assembly group: 1 Piece / Pos. 1

ROLLER SHAFT

Quantity in assembly group: 1 Piece / Pos. 2

ROLLER SHAFT

Quantity in assembly group: 2 Piece / Pos. 3

ROLLER SHAFT

Quantity in assembly group: 2 Piece / Pos. 4

BEARING HOUSING W30

Quantity in assembly group: 5 Piece / Pos. 5

BEARING HOUSING

Quantity in assembly group: 5 Piece / Pos. 6

HINGE BEARING

Quantity in assembly group: 6 Piece / Pos. 8

BEARING HOUSING S30

Quantity in assembly group: 6 Piece / Pos. 9

BEARING YAR 206-2RF/UC206

Quantity in assembly group: 6 Piece / Pos. 10

RETAINING RING A 108X4 DIN471

Quantity in assembly group: 6 Piece / Pos. 11

BRACKET R/H

Quantity in assembly group: 3 Piece / Pos. 12

BRACKET L/H

Quantity in assembly group: 3 Piece / Pos. 13

SPROCKET ASA60-1 T17

Quantity in assembly group: 6 Piece / Pos. 14

CLAMPING RING

Quantity in assembly group: 12 Piece / Pos. 15

SPACER RING

Quantity in assembly group: 5 Piece / Pos. 16

SPROCKET ASA60-1 T21

Quantity in assembly group: 3 Piece / Pos. 17

FLAT WASHER R11 DIN440 GAL

Quantity in assembly group: 12 Piece / Pos. 18

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 19

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 20

CLOD ROLLER

Quantity in assembly group: 3 Piece / Pos. 21

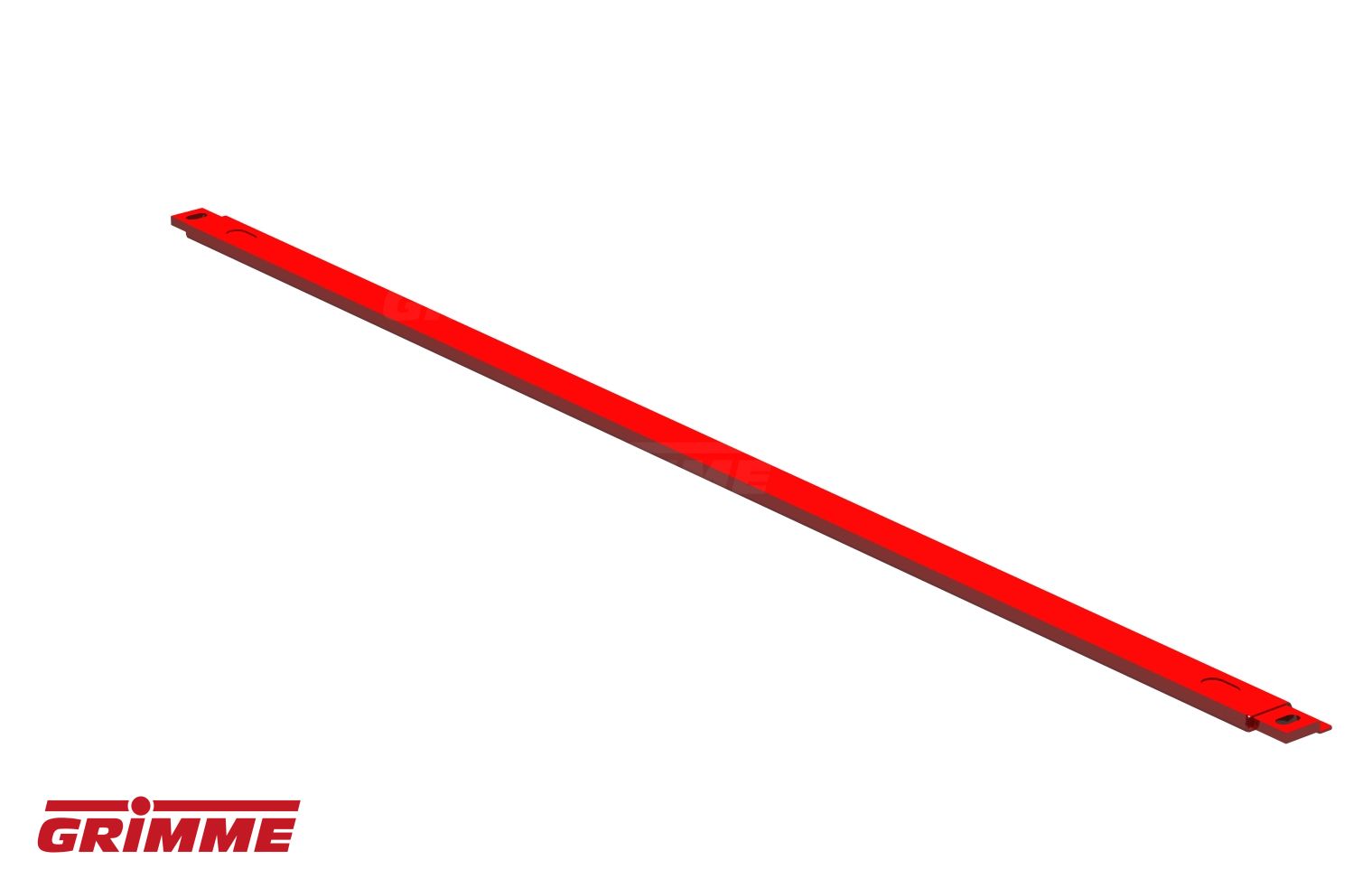

CLOD ROLLER SCRAPER

Quantity in assembly group: 3 Piece / Pos. 22

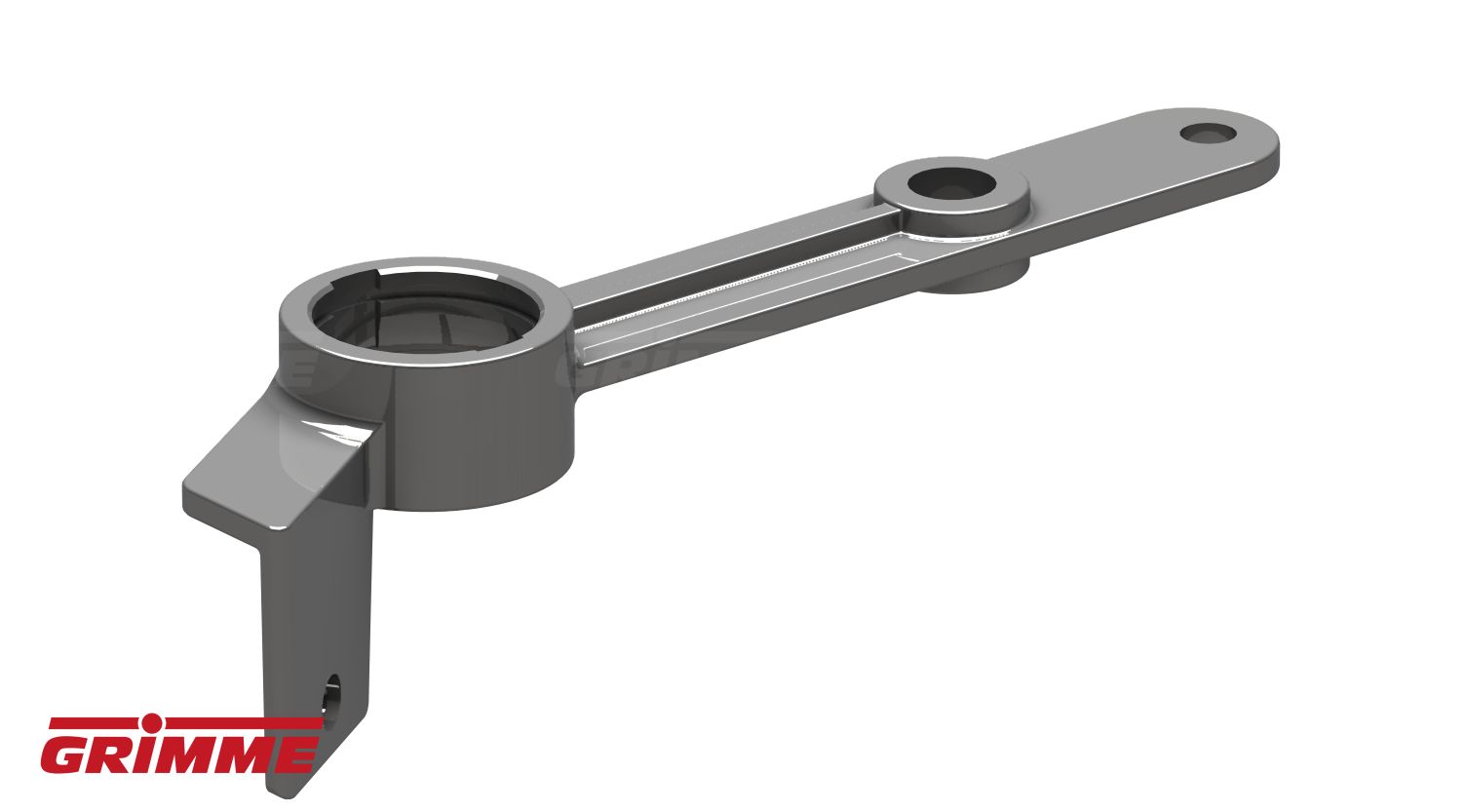

BEARING ARM R/H

Quantity in assembly group: 3 Piece / Pos. 23

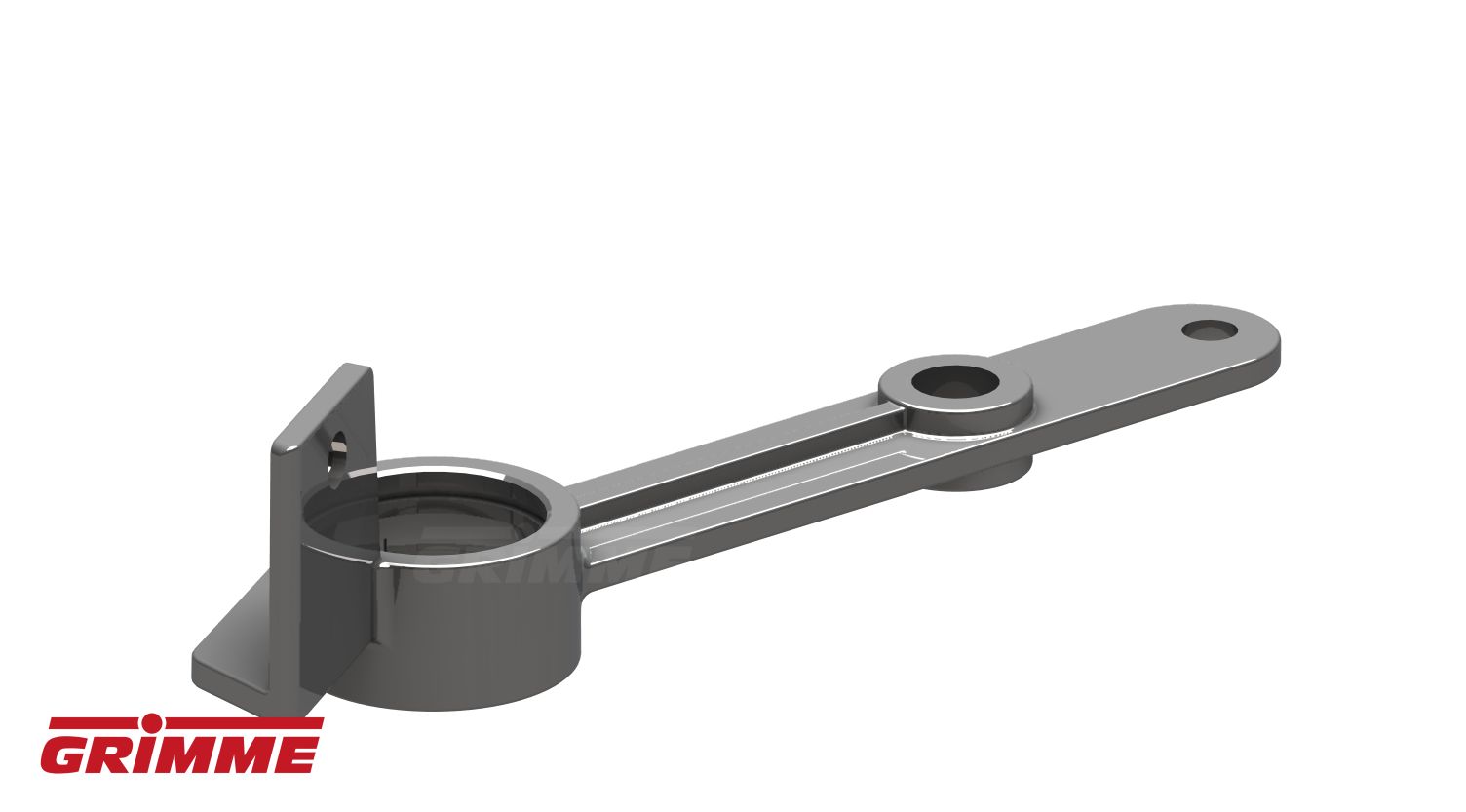

BEARING ARM L/H

Quantity in assembly group: 3 Piece / Pos. 24

BEARING YAR 205-2RF/UC205

Quantity in assembly group: 6 Piece / Pos. 25

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 26

SPACER TUBE

Quantity in assembly group: 1 Piece / Pos. 27

SPACER TUBE

Quantity in assembly group: 4 Piece / Pos. 28

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 29

SPACER TUBE

Quantity in assembly group: 2 Piece / Pos. 30

SPROCKET ASA60-1 T15

Quantity in assembly group: 3 Piece / Pos. 31

END DISC

Quantity in assembly group: 6 Piece / Pos. 32

THREAD EYELET

Quantity in assembly group: 6 Piece / Pos. 33

COVERAGE R/H

Quantity in assembly group: 2 Piece / Pos. 34

COVERAGE L/H

Quantity in assembly group: 2 Piece / Pos. 35

COVERAGE REAR R/H

Quantity in assembly group: 1 Piece / Pos. 36

COVERAGE REAR L/H

Quantity in assembly group: 1 Piece / Pos. 37

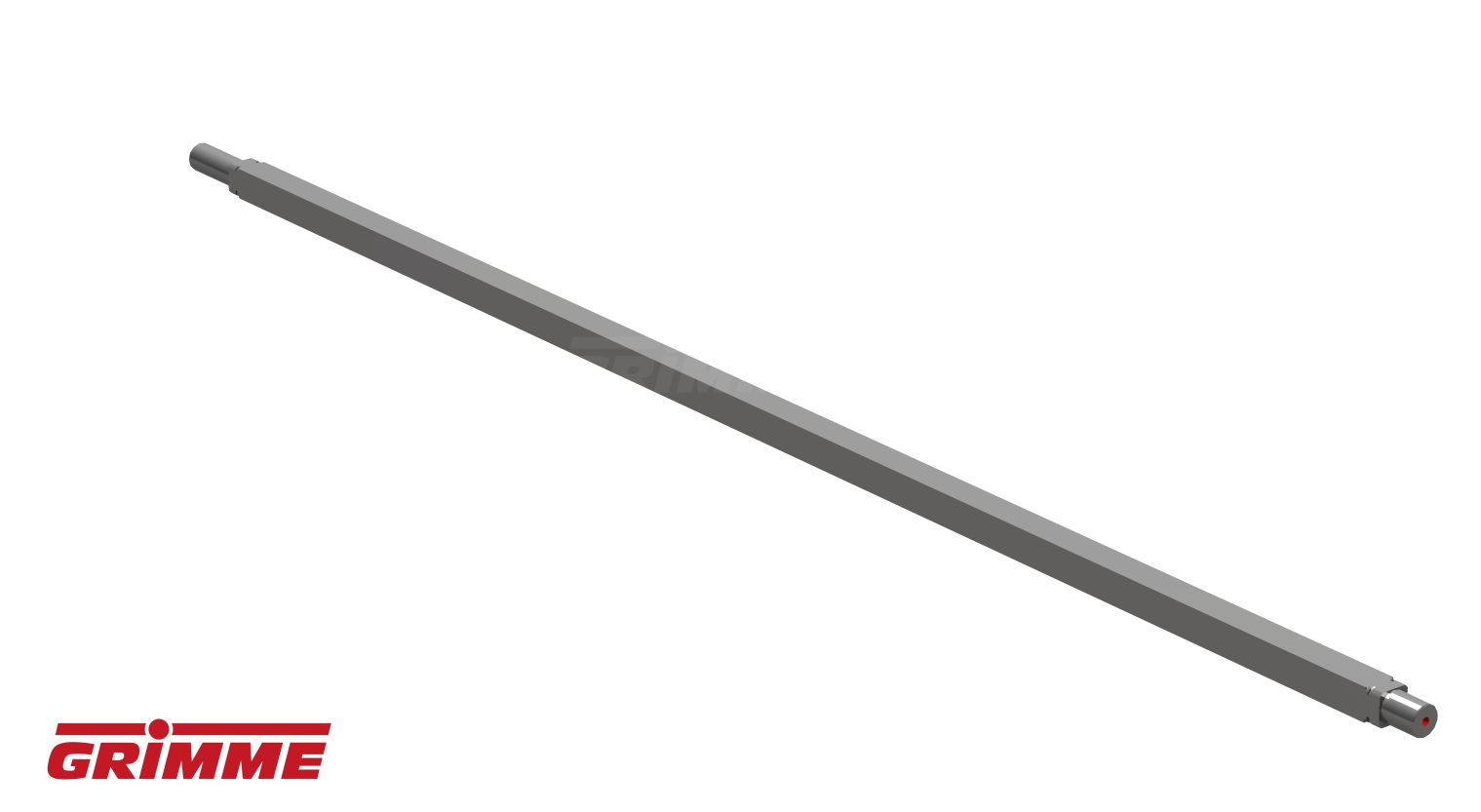

SHAFT

Quantity in assembly group: 3 Piece / Pos. 38

BEARING YAR 207-2RF/UC207

Quantity in assembly group: 1 Piece / Pos. 39

BEARING HOUSING FL 207

Quantity in assembly group: 1 Piece / Pos. 40

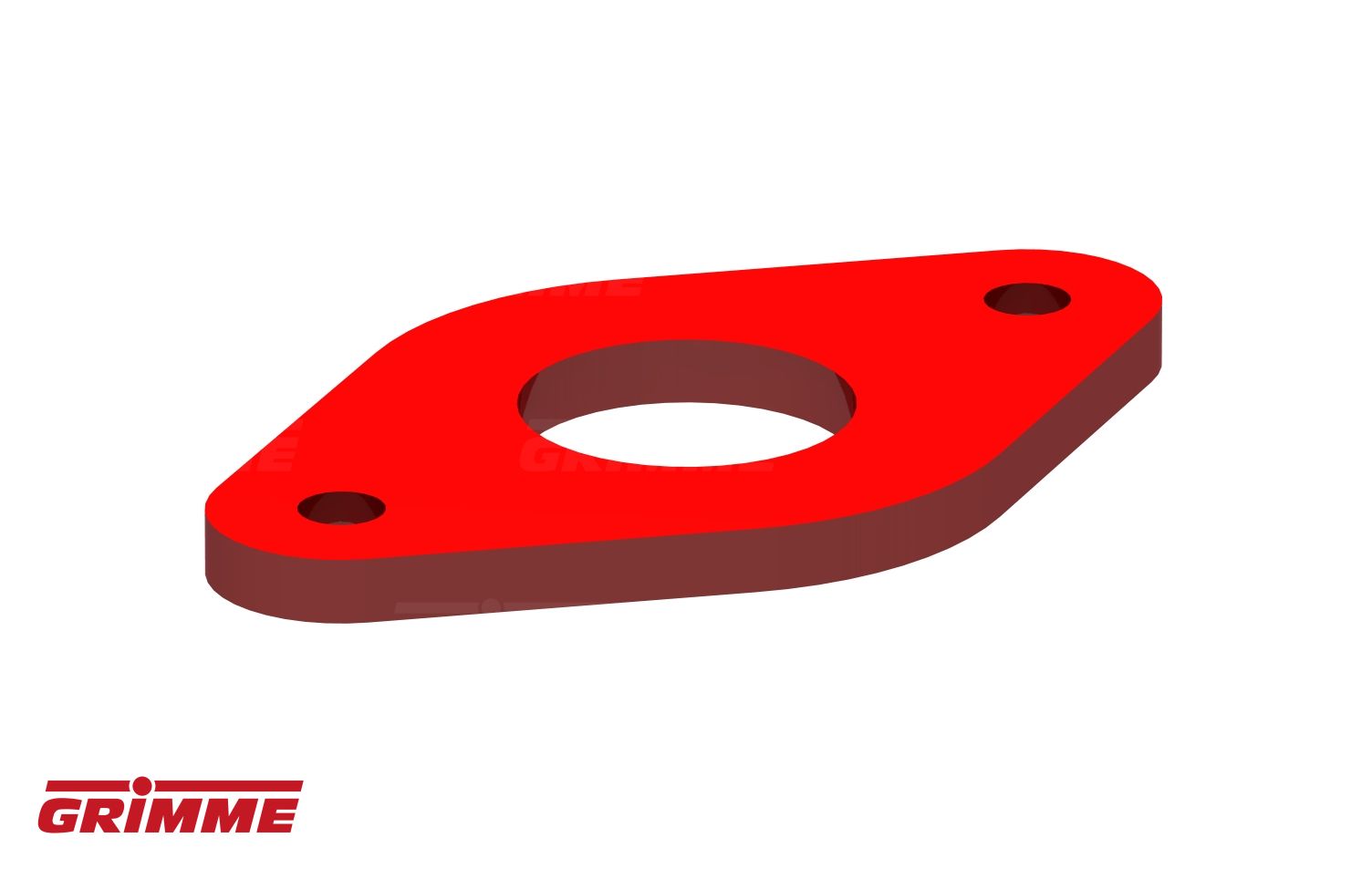

FLANGE PLATE

Quantity in assembly group: 1 Piece / Pos. 41

SPACER RING

Quantity in assembly group: 1 Piece / Pos. 42

SPACER PIECE 16,5X30X10

Quantity in assembly group: 2 Piece / Pos. 43

COMPENSATING RING

Quantity in assembly group: 2 Piece / Pos. 44
