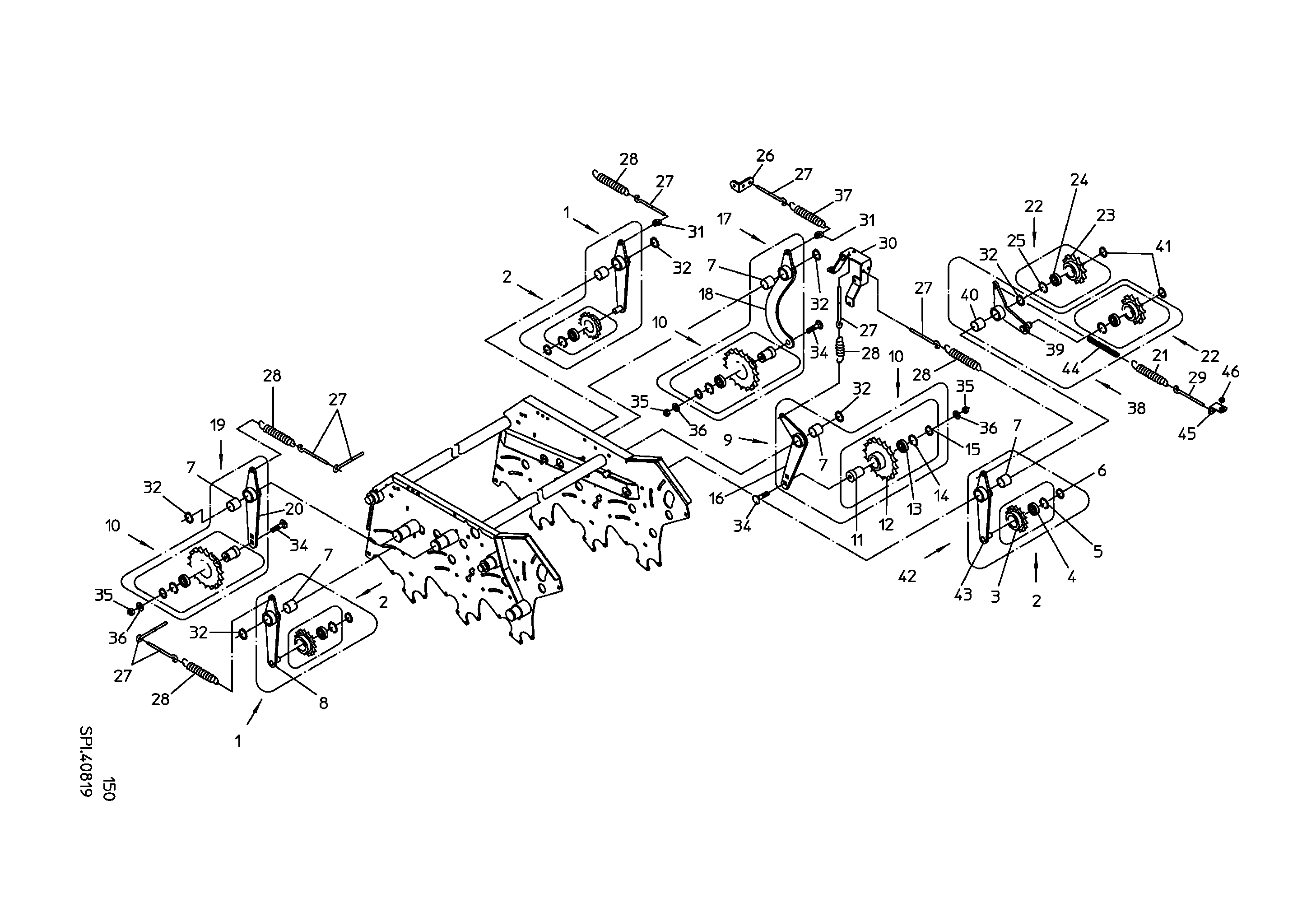

Parts by subassemblies

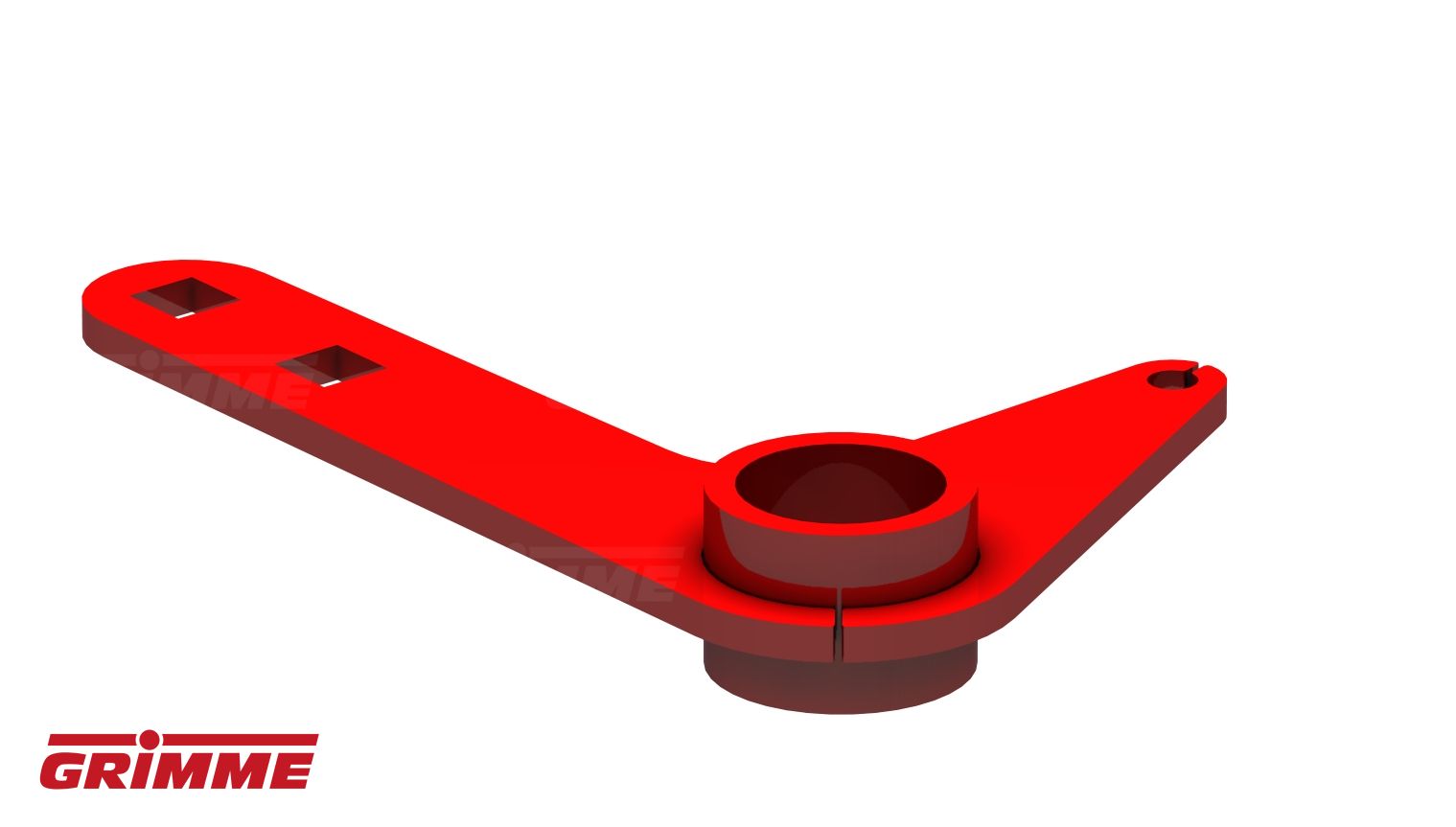

BEARING ARM

Quantity in assembly group: 2 Piece / Pos. 1

SPROCKET DEW

Quantity in assembly group: 3 Piece / Pos. 2

SPROCKET 3/4"-T15

Quantity in assembly group: 3 Piece / Pos. 3

BALL BEARING 6205-2RS

Quantity in assembly group: 3 Piece / Pos. 4

MOUNTING ARM

Quantity in assembly group: 2 Piece / Pos. 8

MOUNTING ARM

Quantity in assembly group: 1 Piece / Pos. 9

IDLER SPROCKET 3/4"

Quantity in assembly group: 3 Piece / Pos. 10

PIVOT

Quantity in assembly group: 3 Piece / Pos. 11

SPROCKET ASA60-1 T20

Quantity in assembly group: 3 Piece / Pos. 12

MOUNTING ARM L/H

Quantity in assembly group: 1 Piece / Pos. 16

MOUNTING ARM

Quantity in assembly group: 1 Piece / Pos. 17

MOUNTING ARM

Quantity in assembly group: 1 Piece / Pos. 18

MOUNTING ARM

Quantity in assembly group: 1 Piece / Pos. 19

MOUNTING ARM

Quantity in assembly group: 1 Piece / Pos. 20

TENSION SPRING

Quantity in assembly group: 1 Piece / Pos. 21

TENSIONER SPROCKET

Quantity in assembly group: 2 Piece / Pos. 22

SPROCKET 1"-T12

Quantity in assembly group: 2 Piece / Pos. 23

RETAINING RING J 52X2 DIN472

Quantity in assembly group: 2 Piece / Pos. 25

ANGLE

Quantity in assembly group: 1 Piece / Pos. 26

THREAD EYELET

Quantity in assembly group: 9 Piece / Pos. 27

TENSION SPRING

Quantity in assembly group: 6 Piece / Pos. 28

EYELET SCREW

Quantity in assembly group: 1 Piece / Pos. 29

BRACKET

Quantity in assembly group: 1 Piece / Pos. 30

RING NUT M8

Quantity in assembly group: 1 Piece / Pos. 31

RETAINING RING AS 40X2,5 DIN47

Quantity in assembly group: 6 Piece / Pos. 32

COACH BOLT/SS M16X65-603-8.8-G

Quantity in assembly group: 3 Piece / Pos. 34

HEXAGON NUT M16 DIN934-8-GAL

Quantity in assembly group: 3 Piece / Pos. 35

CONTACT WASHER FORM M 16-GAL

Quantity in assembly group: 3 Piece / Pos. 36

TENSION SPRING

Quantity in assembly group: 1 Piece / Pos. 37

TENSION ARM

Quantity in assembly group: 1 Piece / Pos. 38

TENSION ARM

Quantity in assembly group: 1 Piece / Pos. 39

PLAIN BEARING BUSH 404440

Quantity in assembly group: 1 Piece / Pos. 40

RETAINING RING A 25X1,2 DIN471

Quantity in assembly group: 2 Piece / Pos. 41

CHAIN TENSIONER AXLE RED

Quantity in assembly group: 1 Piece / Pos. 42

MOUNTING ARM

Quantity in assembly group: 1 Piece / Pos. 43

LINK CHAIN 15LI C5X36 DIN763-G

Quantity in assembly group: 1 Piece / Pos. 44

ANGLE

Quantity in assembly group: 1 Piece / Pos. 45

BUSHING

Quantity in assembly group: 1 Piece / Pos. 46
