Your machine: POTATO HARVESTER GT 170 M+S GT170(S/N: 45002062) modify ▸

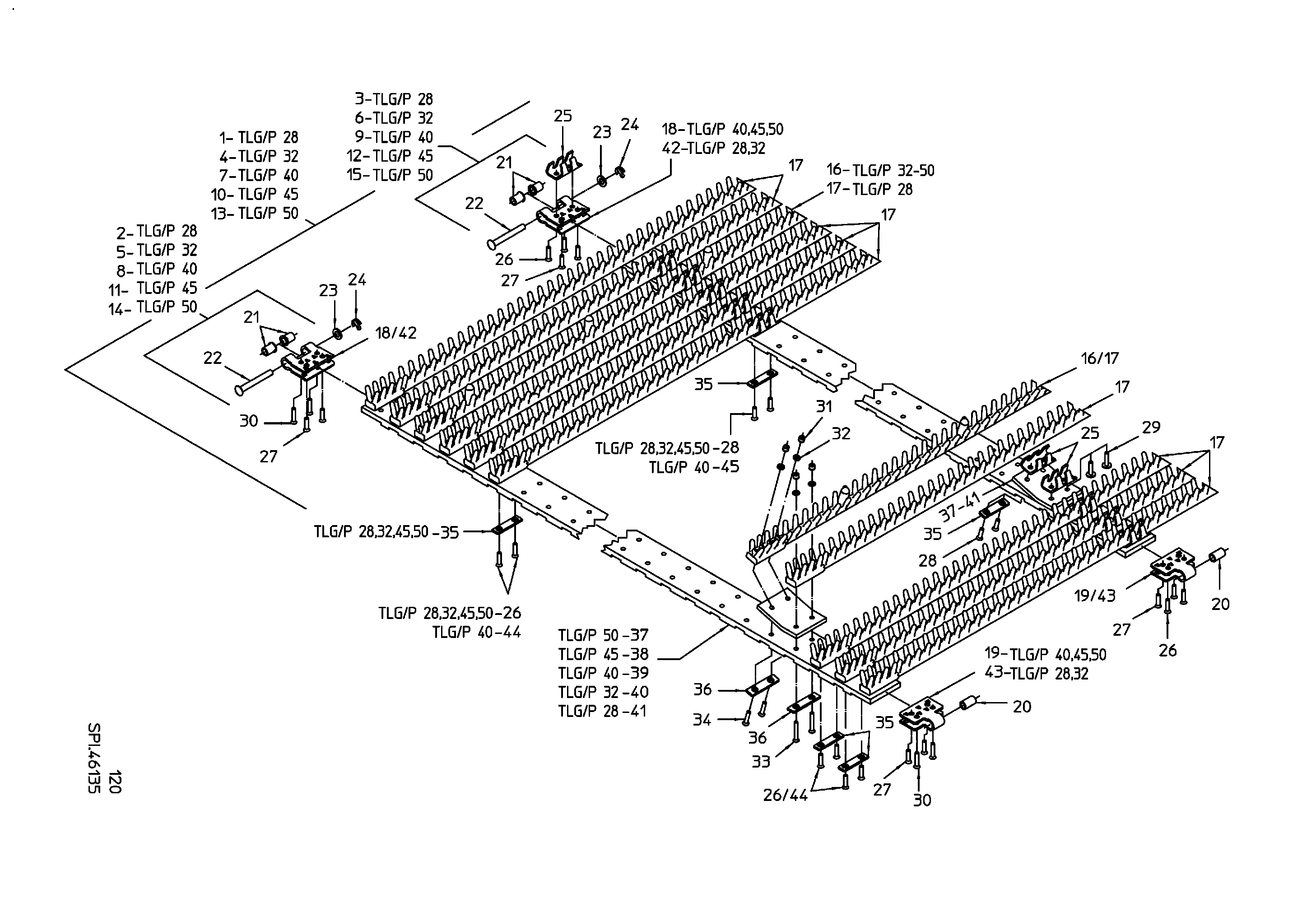

Subassembly drawing

▸ Selected assembly group:

Selected subassembly

▸
HAULM ELV WEB PB 1631 P 28-50 (45 Parts)

Subassembly parts

All items Equipment ex work ()
SEPARATING WEB 28/1627/3252
Quantity in assembly group: 1 Piece / Pos. 1
BELT SCA-FLAT 60/28X113
Quantity in assembly group: 2 Piece / Pos. 2
BELT SCA-FLAT 60/28X113
Quantity in assembly group: 2 Piece / Pos. 3
SEPARATING WEB 32/1627/3258
Quantity in assembly group: 1 Piece / Pos. 4
BT SCA-FLAT 60/32X101
Quantity in assembly group: 2 Piece / Pos. 5
BT SCA-FLAT 60/32X101
Quantity in assembly group: 2 Piece / Pos. 6
SEPARATING WEB 40/1627/3264
Quantity in assembly group: 1 Piece / Pos. 7
OUTER BELT 81SCA-FLAT 60/40
Quantity in assembly group: 2 Piece / Pos. 8
CENTRE BELT 81SCA-FLAT 60/40
Quantity in assembly group: 2 Piece / Pos. 9
SEPARATING WEB 45/1627/3266
Quantity in assembly group: 1 Piece / Pos. 10
BT SCA-FLAT 60/45X72
Quantity in assembly group: 2 Piece / Pos. 11
BT SCA-FLAT 60/45X72
Quantity in assembly group: 2 Piece / Pos. 12
SEPARATING WEB 50/1627/3274
Quantity in assembly group: 1 Piece / Pos. 13
BT SCA-FLAT 60/50X65
Quantity in assembly group: 2 Piece / Pos. 14
BT SCA-FLAT 60/50X65
Quantity in assembly group: 2 Piece / Pos. 15
V-PB 1621
Quantity in assembly group: 16 Piece / Pos. 16
V-PB 1621
Quantity in assembly group: 51 Piece / Pos. 17
BT-BIN TYPE2 P40 DBH32 OU
Quantity in assembly group: 4 Piece / Pos. 18
BT-BIN TYPE2 P40 DBH32 IN
Quantity in assembly group: 4 Piece / Pos. 19
BUSHING 12X8,2X21
Quantity in assembly group: 4 Piece / Pos. 20
THREADED BUSH 12X8,2X16,5
Quantity in assembly group: 8 Piece / Pos. 21
COLLAR STUD 7,8X66
Quantity in assembly group: 4 Piece / Pos. 22
FLAT WASHER B8,4 DIN125 -GAL
Quantity in assembly group: 4 Piece / Pos. 23
COTTER PIN 3,2X14 DIN94-GAL
Quantity in assembly group: 4 Piece / Pos. 24
CLAMP
Quantity in assembly group: 134 Piece / Pos. 25
COUNTER-SUNK RIVET 5X21
Quantity in assembly group: 260 Piece / Pos. 26
COUNTER-SUNK RIVET 5X20
Quantity in assembly group: 16 Piece / Pos. 27
COUNTER-SUNK HOLLOW RIVET 5X19
Quantity in assembly group: 256 Piece / Pos. 28
HALF HOLLOW RIVET 5X21
Quantity in assembly group: 4 Piece / Pos. 29
COUNTER-SUNK RIVET 5X24
Quantity in assembly group: 8 Piece / Pos. 30
RETAINING RING 5 mm
Quantity in assembly group: 8 Piece / Pos. 31
DISC 5,3 DIN125-GALV
Quantity in assembly group: 8 Piece / Pos. 32
SHEAR TENSION RIVET 5X19,5-22,
Quantity in assembly group: 4 Piece / Pos. 33
SHEAR TE RIVET 5X13,5-16,5
Quantity in assembly group: 4 Piece / Pos. 34
RIVET PLATE 32/5
Quantity in assembly group: 254 Piece / Pos. 35
RIVET PLATE 32/5,3
Quantity in assembly group: 4 Piece / Pos. 36
DROP PIECE P 50
Quantity in assembly group: 4 Piece / Pos. 37
DROP PIECE P 45
Quantity in assembly group: 4 Piece / Pos. 38
DROP PIECE P 40
Quantity in assembly group: 4 Piece / Pos. 39
DROP PIECE P 32
Quantity in assembly group: 4 Piece / Pos. 40
DROP PIECE P 28
Quantity in assembly group: 4 Piece / Pos. 41
BT-BIN TYPE2 P35 DBH32 OU
Quantity in assembly group: 4 Piece / Pos. 42
BT-BIN TYPE2 P35 DBH32 IN
Quantity in assembly group: 4 Piece / Pos. 43
WIDE HEADED RIVET 5X16
Quantity in assembly group: 156 Piece / Pos. 44
HALF HOLLY RIVET 5X15
Quantity in assembly group: 158 Piece / Pos. 45
